Week 3 - 2D meshing for Sheet metal

OBJECTIVE : To take the mid surface for all the components after checking the geometrical errors and mesh the mid surface with the given element Quality criteria.

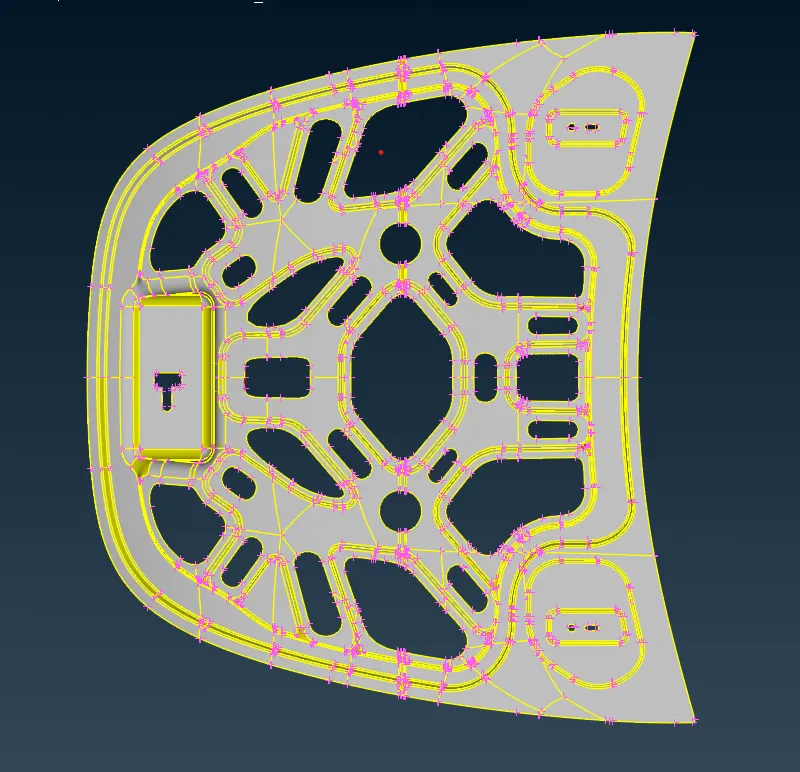

CAD MODEL IMAGE :

GEOMETRY CLEAN-UP : In geometry clean-up remove all the errors from the geometry and by using fine option make sure that the CAD model should look like the real object.

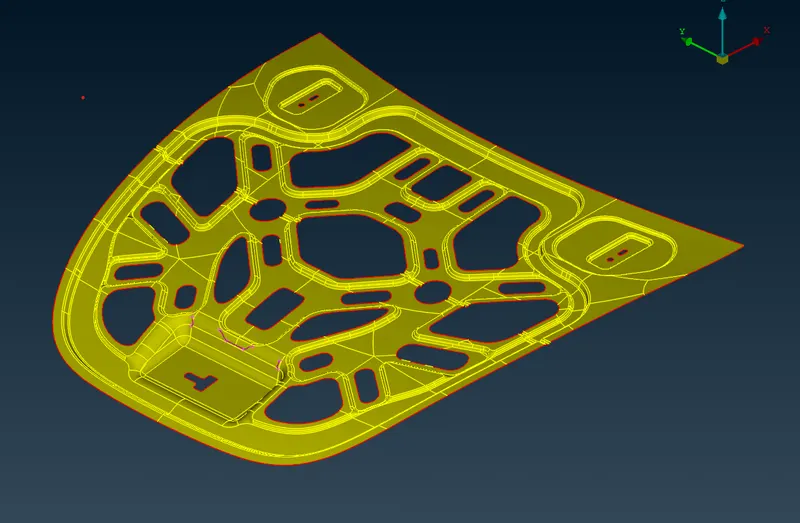

MID-SURFACE GENERATION : It is the process of generating mid-surface in order to proper meshing.

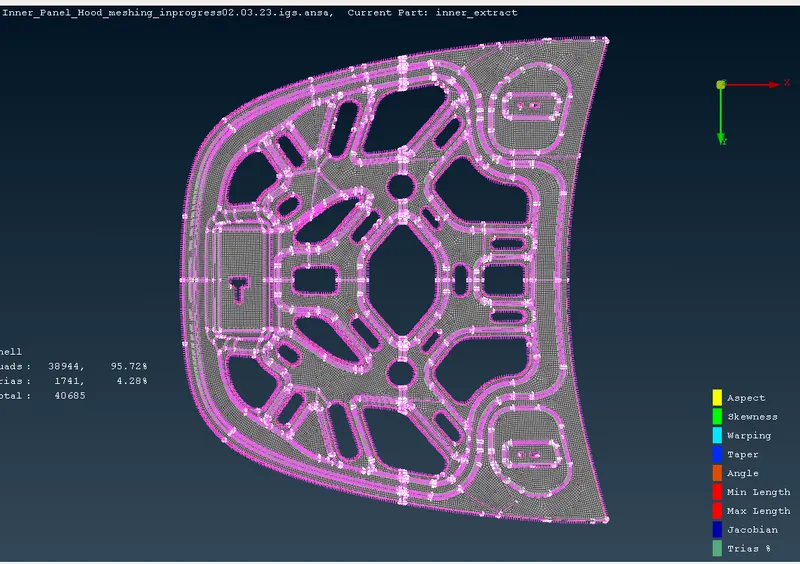

FINAL MODEL IMAGE :
