Week 4 - 2D Meshing for Sheet Metal

Aim : For the given CCB CAD model, Check for the Geometry cleanup (if required), Take the mid surface, and Mesh it with the below 2D element Quality criteria.

Model :

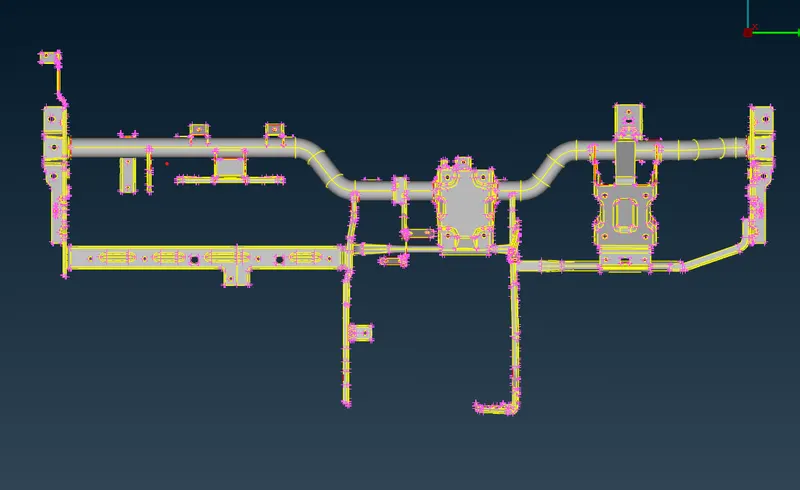

Mid_surface extraction and mesh generation:

Taken midsurface by using offset command and mid_suraface command wherever required. After that set PID for same thickness parts and set the links length to 5 as per requirements.

Then quality standards set for model as per challange requirement and meshing started on individual parts.

For meshing used BEST command and removed any errors generated using RECONSTRUCT and SPLIT commands.

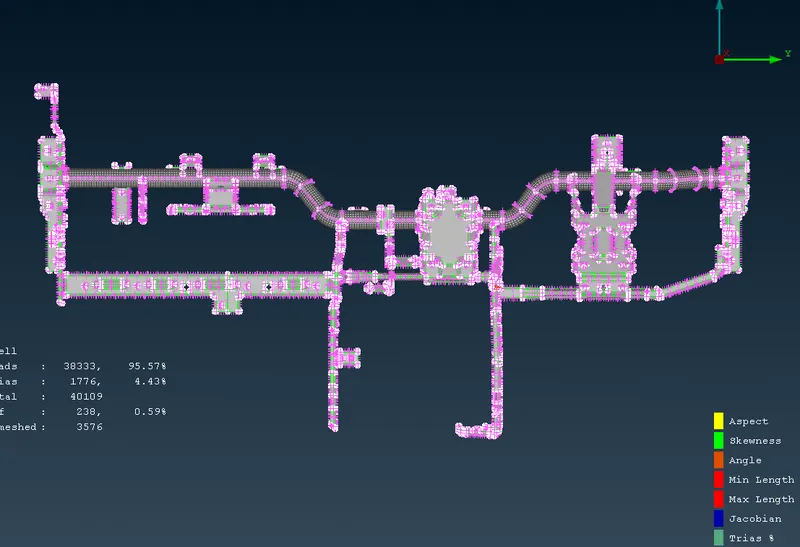

MESHED_MODEL :
