Week- 8 - Solid meshing

Aim: - TO create tria and ortho tria element method on surface after that convert to volume mesh and check tet collapse error.

Procedure: - Import CAD model after that topo and do check geometry.

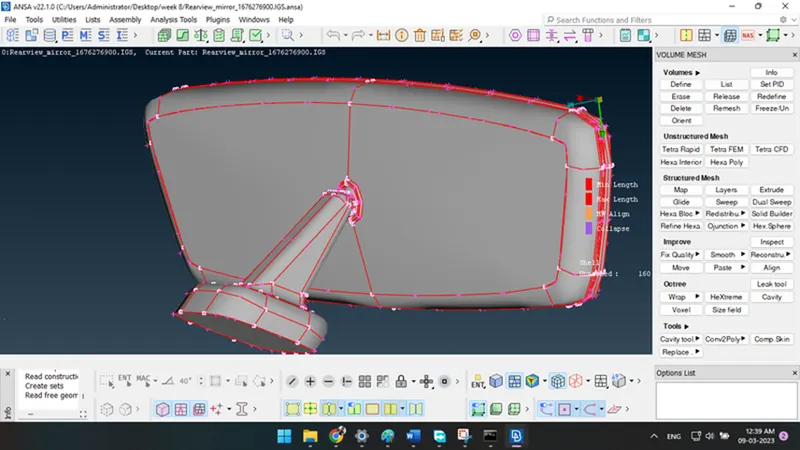

Before topo-

After topo and geometry clean up-

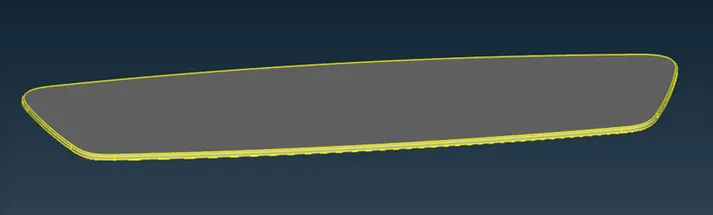

four-part present in this challenge

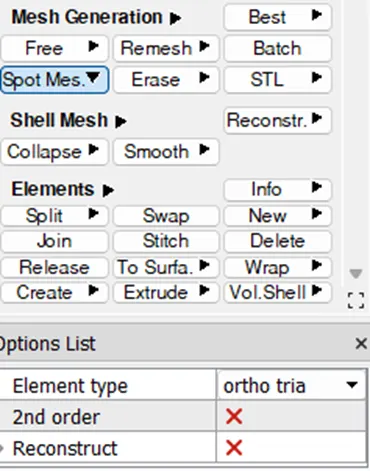

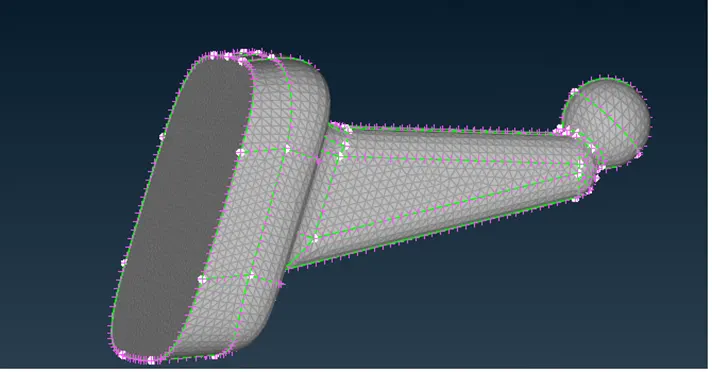

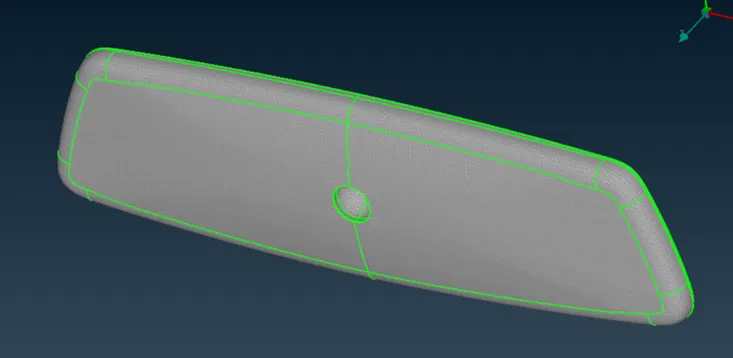

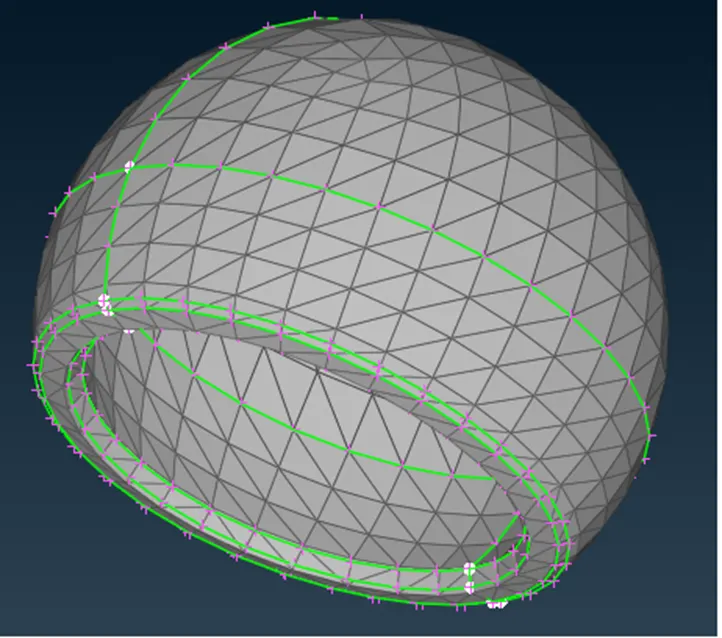

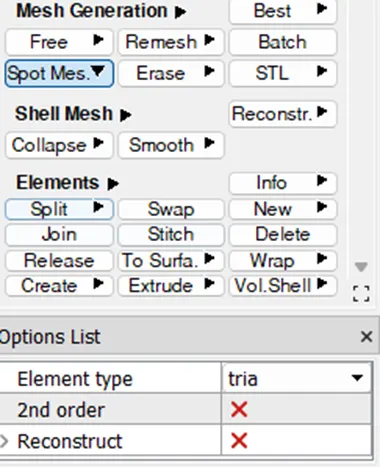

after that tria mesh on flat surface and ortho tria curve surface is used one by one part

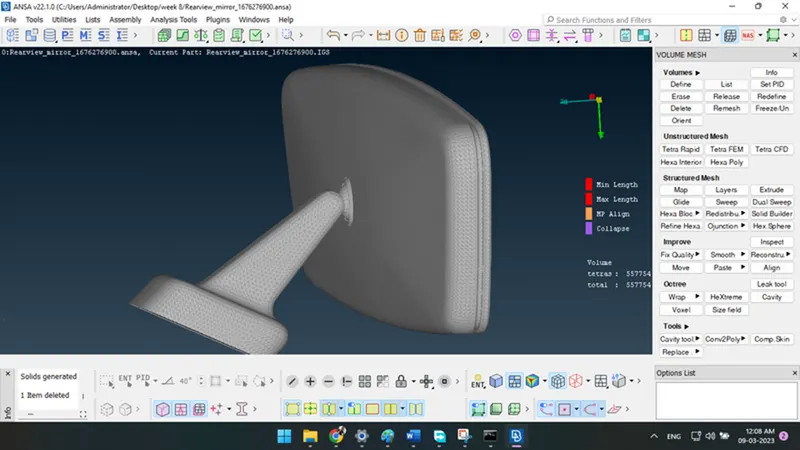

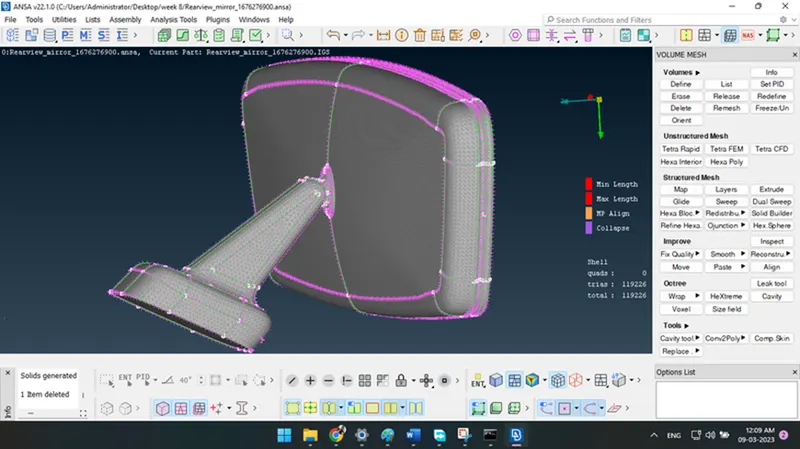

Volume Mesh: -

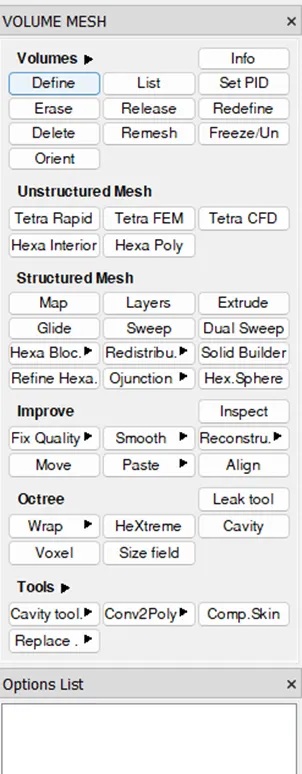

After that use (Define, list, tetra rapid, tetra fem.)

Outcomes: - knows about tria mesh and ortho tria mesh and volume mesh.

Conclusion: - It was easy to solve given problem.
