Week 4 - 2D Meshing for Sheet Metal

Objective: - To create the mid surface, and mesh with element Quality criteria.

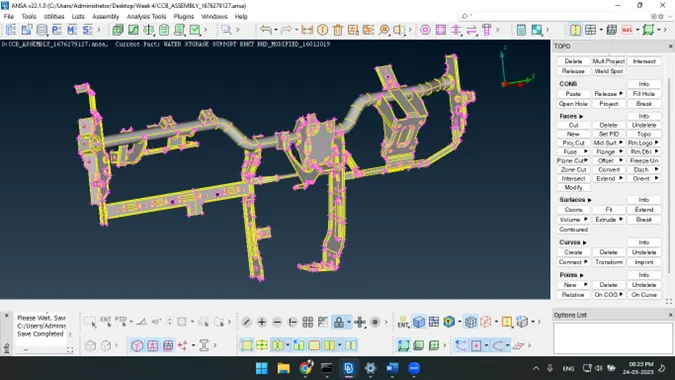

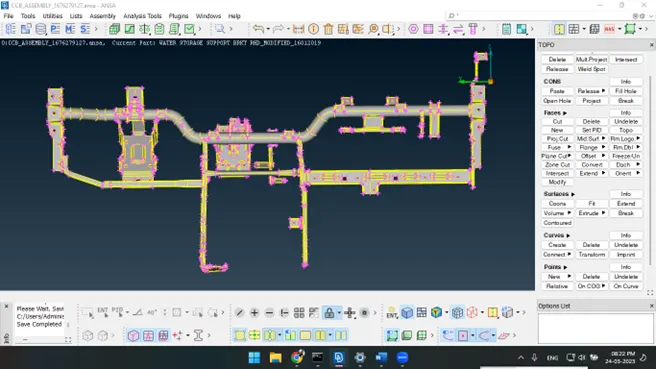

Cad model

1.
2.

Procedure: -

Geometry Clean-up use tool like release cons and delete extra hot point Remove single cons in given cad model and after that topo.

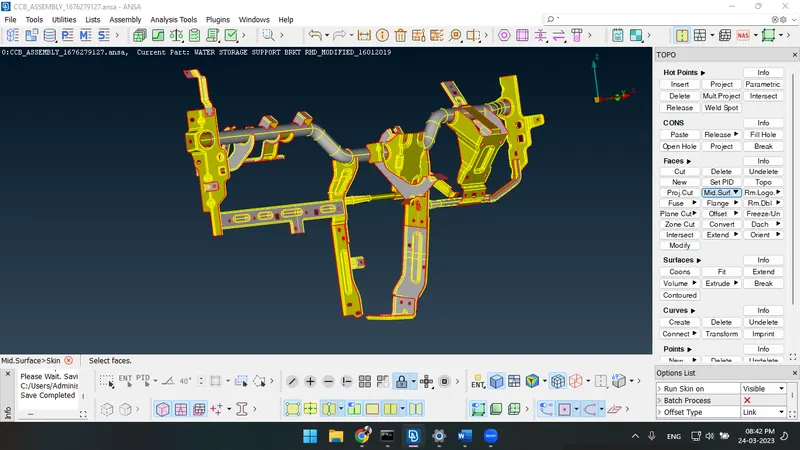

Mid Surface: -

For mid surface generation have used method skin option in mid surface and offset method use in some part.

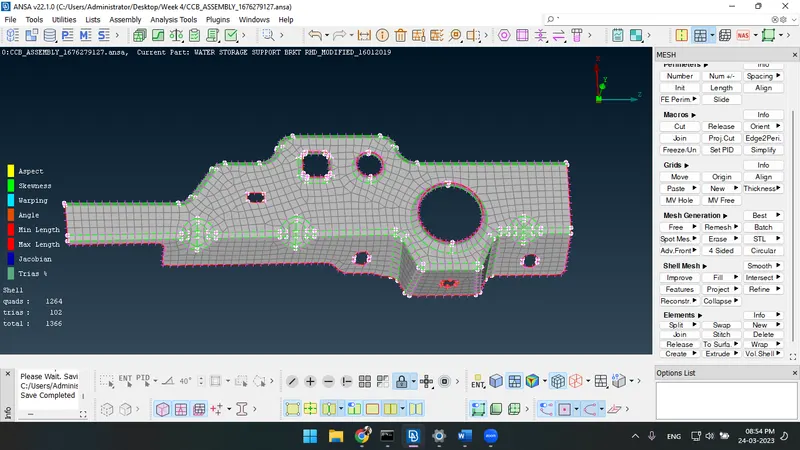

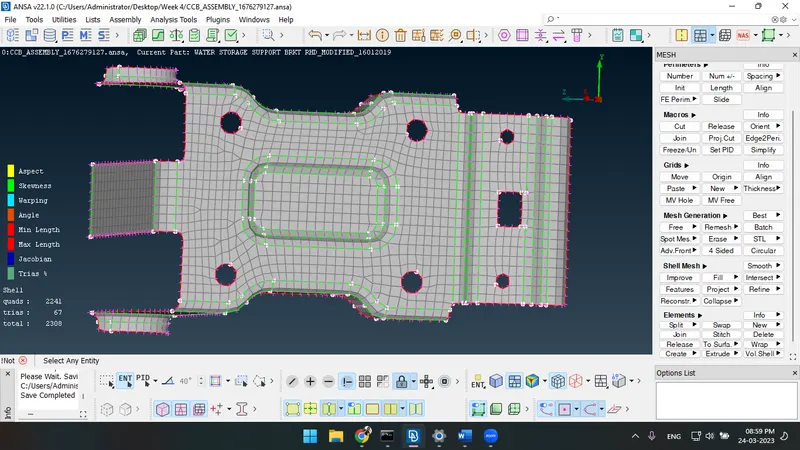

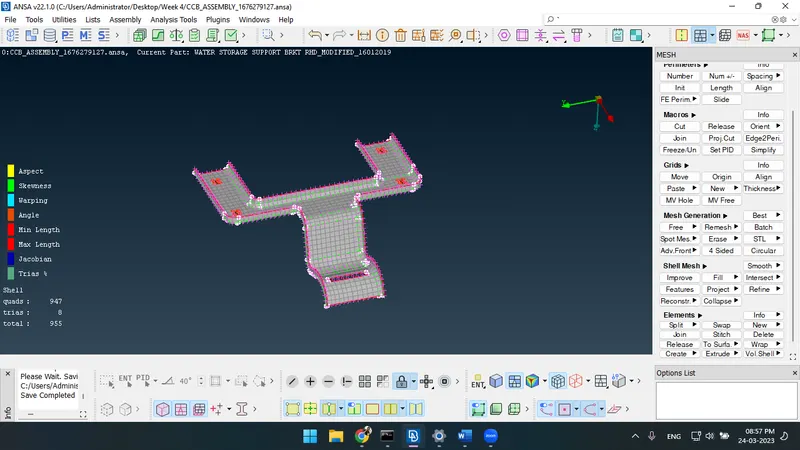

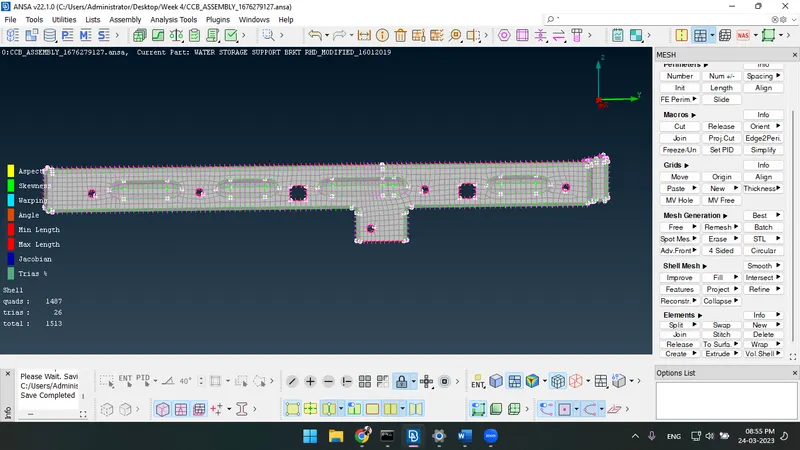

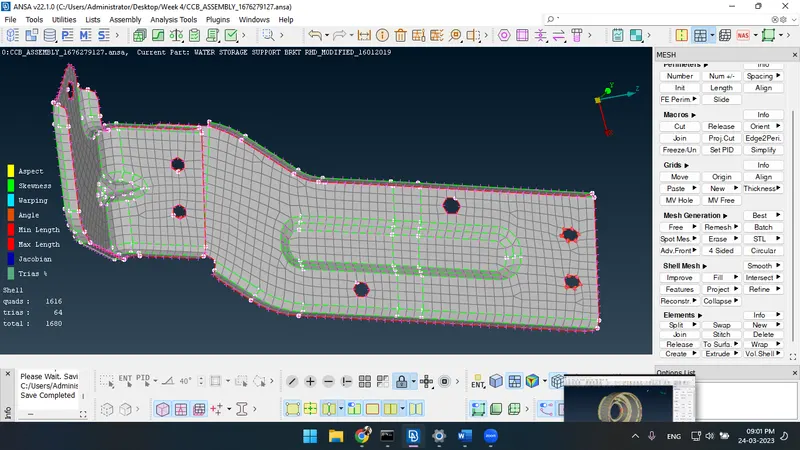

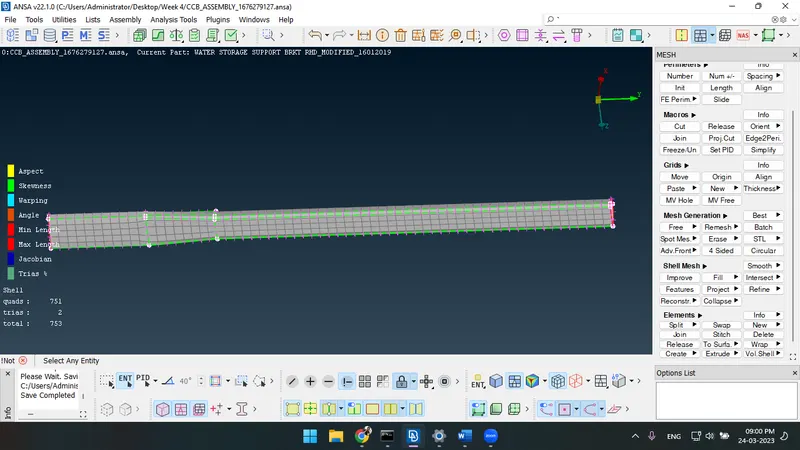

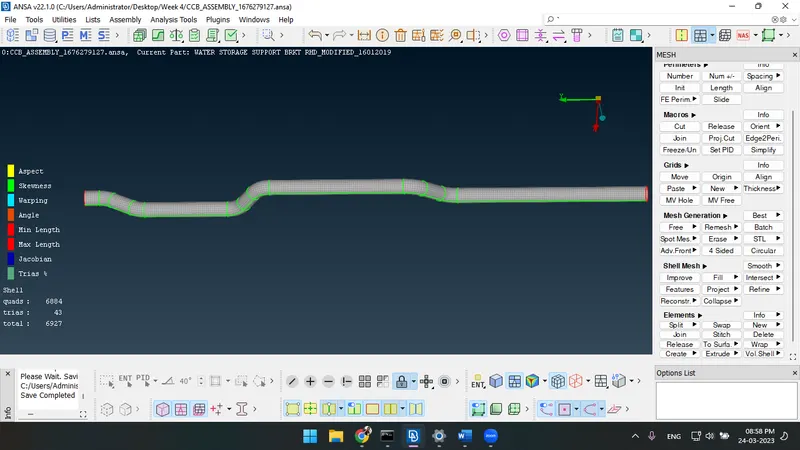

Mesh: -

For mesh generation have used best option in mesh and for good mesh flow have used tool like reconstruction , smooth and collapse in shell mesh. And also used split, swap, and join option in element.
