Week 8 - Simulation of a backward facing step in OpenFOAM
Objective: To simulate an incompressible-laminar-viscous flow through the backward-facing step geometry.
Procedure in OpenFoam:
- using 'tut' in the terminal we access the tutorial folder and we select the required type of simulation in this case we used incompressible flow simulation.
- Based on the flow we select icoFoam and in that cavity, the problem was selected and was copied to the run folder.
- Now we redirect to the run folder where we access the copied folder.
- on opening the copied folder we have mainly three sub folders namely '0', 'System', and 'constant'.
- '0': contain the value of the initial condition in this case we have velocity and pressure.
- 'system' contains
- 'BlockmeshDict: Geometrical and mesh information
- ControlDict: solver time and solution storage intervals.
- Fvsolutions: Instruction to solve discretized linear equation
- Fvschemes: Assign discretization schemes for primitive variables in governing equation.
- 'Constant' contain
- 'Polymesh': Contain geometrical and mesh info.
- 'transport properties': transport coefficients needed to solve the governing equation.
- 'turbulence properties': info on turbulent coefficient and moled used in the simulation.
Case 1: Simulate the flow without using any grading factor (i.e., GF = 1)
BlockMeshDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(.08 0 0)
(.08 0.005 0)
(0 0.005 0)
(0.08 0.01 0)
(0 0.01 0)
(0.2 0.01 0)
(0.2 0.005 0)
(0.2 0 0)
(0.2 -0.01 0)
(0.08 -0.01 0)
(0 0 0.1)
(.08 0 0.1)
(.08 0.005 0.1)
(0 0.005 0.1)
(0.08 0.01 0.1)
(0 0.01 0.1)
(0.2 0.01 0.1)
(0.2 0.005 0.1)
(0.2 0 0.1)
(0.2 -0.01 0.1)
(0.08 -0.01 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (1 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (1 0.2 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
outlet
{
type patch;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(10 1 8 9)
(1 2 7 8)
(2 4 6 7)
(11 12 13 14)
(14 13 15 16)
(21 20 19 12)
(12 19 18 13)
(13 18 17 15)
);
}
noslipwalls
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
(10 21 12 1)
(0 1 12 11)
(10 9 20 21)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //- The geometry was divided into 5 blocks and each of the vertices other than overlapping vertices of the blocks were inputted.
- Simple grading was mainly used to define the mesh and the ratio to which the mesh should be stretched.
- we can check for the built mesh with the help of blockMesh.
ControlDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 0.5;
deltaT 0.0001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //- As we are solving for incompressible flow we solve the incompressible momentum and continuity equation thus we use icoFoam here.
- Here we specify the start and end time also the time step for the simulation.
- The interval for storing the results is mentioned here.
Inlet pressure:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
noslipwalls
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
}
// ************************************************************************* //Inlet Velocity:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (1 0 0);
}
outlet
{
type zeroGradient;
}
noslipwalls
{
type noSlip;
}
frontAndBack
{
type empty;
}
}
// ************************************************************************* //- Here we specify the inlet and outlet face and assign with the values.
Results:

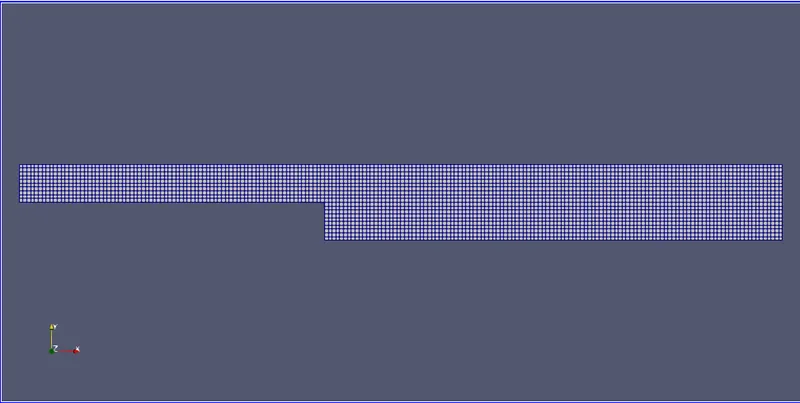

Mesh

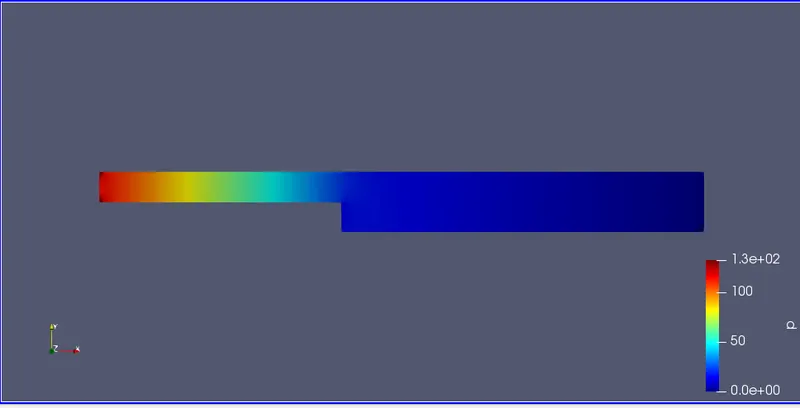

Pressure:

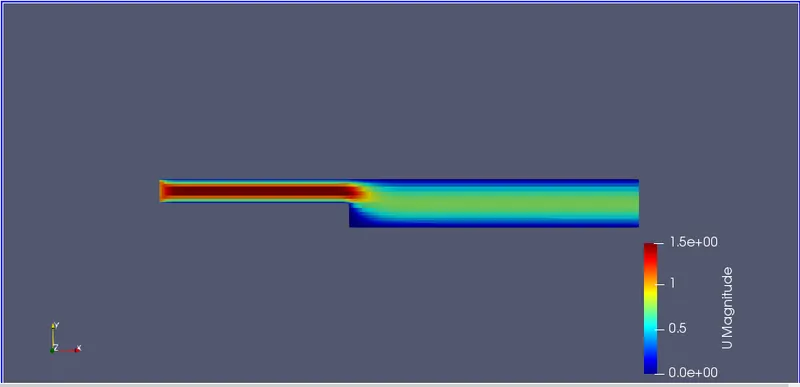

Velocity:

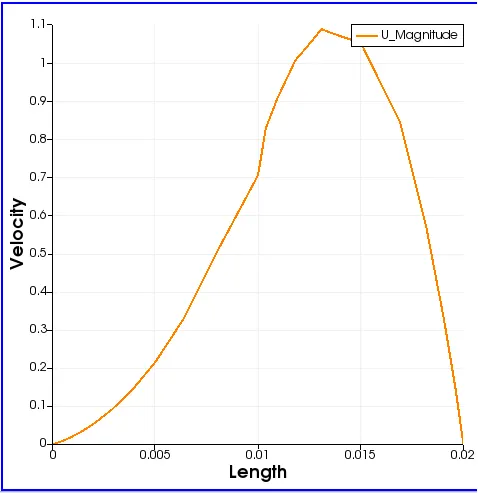

Velocity profile at 0.085 m from the inlet of the geometry:
Case2 : Simulating flow with grading factor 0.2 the cells should finer near the walls.
BlockmeshDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(.08 0 0)
(.08 0.005 0)
(0 0.005 0)
(0.08 0.01 0)
(0 0.01 0)
(0.2 0.01 0)
(0.2 0.005 0)
(0.2 0 0)
(0.2 -0.01 0)
(0.08 -0.01 0)
(0 0 0.1)
(.08 0 0.1)
(.08 0.005 0.1)
(0 0.005 0.1)
(0.08 0.01 0.1)
(0 0.01 0.1)
(0.2 0.01 0.1)
(0.2 0.005 0.1)
(0.2 0 0.1)
(0.2 -0.01 0.1)
(0.08 -0.01 0.1)
);
blocks
(
hex (0 1 2 3 11 12 13 14) (80 5 1) simpleGrading (1 5 1)
hex (3 2 4 5 14 13 15 16) (80 5 1) simpleGrading (1 0.2 1)
hex (10 9 8 1 21 20 19 12) (120 10 1) simpleGrading (5 5 1)
hex (1 8 7 2 12 19 18 13) (120 5 1) simpleGrading (5 5 1)
hex (2 7 6 4 13 18 17 15) (120 5 1) simpleGrading (5 0.2 1)
);
edges
(
);
boundary
(
inlet
{
type patch;
faces
(
(0 11 14 3)
(3 14 16 5)
);
}
outlet
{
type patch;
faces
(
(9 8 19 20)
(8 7 18 19)
(7 6 17 18)
);
}
frontAndBack
{
type empty;
faces
(
(0 3 2 1)
(3 5 4 2)
(10 1 8 9)
(1 2 7 8)
(2 4 6 7)
(11 12 13 14)
(14 13 15 16)
(21 20 19 12)
(12 19 18 13)
(13 18 17 15)
);
}
noslipwalls
{
type wall;
faces
(
(5 16 15 4)
(4 15 17 6)
(10 21 12 1)
(0 1 12 11)
(10 9 20 21)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //ControlDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 0.5;
deltaT 0.0001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //Inlet Pressure:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
noslipwalls
{
type zeroGradient;
}
frontAndBack
{
type empty;
}
}
// ************************************************************************* //Inlet Velocity:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (1 0 0);
}
outlet
{
type zeroGradient;
}
noslipwalls
{
type noSlip;
}
frontAndBack
{
type empty;
}
}

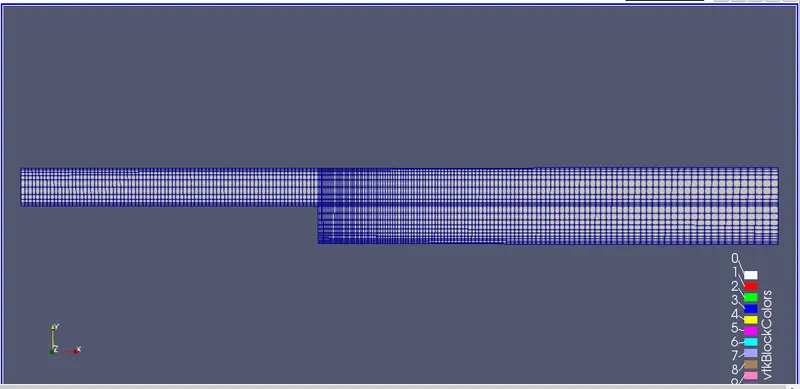

// ************************************************************************* //Mesh:

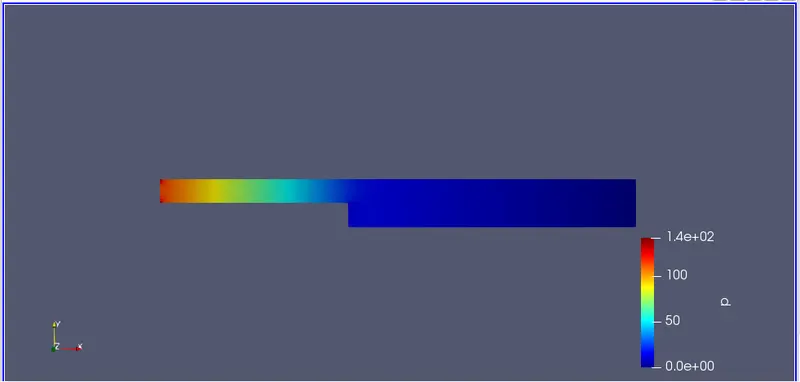

Pressure:

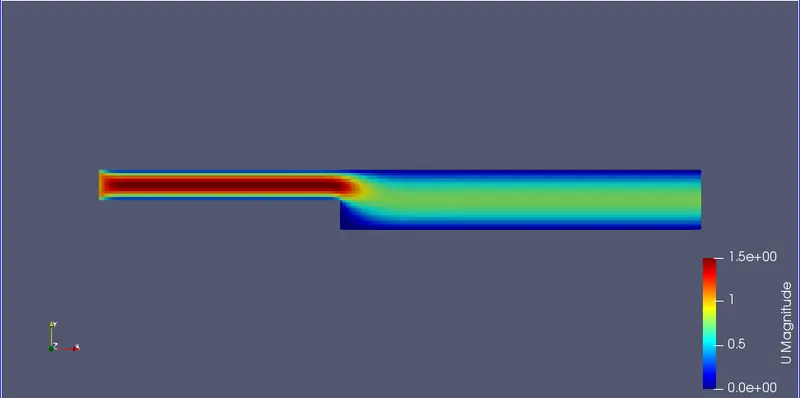

Velocity:

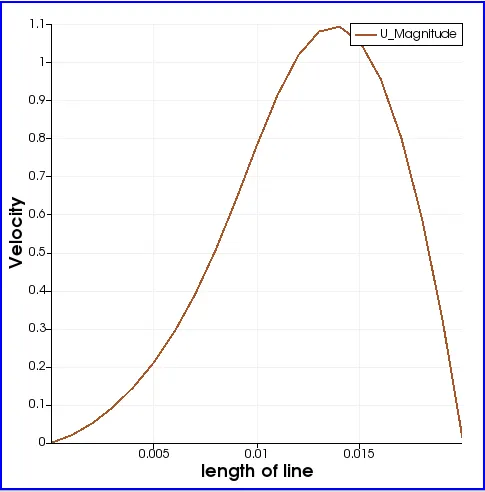

Graph:
Conclusion:
Transient simulation of incompressible laminar viscous flow on backward step facing was conducted.
Two cases were studied one without a grading factor and one with a grading factor of 0.2.
From the two simulations, no significant changes were found. The behavior of velocity contour does not change with the grading factor, but we can see a distorted curve region with a grading factor of 0.2 compared to the other case.
