Week_8_Plastic Model_1

Aim

1.Creat midsurface

2.To Mesh the Given component

Procedure:

Midsurface

Step 1

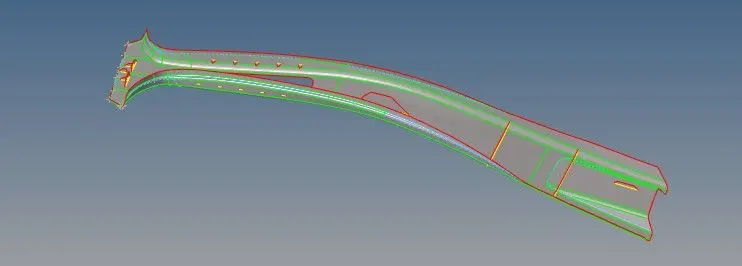

Import geomentry

step 2

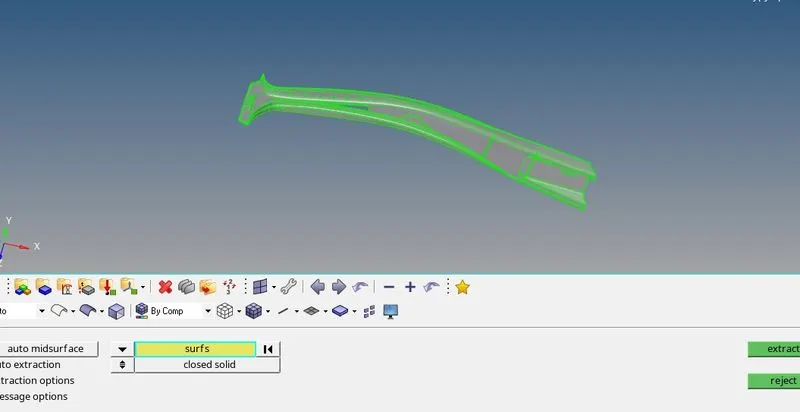

For midsurface of componet we used auto mid surface

step 3

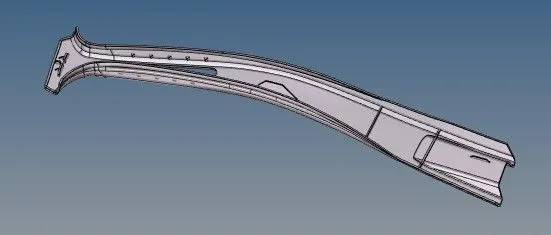

Finaly getting midsurface reconstruct the lines in order to proper mesh flow

Meshing

step 1

Creating automesh on Componet we go part by part initially complicated areas mesh first.

step 2

Removing trias and quality failure to better mesh flow

step 3

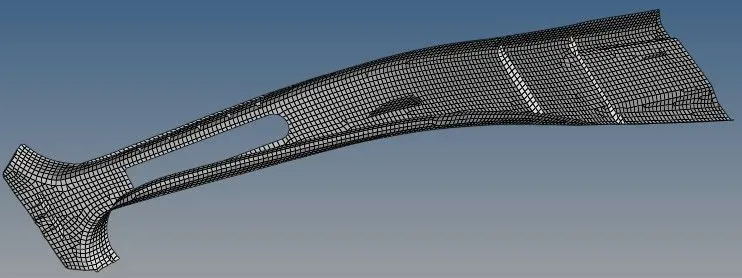

Finaly get mesh componet
