Week_8_Plastic Model_1

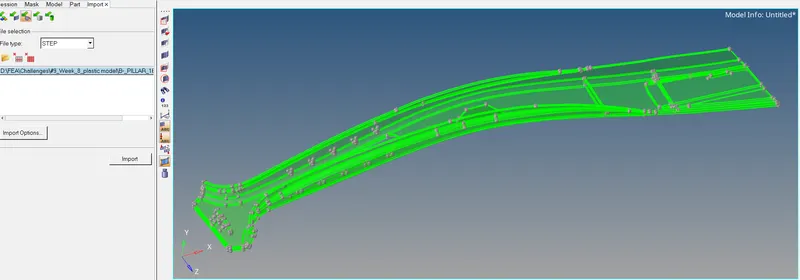

Import file using import geometry as it is step file.

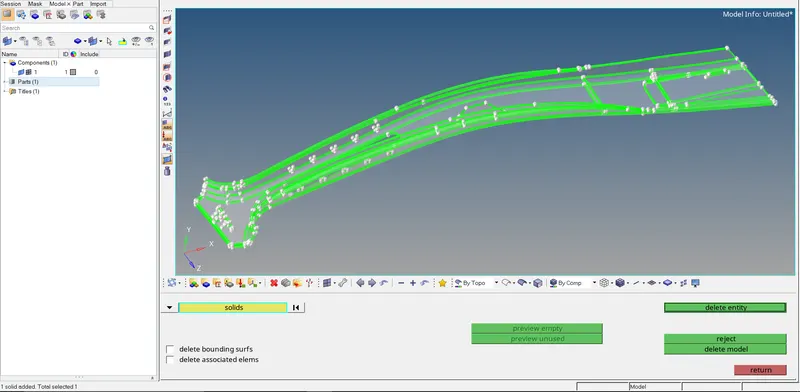

Solid body is deleted Using a 'delete' command

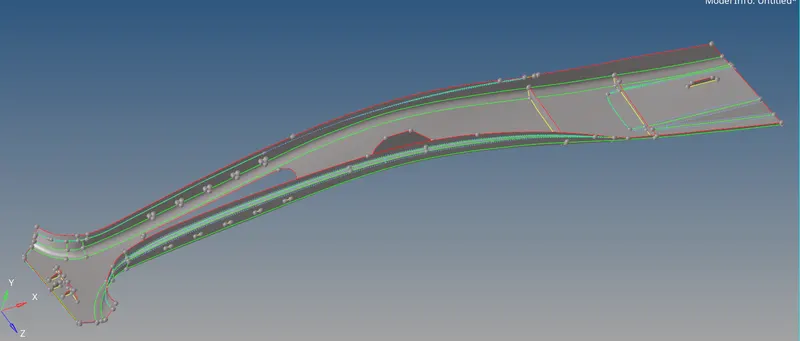

 'offset+planes+sweeps' is used to generate mid-surface.

 After this, it required a topo cleanup. As per the min/max size(3/7) value some cons are suppressed and at the fillet location to capture the geometry and to avoid an element failure, some cons are created.

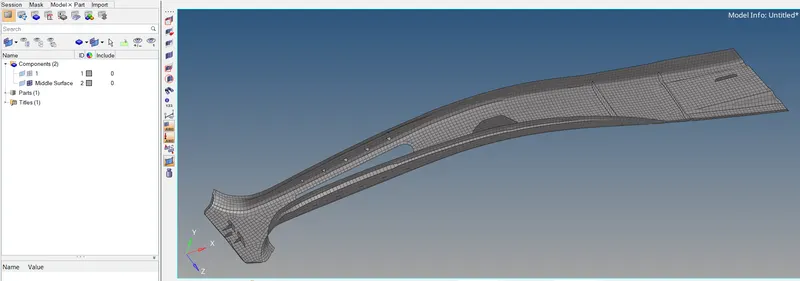

 mesh is generated according to quality criteria provided.
