Week - 8 - Morphing

AIM:

The aim of the model is to change the design by using the morphing technique

PROCEDURE:

1. The model is imported as per the challenge the dog houses are to be morphed by changing the height

2. The dog house are selected as a individual by the ortho box option

3. The box is to be selected for the dog house by using min volume and align option

4. The nodes are selected by using the move option

5. The move option is of many types the main is move free and translate

6. I have used the translate option to increase the height of the dog houses

7. For each dog house I increased the height of about 10

Application in Industry:

1. In the industry of automobile the morphing technique is used for the design changes without changing the other components

2. For example the next version of the same car some small changes in the design

3. The hatchback car are changed in to sedan type car

4. The suzuki celerio model car is also change the design by bulking front bonnet and side parts

5. In many ways the morphing is used by changing the small part in the automobile parts

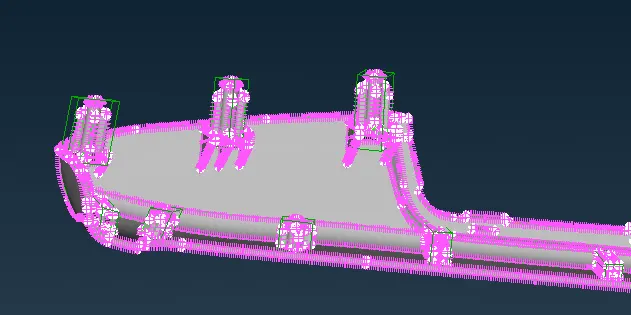

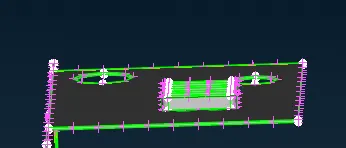

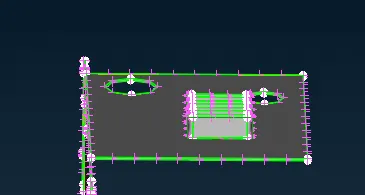

after morphing before morphing

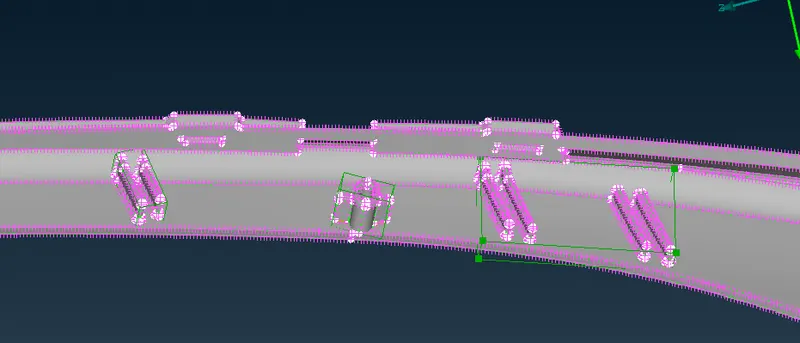

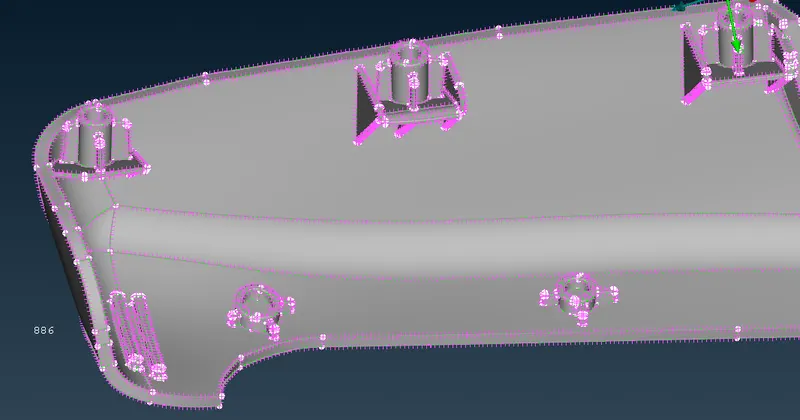

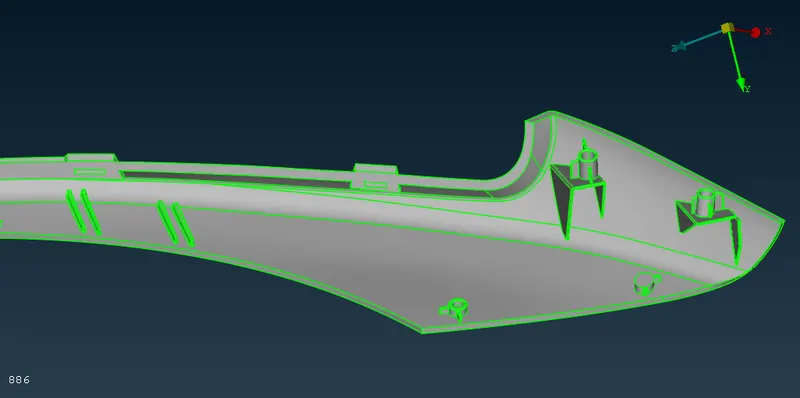

before morphing

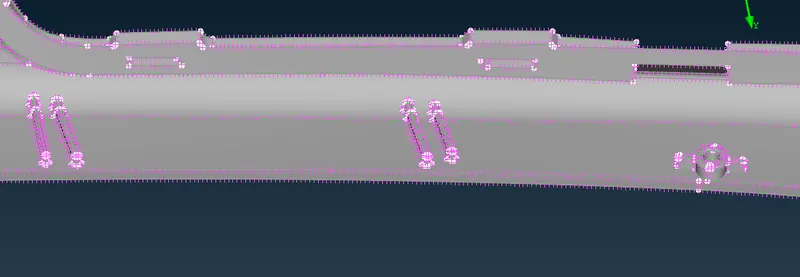

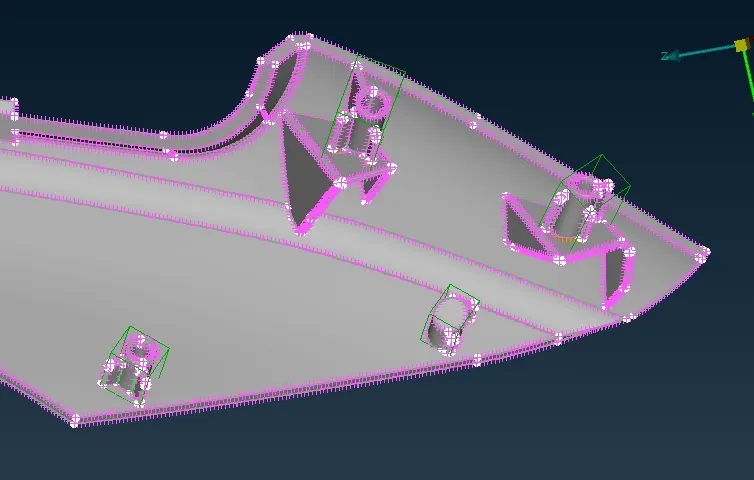

After Morphing
