Week - 8 - Morphing

AIM :

To practice all the Morphing techniques that were shown in the video for Model-1 and to Perform morphing for the Model-2 and Increase the Height of the Dog houses and Ribs.

PROCEDURE :

MODEL - 1

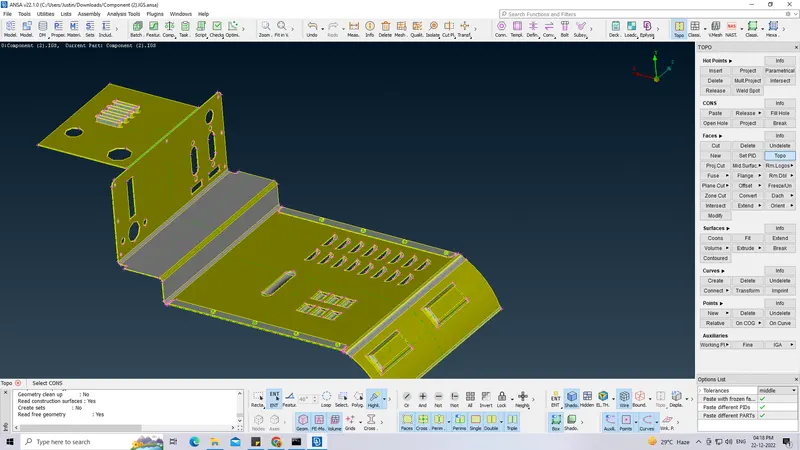

• Topo is performed to get the stritch the single cons into double cons.

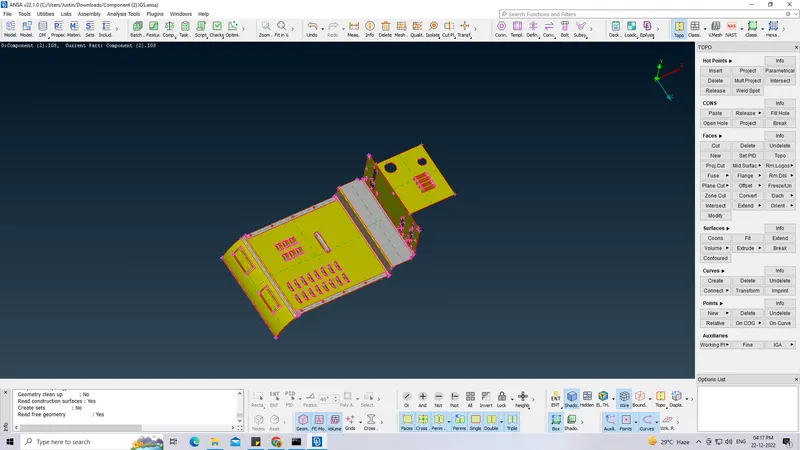

• After Topo.

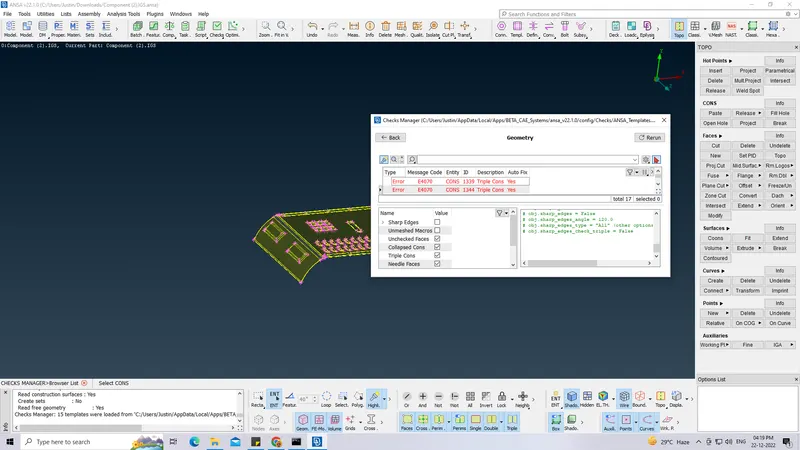

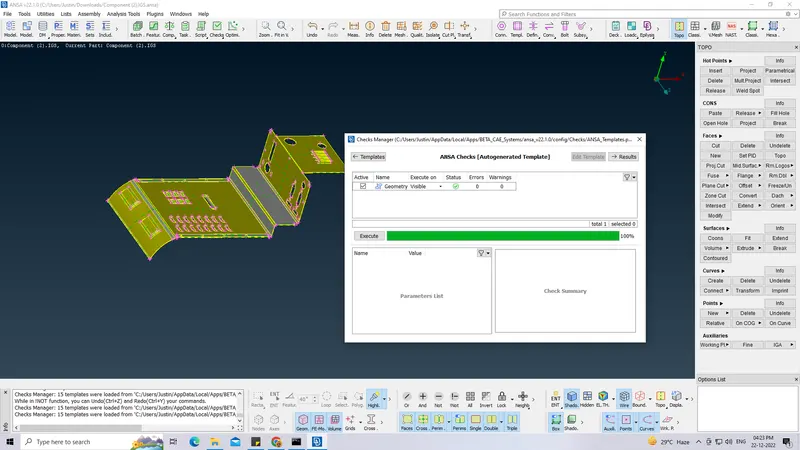

• The geomentry check as been performed.

• The geomentry errors as been fixed using automatic and manual method.

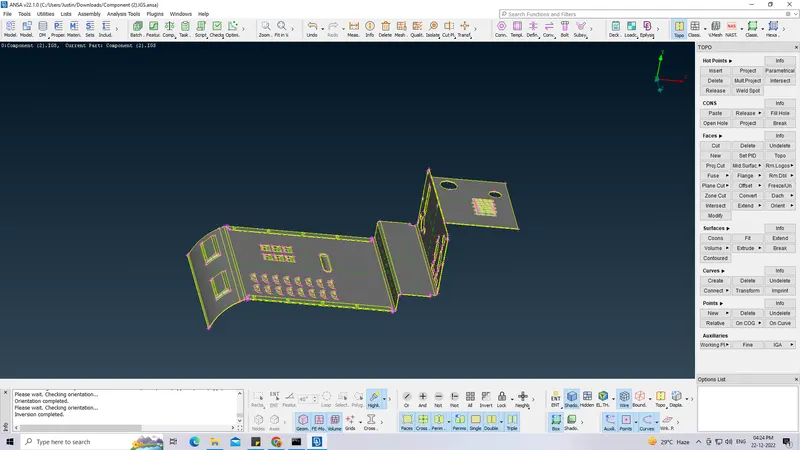

• The Orientation of the geomentry model as been changed.

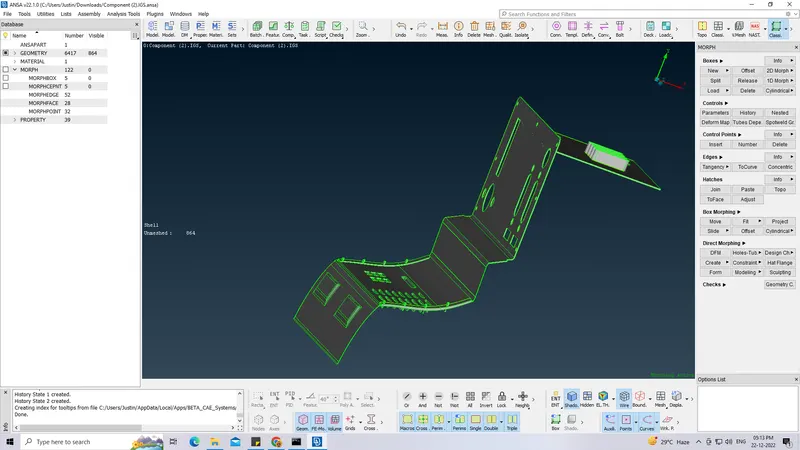

• New Ortho morph box as been created for required PID.

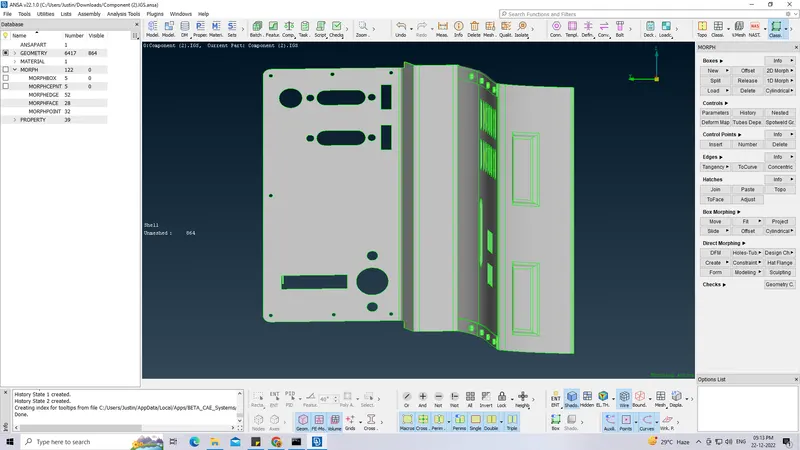

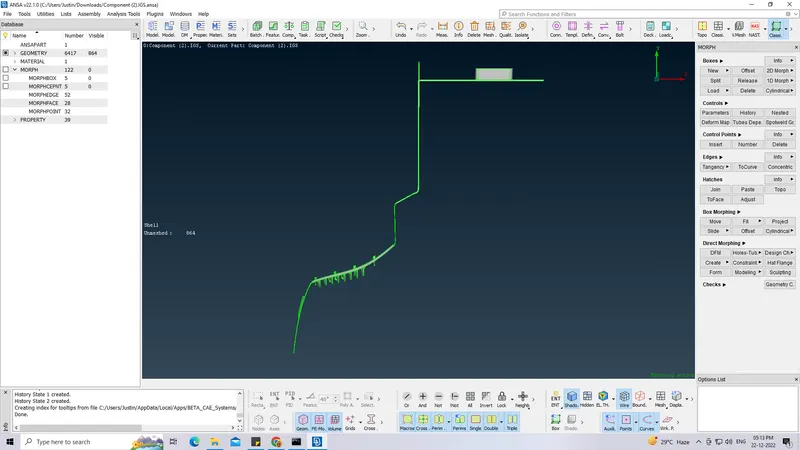

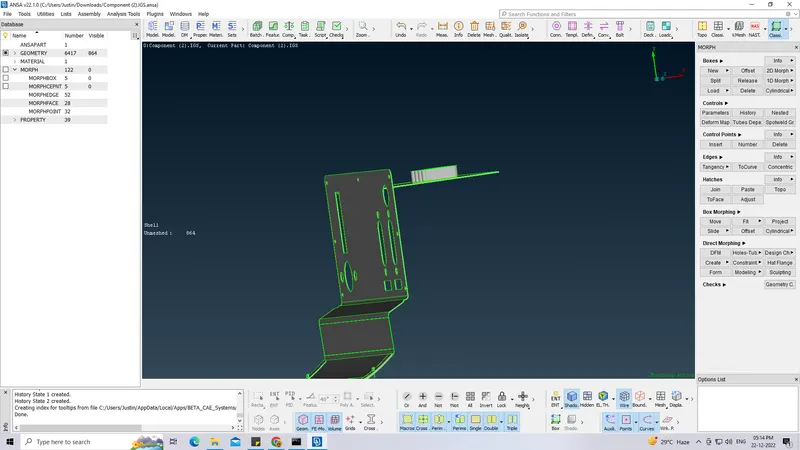

• The geomentry as been changed to the required axis.

MODEL -2

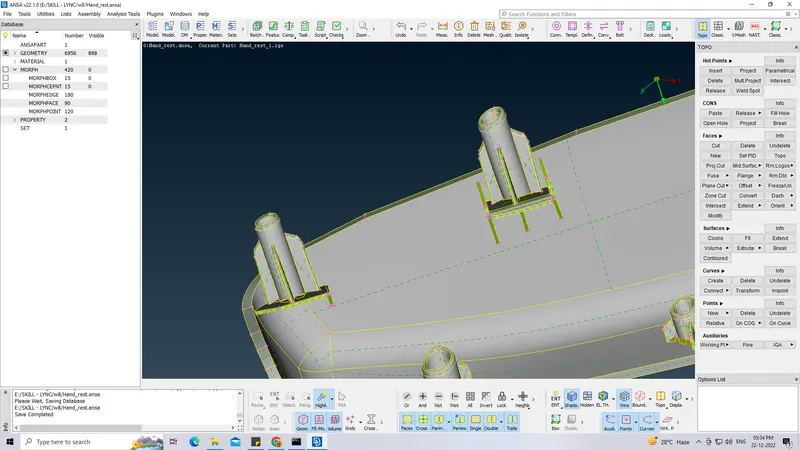

• Topo is performed to get the stritch the single cons into double cons.
• The geomentry check as been performed.
• The geomentry errors as been fixed using automatic and manual method.
• The Orientation of the geomentry model as been changed.

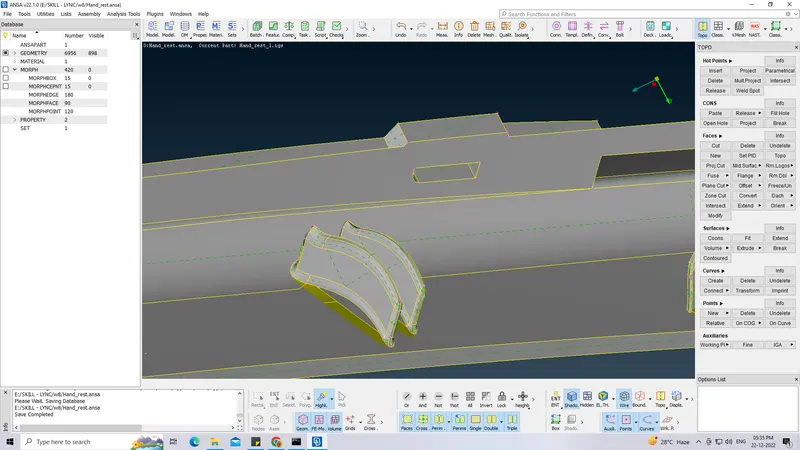

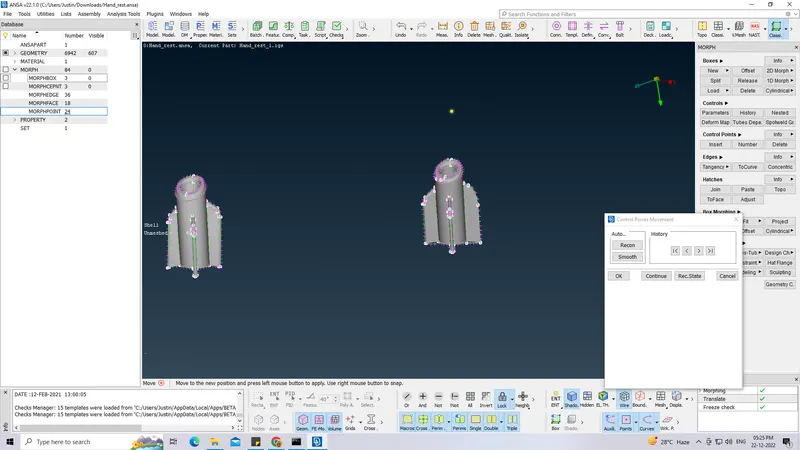

• New Ortho morph box as been created for each and every dog house.

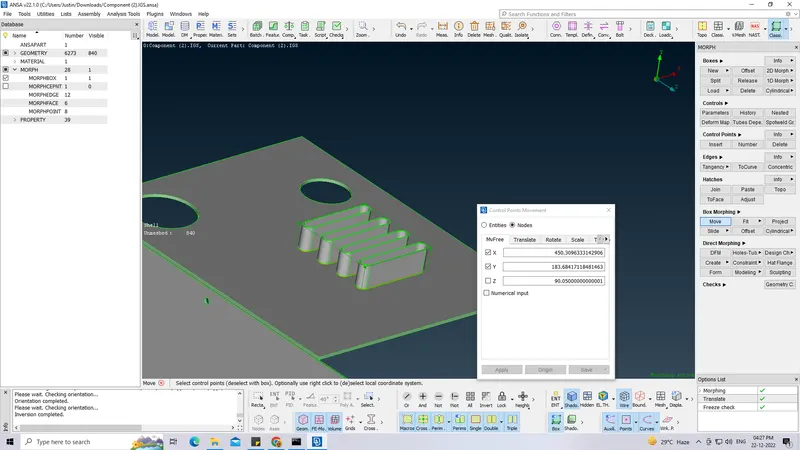

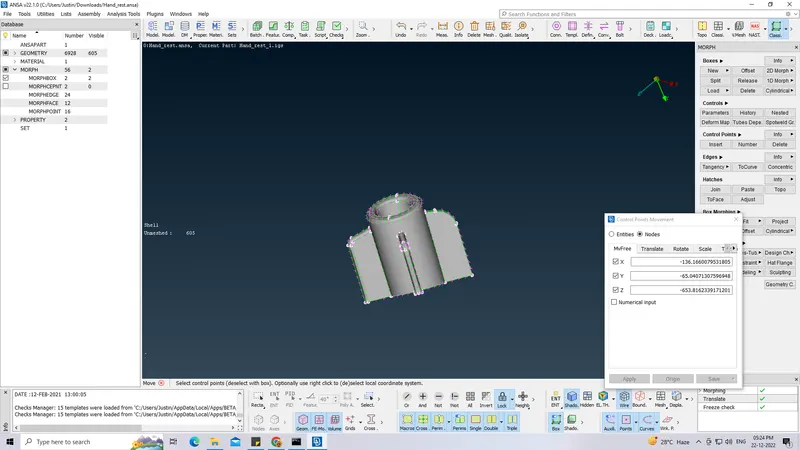

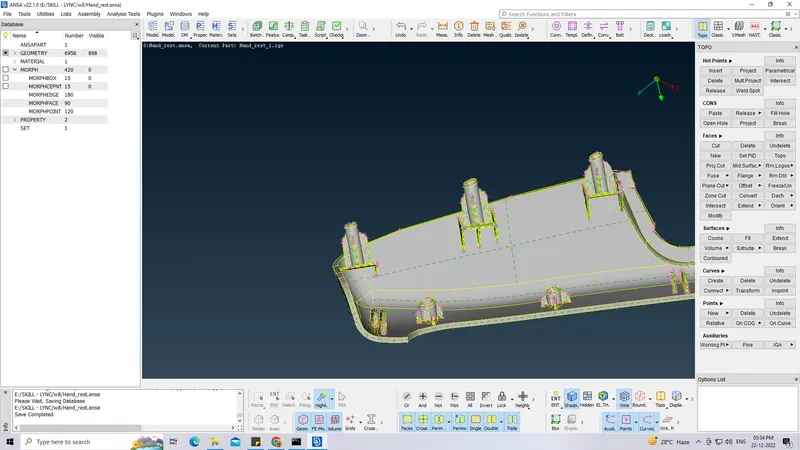

• The Height as been changed to the required axis.

LEARNING OUTCOMES :

• Basic understanding of morphing.
• Learned how to create morph box.
• Idea of splitting the morph box.
• Moving according to the requirement.

CONCLUSION :

The Morphing techniques that were shown in the video for Model-1 as been practiced and to the morphing for the Model-2 and Increasing the Height of the Dog houses and Ribs as been peformed.
