Week - 8 - Morphing

Aim: to morph a given Cad.

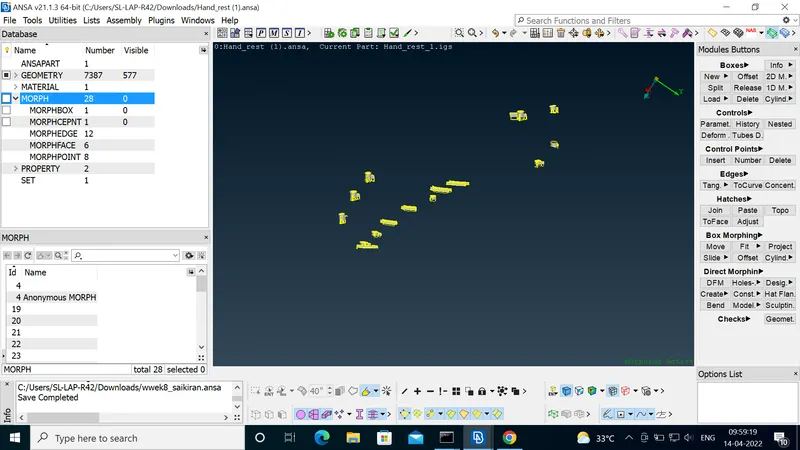

Procedure. 1) Isolate the features that need to be extended.

2) Trim the features and only keep the bosses and ribs in view.

3)Create Morph boxes for features.

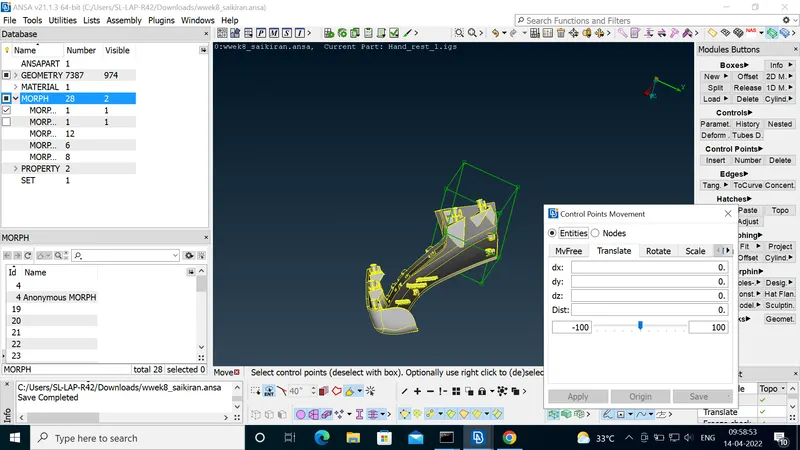

4) Translate the features using two node axis defination.

5) Here the features are translated to 4-5 mm in height.
