Week - 8 - Morphing

AIM

PRACTICE MORPHING TECHNIQUES ON MODEL 1 AND INCREASE LENGTH OF DOGHOUSES AND RIBS OF MODEL 2.

PROCEDURE

MODEL 1

1. OPEN MODEL 1 IN ANSA.

2. DO TOPO ON THE MODEL.

3. GO TO THE MORPHING MODULE.

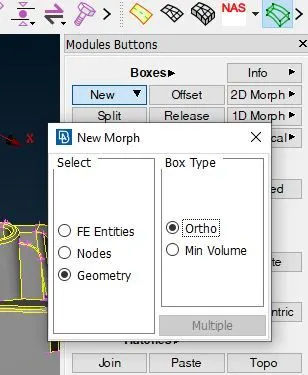

4. SELECT BOXES AND OPEN NEW MORPH.

5. DO A BOX SELECTION ON THE AREA TO BE MORPHED AND A BOX WIL BE FORMED.

6. SELECT BOX MORPHING AND CLICK ON THE MOVE OPTION AND SELECT THE COORDINATES TO INCREASE HEIGHT.

7. IN SIMILAR WAY MAKE BOXES AND DO THE MORPHING ON OTHER PARTS OF THE MODEL.

MODEL 2

8. OPEN MODEL 2 IN ANSA.

9. DO TOPO ON THE MODEL.

10. GO TO THE MORPHING MODULE.

11. SELECT BOXES AND OPEN NEW MORPH.

12. DO A BOX SELECTION ON THE AREA TO BE MORPHED AND A BOX WIL BE FORMED.

13. SELECT BOX MORPHING AND CLICK ON THE MOVE OPTION AND SELECT THE COORDINATES TO INCREASE HEIGHT.

14. IN SIMILAR WAY INCREASE THE HEIGHT OF ALL DOG HOUSES AND RIBS.

LEARNING OUTCOMES

IN THIS CHALLENGE WE LEARNT ABOUT VARIOUS MORPHING TECHNIQUES WHICH CAN BE USED IN ANSA.

CONCLUSION

MORPHING TECHNIQUES WERE PERFORMED ON BOTH MODELS AND THE AIM WAS COMPLETED SUCCESSFULLY.
