Week- 5 - Solid meshing

AIM

FOR THE GIVEN MODEL CHECK GEOMETRICAL ERRORS AND DO SURACE AND VOLUMETRIC MESH ON IT.

PROCEDURE

1. OPEN THE MODEL IN ANSA

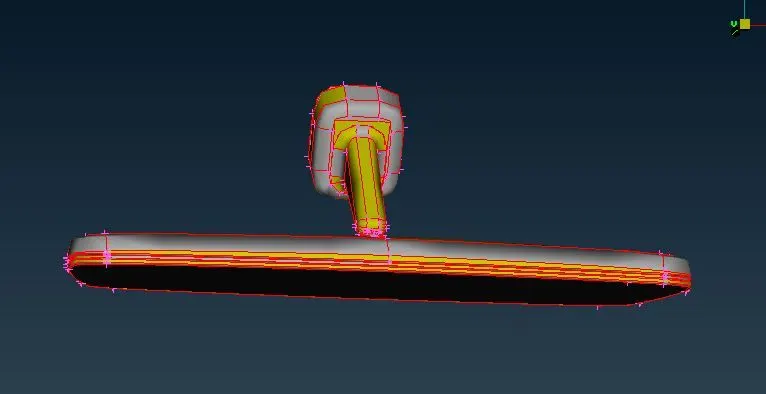

2. DO TOPO ON IT.

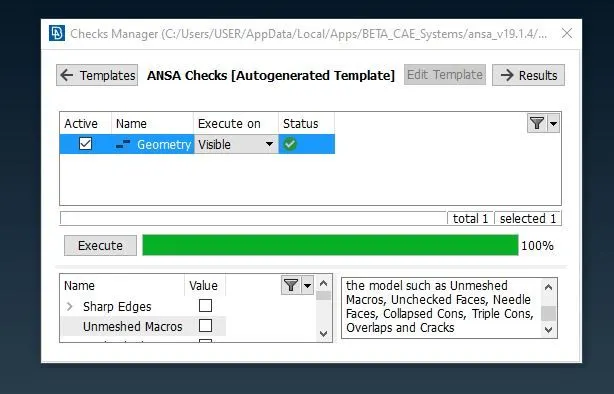

3. DO GEOMETRY CHECK ON THE SURFACE AND CORRECT THE ISSUES IF ANY FOUND.

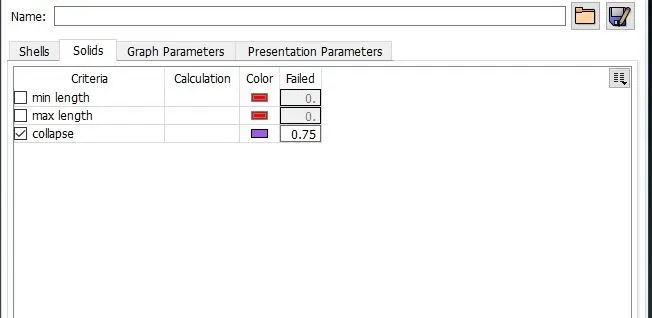

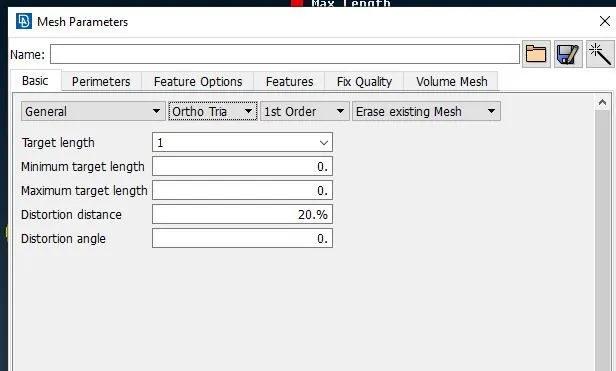

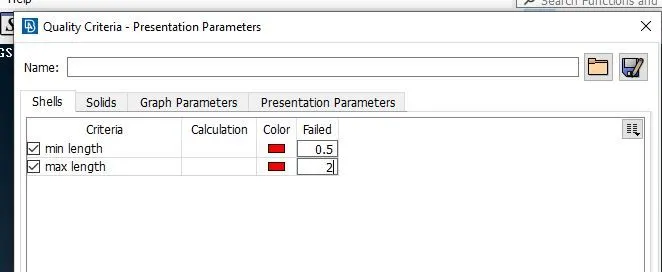

4. ASSIGN QUALITY PARAMETERS AND MESH PARAMETERS.

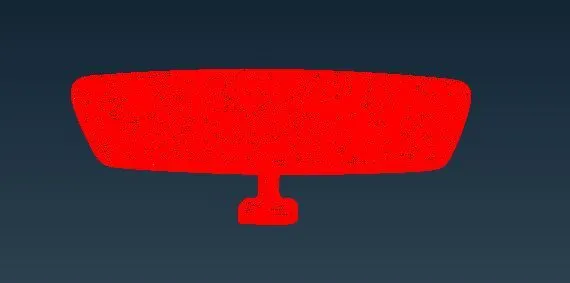

5. DO MESHING ON THE SURFACE.

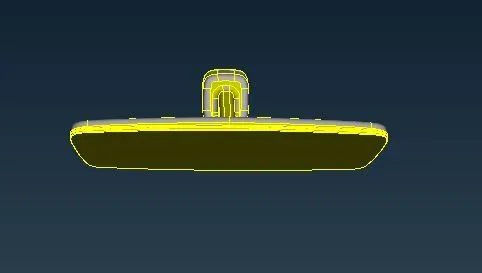

6. AFTER COMPLETING ASSIGN VOLUME FOR THE MODEL.CLICK ON DEFINE AND DO BOX SELECTION OF THE MODEL.

7. ASSIGN SOLID MESH PARAMETERS.

8. CHOOSE TYPE OF VOLUME MESH (TETRA RAPID OR TETRA FEM)

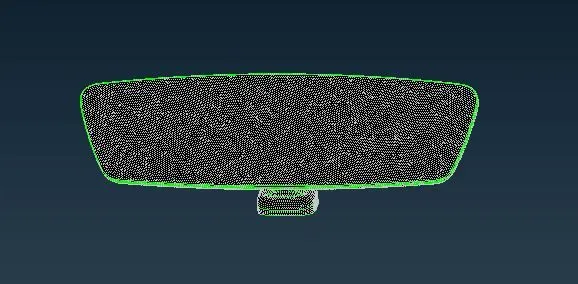

9. CHECK IF ANY OFF ELEMENTS ARE PRESENTS, IF FOUND RECTIFY IT. THE VOLUME SURFACE WILL LOOK LIKE THIS.

LEARNING OUTCOMES

IN THIS CHALLENGE WE LEARN TO DO SHELL MESHING ON A SOLID AND VOLUMETRIC MESHING.

RESULT

IN THIS MODEL THE GEOMETRICAL ERRORS WERE FIXED, AND BOTH SHELL MESH AND VOLUME MESH WAS DONE SUCCESSFULLY.
