AutoCAD_Reinforcement Bar Shapes, Types of Doors, Creating symbols legend and Creating standard template_Week 8

AAkanksh M Goudar27 Nov 2020

Challenge 1a

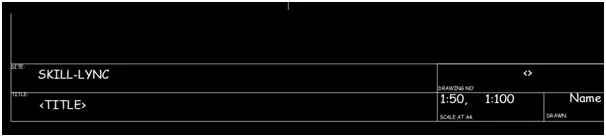

Aim: To draft the Template and creating it as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Imperial system
  • Command UN(units) and selecting Engineering with precision of 0’-0.0”
  • Command LIMITS and having limit of (0’,0’) in lower left corner and (100’,100’) in upper right corner
  • Command ZOOM and selecting All

Commands used:

LINE

  • LINE is used to draw the Template lines of the specific style.

OFFSET

  • OFFSET is used to offset the lines at specific distance.

TRIM

  • TRIM is used to trim the unwanted lines

Annotate Tab

  • In Annotate Tab ---->Modify dimension style---->Text and Style
  • Changing the style from ISO25 to Comic San----> Set current----->Apply

TEXT

  • TEXT is used to write the Title, Description, Client Architect, Site, Scale , Date , Checked etc and other details

ERASE

  • ERASE is used to erase the unwanted lines which cannot be trimmed using Trim Command

BLOCK

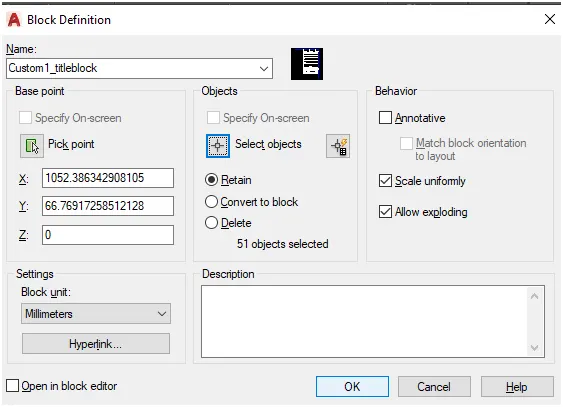

  • Giving name as Custom1_titleblock-------->picking points------>Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

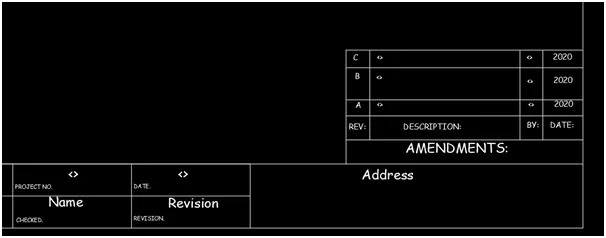

Challenge 1b

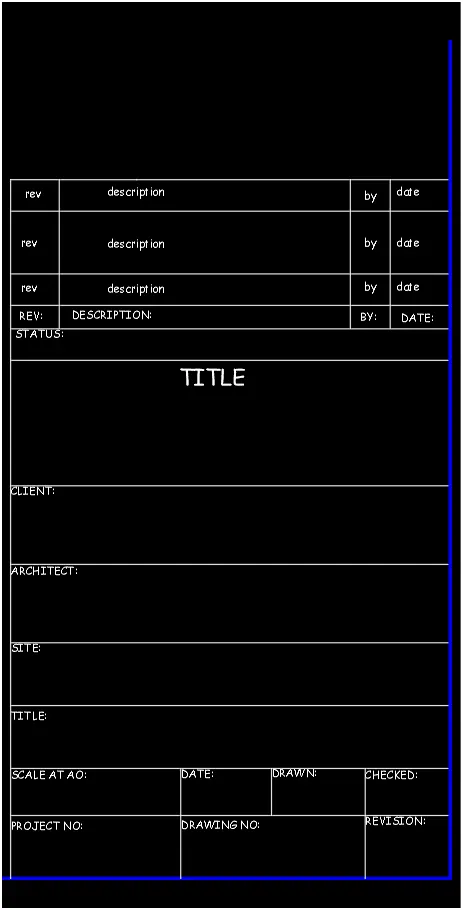

Aim: To draft the Template and creating it as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Imperial system
  • Command UN(units) and selecting Engineering with precision of 0’-0.0”
  • Command LIMITS and having limit of (0’,0’) in lower left corner and (100’,100’) in upper right corner
  • Command ZOOM and selecting All

Commands used:

LINE

  • LINE is used to draw the Template lines of the specific style.

OFFSET

  • OFFSET is used to offset the lines at specific distance.

TRIM

  • TRIM is used to trim the unwanted lines

Annotate Tab

  • In Annotate Tab ---->Modify dimension style---->Text and Style
  • Changing the style from ISO25 to Comic San----> Set current----->Apply

TEXT

  • TEXT is used to write the Title, Description, Client Architect, Site, Scale , Date , Address etc and other details

ERASE

  • ERASE is used to erase the unwanted lines which cannot be trimmed using Trim Command

BLOCK

  • Giving name as Custom1_titleblock-------->picking points------>Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

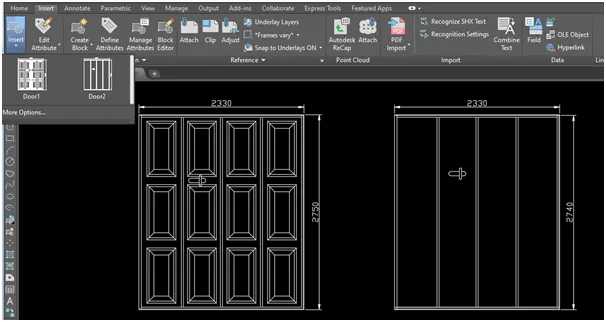

Challenge 2

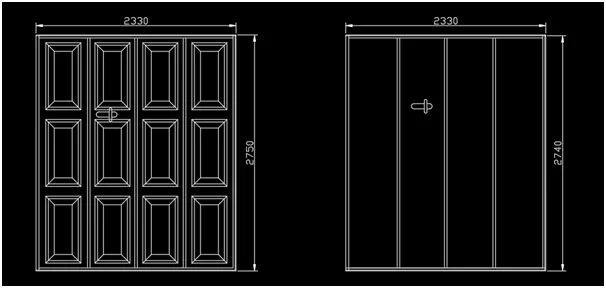

Aim: To draft the Door and creating it as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Metric system
  • Command UN(units) and selecting Decimal with precision of 0
  • Command LIMITS and having limit of (0,0) in lower left corner and (10000,10000) in upper right corner
  • Command ZOOM and selecting All

Commands used:

LINE

  • LINE is used to draw the line of 2330 and 2750 on both the sides

RECTANGLE

  • Rectangle is used to Draw a Door panel

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.
  • OFFSET is used to offset the Door edges into specific distance.

DIMLINEAR

  • DIMLINEAR is used to dimension the Door

TRIM

  • TRIM is used to trim the unwanted lines

ERASE

  • ERASE is used to erase the unwanted lines which cannot be trimmed using Trim Command

BLOCK

  • Giving name as Door1-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

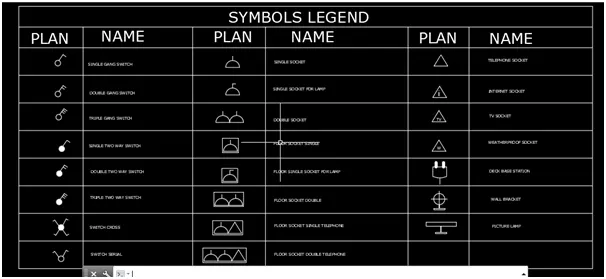

Challenge 3

Aim: To draft the Symbol Legend as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Metric system
  • Command UN(units) and selecting Decimal with precision of 0
  • Command LIMITS and having limit of (0,0) in lower left corner and (10000,10000) in upper right corner
  • Command ZOOM and selecting All

Commands used:

  • LINE
  • CIRCLE
  • ARC
  • RECTANGLE

These commands are used to create the symbols

LINE

  • LINE is used to draw the Horizontal and vertical line to insert block

Annotate Tab

  • In Annotate Tab ---->Modify dimension style---->Text and Style
  • Changing the style from ISO25 to Times New Roman----> Set current----->Apply

TEXT

  • TEXT is used to write the SYMBOLS LEGEND, Plan and Name
  • TEXT is used to i, TV and W inside the symbol

BLOCK

  • Creating block for each symbol
  • Giving name as Single Gang Switch-------->picking points-------->Selecting object-------->ok for each symbol

INSERT

  • Inserting the created block wherever we require
  • In Insert ribbon selecting field and selecting the named object and inserting the names of the respective symbol

EXPLODE

  • Exploding the different names of the symbol

Challenge 4

Aim: To draft the Door and creating it as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Imperial system
  • Command UN(units) and selecting Engineering with precision of 0’-0.0”
  • Command LIMITS and having limit of (0’,0’) in lower left corner and (100’,100’) in upper right corner
  • Command ZOOM and selecting All

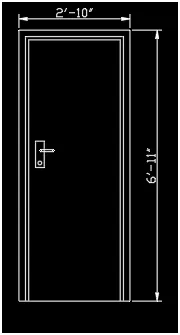

Door1

LINE

  • LINE is used to draw the line of 6’-11” and 2’-10” on both the sides

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

RECTANGLE

  • Rectangle is used to Draw the Door lock

BLOCK

  • Giving name as Door1-------->picking points-------->Selecting object-------->ok

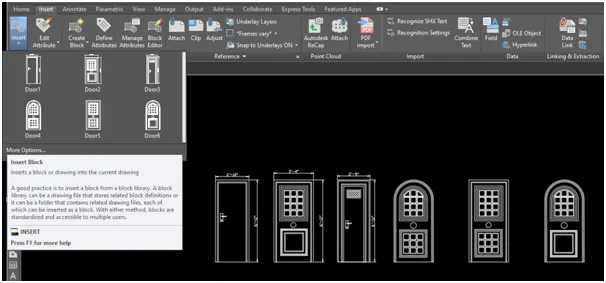

INSERT

  • Inserting the created block wherever we require

Door2

LINE

  • LINE is used to draw the line of 6’-11” and 3’-4” on both the sides

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

ARRAY

  • RECTANGULAR ARRAY is used with 4 rows and 3 column with distance between as 9”

RECTANGLE

  • Rectangle is used to Draw the Door lock

BLOCK

  • Giving name as Door2-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

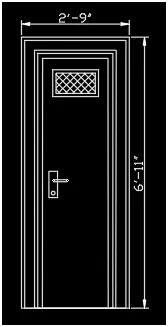

Door3

LINE

  • LINE is used to draw the line of 6’-11” and 2’-9” on both the sides

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

RECTANGLE

  • Rectangle is used to Draw the Door lock

HATCH

  • HATCH is used in hatching the door Panel by ANS131 and scale it to 0.5

BLOCK

  • Giving name as Door3-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

Door4

LINE

  • LINE is used to draw the line of 6’-11” and 3’-4” on both the sides

ARC

  • ARC with Start, center and end creating a arc on the top surface

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

ARRAY

  • RECTANGULAR ARRAY is used with 3 rows and 3 column with distance between as 9”
  • RECTANGULAR ARRAY is used with 3 rows and 3 column with distance between as 9” in bottom Panel

PLINE

  • PLINE is used to draw the top curved panels

RECTANGLE

  • Rectangle is used to Draw the Door lock

BLOCK

  • Giving name as Door4-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

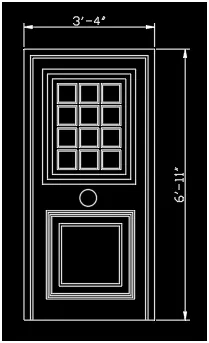

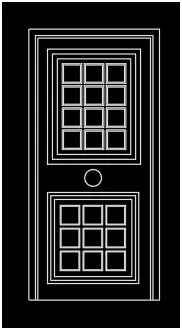

Door5

LINE

  • LINE is used to draw the line of 6’-11” and 3’-4” on both the sides

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

ARRAY

  • RECTANGULAR ARRAY is used with 4 rows and 3 column with distance between as 9” in top Panel

BLOCK

  • Giving name as Door5-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

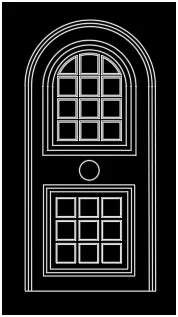

Door6

LINE

  • LINE is used to draw the line of 6’-11” and 3’-4” on both the sides

ARC

  • ARC with Start, center and end creating a arc on the top surface

OFFSET

  • OFFSET is used to offset the Door panel into specific distance.

ARRAY

  • RECTANGULAR ARRAY is used with 3 rows and 3 column with distance between as 9”

PLINE

  • PLINE is used to draw the top curved panels

RECTANGLE

  • Rectangle is used to Draw the Door lock

BLOCK

  • Giving name as Door6-------->picking points-------->Selecting object-------->ok

INSERT

  • Inserting the created block wherever we require

Challenge 5

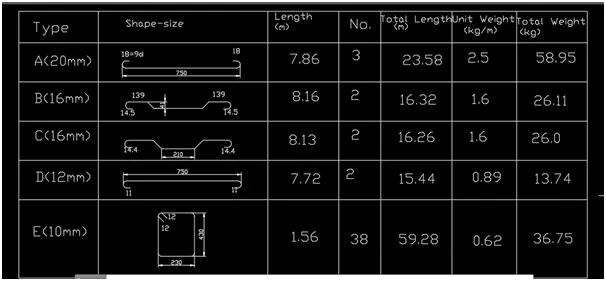

Aim: To draft the Column schedule as a block using AutoCAD

Procedure:

  • Open AutoCad
  • Selecting Metric system
  • Command UN(units) and selecting Decimal with precision of 0
  • Command LIMITS and having limit of (0,0) in lower left corner and (10000,10000) in upper right corner
  • Command ZOOM and selecting All

Commands used:

LINE

  • LINE is used to draw the Horizontal and vertical line to insert block
  • LINE is used to draw the dimensions of the bar

FILLET

  • FILLET is used to fillet the bars with fillet radius of 22 to create hook

Annotate Tab

  • In Annotate Tab ---->Modify dimension style---->Text and Style
  • Changing the style from ISO25 to Times New Roman----> Set current----->Apply

TEXT

  • TEXT is used to write the Type, Shape-size, Length, NO., Total length, Unit weight, Total weight

BLOCK

  • Creating block for each bar bended
  • Giving name as a------>picking points--------->Selecting object-------->ok for each bar

INSERT

  • Inserting the created block wherever we require
