                                                        Core and cavity Design

Tooling axis:

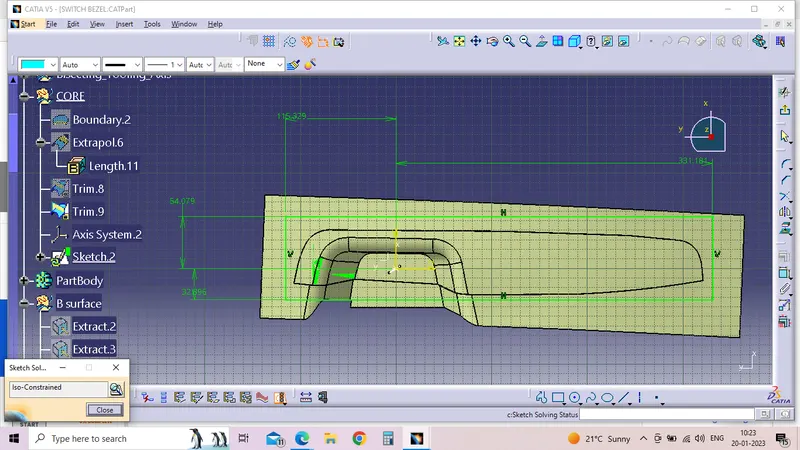

Bysetting method using the tooling axis Extrat the flat surface point on the surface Pick the plane to the parallel the the axis after that take an intersect geting inter section draw the linewith point to point method darw the the line after tacking bysecting method draw a line with support the point this line is the My Tooling Axis.

Draft Analayis:

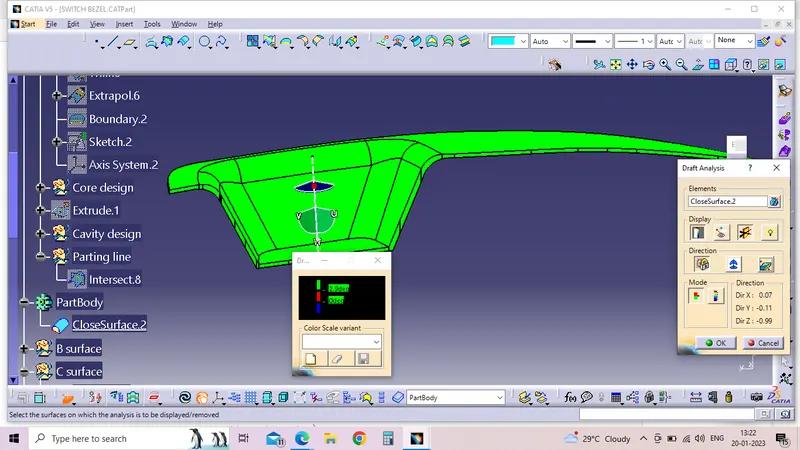

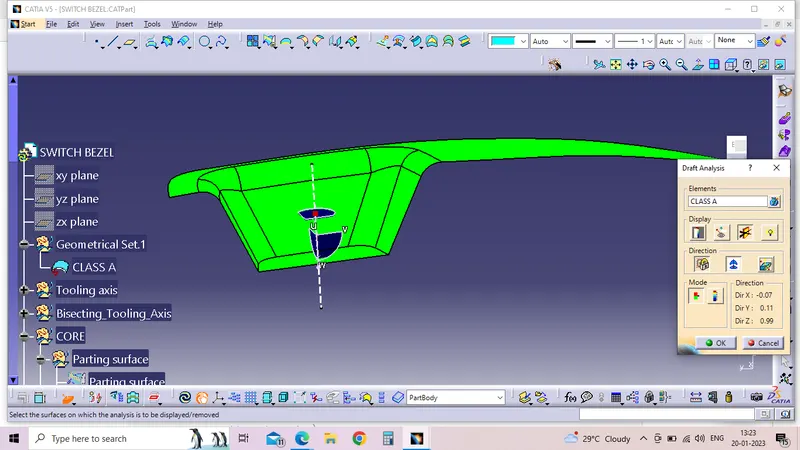

Both Class A & Switch bezel solid respect with the tooling axis Draft analayis done with clearing 2.9 degrees.

Parting Line:

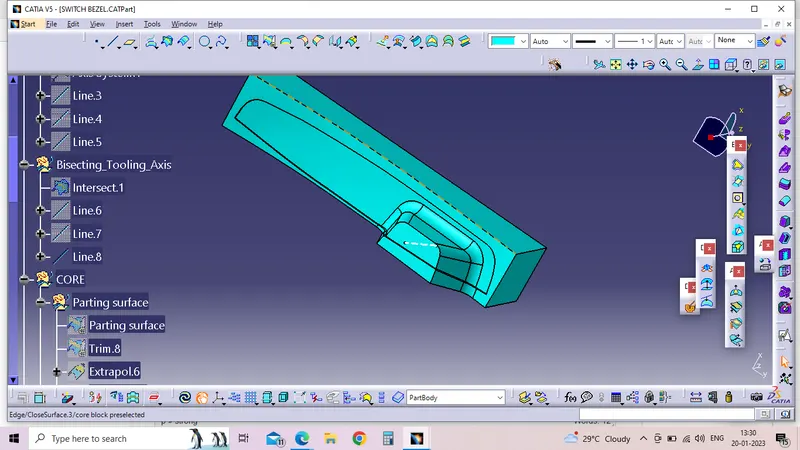

Parting line is intersection of the Parting surface and  Switch bezel Soild part.

Parting Surface:

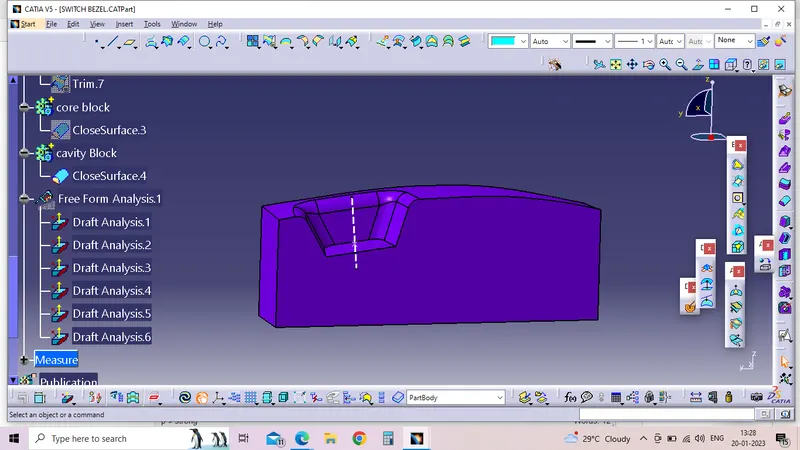

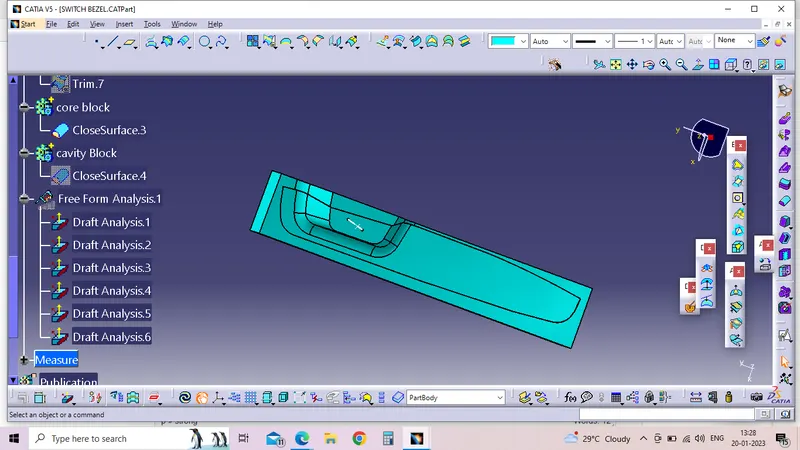

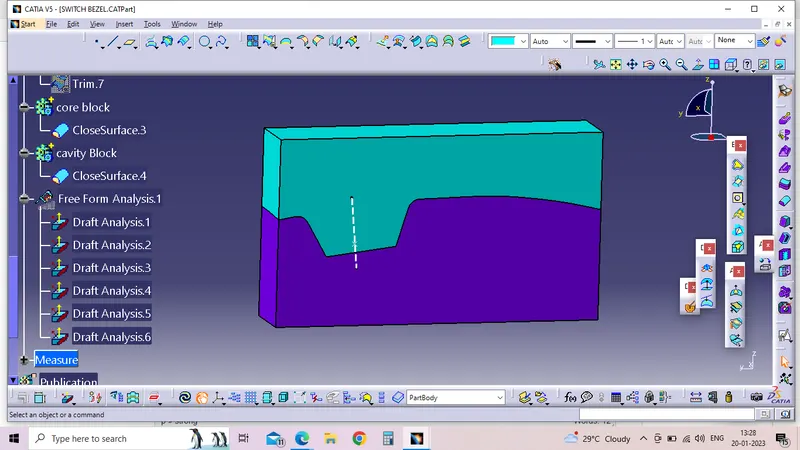

B surface  is the parting surface This is surface only reach to core And Cavity.
