Week 8 - Challenge 6 - Core & Cavity Design

SWITCH BEZEL part taken from previous challenge:

Below shown figure is SWITCH BEZEL and it is on cavity side.

here C-Surface is not appearing.

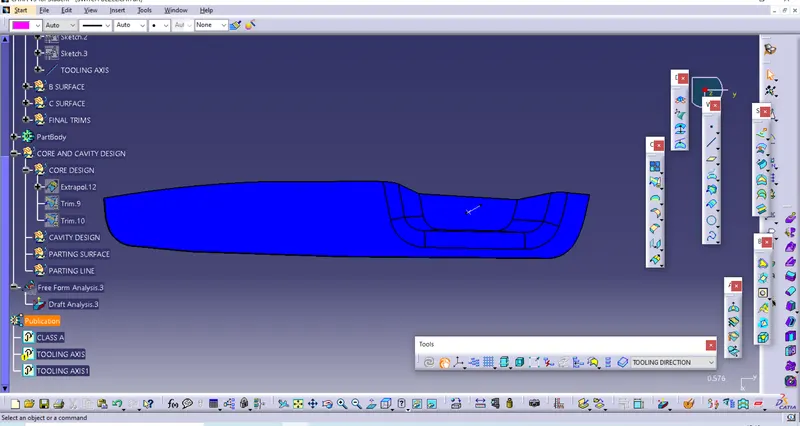

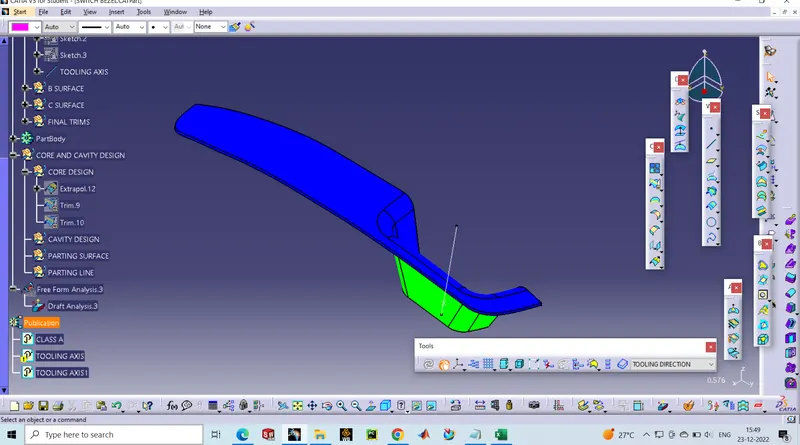

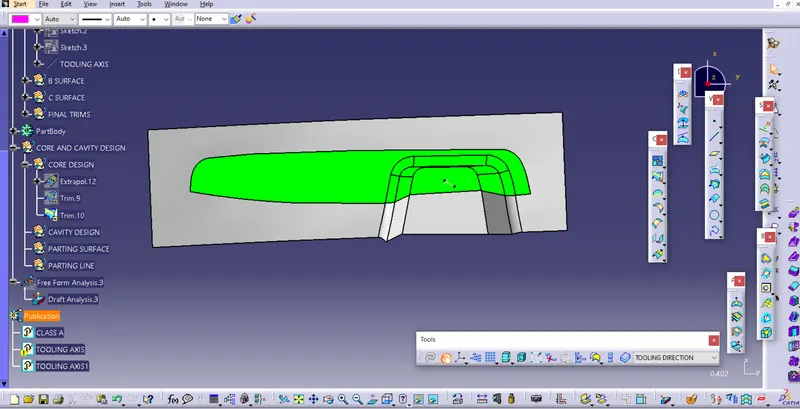

Below shown figure is SWITCH BEZEL and it is on CORE side and A-Surface combined with C-surface.

here C-Surface is appearing gradually..

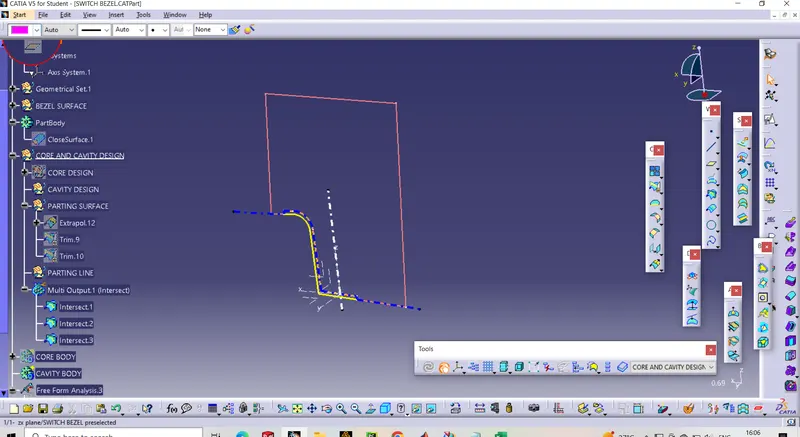

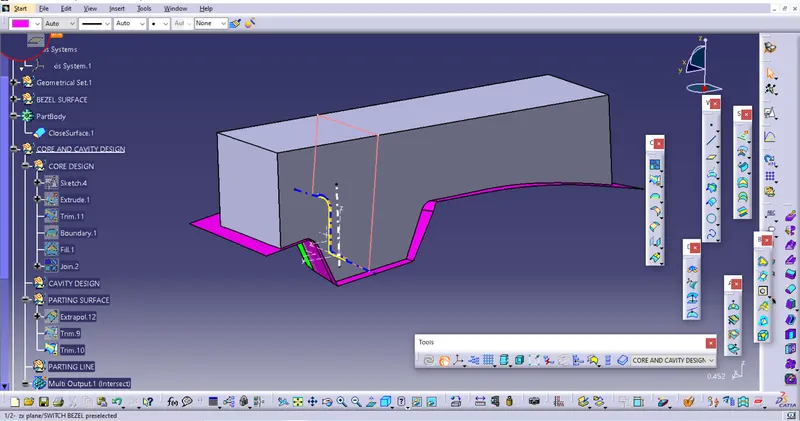

making an intersection for the core, switch bezel part and parting surface.

here the blue line is the parting surface which divides the core and cavity.

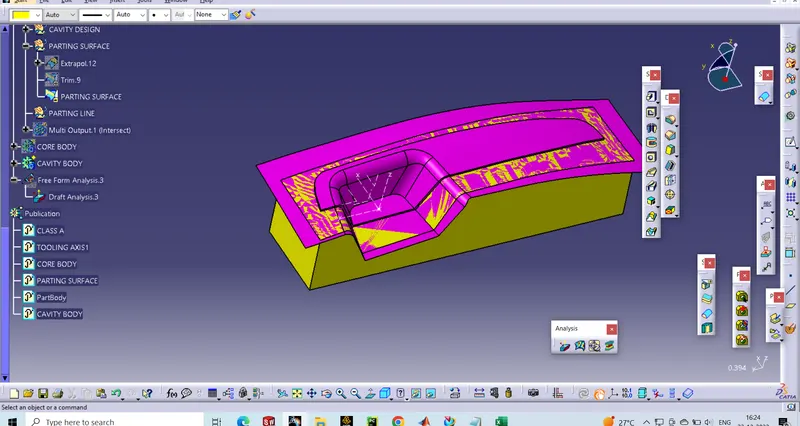

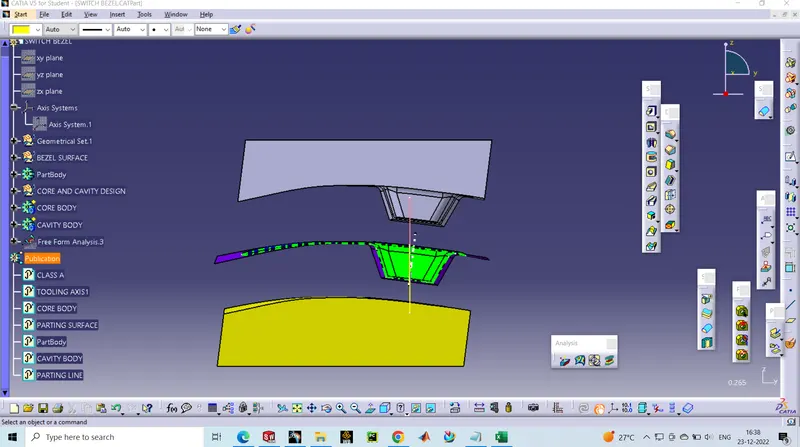

CAVITY SIDE of the part given below.

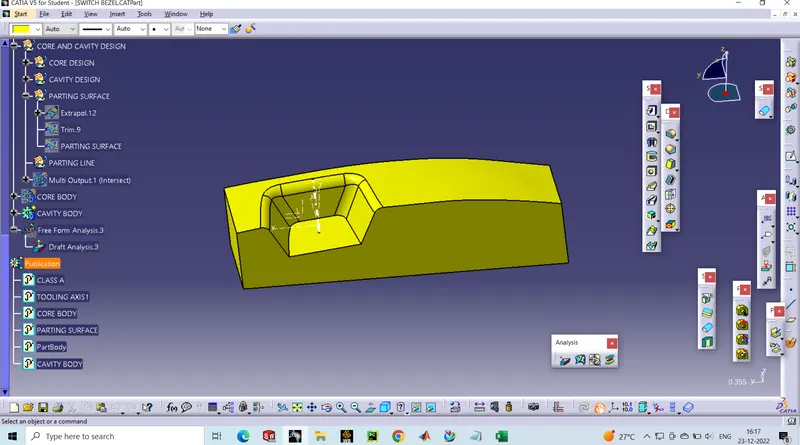

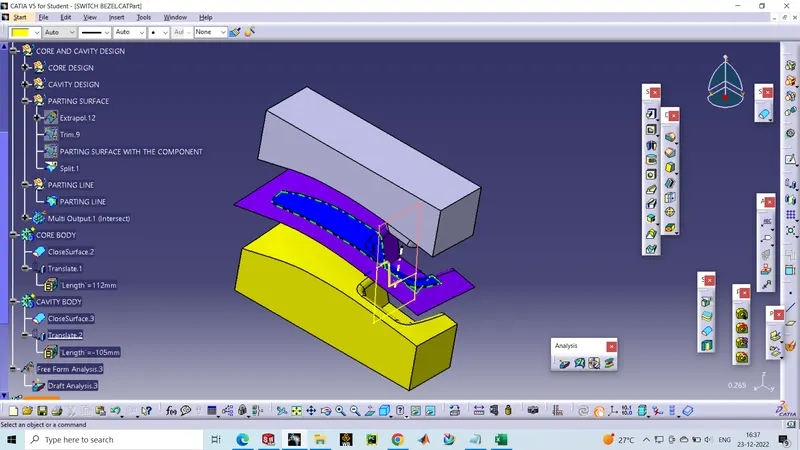

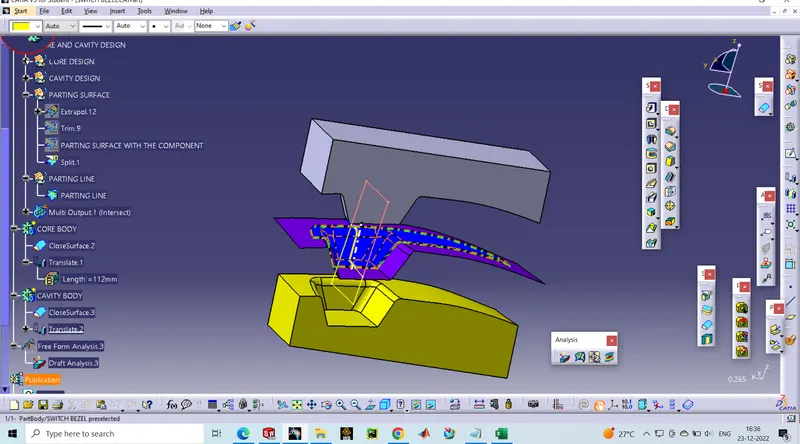

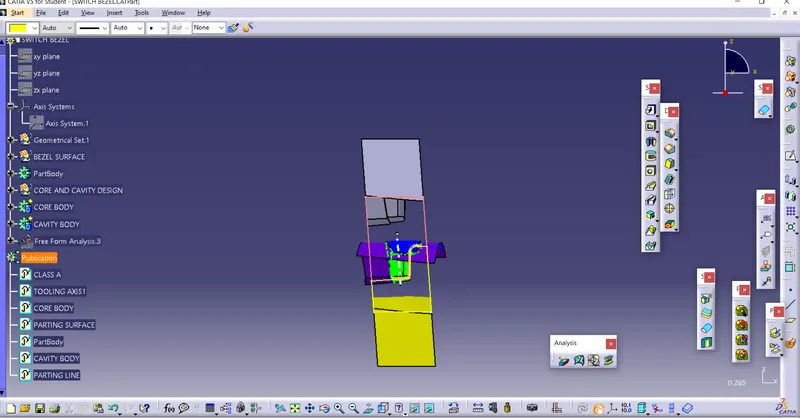

the final core and cavity with parting surface,part body intersections are given below.

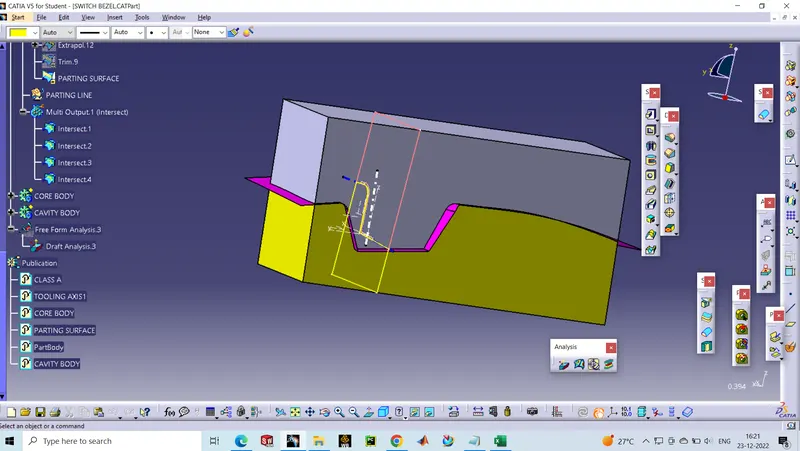

PARTING SURFACE FOR SWITCH BEZEL given below:

• Screenshots of the core and cavity blocks in various orientations (Isometric, Front, Side, and Top View)
