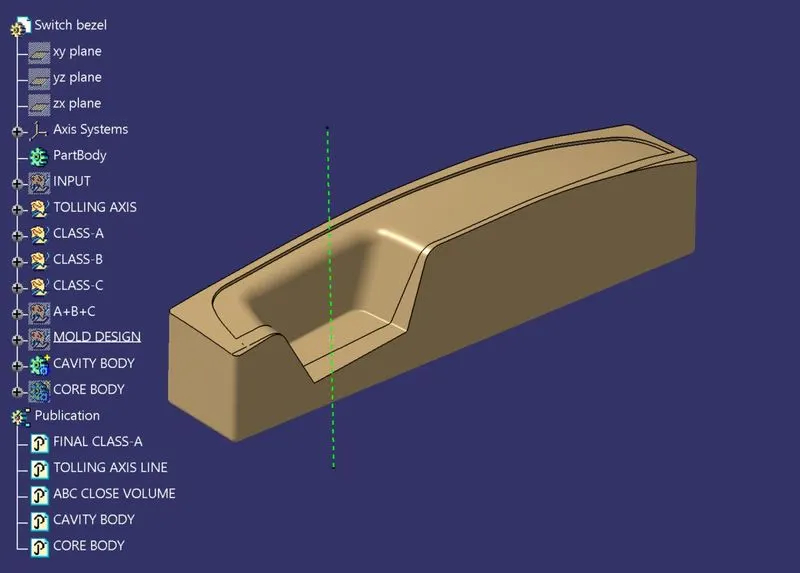

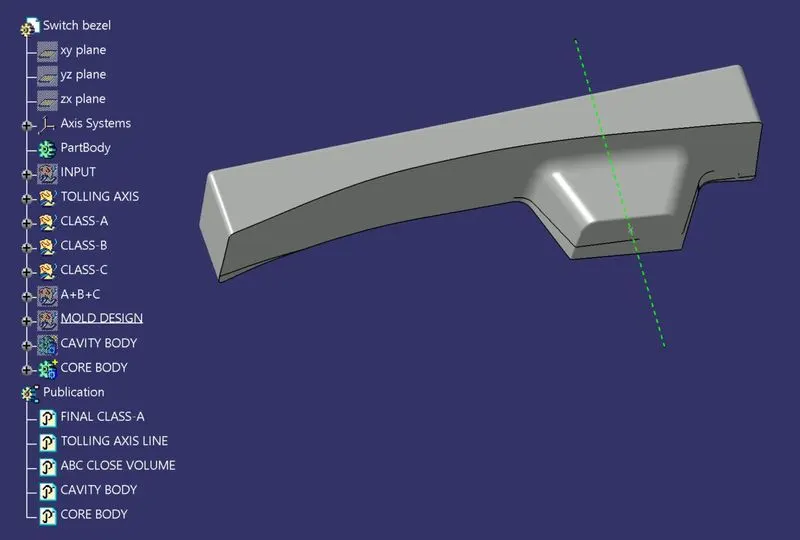

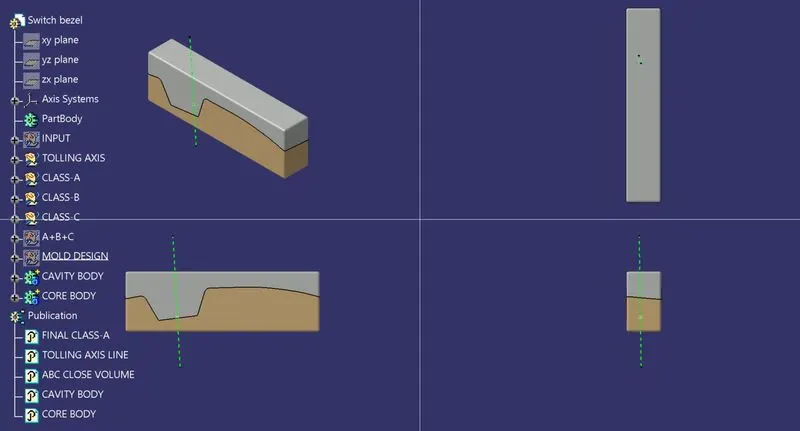

Week 8 - Challenge 6 - Core & Cavity Design

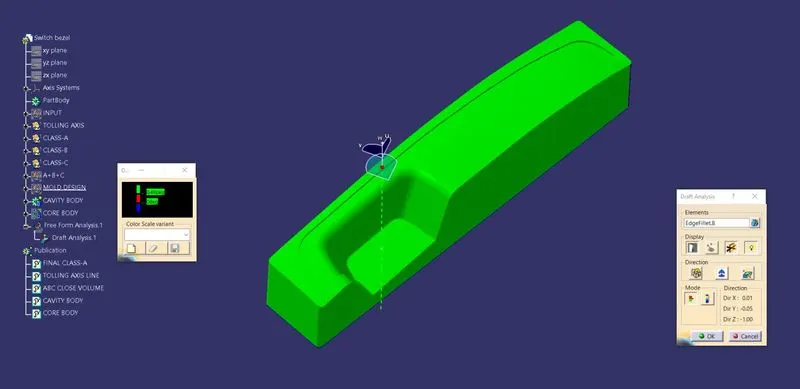

DRAFT ANALYSIS ;- draft analysis technique is used to analyze whether our part model created in CAD is manufacturable based on the draft condition applied. Here the part should get easily removed from the panel dies (in case of Sheet metal part) or Mold .

TOLLING AXIS :- The direction in which the mold or core and cavity opens is the tooling axis. STEP-01. Connectivity of Class-A surface: Checking the connectivity of the surface, this can be done by creating boundaries or by simply using the join option such that any openings can be easily visualized ..
