Week 8 - Challenge 4 - Bumper

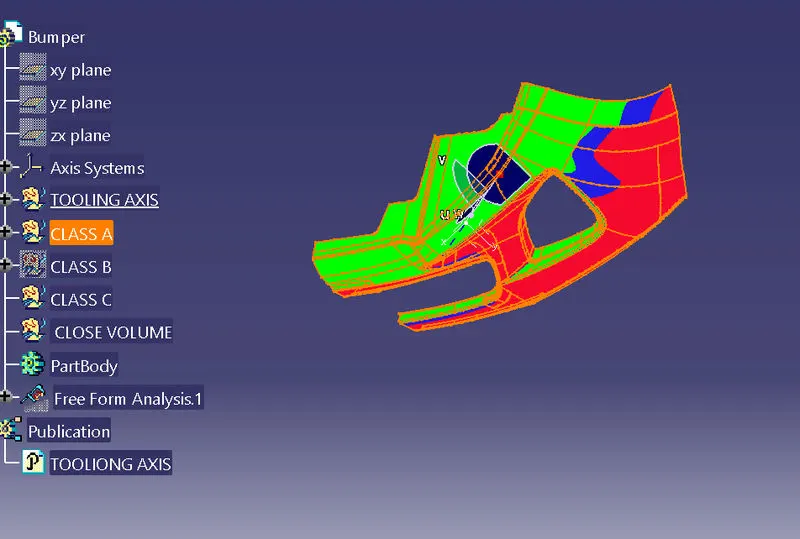

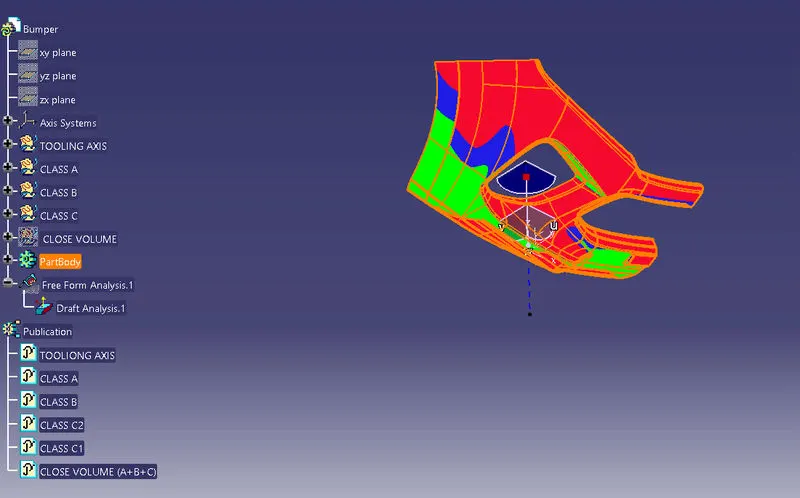

DRAFT ANALYSIS :- THE ANALYSIS IS USE TO NOGOTIATE THE UNDERCUTS FROM FINAL PART AFTER MOLDING .

TOOLING AXIS ;- IT IS USED TO ANALYSIS OF DRAFT FOR ANGLE OF DRAFT TACKING TO LIFT OUT THE JOB FROM CAVITY.

BISECTING METHOD :- BY USEING IT WE CAN CREAT NORMAL TOOLING AXIS TO THE GIVEN CLASS A SURFACE

AND JOB WILL SAFE IN DRAFT ANALYSIS.

WE HAVE TO USE HERE EXTA LIFTER FOR JOB SAFETY .
