Week 8 - Challenge 6 - Core & Cavity Design

CORE and CAVITY BLOCKS CREATION

1.Created tooling Axis

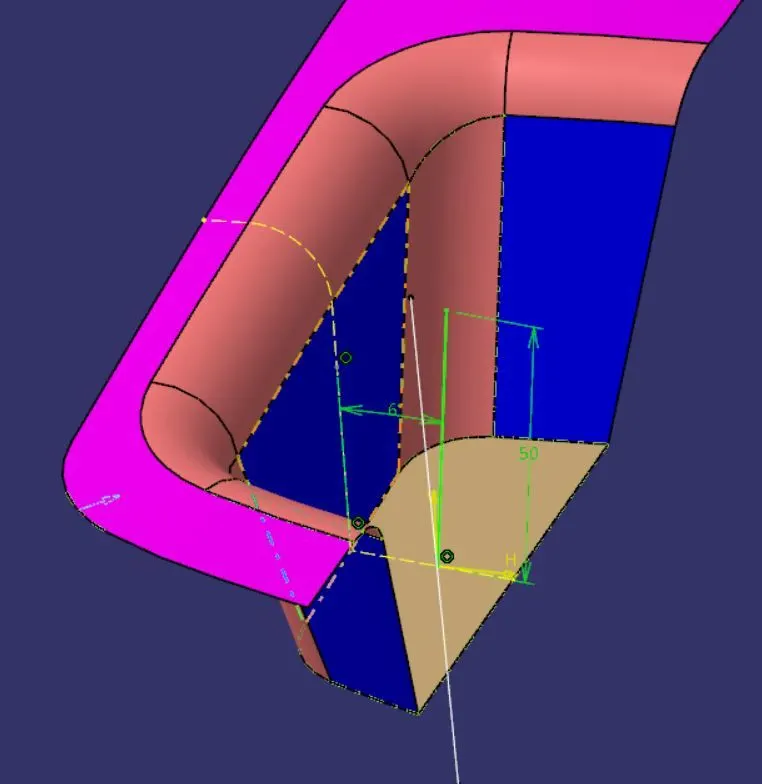

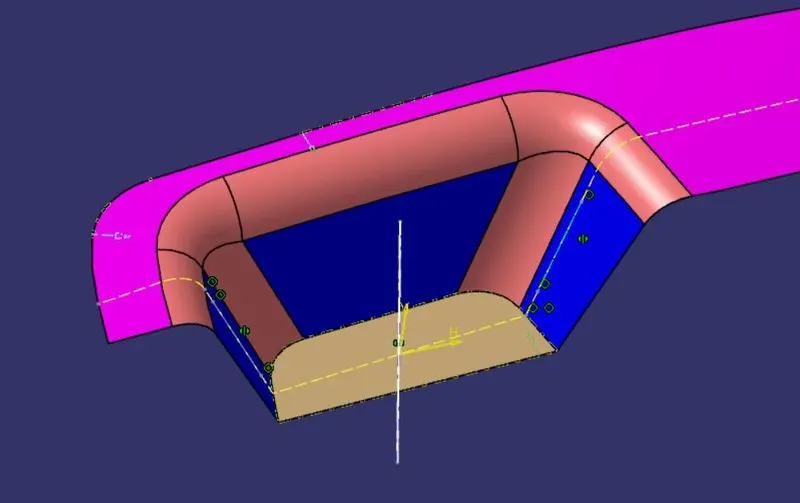

Step 1: created bisecting line which bisects, two side draft angle walls. refer image below

Step 2: Created bisecting line which bisects centre draft angle walls and also draw one approx. line for 3 Degree at initial stage. After the final step of draft analysis at class A surface it is finalized at 6 degrees for tool clearing.

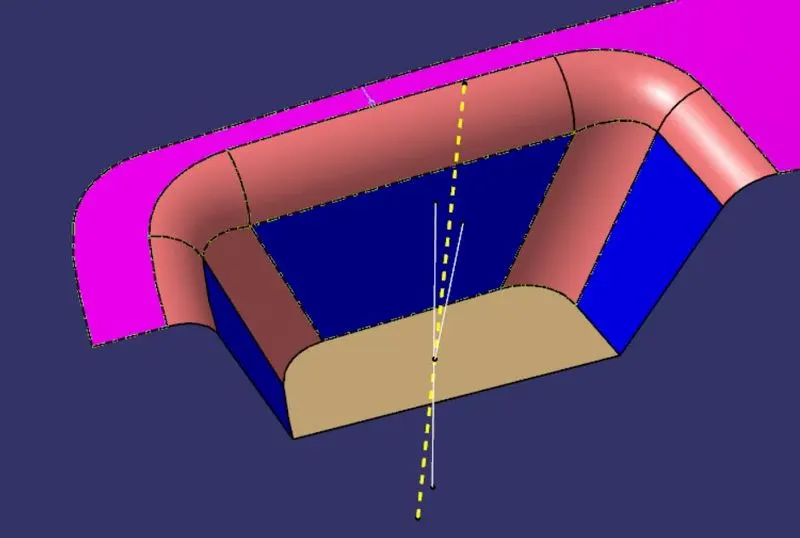

Step 3: Created the bisecting line which bisects the line step 1 and step 2. This line is the Main tooling line. Refer image below

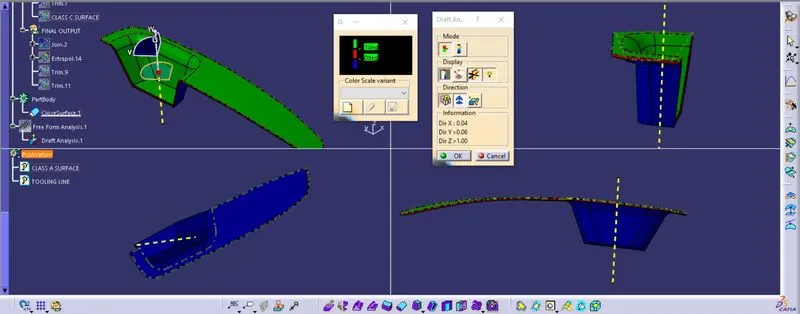

2.Using Draft Analysis. checked the draft along the created tooling axis line.

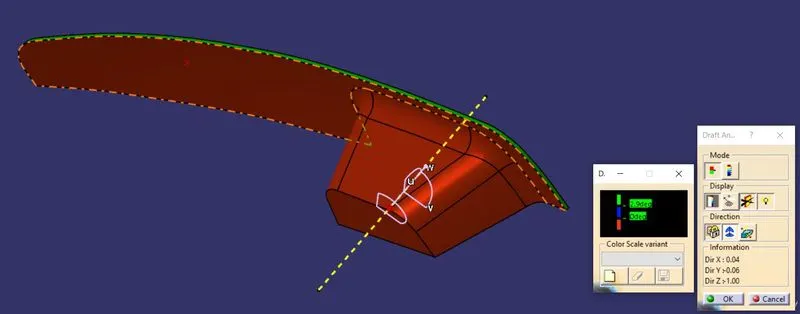

At 3 degree

3.Create Class B,Class C surface

4.Trim Class A,B,C to get the Part surface

5.Create part model

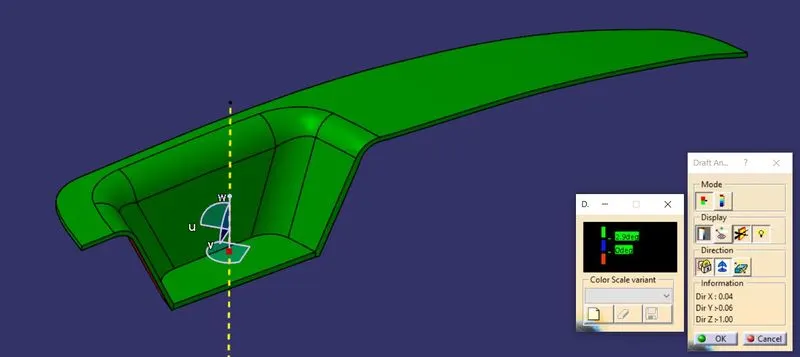

6.Again check the model with Draft Analysis

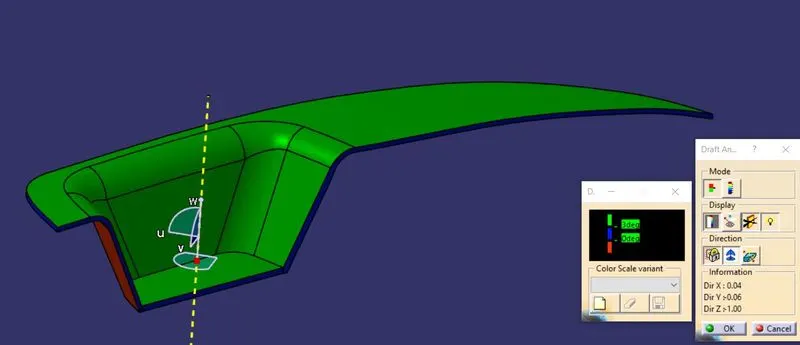

At 3 Degree

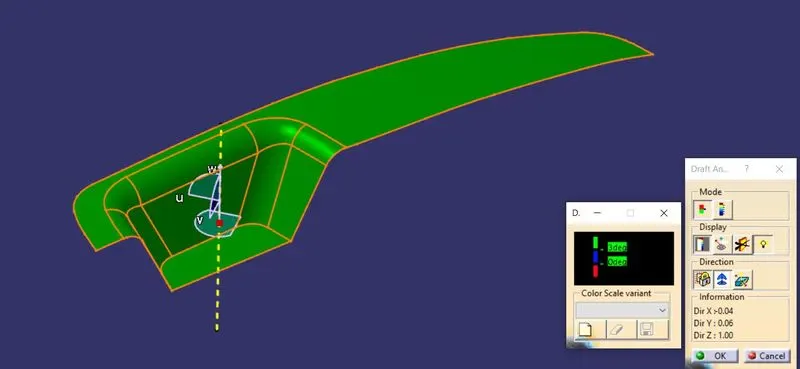

At 2.9 Degree

All faces were clearing at 2.9degree

7.Created Core and Cavity Block

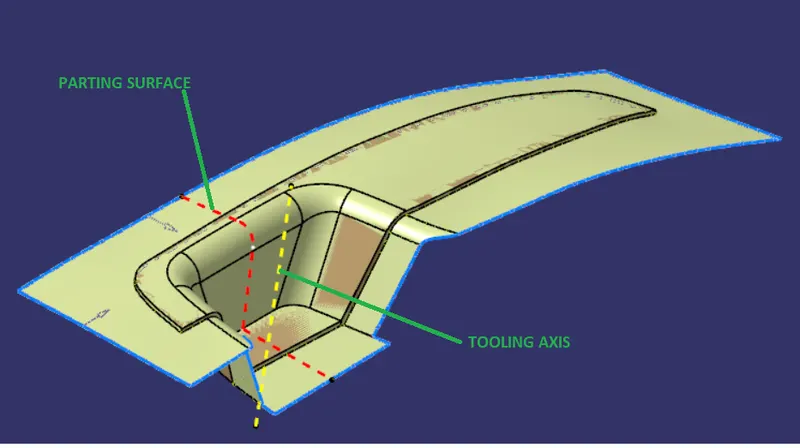

PARTING SURFACE

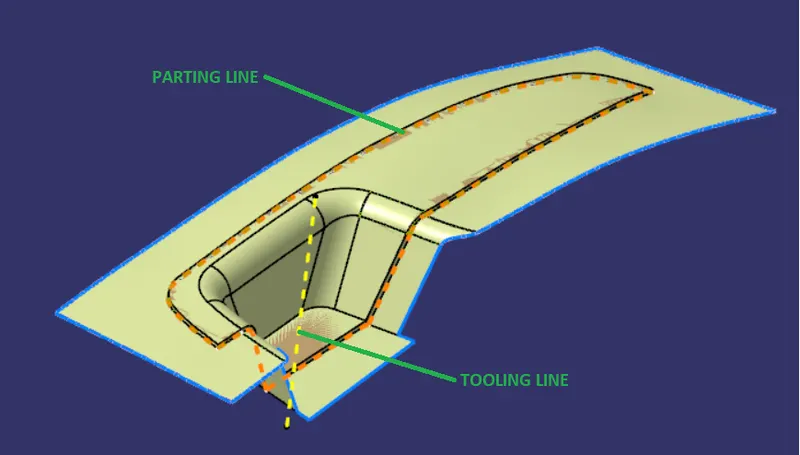

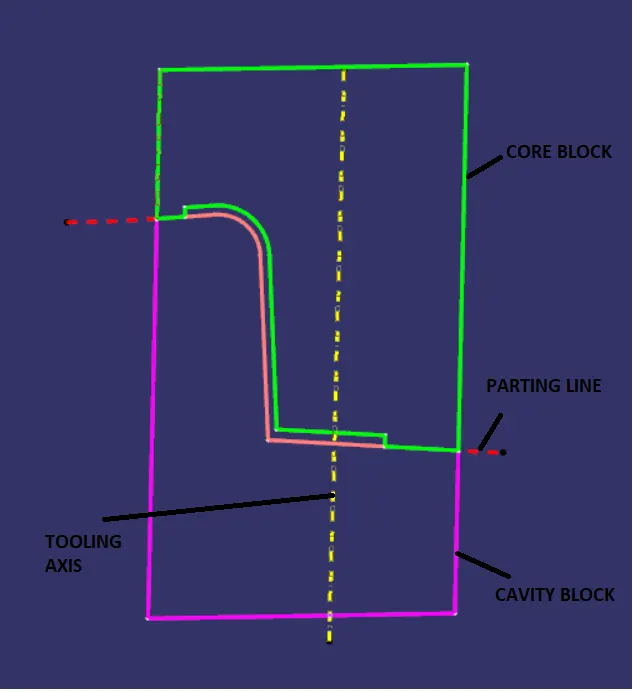

PARTING LINE

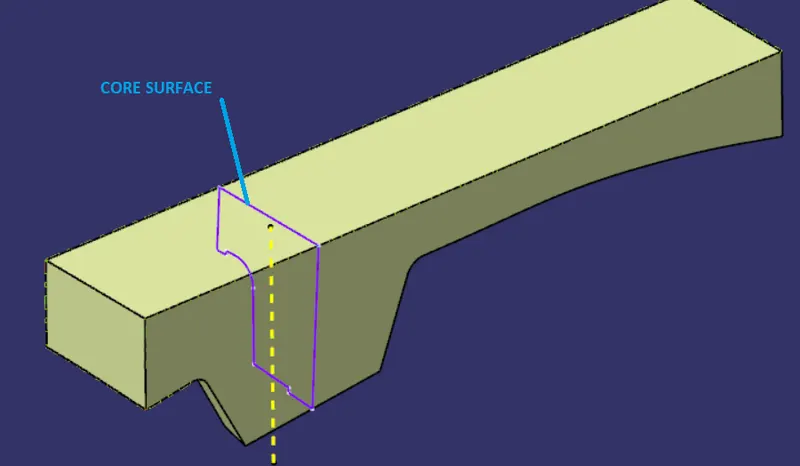

CORE SURFACE

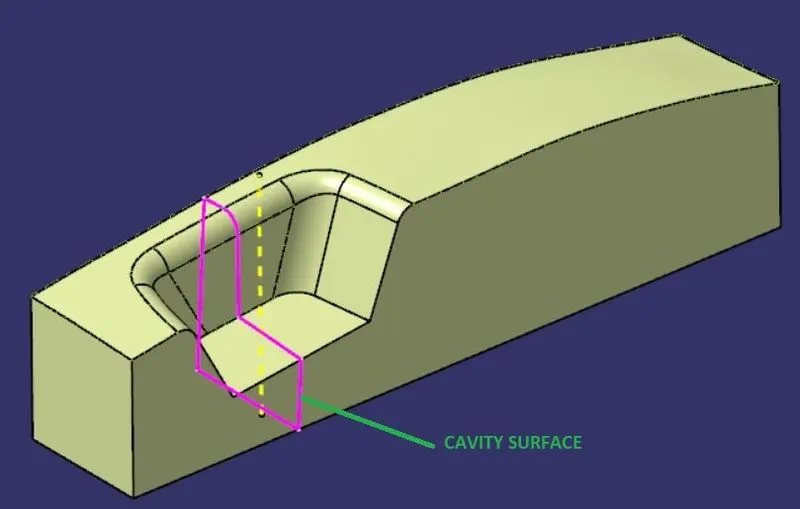

CAVITY SURFACE

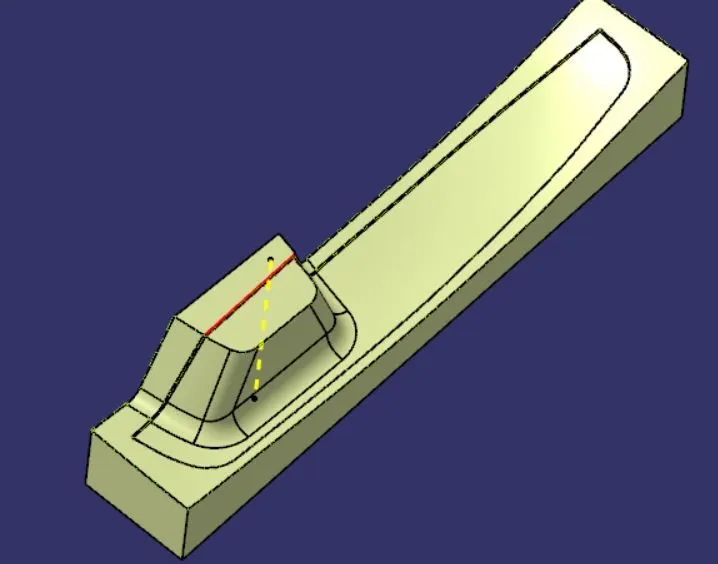

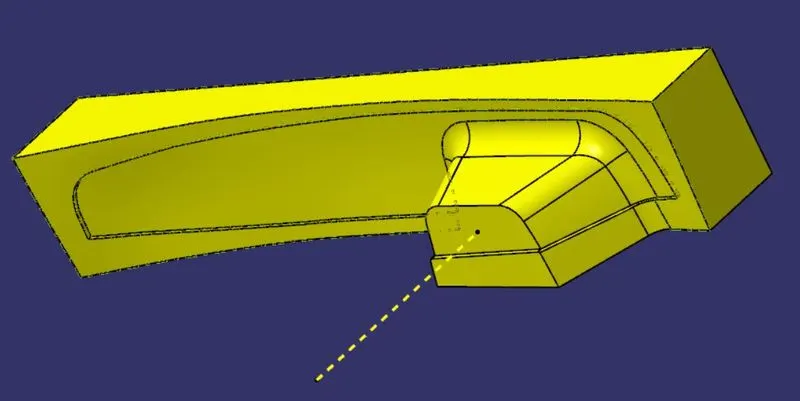

CORE BLOCK

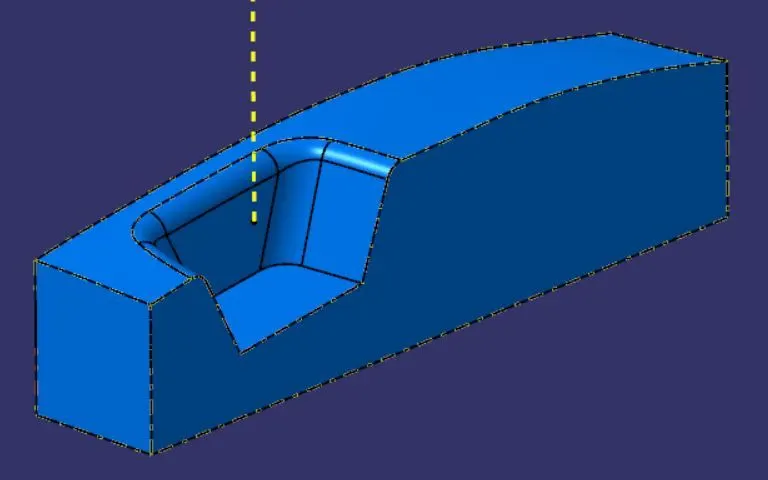

CAVITY BLOCK

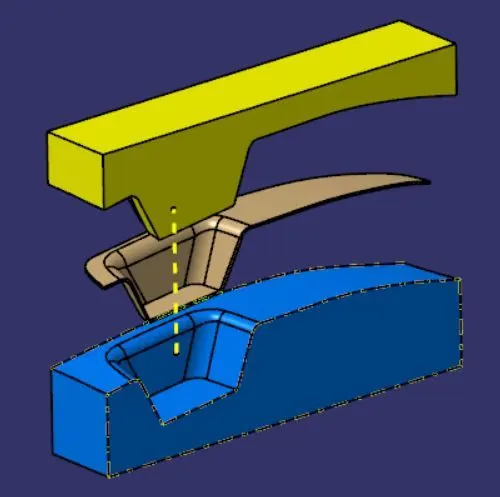

CORE AND CAVITY
