Week 8 - Challenge 6 - Core & Cavity Design

DRAWING - SWITCH BEZEL:

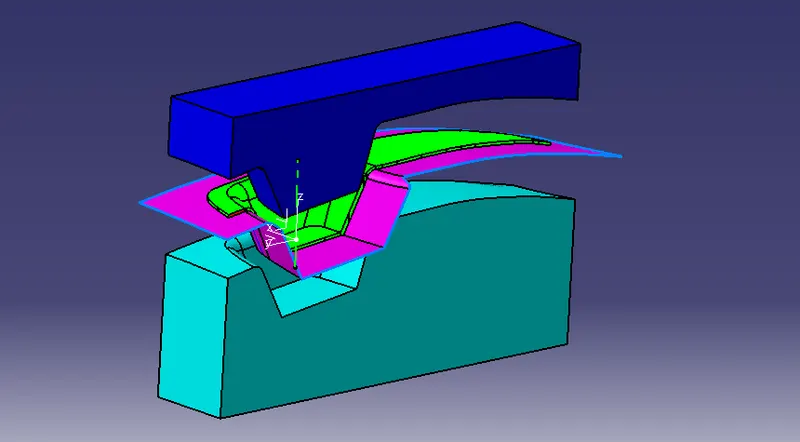

CORE AND CAVITY:

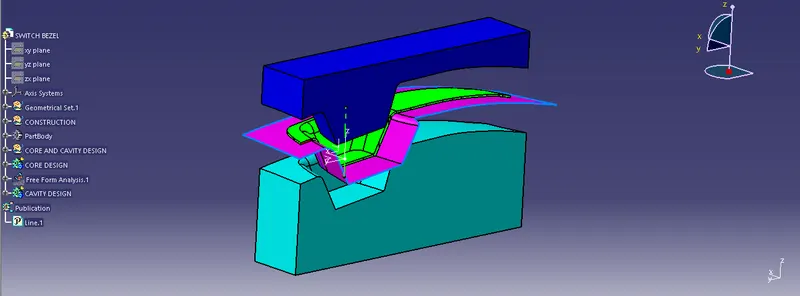

TREE STRUCTURE OF CORE AND CAVITY:

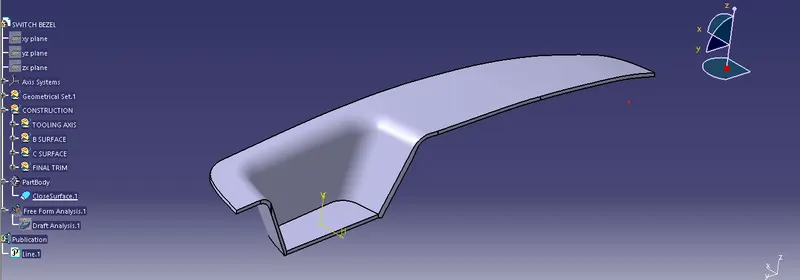

SURFACE MODEL:

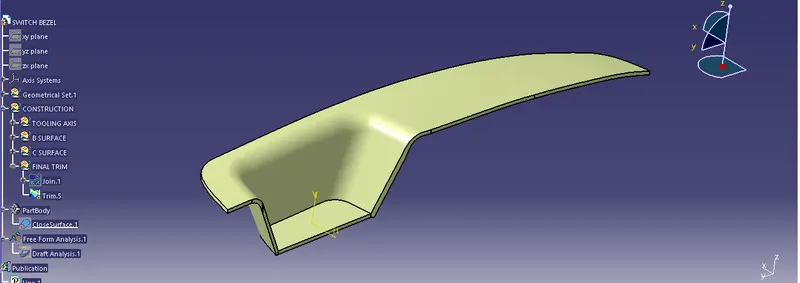

CLOSE SURFACE MODEL:

DRAFT ANALYSIS :

All the sides are having o to 3 deg. Front and reverse sides are in positive and negative degrees.

Axis is matched with tooling axis and three degrees of freedom is perfect with tooling axis.

TOOLING AXIS:

Tooling axis is predicted with visible areas of all sides based on core and cavity model.

~Tooling axis is created with two intersecting axis of two sides. And created via Bisecting lines.
