Week 8 - Challenge 3 - Coin Holder Design

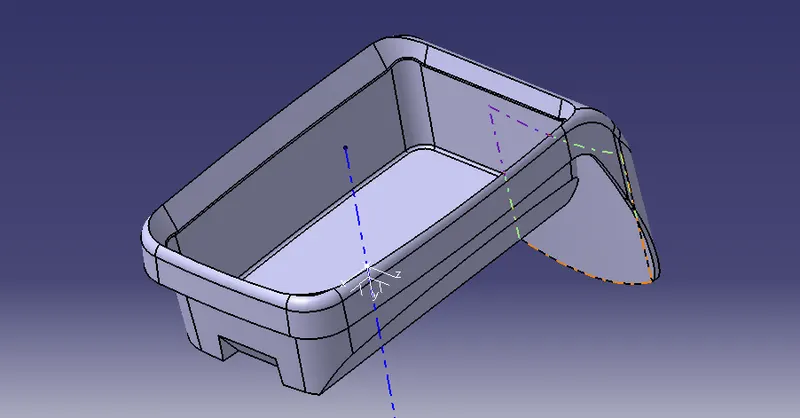

DRAWING COIN HOLDER:

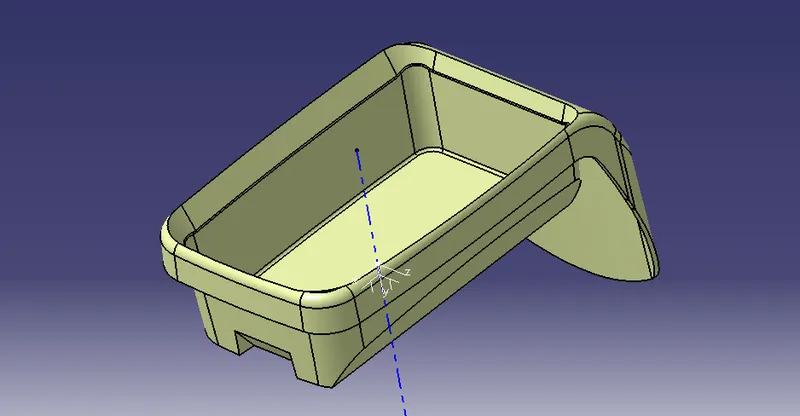

CLOSE SURFACE MODEL:

SURFACE :

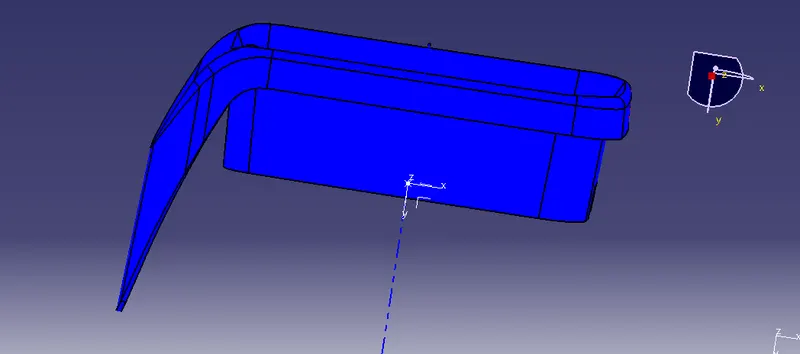

TOOLING AXIS:

Tooling axis is axis for core and cavity movement. Here, the axis is marked with the blue line. Tooling axis should have the visibility from the top and bottom side. Here, are the same thing follows.

DRAFT ANALYSIS:

Outside of the part is below 0 deg and the ather sides are above 0 to 3 deg.

All the sides are having below 3 deg.
