Week 8 - Challenge 6 - Core & Cavity Design

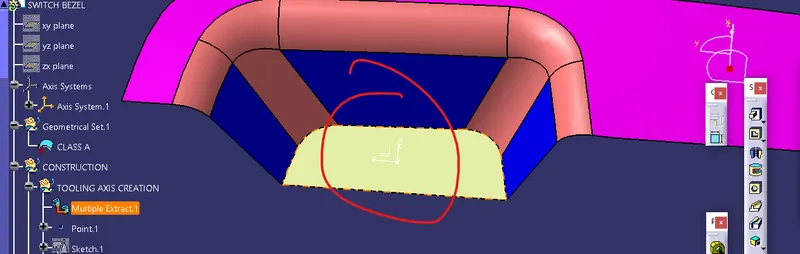

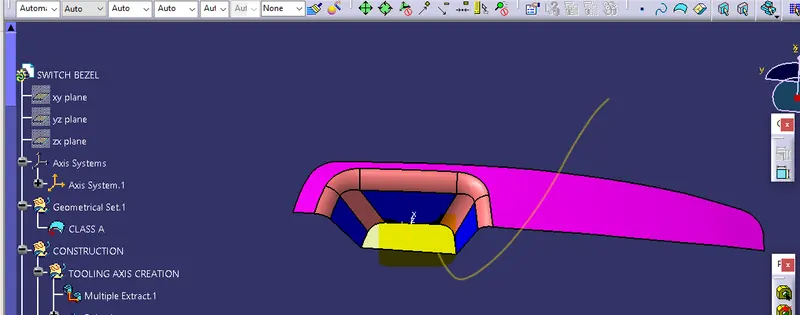

1. FIRST OF ALL EXTRACT THE BASE SURFACE FROM THE CLASS A SURFACE.

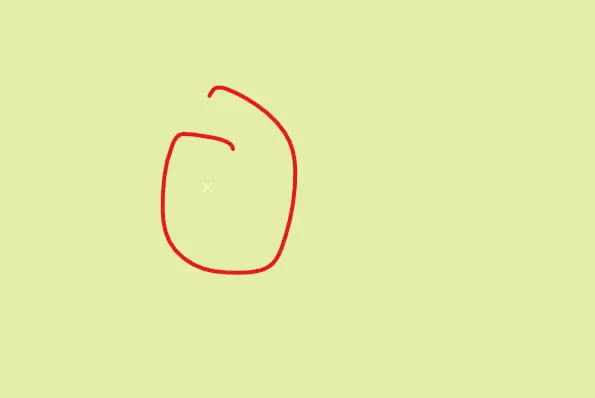

2.MAKE A POINT BY THE THE SURFACE

3. INSERT THE AXIS SYSTEM ON THE SURFACE BY USING THE POINT WHICH IS CREATED PREVIOUSLY

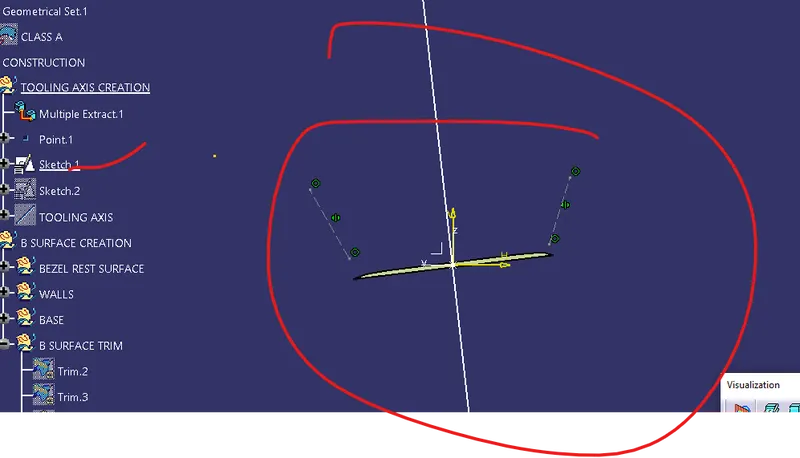

4. FIRST LINE WAS MADE BY THE INTERSECTION OF THE A SURFACE BY USING THE "YZ" AND FROM THAT INTERSECTION BY USING THE BISECTING LINE WE CAN FORM THE FIRST LINE

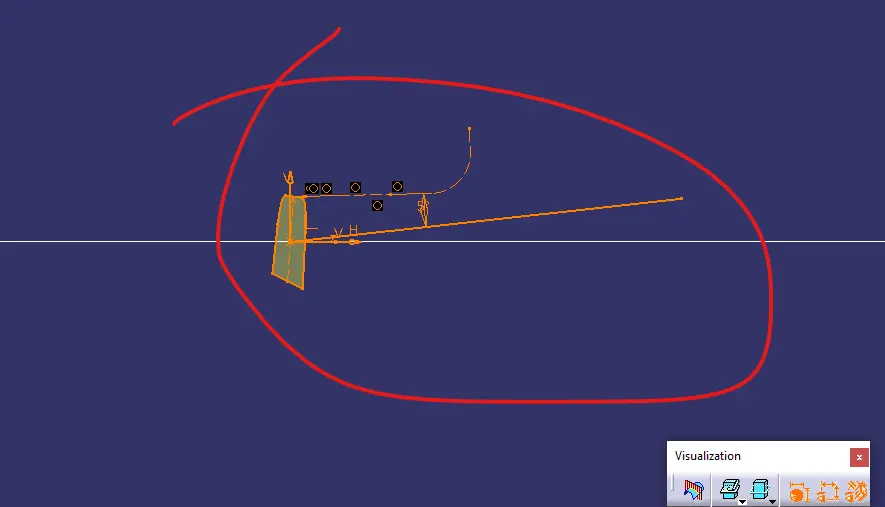

5. AND THE SECOND LINE WILL MAKE BY ANOTHER INTERSECTION AND HERE WE MAKE THE LINE BY USING THE DRAFT ANGLE.

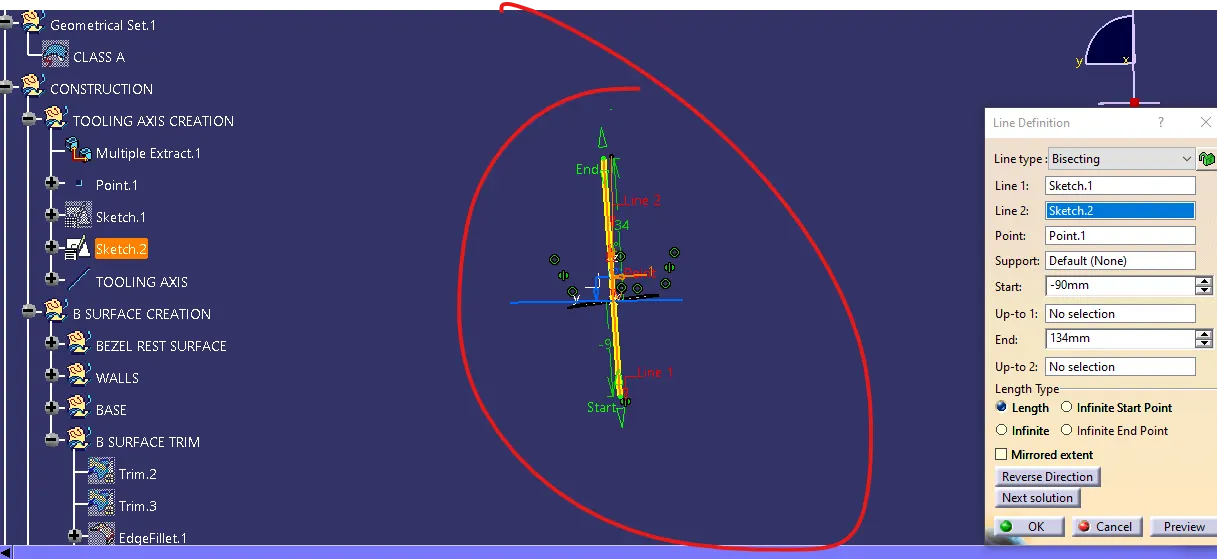

6. BY USING THE LINE 1 AND LINE 2 WE TAKE SOME BISECTING LINE THAN SELECT THE LINE 1 AND LINE2 THEN AUTOMATICALLY FORMS A LINE THAT IS CALLED THE TOOLING AXIS.
