Week 8 - Challenge 1 - Base Bracket Design

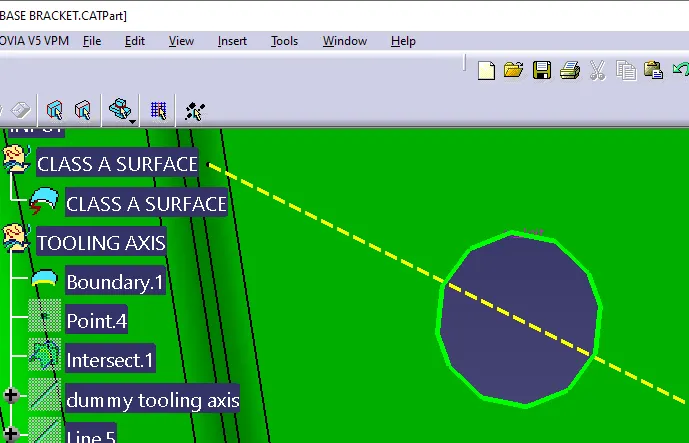

FIRST WE MAKE THE BOUNDARY FROM THE HOLE.

AND THE WE CAN INSERT THE POINT BY THE BOUNDARY LINE

AND THE WE CAN EXTRACT THE LINE FROM THE CLASS A DESIUGN

BY THAT INTERSECT LINE WE CAN PRODUCE THE BISECTING LINE

THAT BISECTING LINE IS KNOWN AS TOOLING AXIS

ACTUALLY THE TOOLING AXIS IS USED TO TAKE THE PART FROM THE MOULD IS EASILY BY THE CORRECT DIRECTION
