Week 8 - Challenge 5 - Door Trim Lower

Create the Door Trim Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the draft angle requirements and performing the draft analysis on the model at the end.

Take the Thickness of the component to be 2.5 mm

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

DECIDE THE TOOLING AXIS BEFORE PERFORMING A DRAFT ANALYSIS

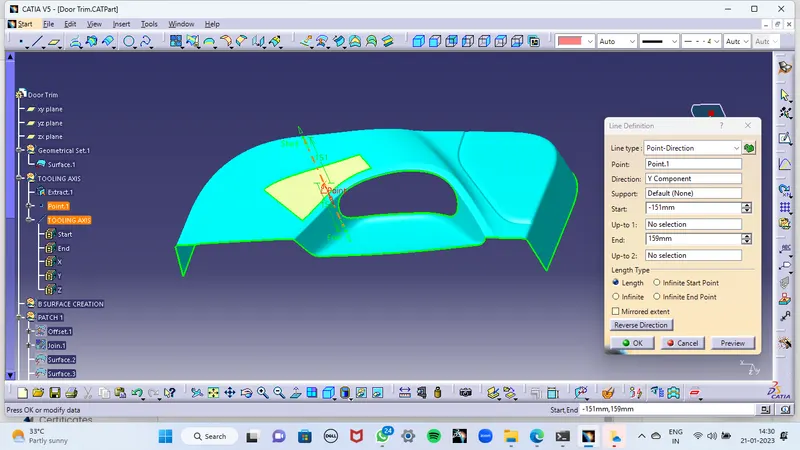

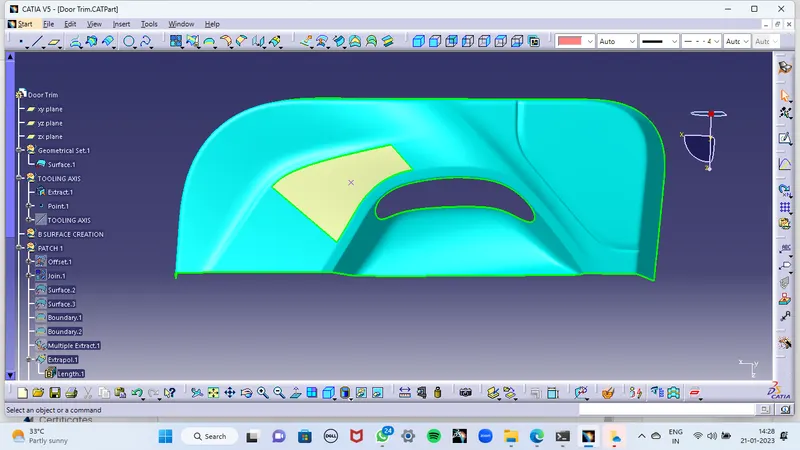

EXTRACT ONE LARGE SURFACE FROM THE CLASS. MAKE A POINT OVER MID OF THAT EXTRACTED SURFACE. THEN CREATE A LINE WITH REFERENCE TO THE POINT IN Y-DIRECTION

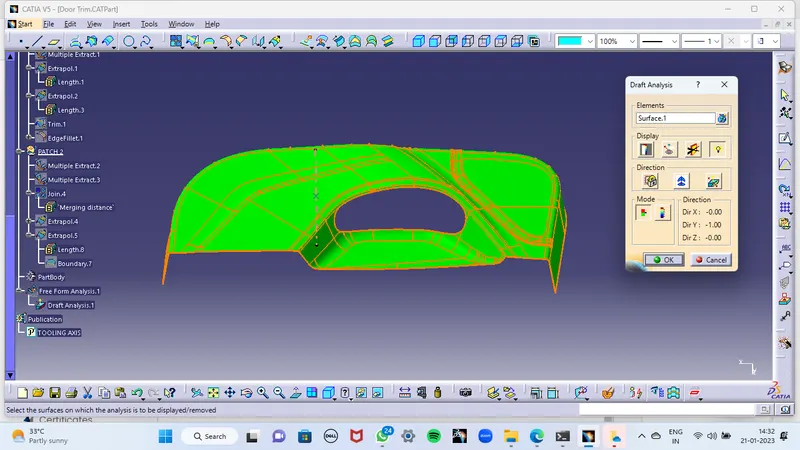

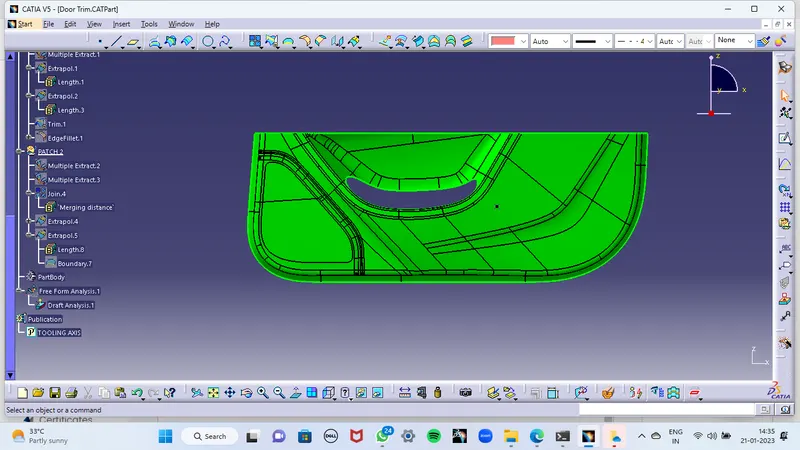

THEN PERFORM A DRAFT ANALYSIS. IF THE ANALYSIS GET SUCCESSFUL MEANS YOUR MODEL IS COMPLETELY TURN INTO GREEN COLOUR LIKE BELOW

AFTER COMPLETION OF THE DRAFT ANALYSIS. YOU NEED TO OFFSET THE CLASS-A SURFACE FOR 2.5mm.

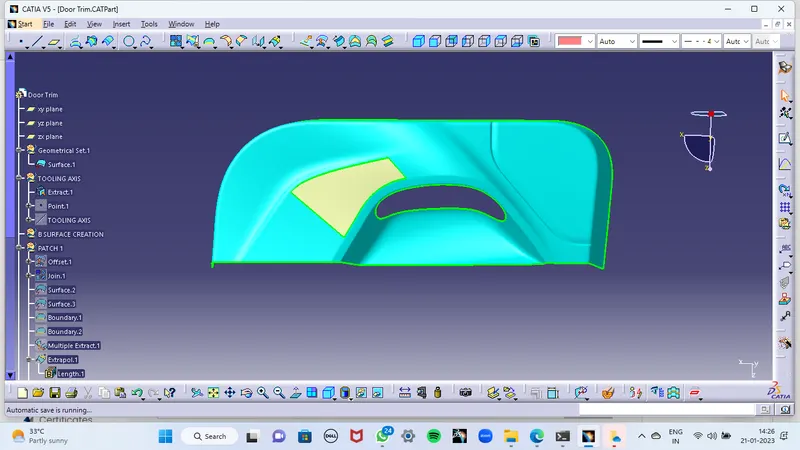

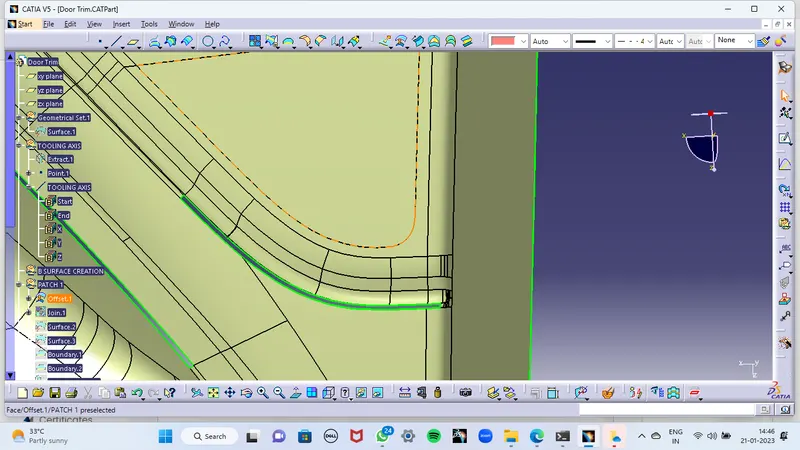

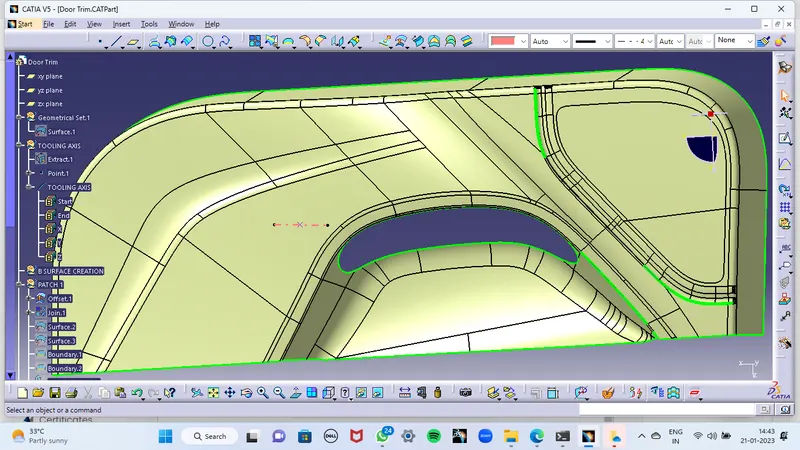

HERE YOU CAN FIND SOME PATCHES DUE TO IMPROPER OFFSET OF SOME FILLETED AREAS. I HAVE TWO PATCHES IN MY MODEL

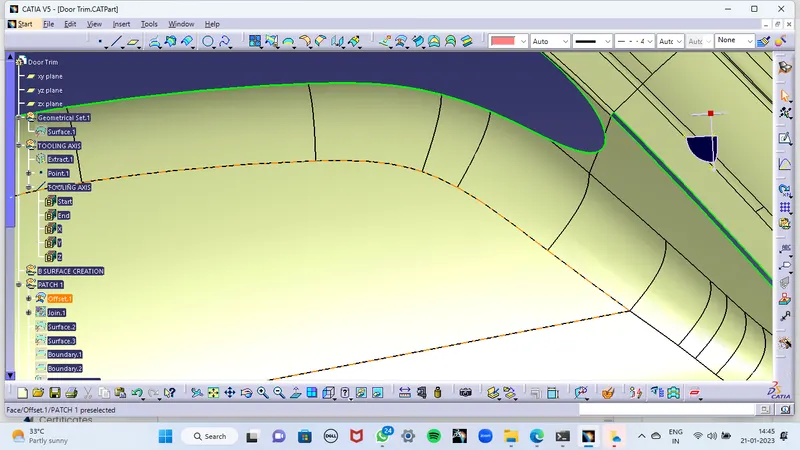

PATCH 1

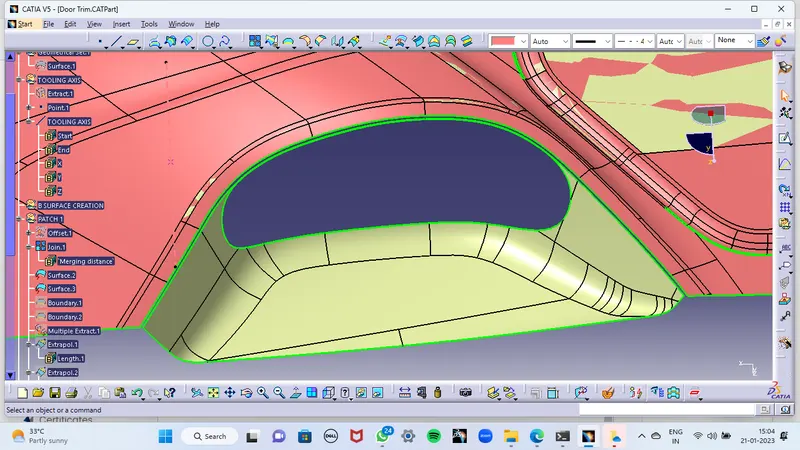

PATCH 2

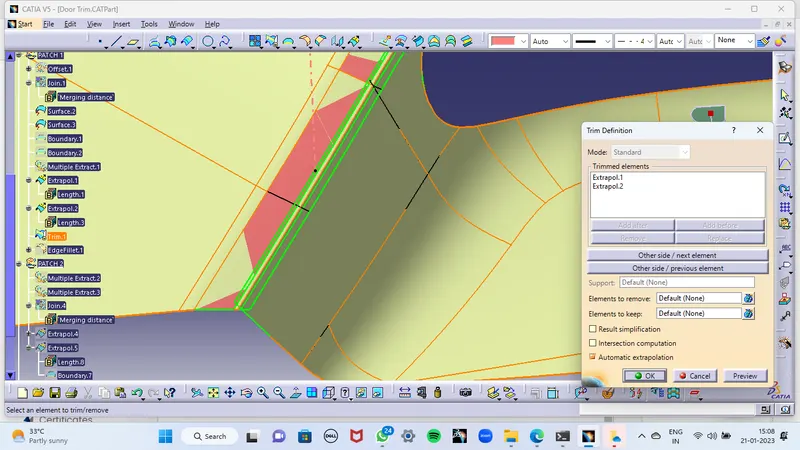

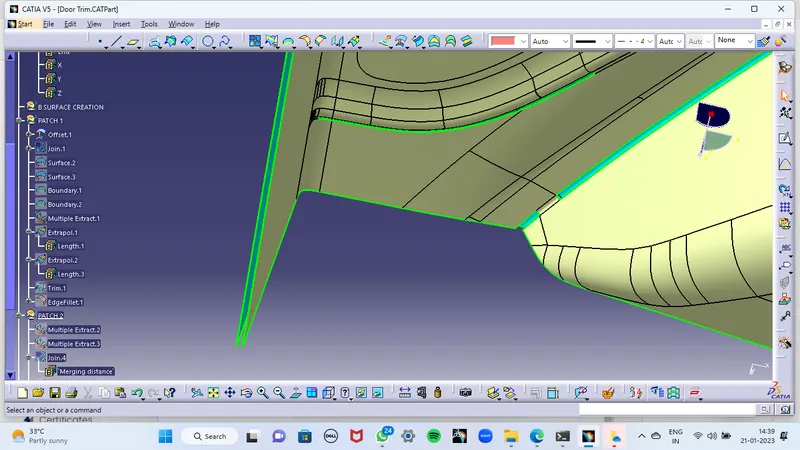

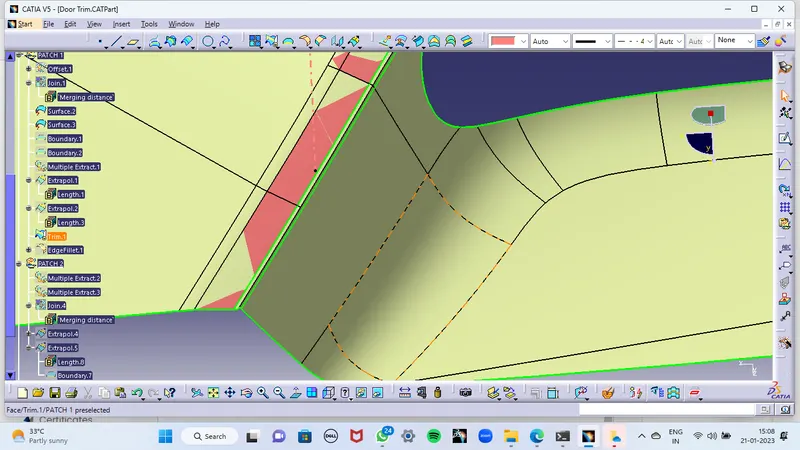

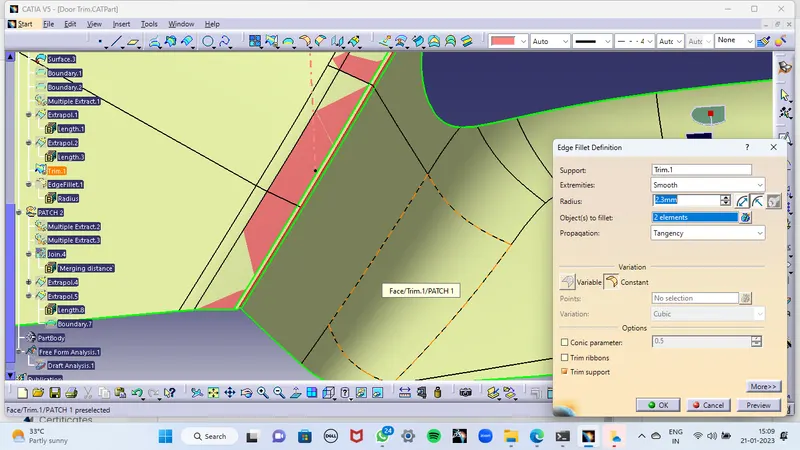

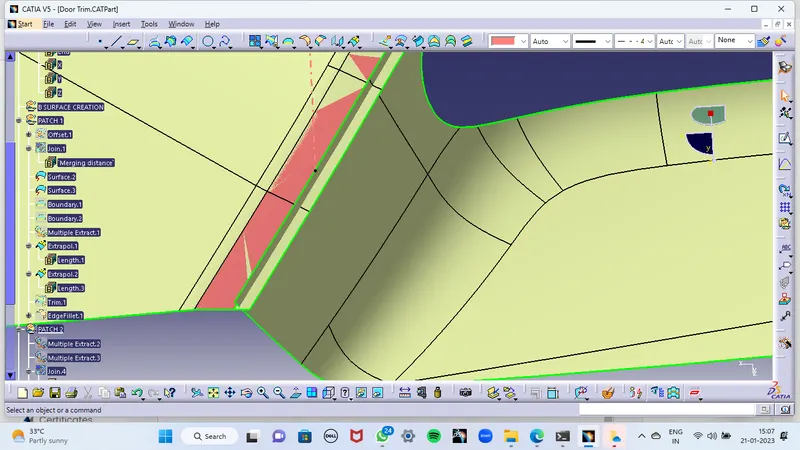

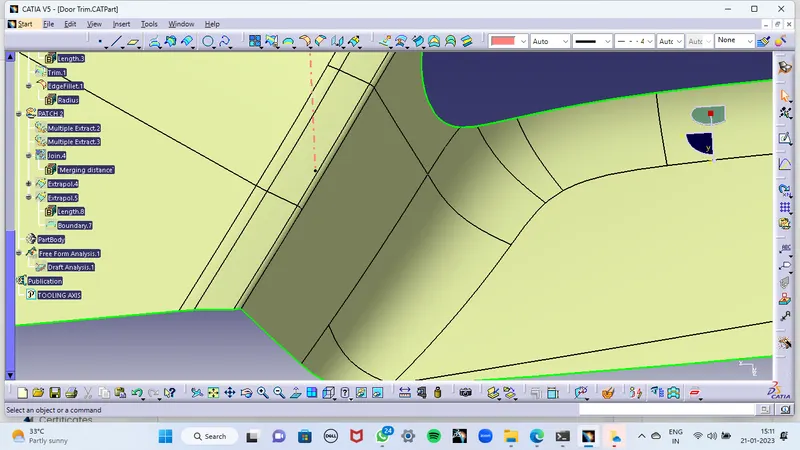

HERE YOU NEED TO SOLVE THOSE PATCHES ONE BY ONE. INITIALLY, YOU NEED TO REMOVE THE UNWANTED FILLET ASSOCIATED WITH THE PATCH AND CREATE A BOUNDARY OVER THE TWO DIFFERENT SURFACES. EXTRAPOLATE BOTH SURFACE BOUNDARY EDGES. MAKE SURE BOTH THE SURFACES INTERSECT WITH EACH OTHER. NOW TRIM THE UNWANTED PORTION TO GET THE REQUIRED AREA. FINALLY, GIVE A REQUIRED FILLED VALUE MEASURED FROM THE CLASS-A SURFACE TO GET A MODEL LIKE BELOW

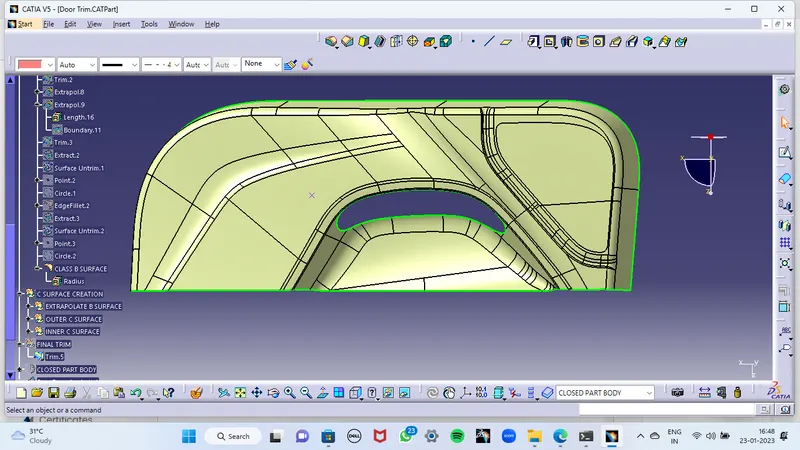

SIMILARLY, WE DO IT FOR PATCH 2 TO GET A MODEL LIKE THE ONE BELOW. AND THIS WILL BE YOUR CLASS B SURFACE

AFTER GETTING THE B-SURFACE YOU NEED TO WORK ON IT WITH YOUR C-SURFACE. CREATING A C-SURFACE MEANS BY SWEEPING CLASS-A SURFACE WITH RESPECT TO THE NATURE OF THE SURFACE. NOW YOU GET A SURFACE LIKE BELOW

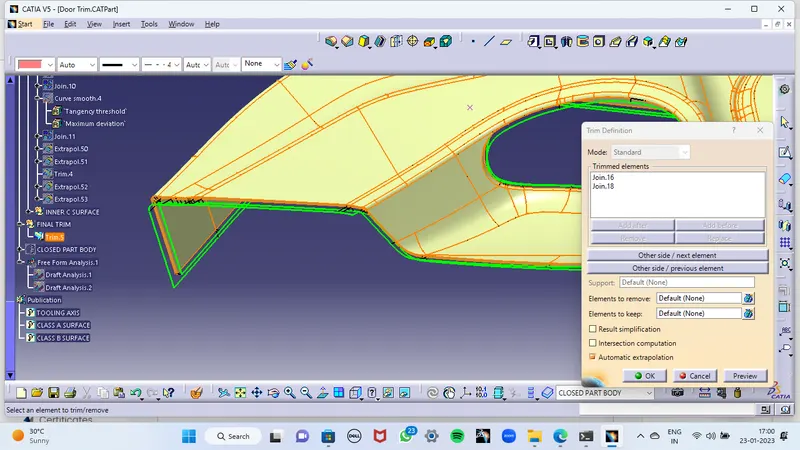

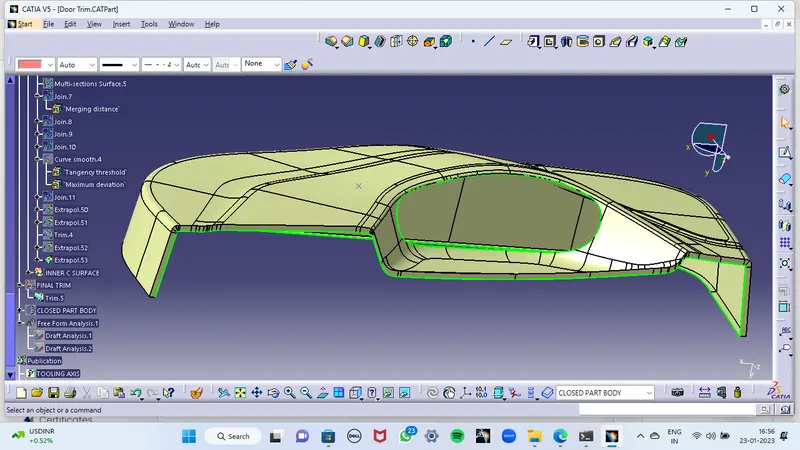

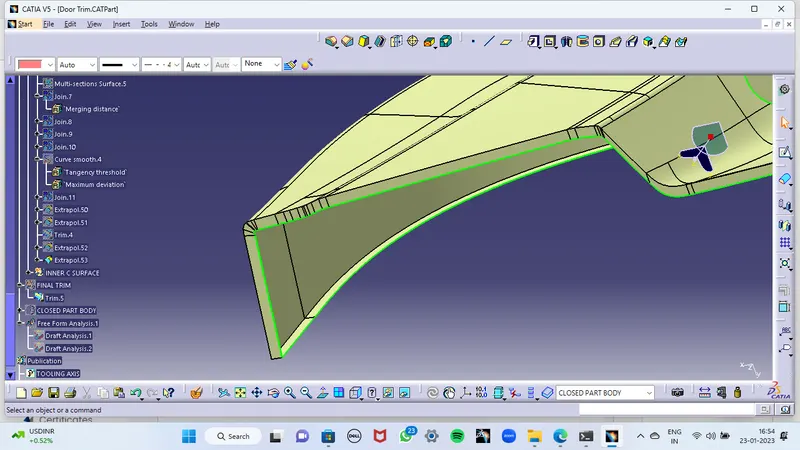

NOW UNHIDE BOTH EXTRAPOLATED B-SURFACE AND SWEPT SURFACE AND TRIM THEM TOGETHER TO GET A MODEL LOKE BELOW

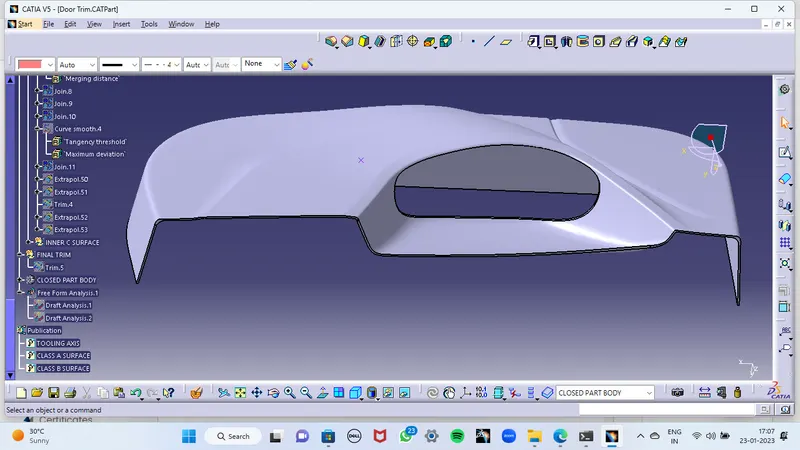

AND NOW WE GET A CLOSED SURFACE LIKE BELOW

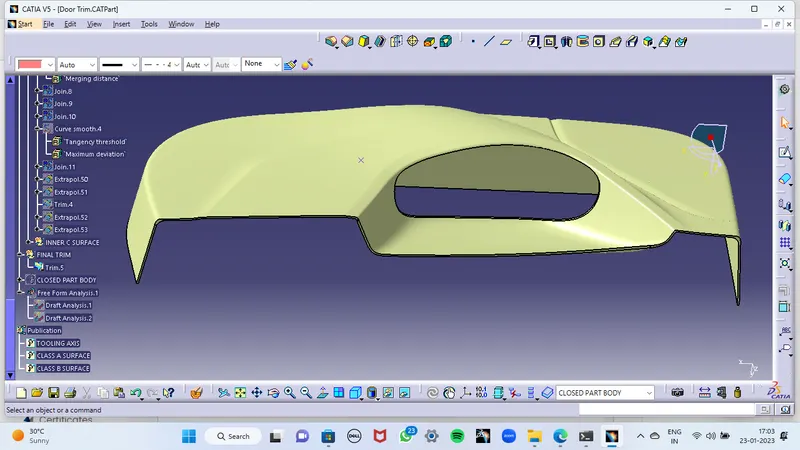

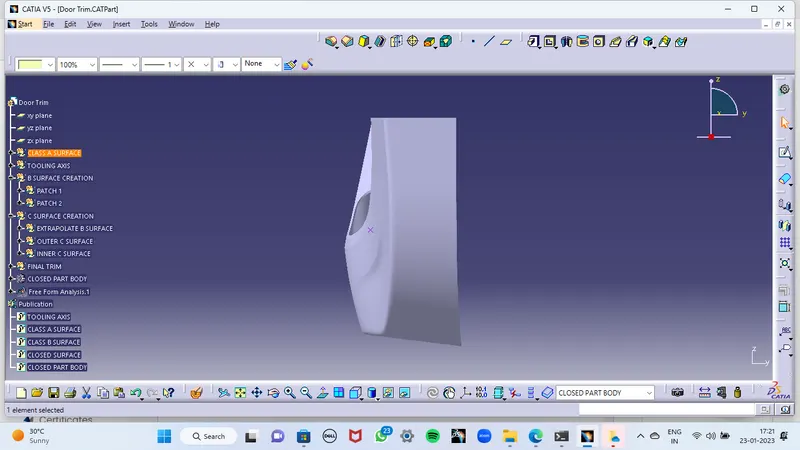

AFTER GETTING THE CLOSED PROFILE LIKE ABOVE ENTER INTO THE PART WORKBENCH AND MAKE THE PROFILE INTO A COMPLETELY SOLID OBJECT USING CLOSED SURFACE COMMENT. NOW YOUR MODEL LOOKS LIKE BELOW

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

DRAFT ANALYSIS

DRAFT ANALYSIS OF THE CLASS-A SURFACE

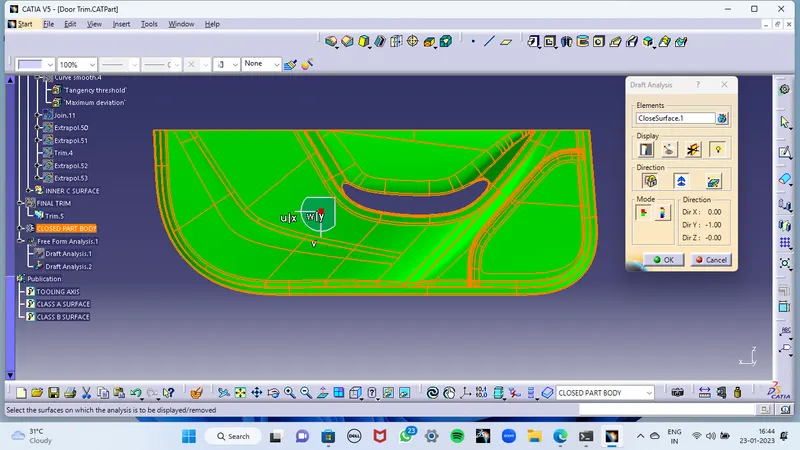

DRAFT ANALYSIS OF THE FINAL PRODUCT

TREE STRUCTURE

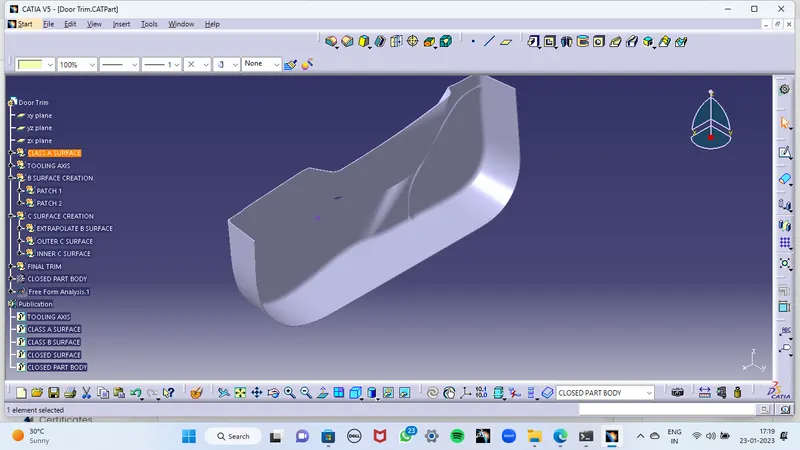

ISOMETRIC VIEW

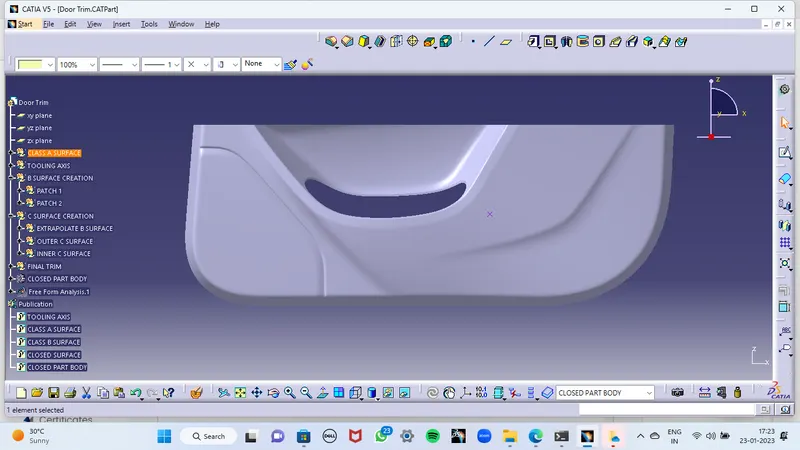

FRONT VIEW

TOP VIEW

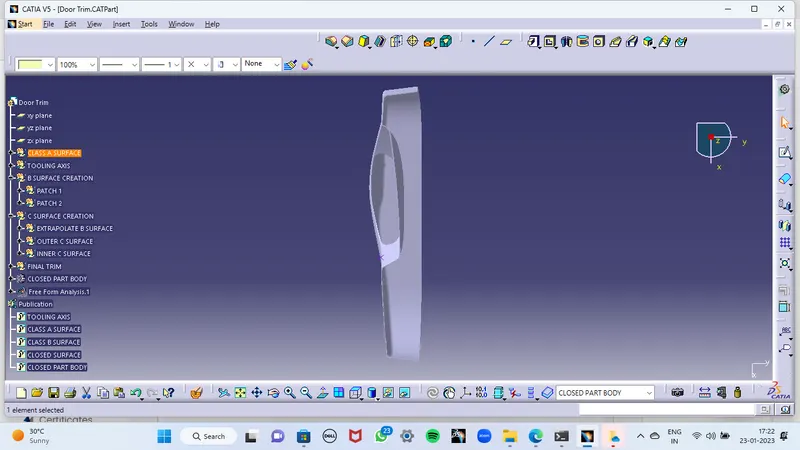

SIDE VIEW

*****THANK YOU*****
