Week 8 - Challenge 5 - Door Trim Lower

AIM - TO CREATE TOOLING AXIS AND PERFORMING DRAFT ANALYSIS.

TO CREATE CLOSE THE A , B & C SURFACE BY DESIGNING B AND C SURFCE.

1) TOOLING AXIS-

HERE IN CASE OF DOOR TRIM WE CAN USE THE CENTER OF GRAVITY FOR CREATING THE TOOLING AXIS.

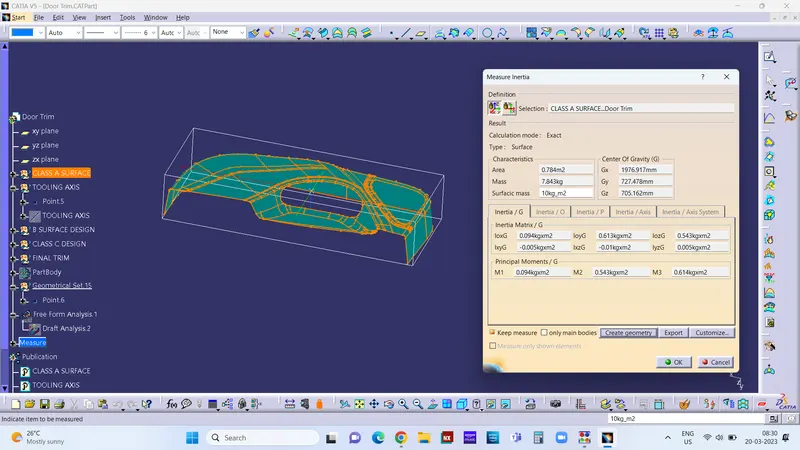

FIRST CREATE A POINT AT CENTER OF GRAVITY USING MEASURE INERTIA.

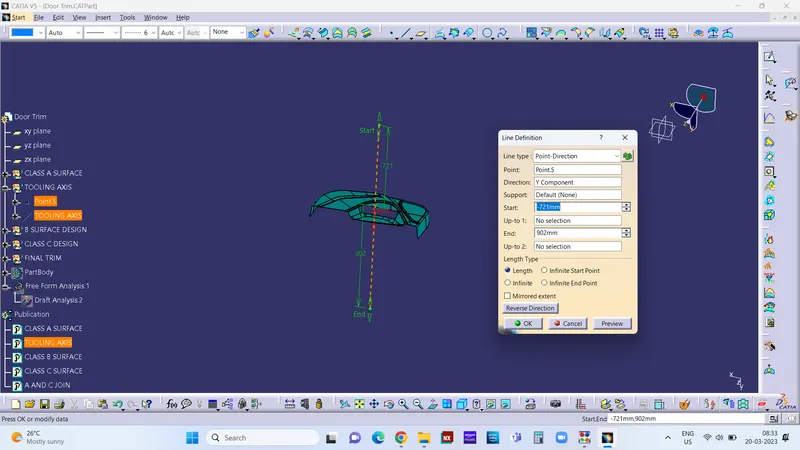

AFTER THAT CREATING A LINE USING THAT POINT AND POINT DIRECTION OPTION AND Y DIRECTION.

AFTER THAT PERFORM THE DRAFT ANALYSIS TO ENSURE ABOUT TOOLING AXIS.

2) DRAFT ANALYSIS-

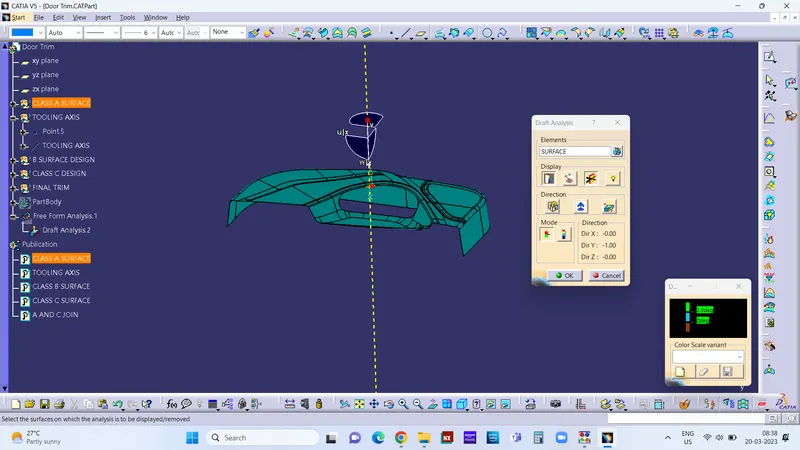

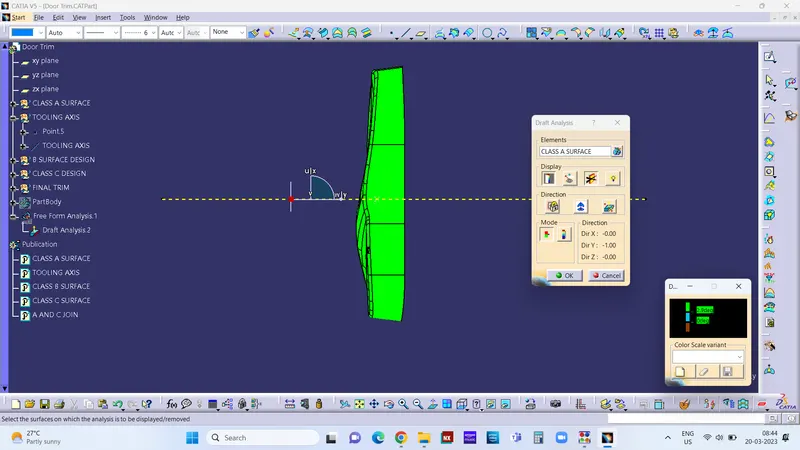

FIRST CLICK ON DRAFT ANALYSIS.

THEN CLICK ON COMPASS SIGN AND ALIGN IT WITH TOOLING AXIS.

AFTER THAT CLICK ON ANY SURFACE TO APPLY DRAFT ANALYSIS.

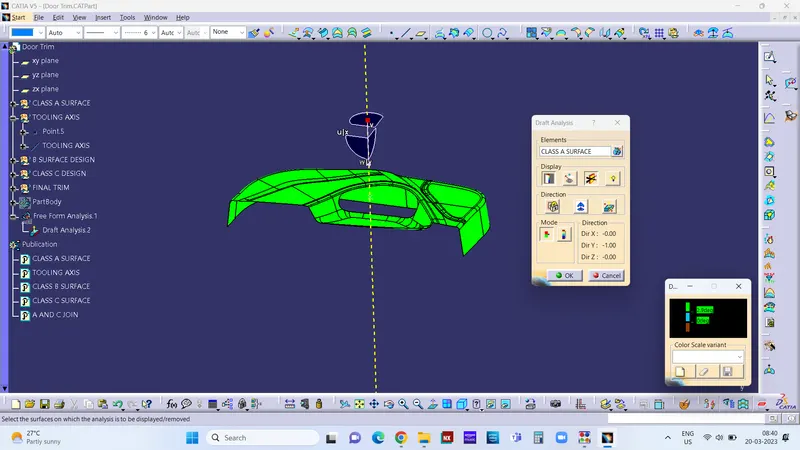

HER WE CAN SEE THAT THE ALL SURFCE CLEARS IN THE GIVEN TOOLING AXIS, SINCE IT IS SHOEWING ONE COLOUR.

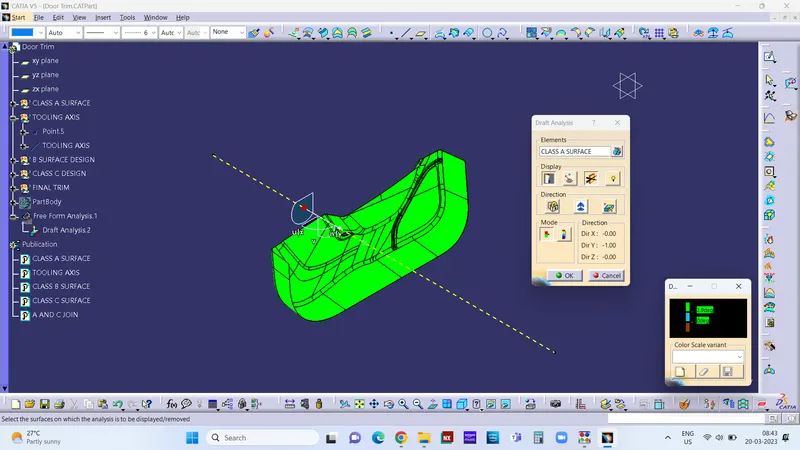

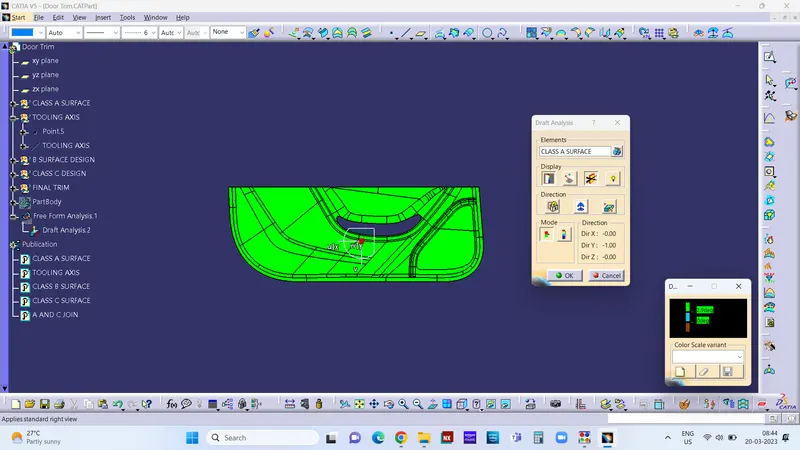

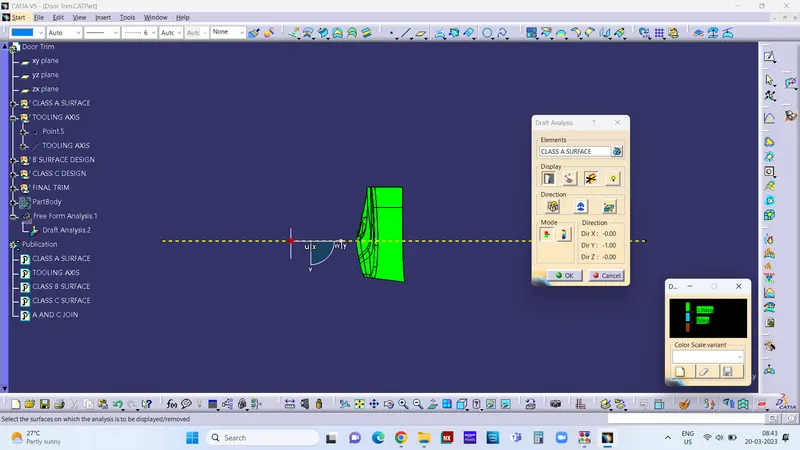

PICTURES OF DRAFT ANALYSIS FROM ALL VIEWS.

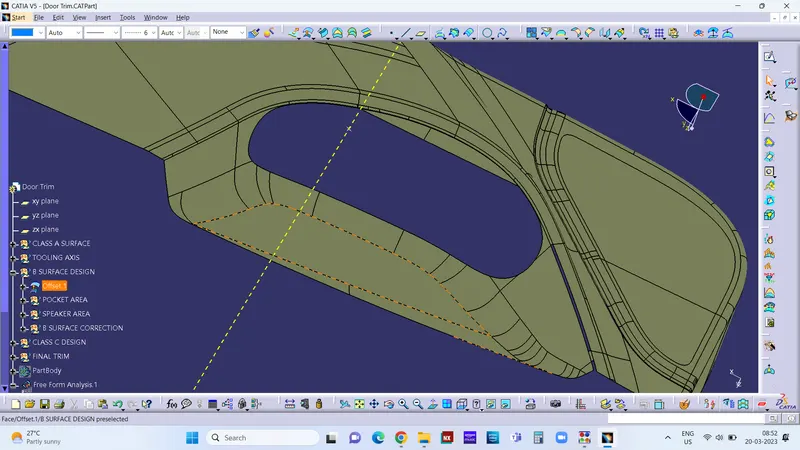

3) AFTER THAT STRT DESIGNING THE B SURFACE BY OFFSETTING A SURFACE BY 2.5 MM.

SINCE ALL SURFACE DOSENOT COME IN OFFSET HAVE TO WORK ON PATCHES.

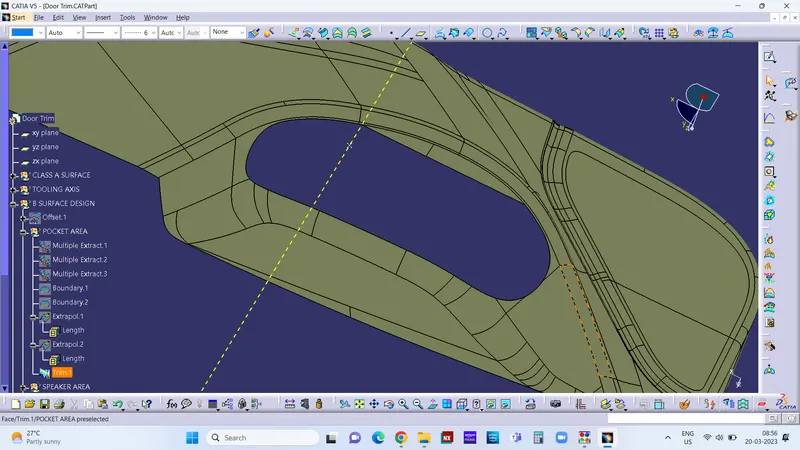

CLOSE THIS PATHES USING THE MULTIPLE EXRACT USING COMPLNTRY MODE AND REMOVIN UNWANTED PATCHES .

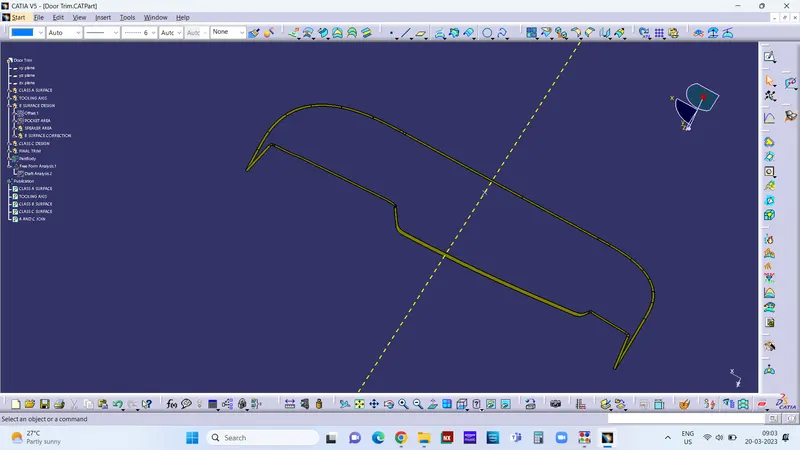

AFTER THAT CREATE BOUNDRIES AND EXTRAPOLATE THE THE BOUNDARIES CLOSING THE PATCHES.

AFTER THAT TRIMMING THE BOTH EXTRAPOLATE.

DOING THE SAME IN ALL PACHES.

AFTER THAT START DESIGN OF C SURFACE.

CREATE BOUNDARY ON A SURFACE AND USE SWEEP TO CREATE C SURFACE.

SINCE HERE IN CASE OF DOOR TRIM HAVE TO USE TWO TYPE OF SWEEP 1) DRAFT DIRECTION 2) REFERANCE SURFACE.

USE THE DRAFT DIRECTION TO SIDE WHICH IS PARALLEL TO TOOLING AXIS AND REFERANCE SURFACE SWEEP TO SIDE WHICH IS PERPENDICULAR TO TOOLING AXIS.

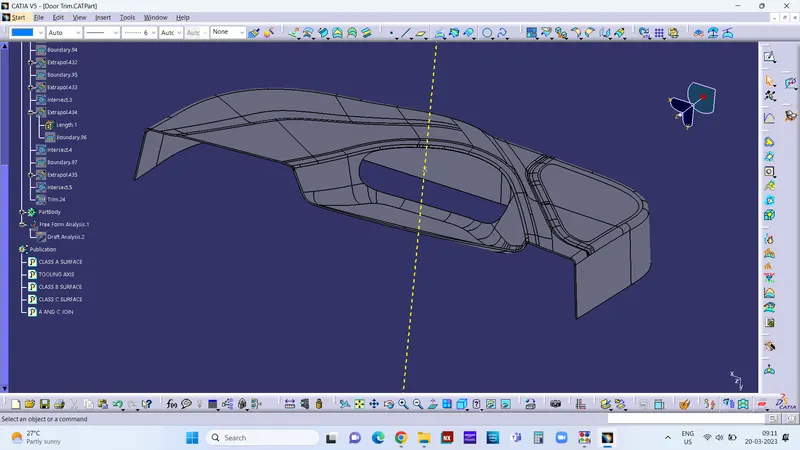

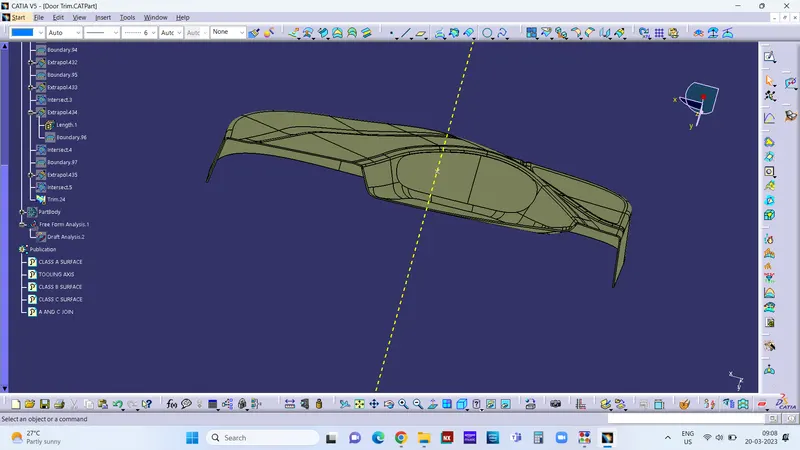

AFTER THAT JOIN THE A AND C SURFACE TO TRIM IT WITH B SURFACE.

BEFORE TRIMING THE SURFACE TAKE INTERSECTION TO ENSURE RHE SUFACES ARE INTERSECTING EACH OTHER IF NOT EXTRAPOLATE THAT PARTICULAR AREA AND PERFORM THE TRIM.

ATER THAT PERFORM CLOSE SURFACE TO MAKE SOLID BOBY.
