Week 8 - Challenge 5 - Door Trim Lower

REPORT :

first create the tooling line from the given A surface

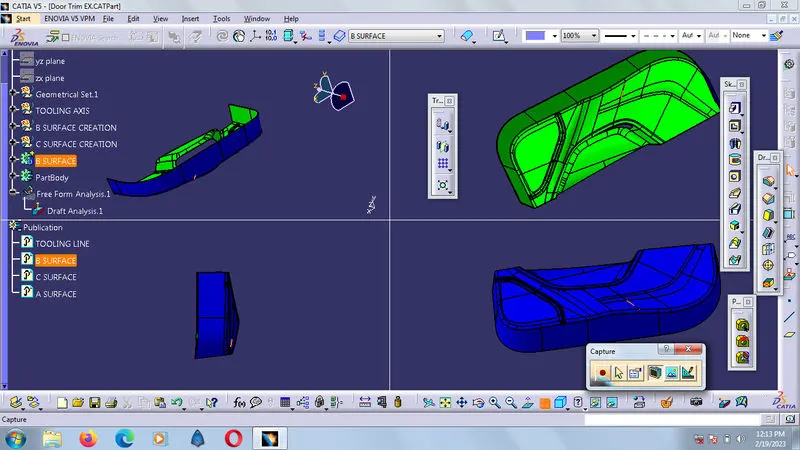

create the B surface by offseting A surface you will get the B surface

while offseting the A surface some fiillets will not be offseted recreate the missing fillets

then create the C surface by the sweep command with A surface as reference

join the created C surface with A surface

trim the joined surfaces with the B surface then you will get the closed geometery as an output

make the closed geometery as solid body by giving closed surface command

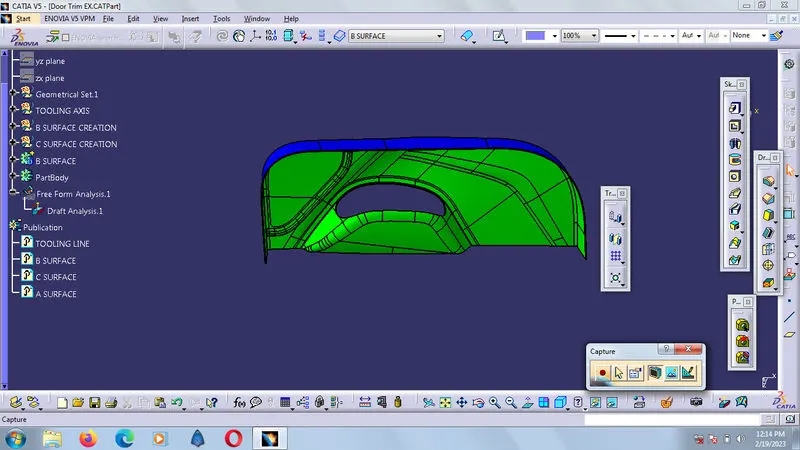

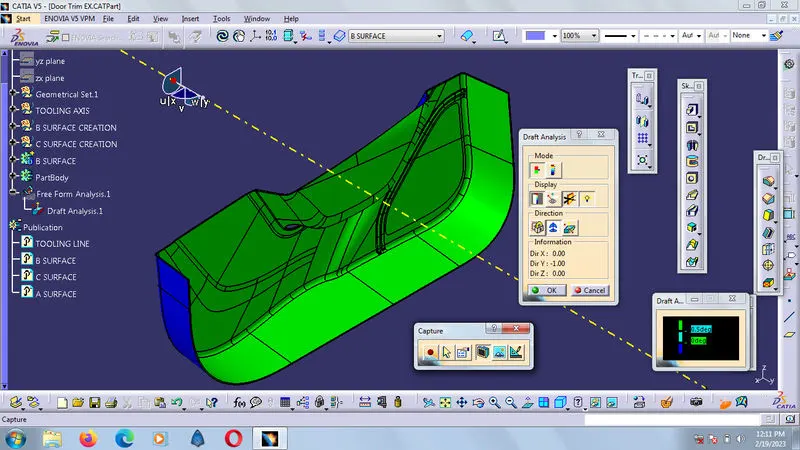

finally perform the draft analysis for ensuring the angle

thus the door trim is created from the given A surface
