Week 8 - Challenge 5 - Core & Cavity Design

After importing and joining the input switch bezel creation of tooling axis which clears the x direction by using the intersetions of the zx plane and switch bezel surface

creation of tooling axis in x direction by crating line at some angle to extended line from the intersection

creation of tooling axis which clears the y direction by using the intersetions of the zy plane and switch bezel

creation of tooling axis in y direction by bisecting the extended line of intersection lines of previous oparetion

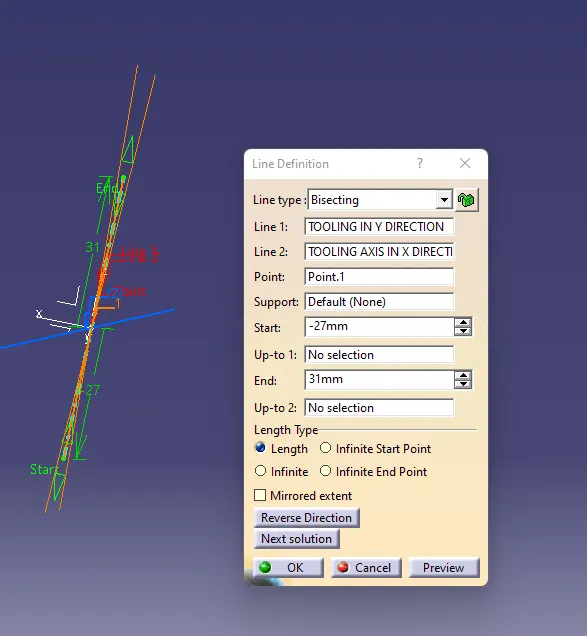

creation of of main tooling axis in by bisecting the both tooling axis lines

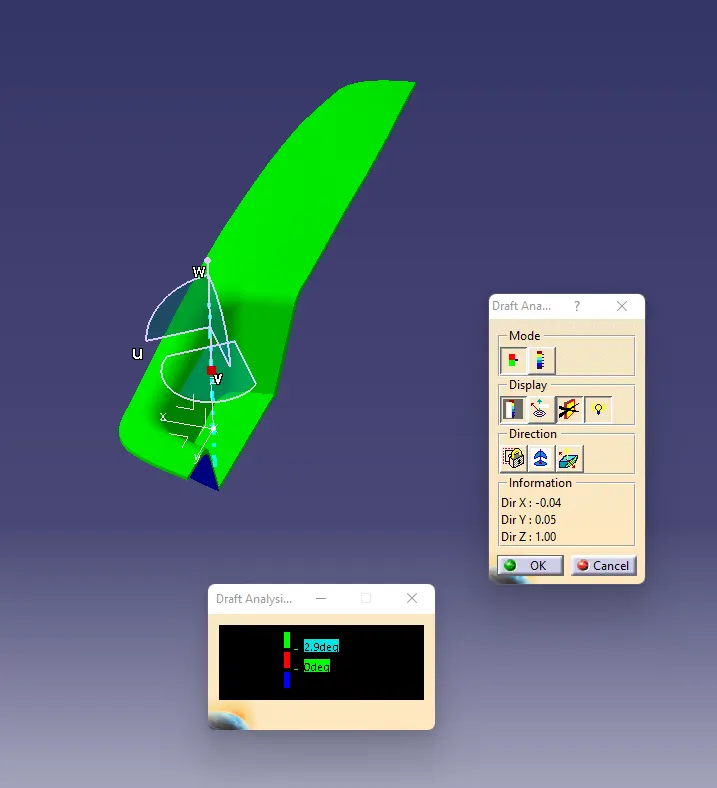

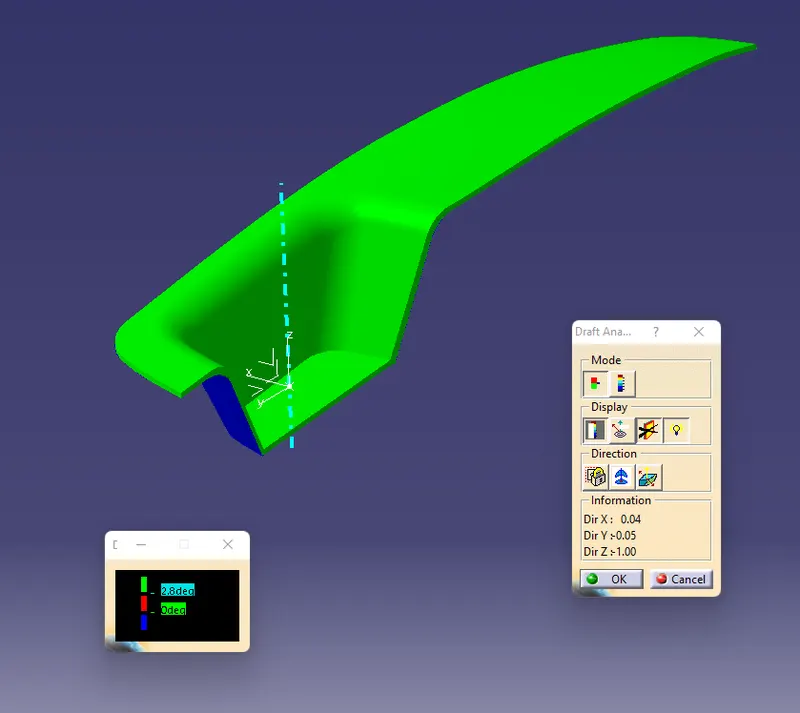

draft analysis is made class a surface amd final plastic product by using main tool axis by locking the compass in toolling direction to clear all surface of class-a and final plastic product surfaces if not changing the tooling direction angle and checking draft analysis to clear surfaces.

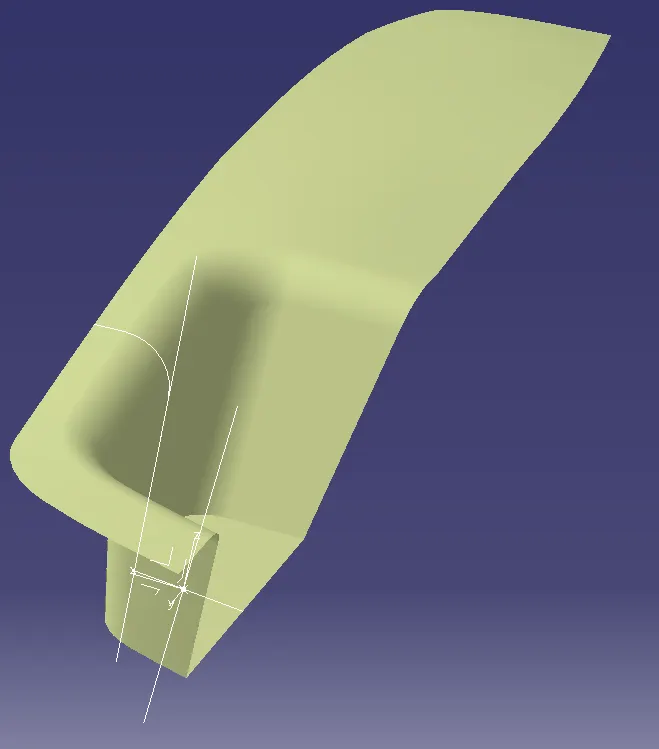

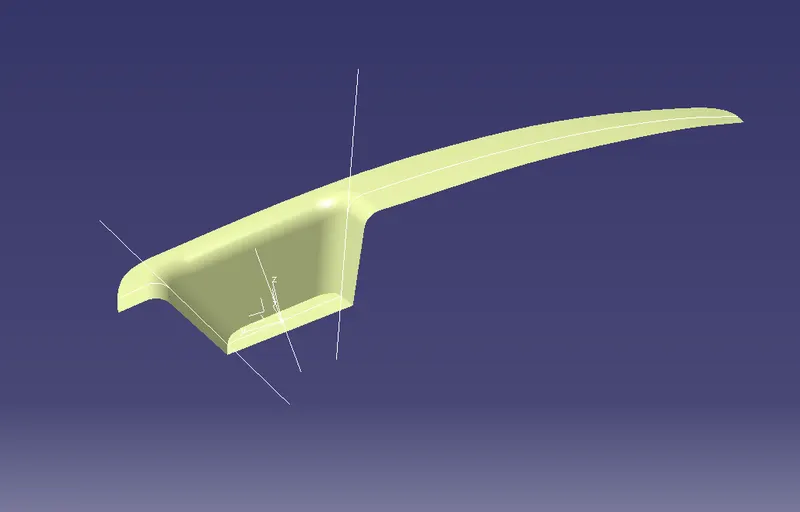

images of both plastic component and the solid body

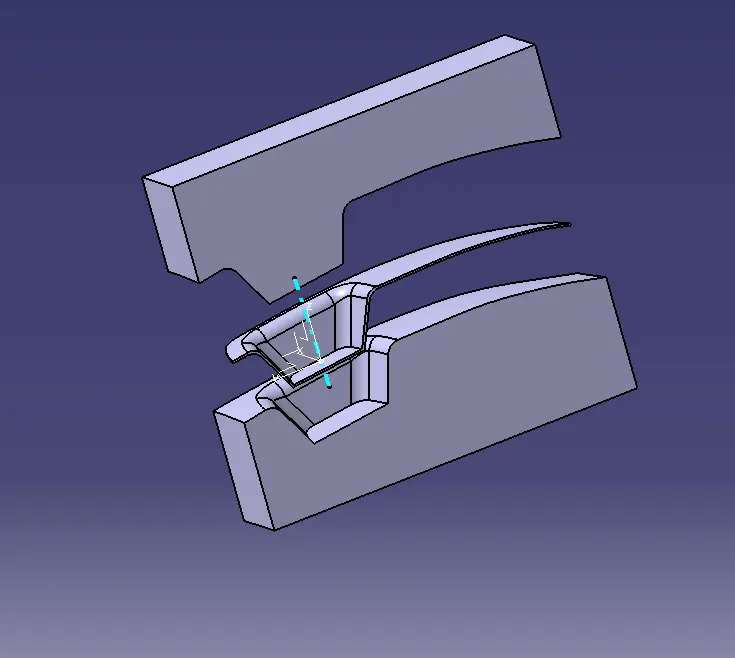

images of the core and cavity both plastic and solid bodies

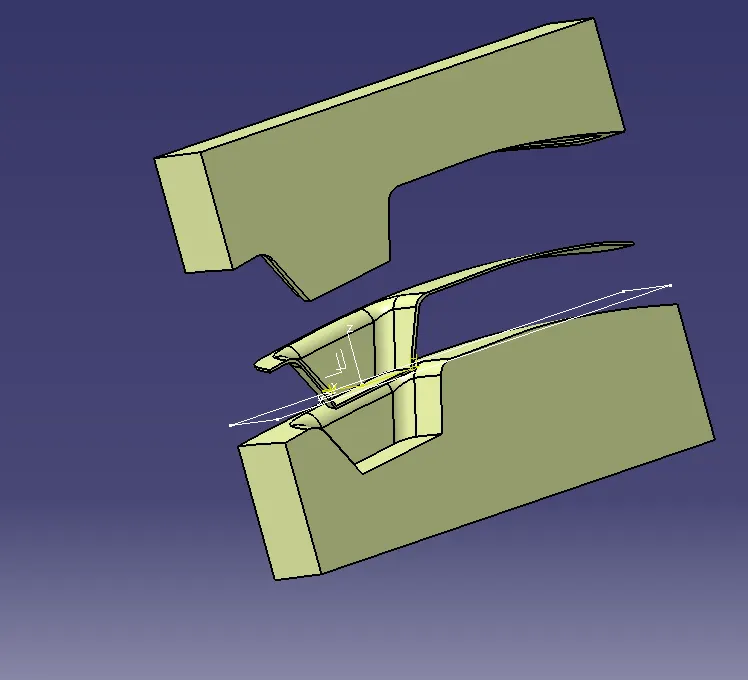

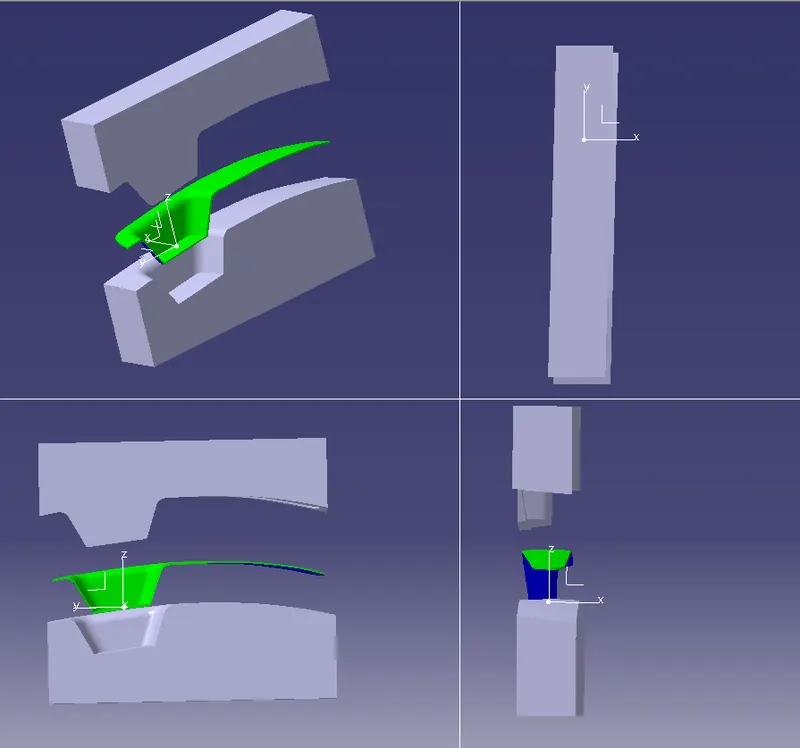

views of both core and cavity

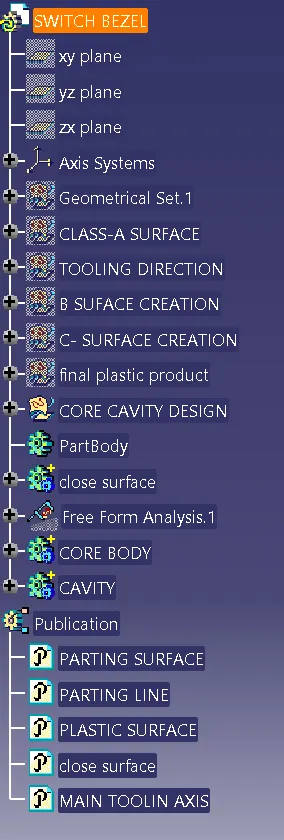

tree structure
