CORE AND CAVITY DESIGN
IN THIS PROJECT, BY USING PREVIOUSLY CREATED MODEL i.e. SWITCH BEZEL; WE ARE NOW GOING TO DESIGN CORE AND CAVITY FOR THE SAME.

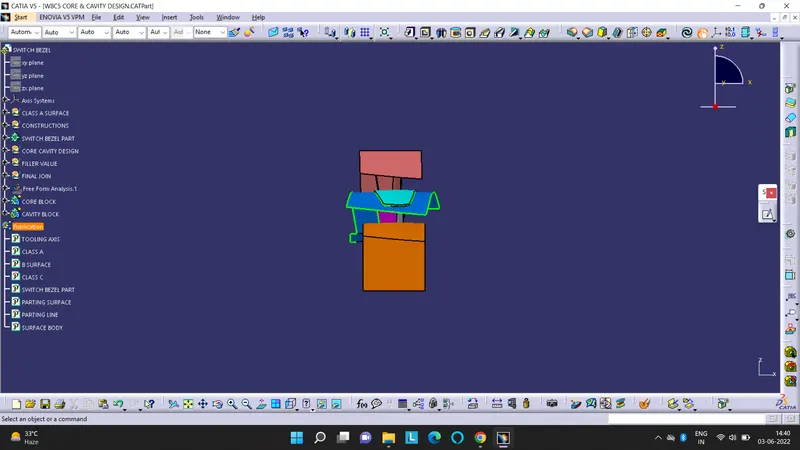

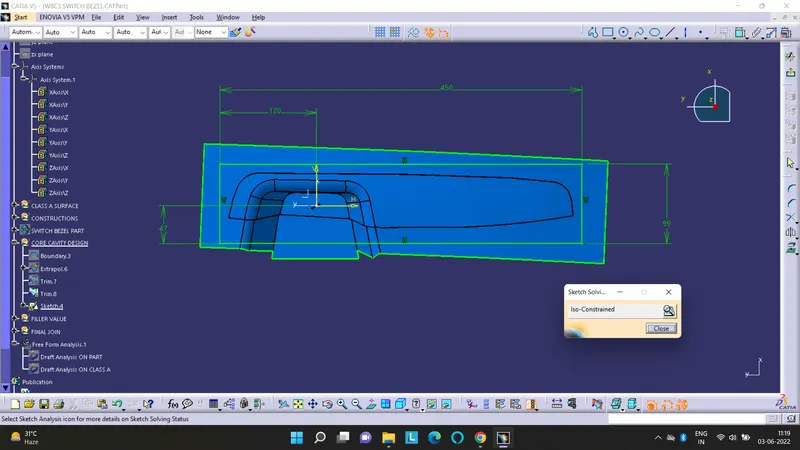

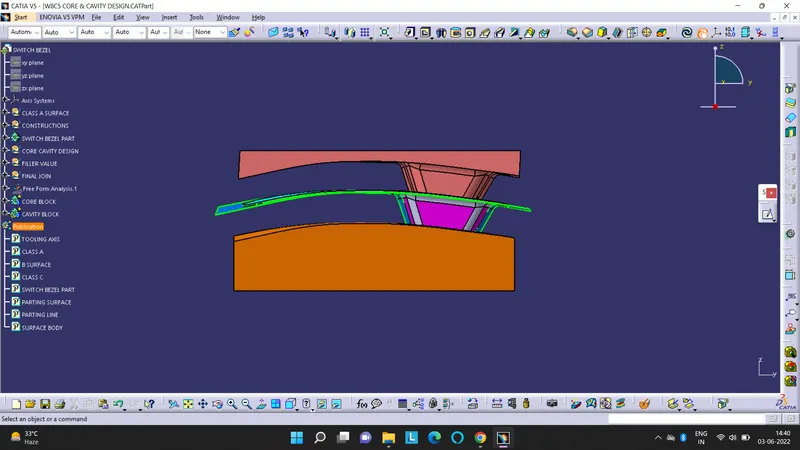

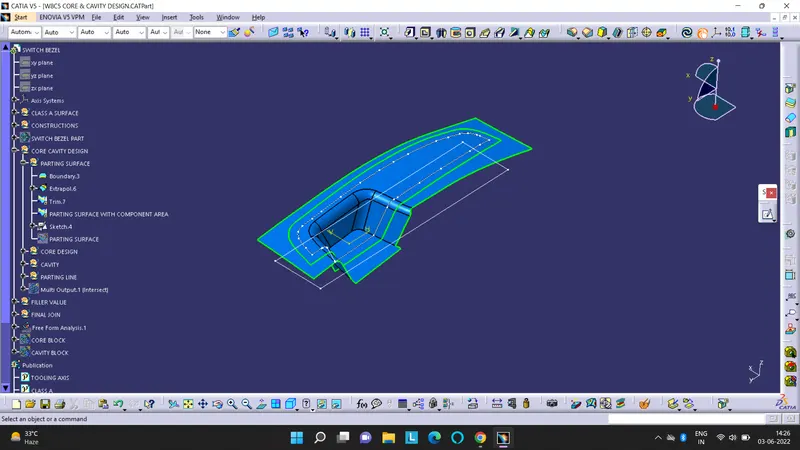

STEP 1 WE ARE CREATING PARTING SURFACE BY EXTRAPOLATING CLASS A SURFACE AND USING CLASS B AND CLASS C SURFACE
COMMANDS USED:- BOUNDARY, EXTRAPOLATE, TRIM, SPLIT AND SKETCH

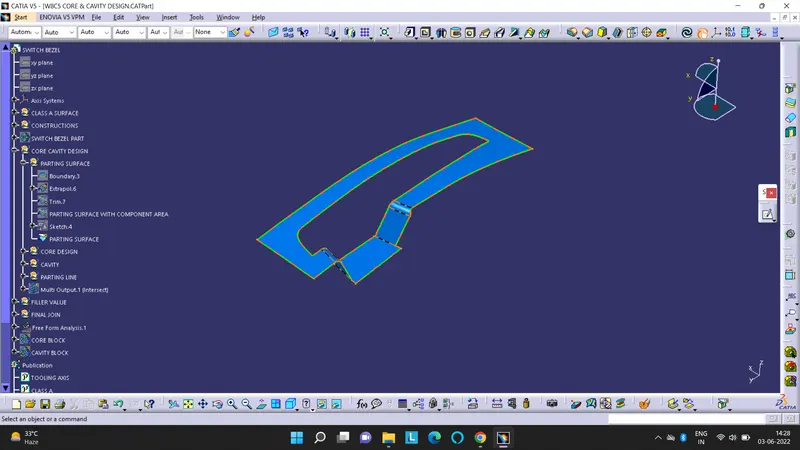

THEN BY SPLITINGTHE TRIMMED SURFACE WITH PARTING LINE WE GET PARTING SURFACE

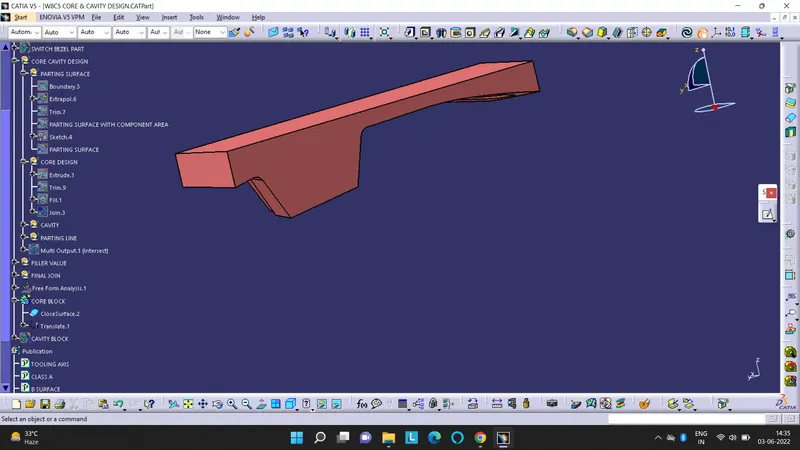

CORE DESIGN
BY EXTRUDING THE ABOVE SKETCH AND THEN TRIM IT.

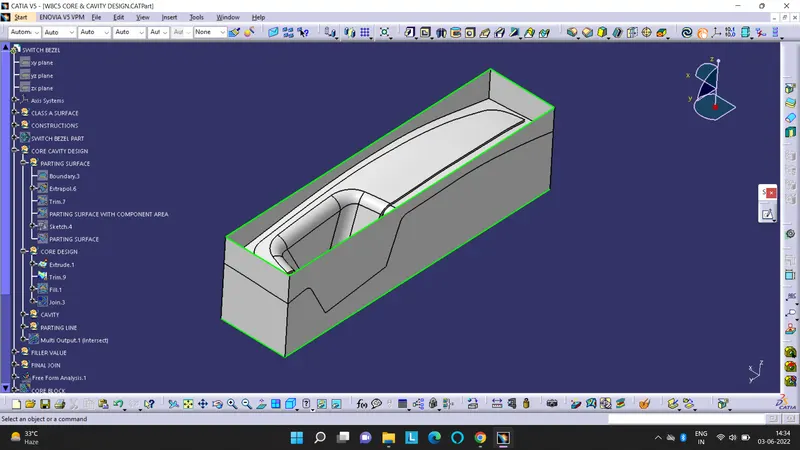

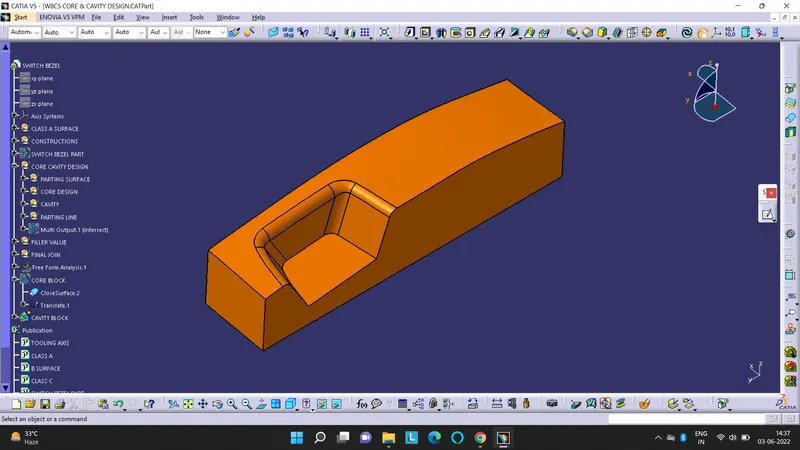

THEN TO MAKE CORE FILL THAT SURFACE AND JOIN. THEN USE CLOSE SURFACE COMMAND. WE GET REQUIRED CORE BLOCK.
CAVITY DESIGN

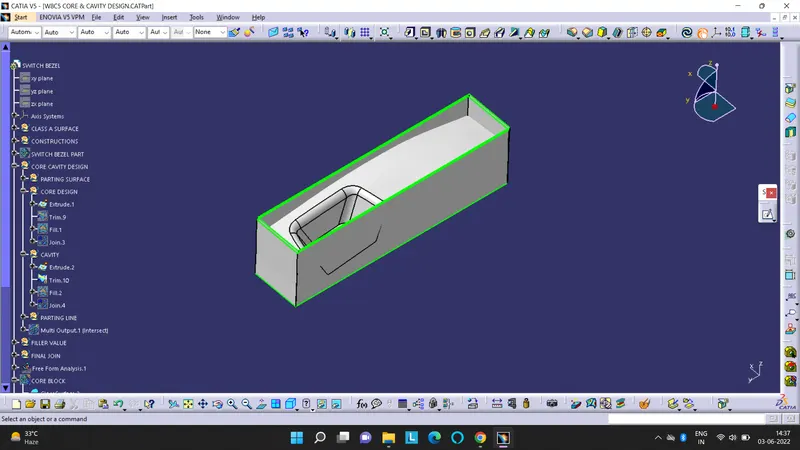

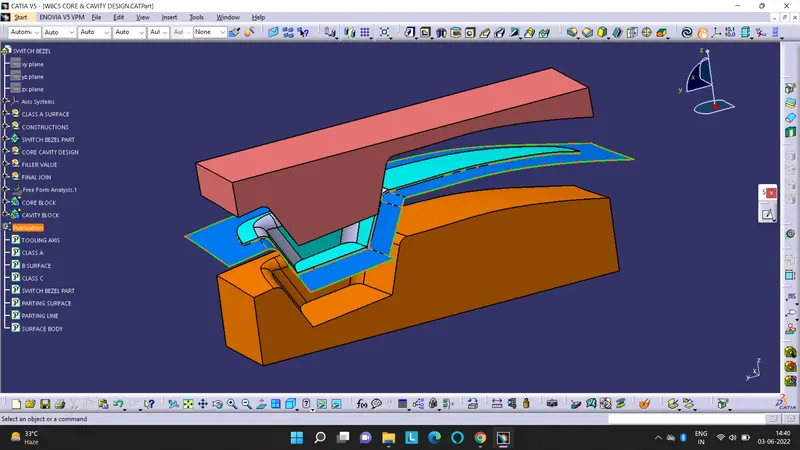

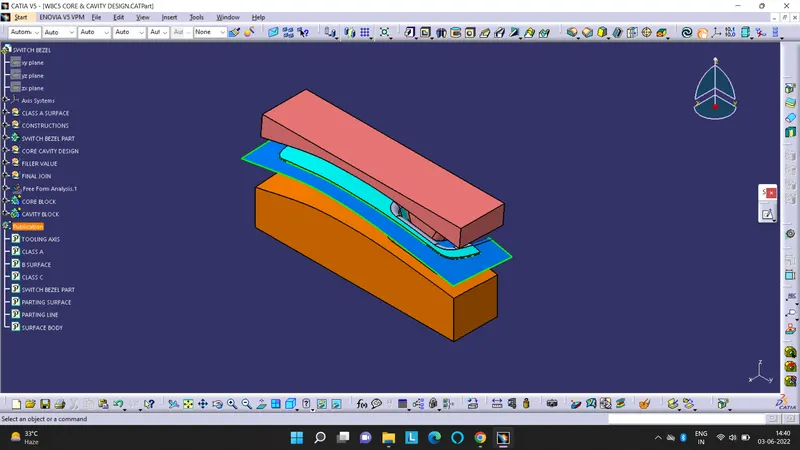

SAME PROCEDURE TO BE FOLLOWED FOR CAVITY BLOCK

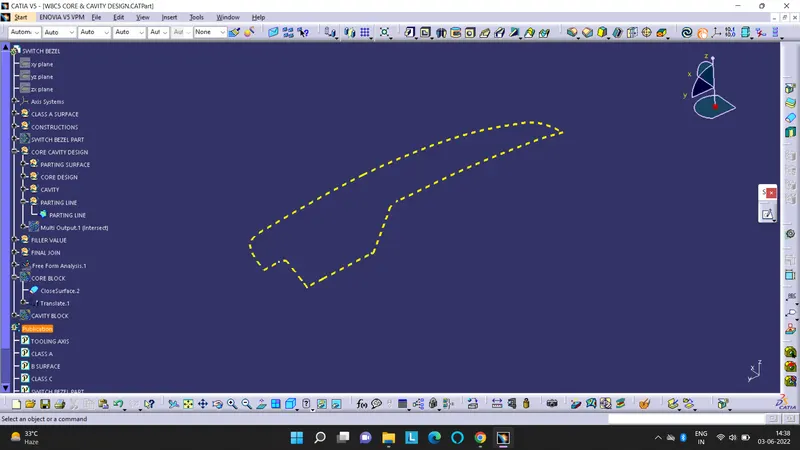

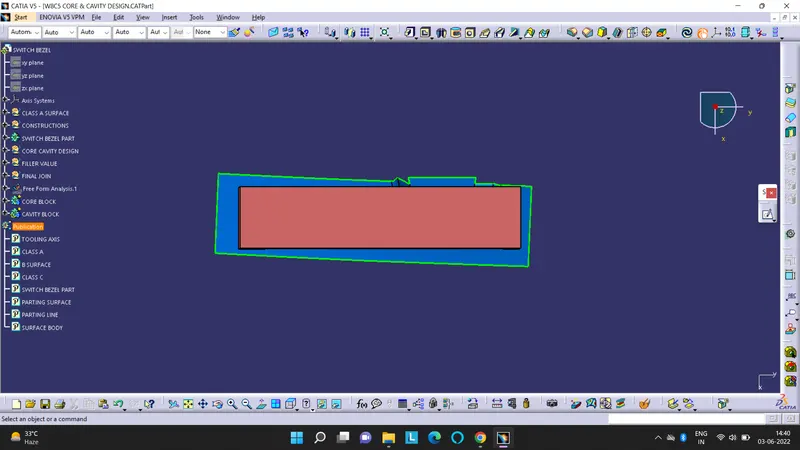

CREATE PARTING LINE USING INTERSECT COMMAND
