Week 8 - Challenge 5 - Core & Cavity Design

AIM: To create a CORE & CAVITY for the Solid COIN HOLDER from the given Class A Surface as Input.

OBJECTIVE:The objective is to create CORE & CAVITY for the COIN HOLDER using Class A Surface along with draft analysis and following the OEM Design standards.

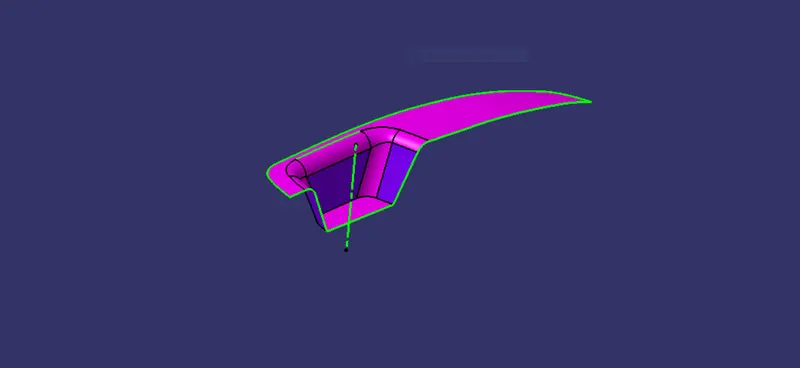

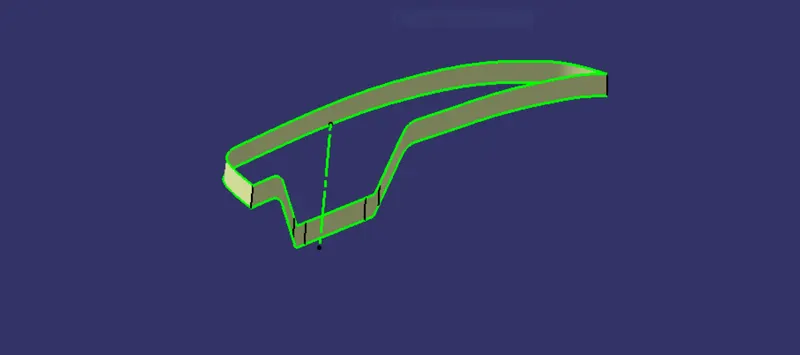

INPUT CLASS A SURFACE

CLASS B SURFACE

CLASS C SURFACE

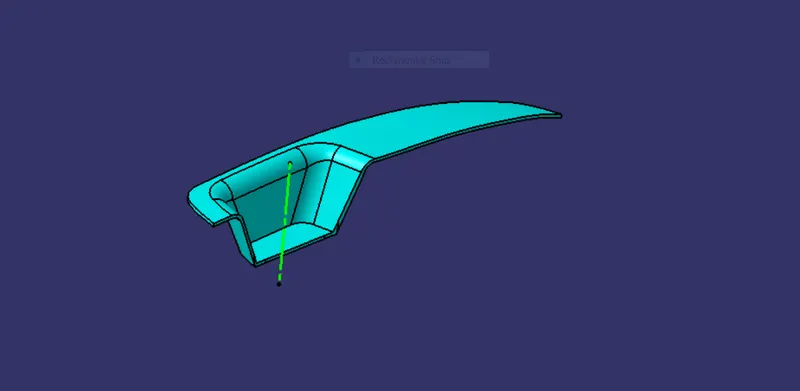

OUTPUT SOLID:

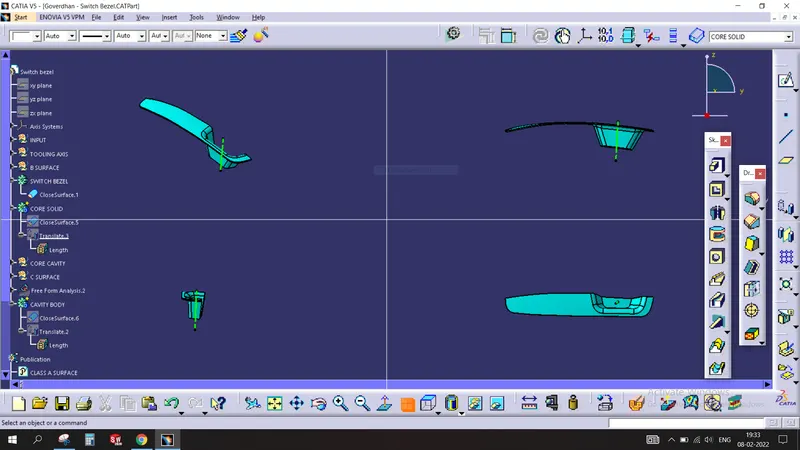

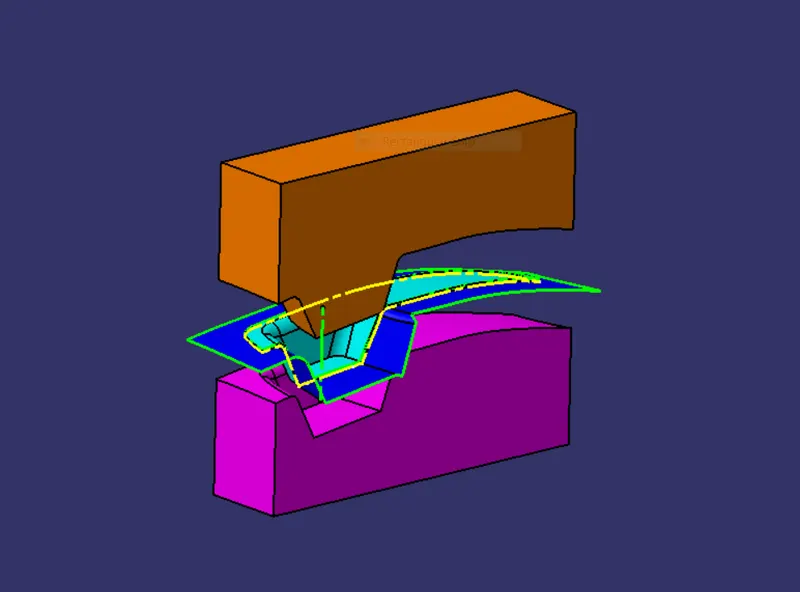

CORE & CAVITY:

TOOLING AXIS CREATION:

• Class A surface is first analysed for creation of tooling axis which tells about the direction of the mould or core and cavity slides.The tooling axis plays a vital role in the plastic design as there should be clearance between the tooling axis and mould.
• The minimum of 3 degree draft angle is provided on the surfaces which are 90 degrees to avoid the Interference between the mould and Injection moulding machine.
• The first step is to check whether the given class A surface has continuity or not.
• The next step is to check the possibilities of the tooling axis along x,y and z direction(NOTE : The surfaces must have clearance with the tooling axis and features such as holes must be cleared in the main tooling axis itself to avoid sidecore.)

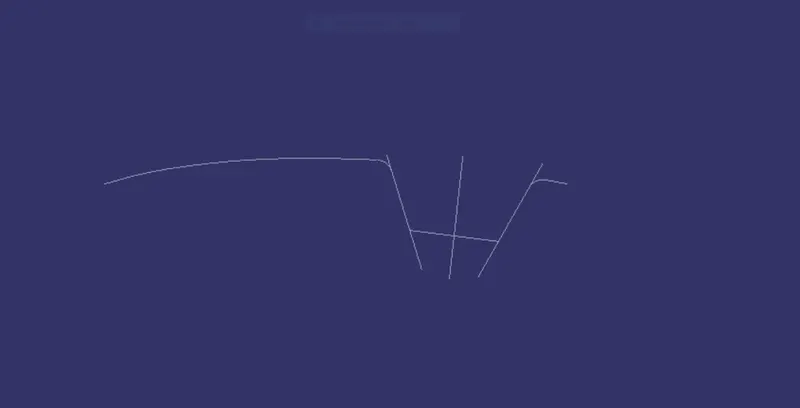

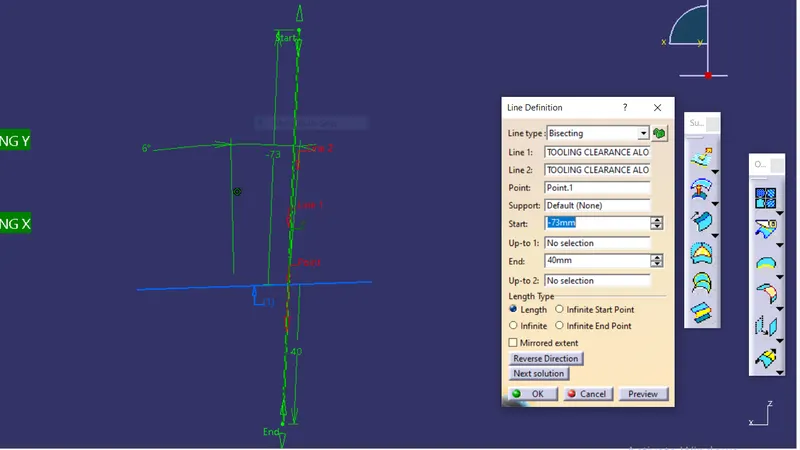

• The Tooling clearance along x and Y are created and by using the bisecting line and tooling axis along x,y we will draw a TOOLING AXIS in which features like Hole and the inclined surfaces don't interfere with tooling axis.

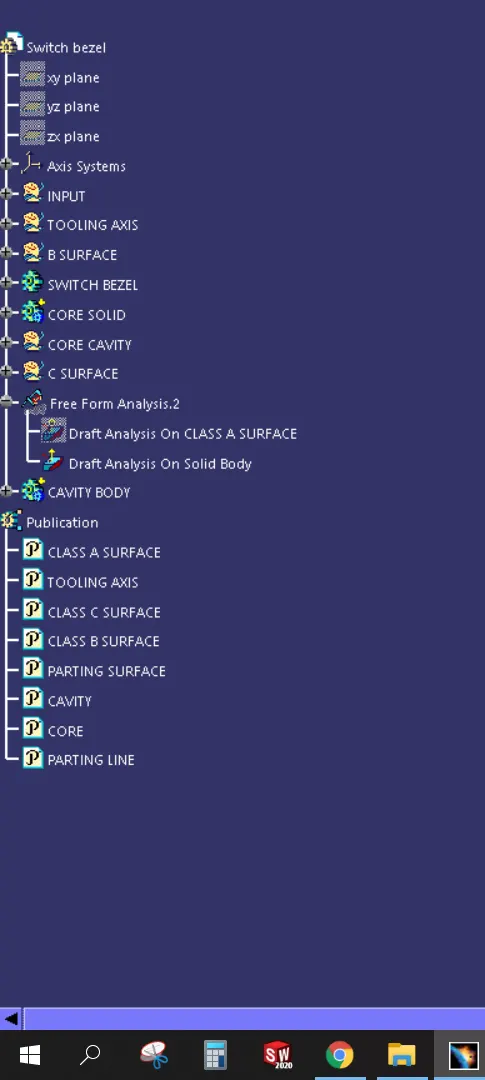

• The Tooling axis should be published along with changing the graphic properties of the Tooling axis for ease of recognition.

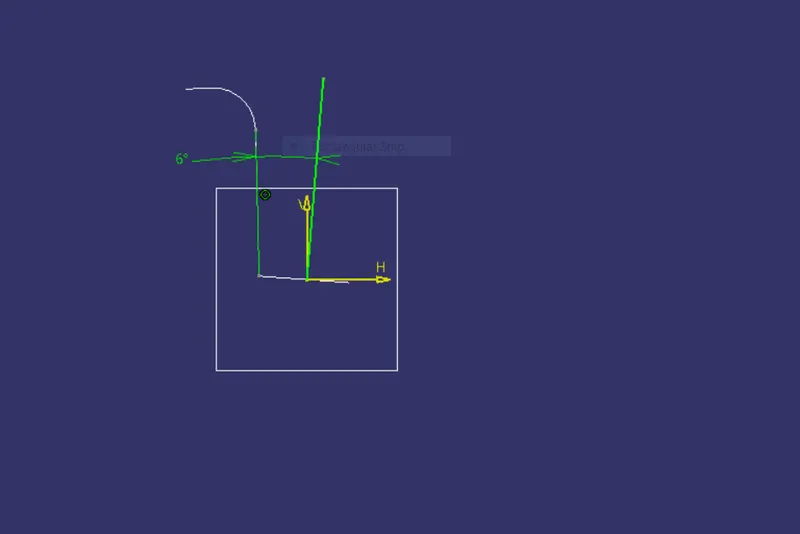

• Here there is no opposite face in the y direction so we have drawn a line and given a minimum of 3 degree draft,but later due to draft analysis we changed that to 6 degrees.

CORE & CAVITY:

• The first step is to extrapolate the class A surface.
• The next is to trim with the class C surface and class B surface.
• While making the core and cavity we should make sure that the C surface side faces is wheather clearing in the core or cavity.
• It can be observed my making normal to the tooling axis.

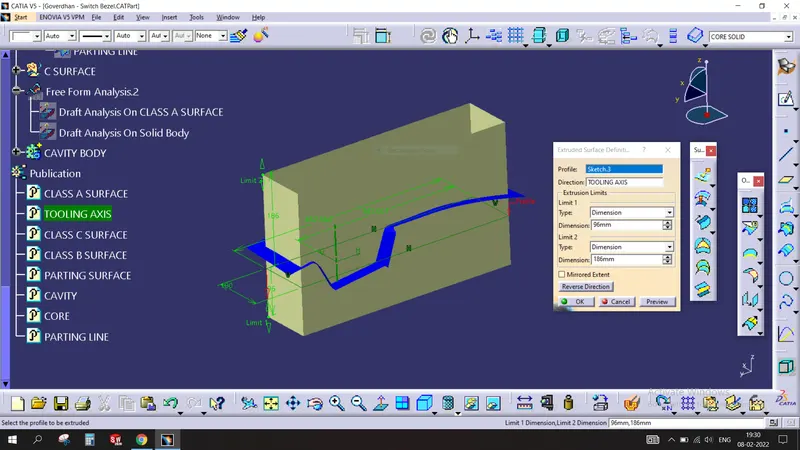

• A skectch is drawn in this a rectangle to create core,cavity and extruding in the tooling axis direction.

DRAFT ANALYSIS:

• Draft angle is nothing but the amount of the taper is provided on the core and cavity for ease ejection of the mould after cooling.
• After Injection moulding the plastic parts shrinks and gets stuck to the core and it will make it difficult to remove the plastic part.
• If no draft or taper is provided on the core and cavity the inner layers of the platic part will undergo wear and tear and there will be NO smooth surface finish.
• The draft angle is provided on both the inner and outer walls of the core and cavity.
• The Nominal draft angle is 3 degrees
• The 5 degree draft can be given by the manufacturing cost will be more.
• The 7 degree draft is given for the textured surface.

STEPS FOLLOWED FOR THE DRAFT ANALYSIS:

• The part created has to be changed to the material mode.
• compass is enabled and aligned to the tooling axis.
• Lock command is used to lock the position of the compass.
• colour codes are classified and draft angle is analysed.
• Running point analysis is used to display draft angle at a specific position.

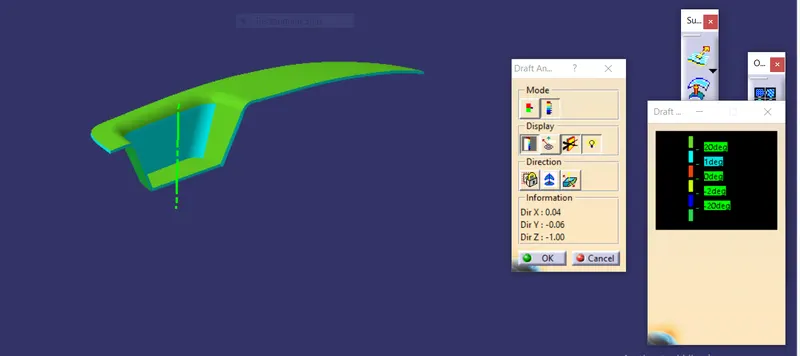

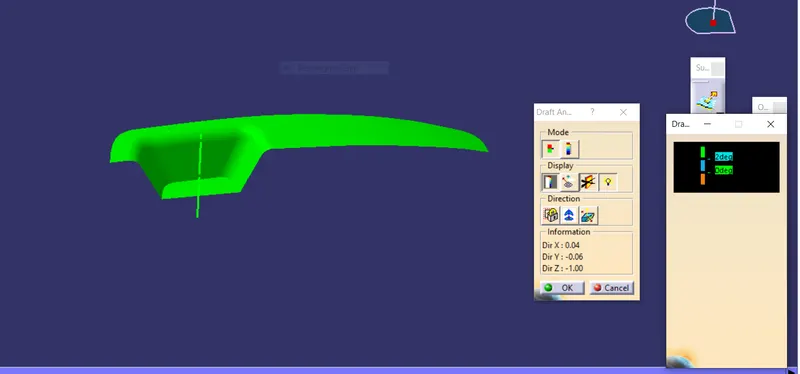

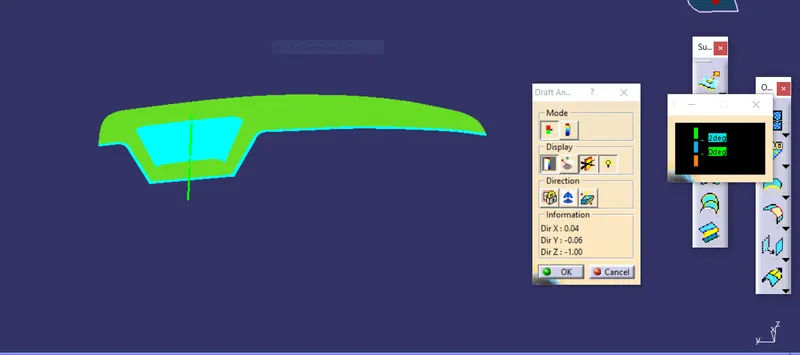

DRAFT ANALYSIS ON CLASS A SURFACE:

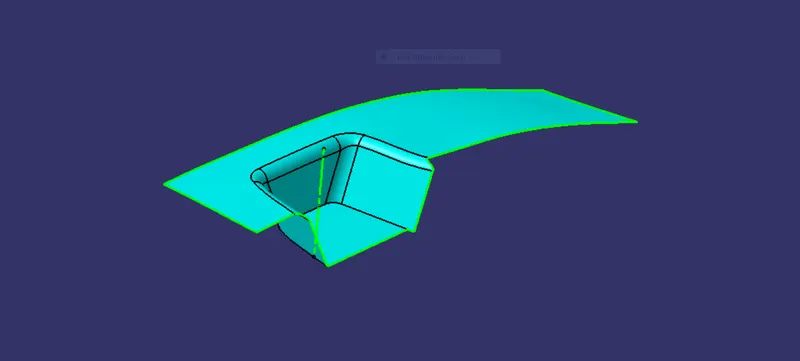

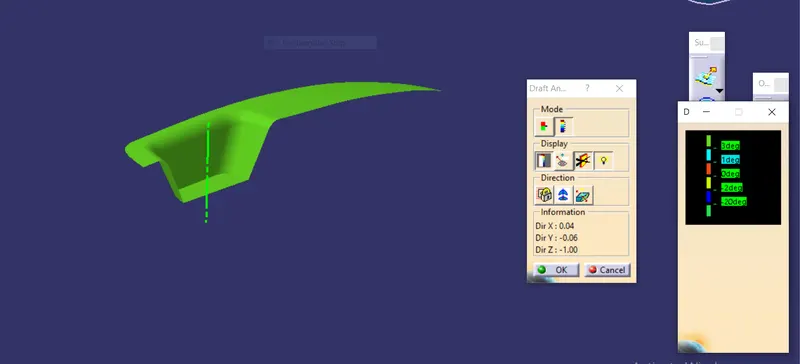

DRAFT ANALYSIS ON SOLID BODY:
