Week 8 - Challenge 5 - Core & Cavity Design

Objective :-Draft analysis and tooling surface

Tooling axis:- THe tooling axis of the surface identified with help of bisecting method. The steps involved as explianed in following steps.

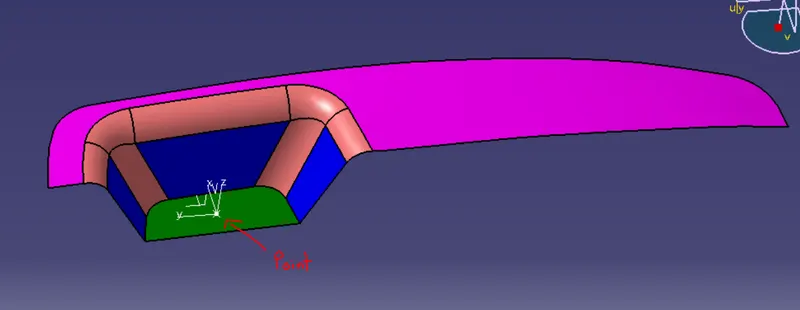

Step 1- A point was taken at the base surface , withc is at center of the extracted base surface, After that an local axis system was intoduced at that point .

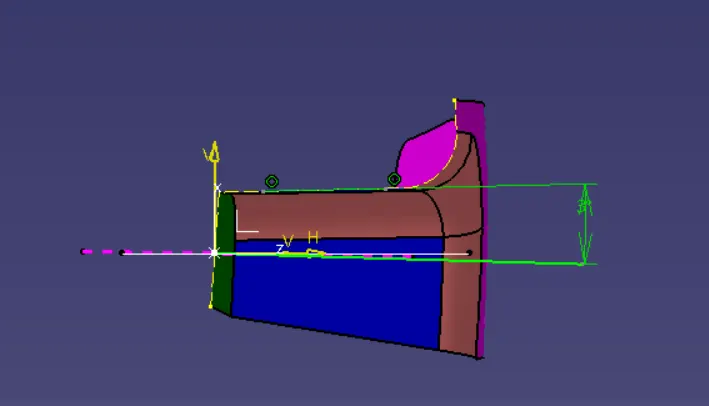

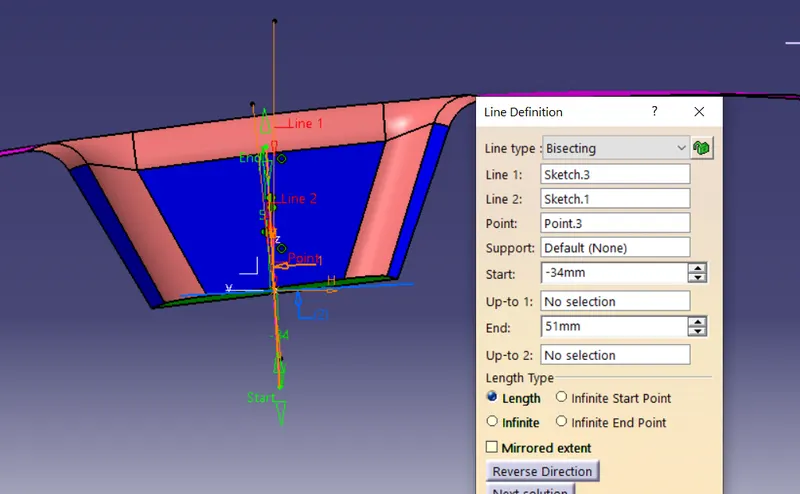

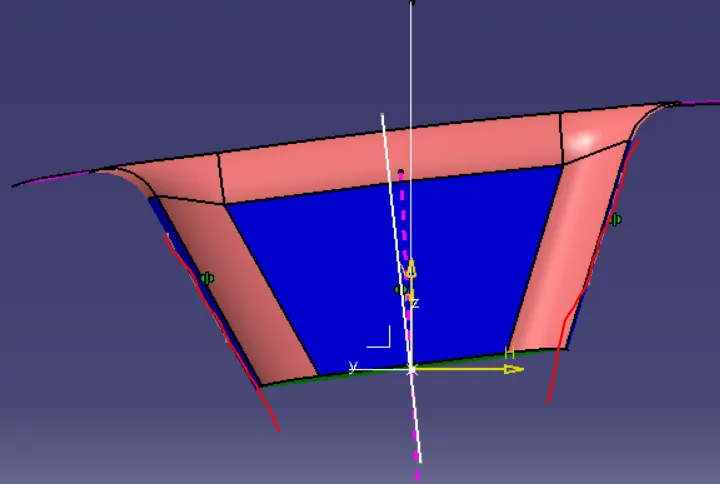

Step 2-In the next step an intersection was created with plan Z-X and Z-Y with class a surface.With the help of intesection an common line was drawan with help of sketch command, that common line will be the tooling axis for the given class a surfce.

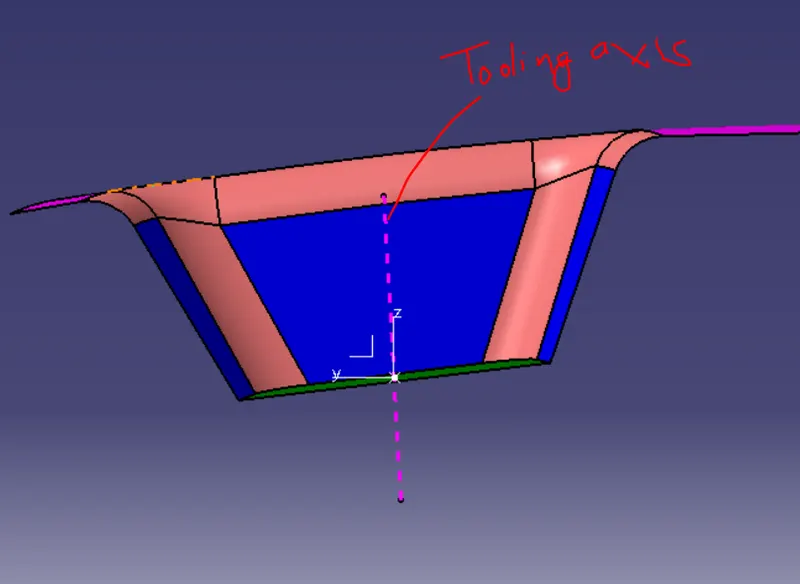

Tolling axis:-

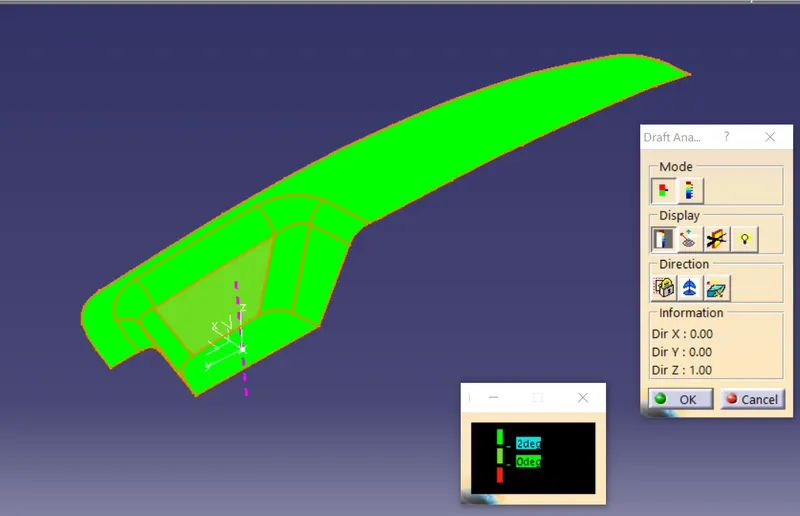

Draft analysis:-

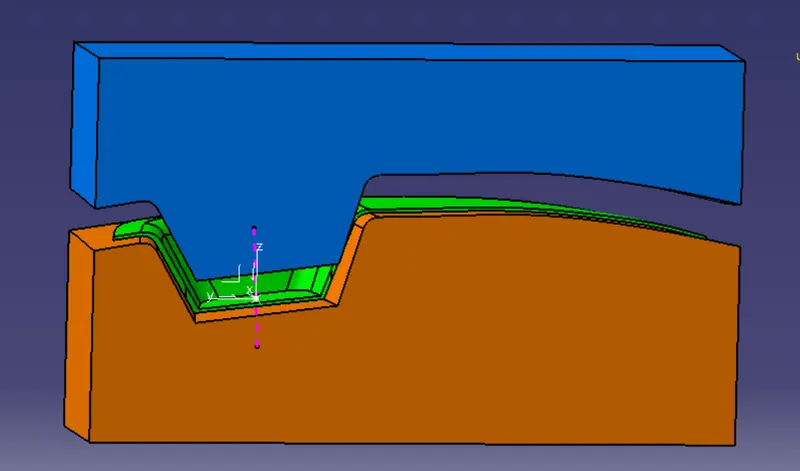

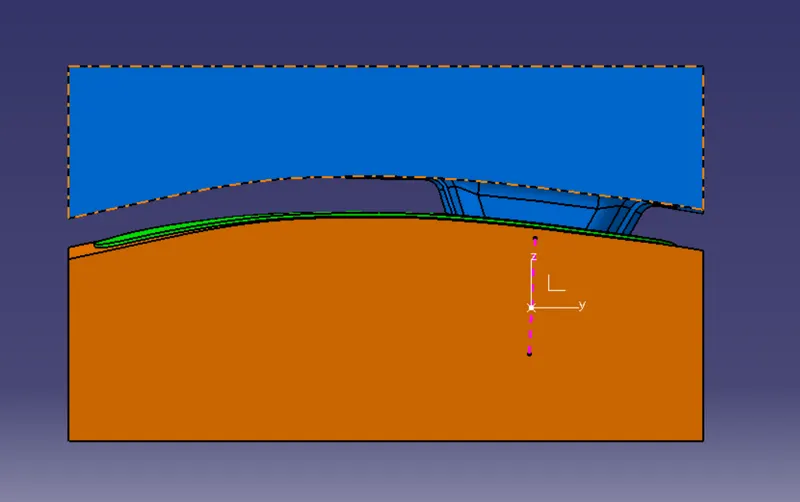

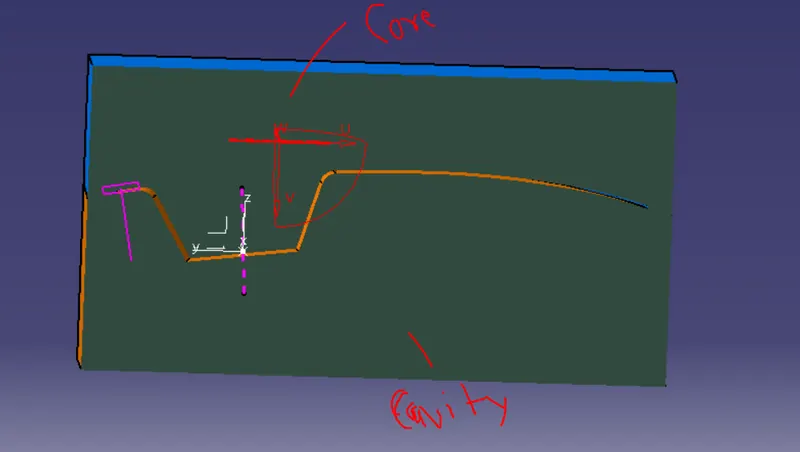

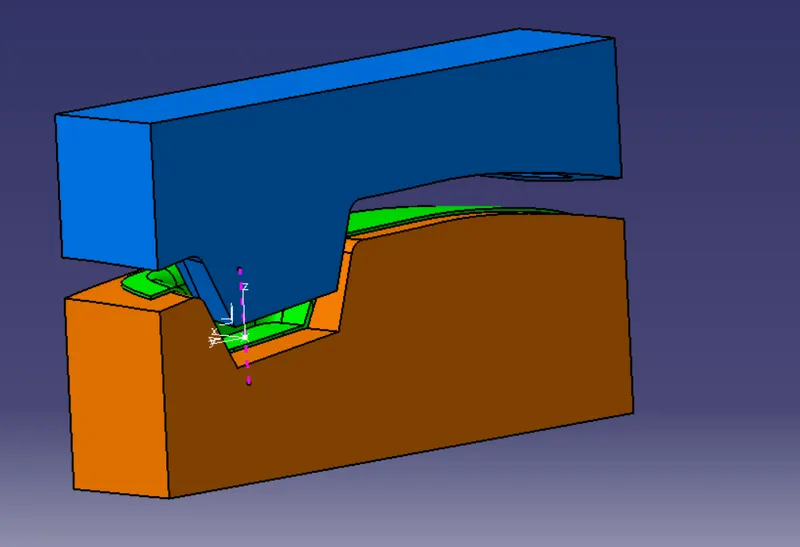

Core and cavity :
