Week 8 - Challenge 5 - Core & Cavity Design

AIM – To Create the Core and cavity blocks for the switch bezel.

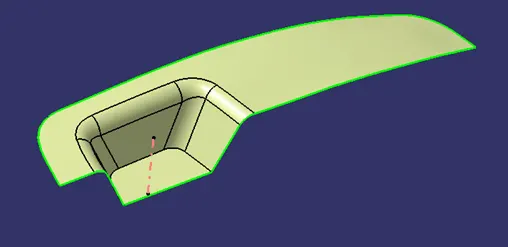

First step is to extrapolate the A Surface.

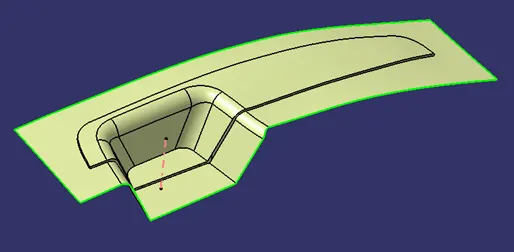

Then unhide the B & C Surface and trim it with each other (First Extrapolate with C Surface then Trim it with B Surface) after the trim the acquired model is a parting line.

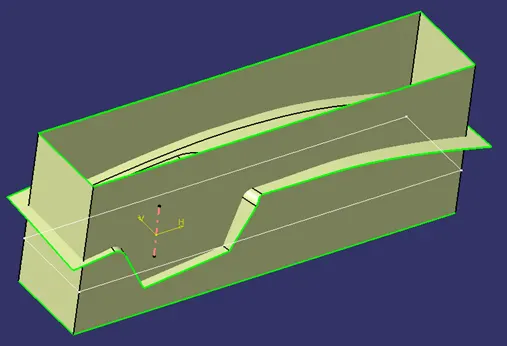

After creating the parting line, a rectangle is drawn by using the positioned sketch to create core and cavity blocks. The rectangle is then extruded.

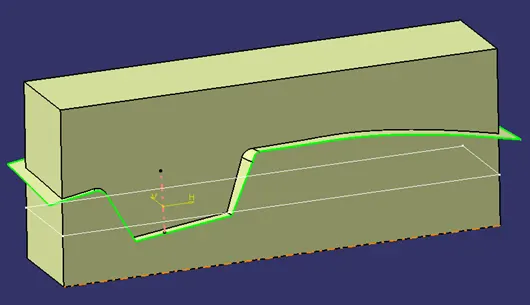

Trim parting line with the upper extrusion to create core. Then trim the parting line with lower extrusion for creating cavity.

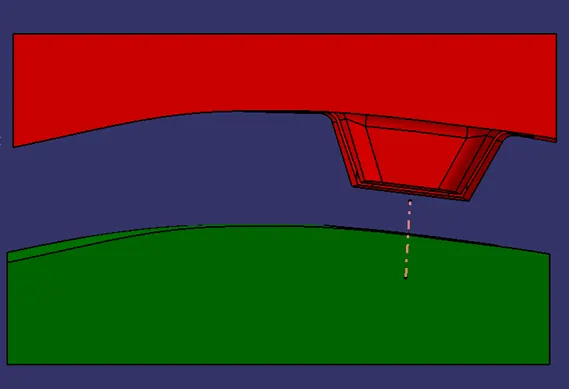

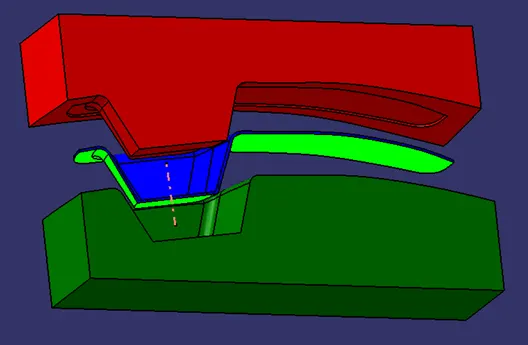

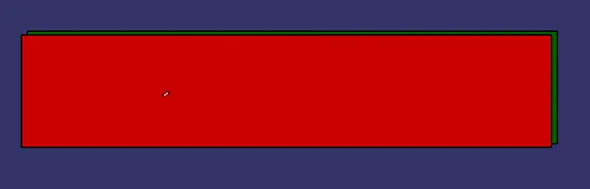

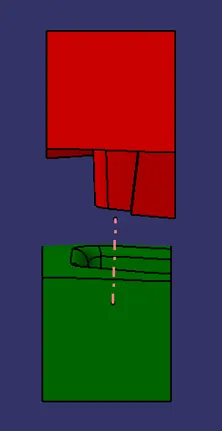

The final model is obtained as below.
