Week 8 - Challenge 4 - Coin Holder Design

                                                               COIN HOLDER

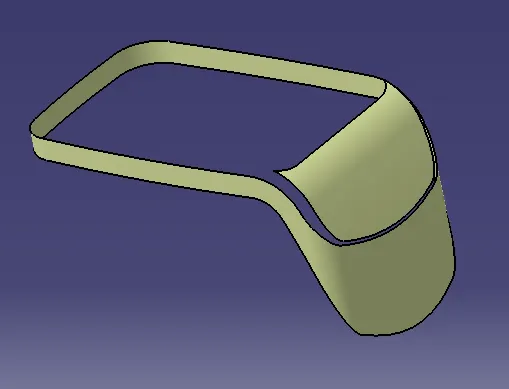

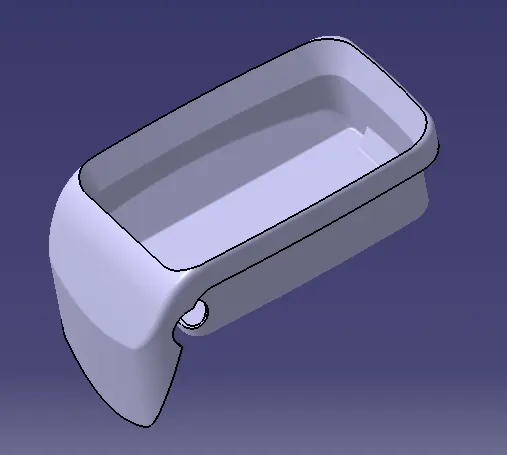

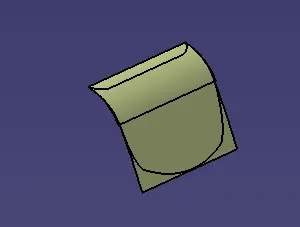

TAKE A GIVEN CLASS A SURFACE

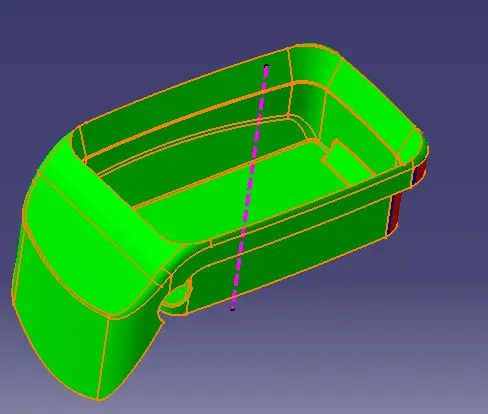

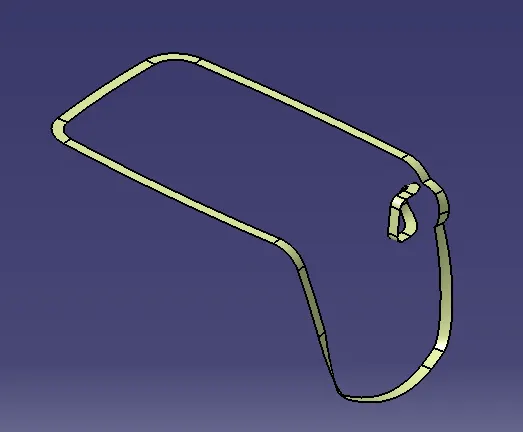

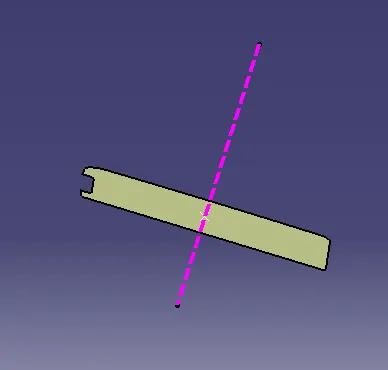

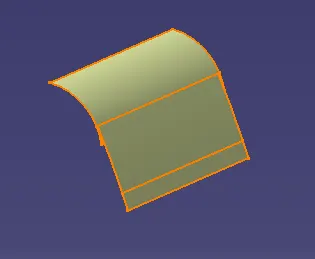

CREATE A TOOLING AXIS FOR CLASS A SURFACE

                                             STEPS TO CREATE B SURFACE

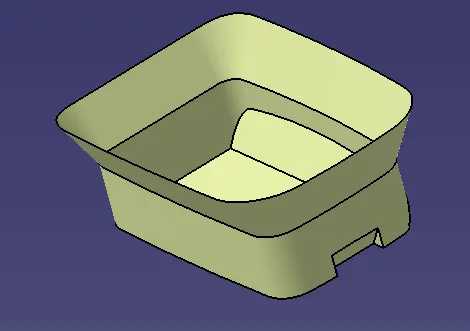

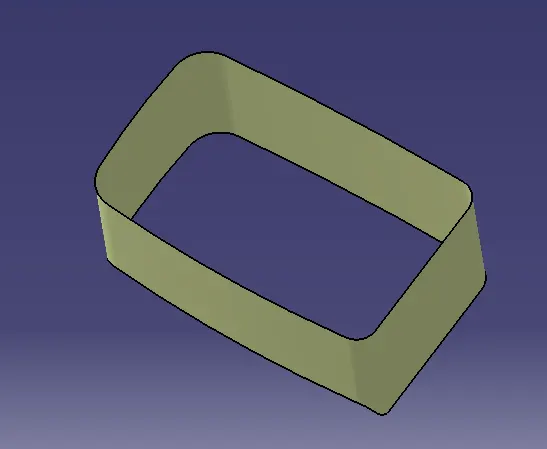

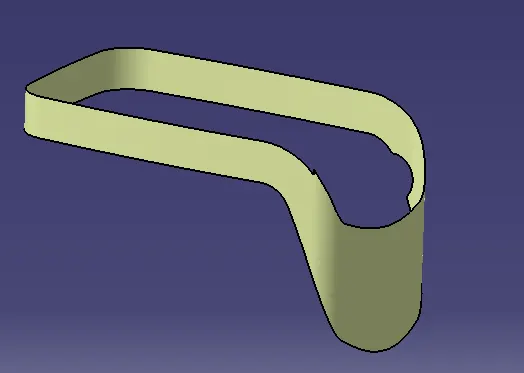

SIDE WALLS

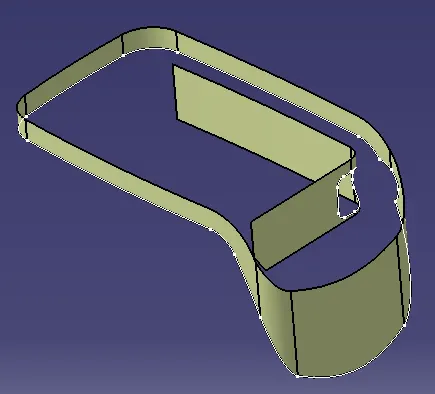

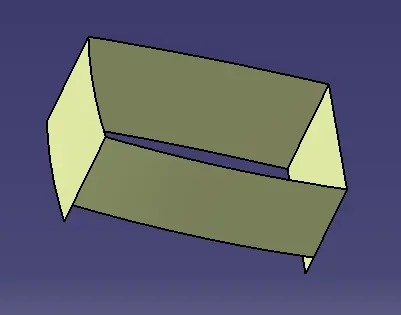

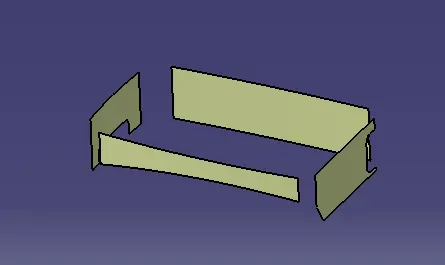

Extract the side walls of class a surface

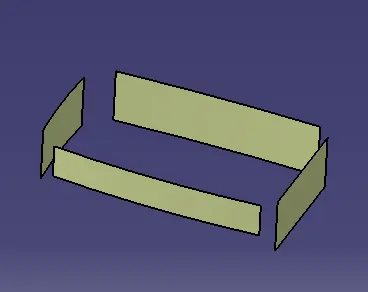

untrim the walls

Extrapol the untrim walls

trim extra surfaces

Offset trim

Fillet the edges with correct dimension

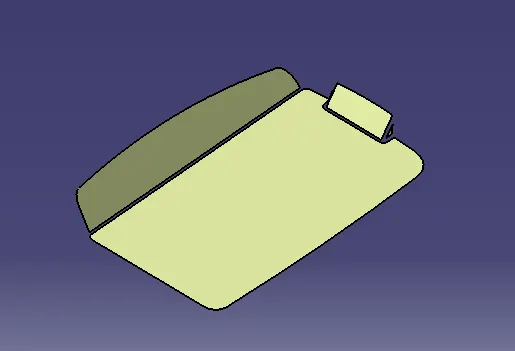

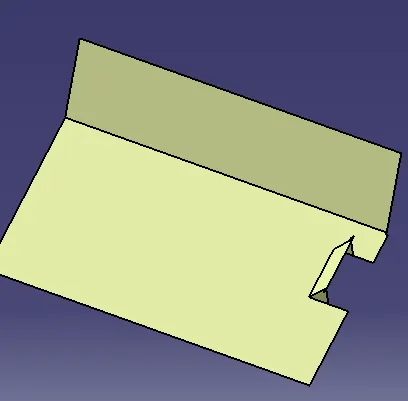

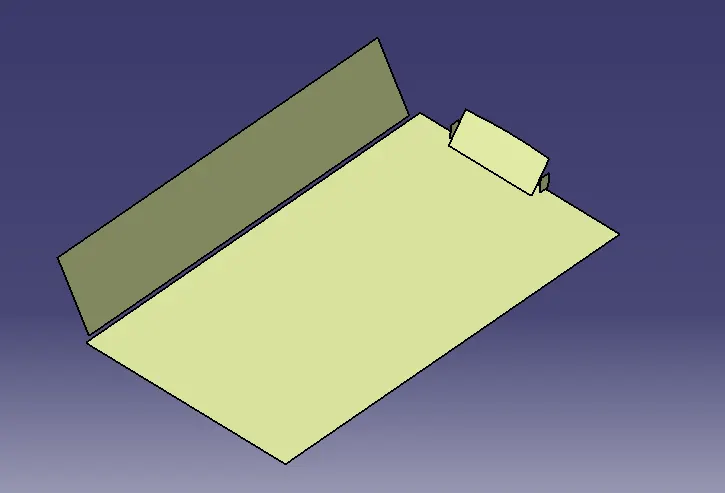

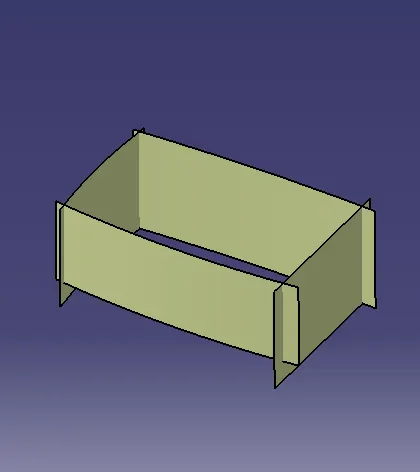

BASE

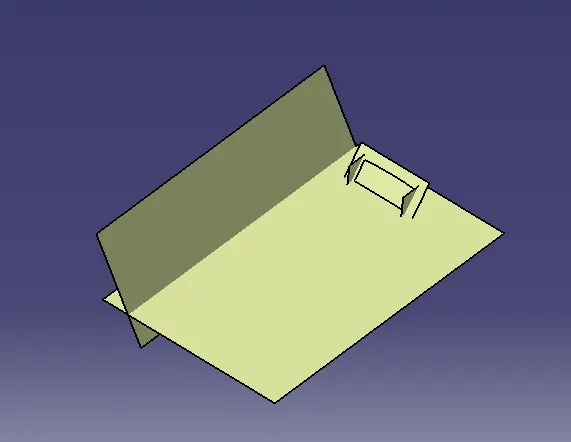

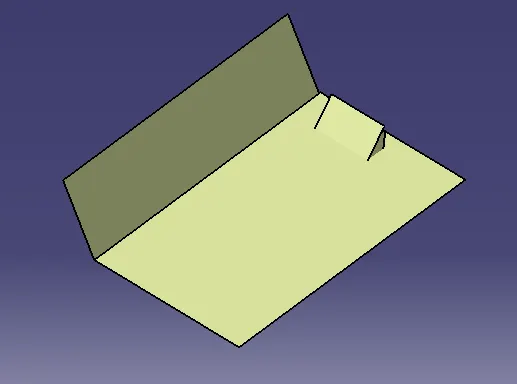

Extract the base surface from class a surface

untrim the extract surface

Extrapol the untrim surfaces

Trim the extra surfaces

offset the trim surface

trim the extra surface

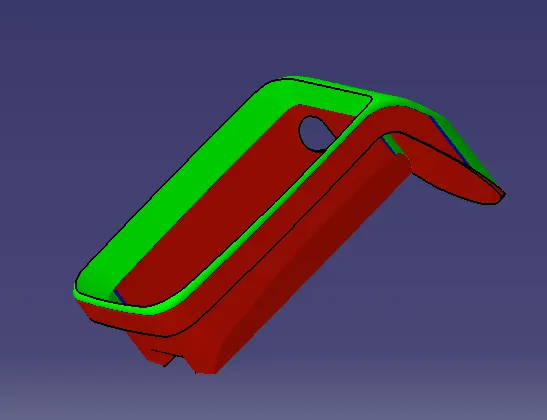

trim the side walls with base

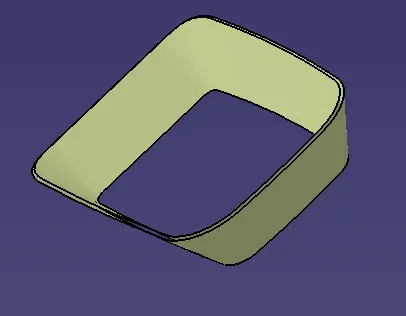

TOP WALL

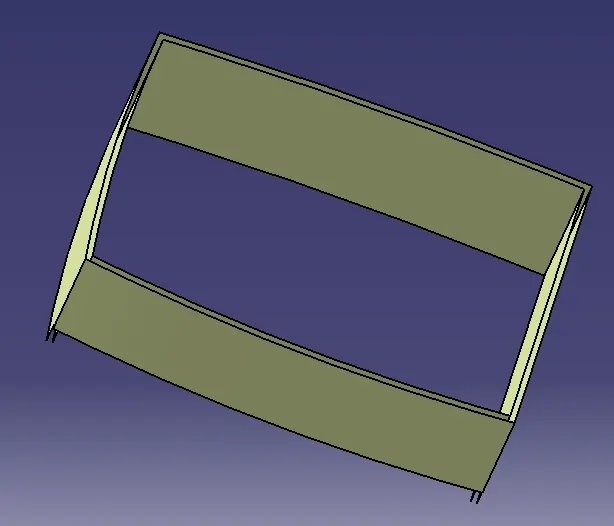

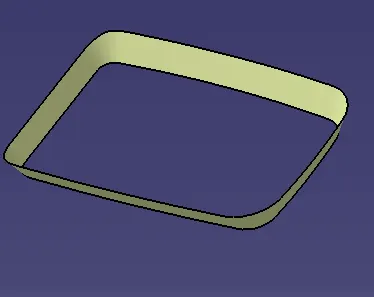

Multiple Extract the top wall surface

Extrapol the multiple extract surface

offset the extrapol

trim the top wall with base

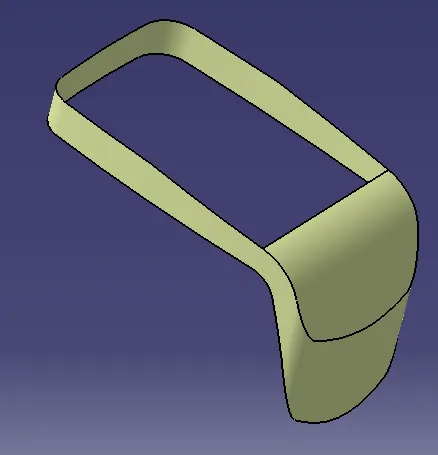

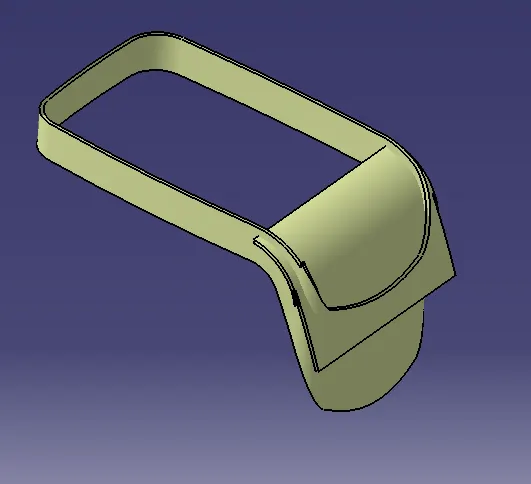

OUTER FLANGE

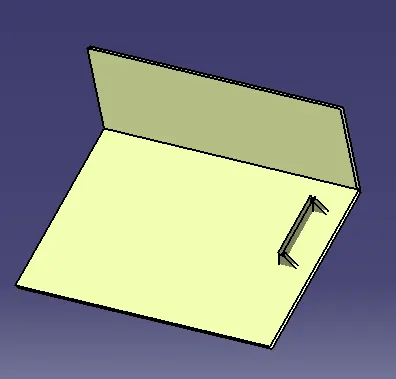

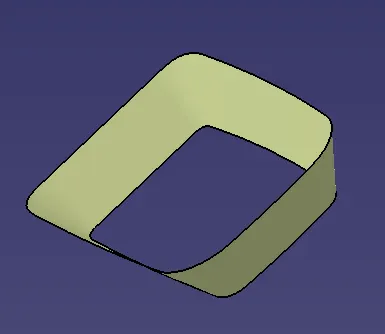

Extract outer flange surface

Extrapol the surface

extract and untrim the surafce

extrapol the surface

offset the surfaces

trim both the surfaces

trim outer flange with top wall

fillet the edges

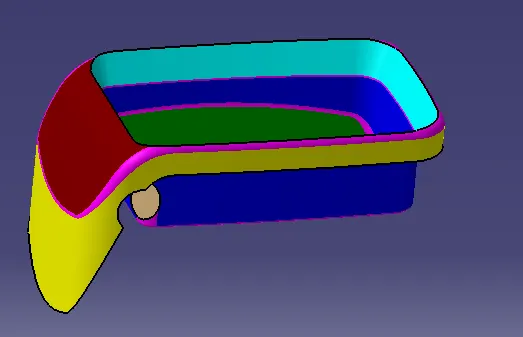

CLASS C SURFACE

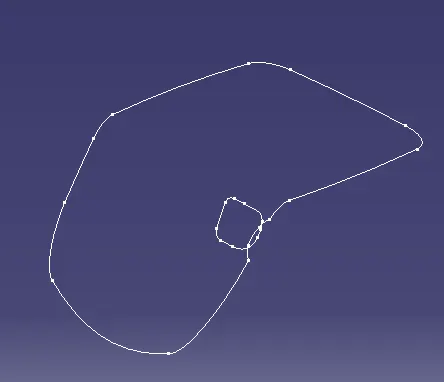

Multiple extract the boundaries

Extract the surfaces to sweep the boundaries with reference of surface

sweep the boundaries

trim c surface with b surface

trim c surface with class a surface

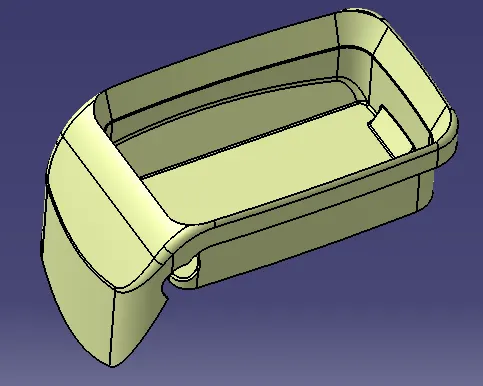

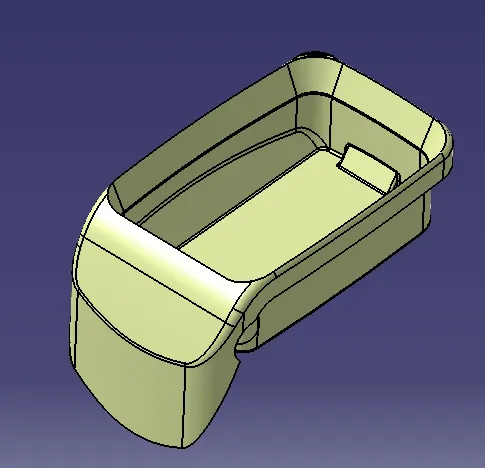

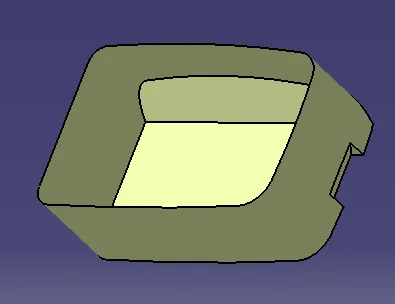

SOILD BODY

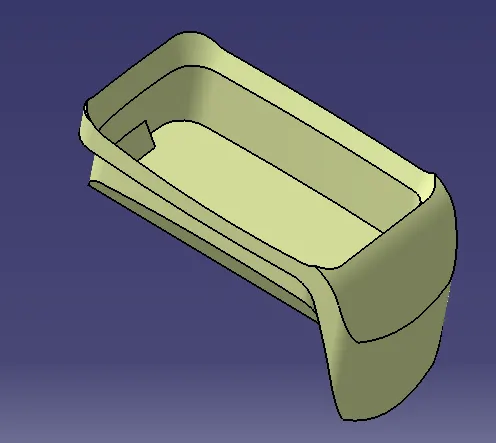

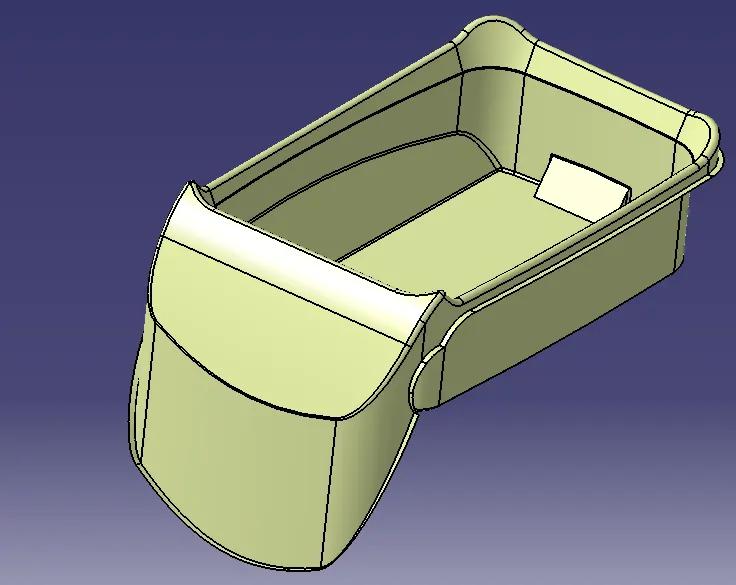

Soild body of coin holder

DRAFT ANALYSIS

Draft analysis is not possible to create for coin holder......because of having some surfaces with 90 degrees

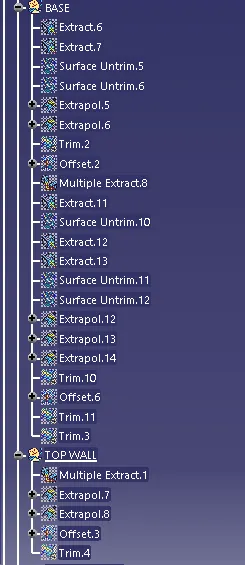

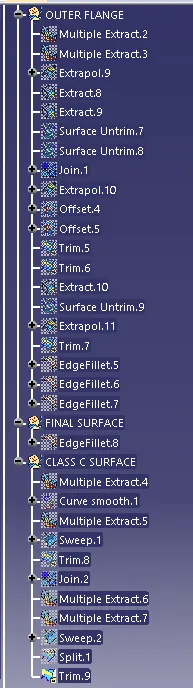

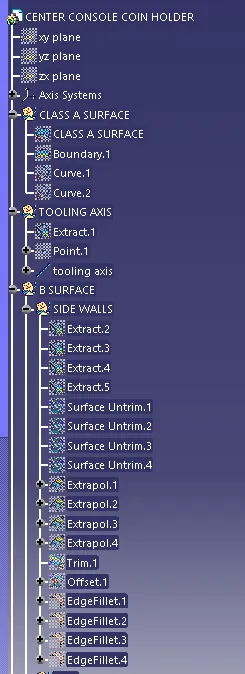

TREE STRACTURE
