Week 8 - Challenge 3 - Switch Bezel Design

 SWITCH BEZEL

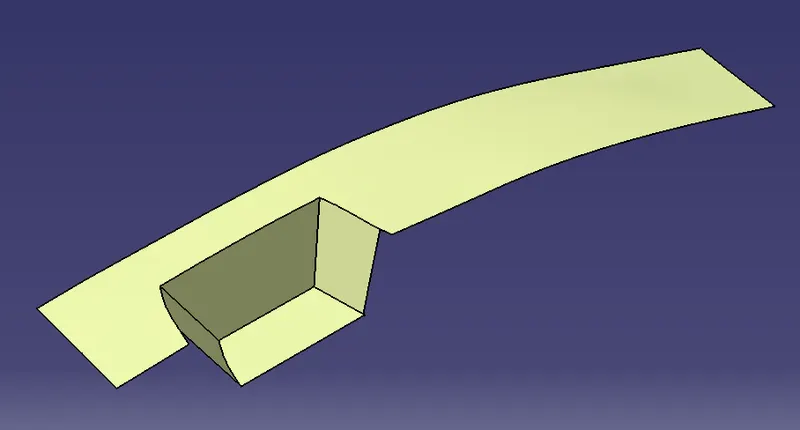

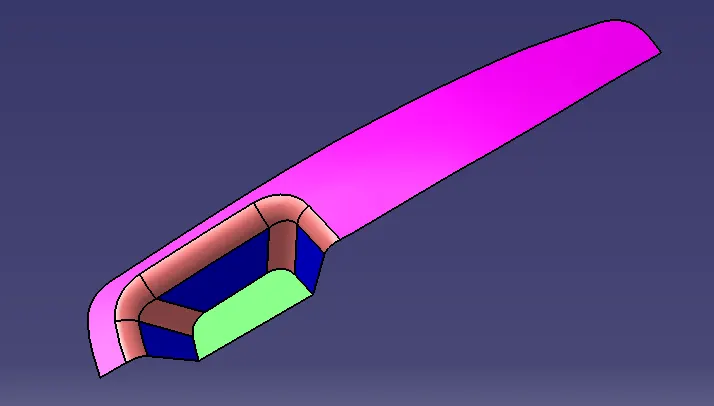

Take a given CLASS A SURFACE

create  a tooling axis for a given CLASS A SURFACE

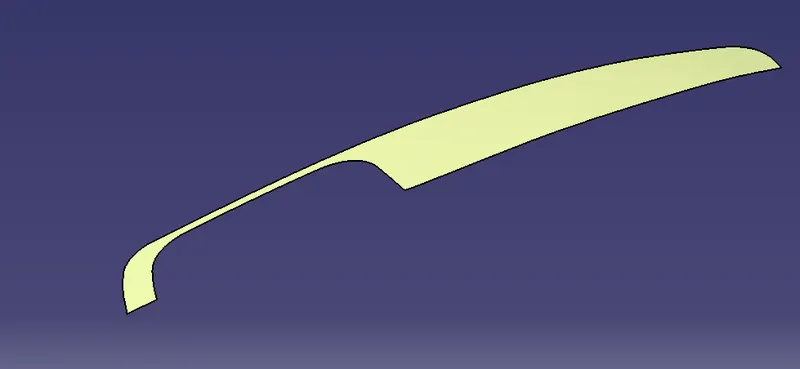

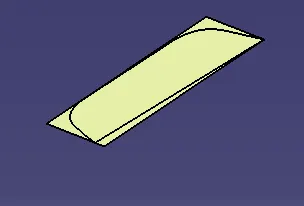

Then extract bezel rest surface

Then untrim the bezel rest surface

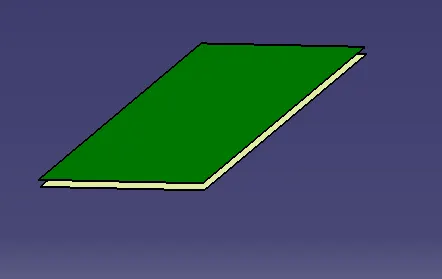

offset the untrim surface

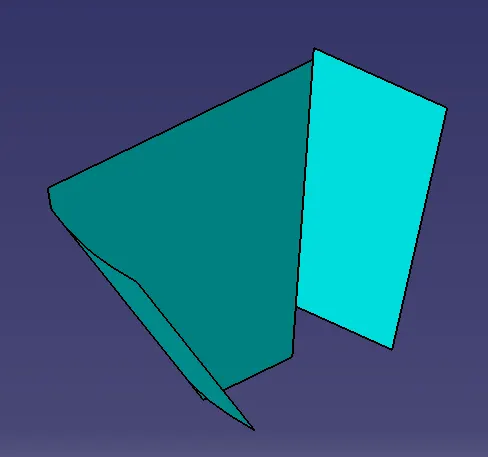

CREATE WALLS

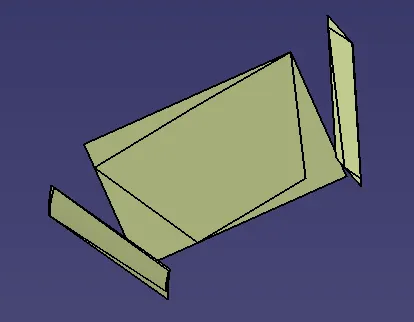

Then extract the walls of the CLASS A SURFACE

Then untrim the extracts

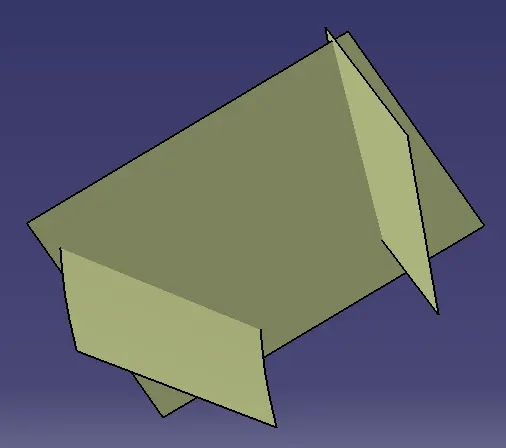

extrapol the untrims

Then trim the extrapols

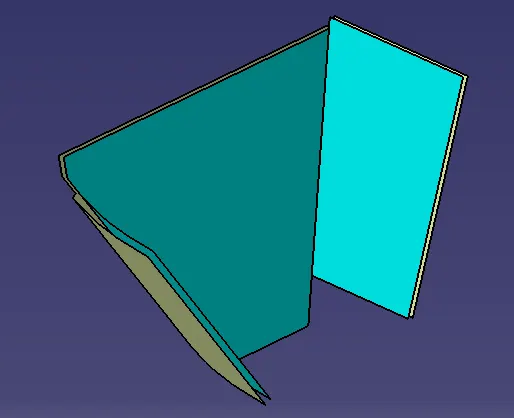

Offset the trim surfaces

THEN CREATE THE BASE

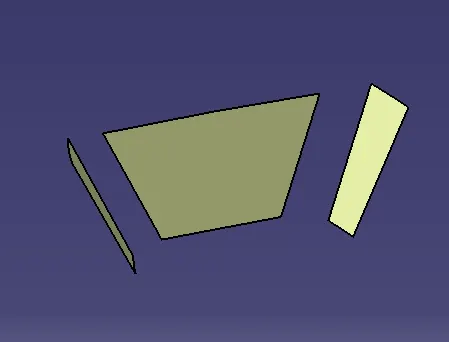

Extract the base

Untrim the base

Then extrapol the untrim surface

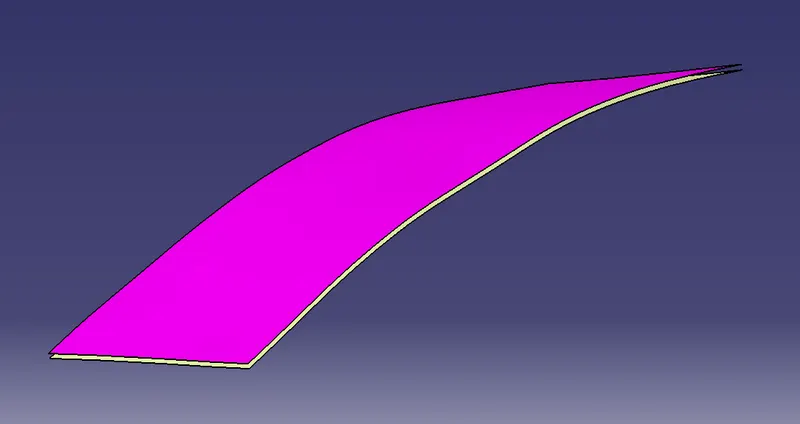

Then offset the base surafce

Trim the extra surfaces to cretae the CLASS B SURFACES

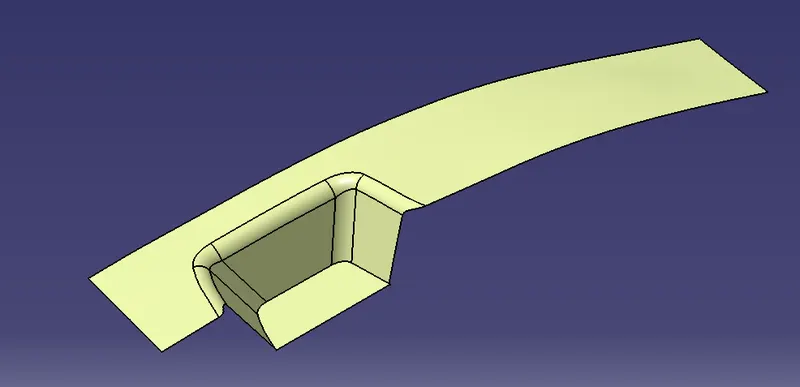

Fillet the edges using the edge fillet

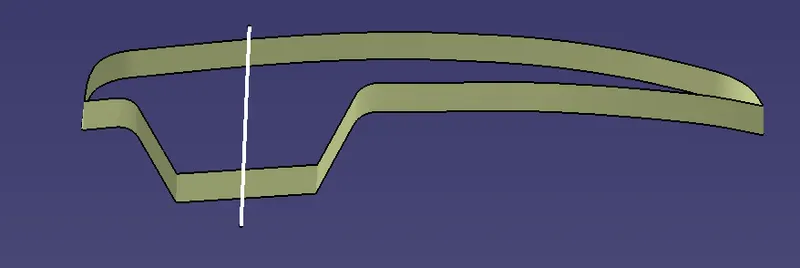

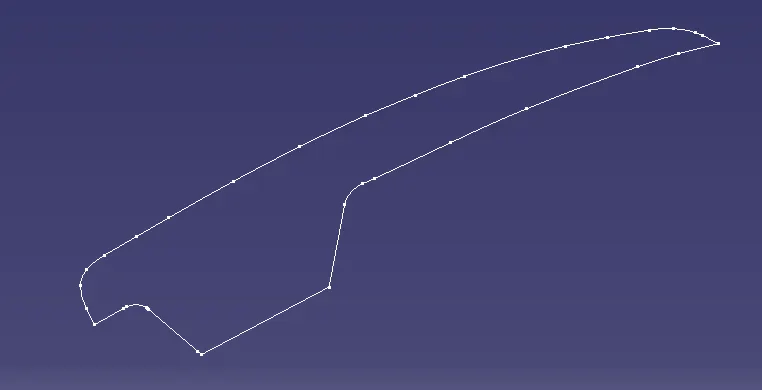

Then create the boundary using the class a surface

sweep the boundaries

trim all the extracts of the class b surface

join all the surfaces of the class b

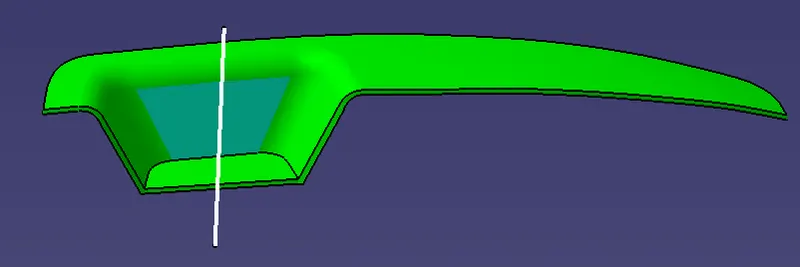

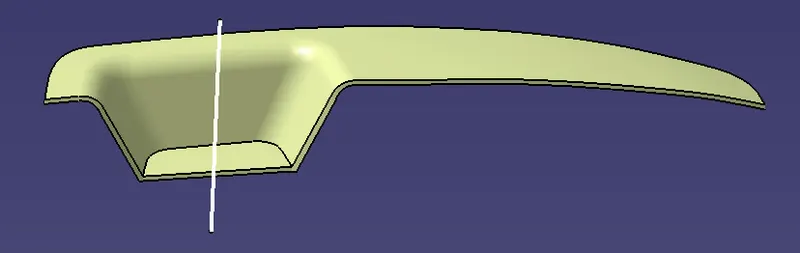

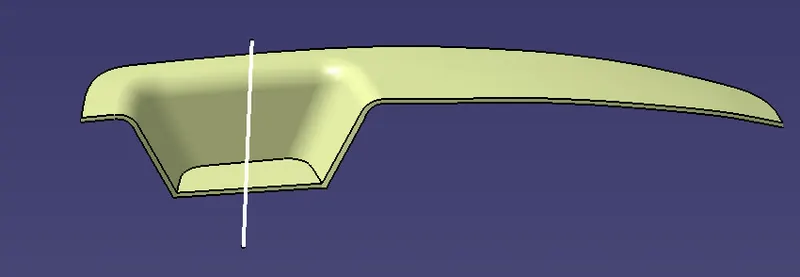

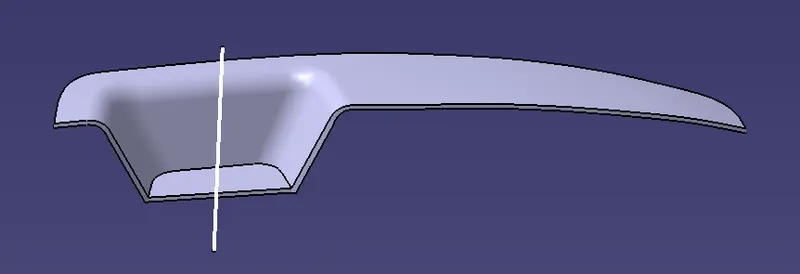

solid body of the class b surfrace

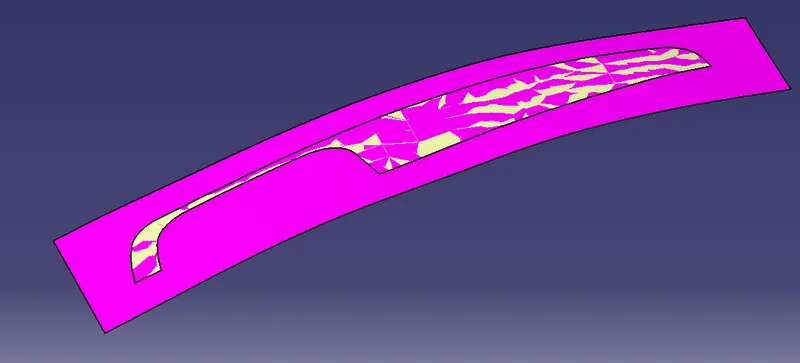

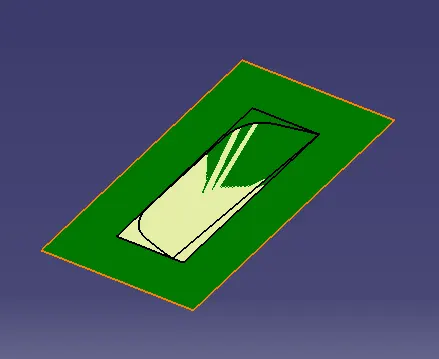

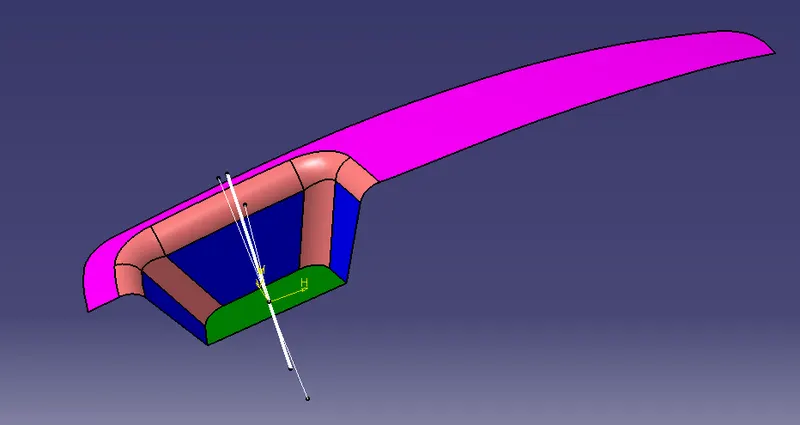

DRAFT ANALYSIS OF CLASS B SURFACE

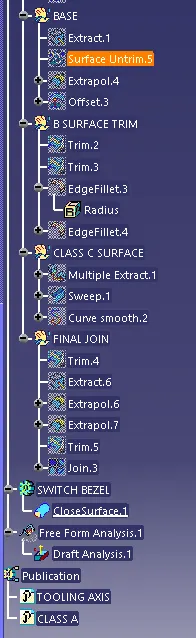

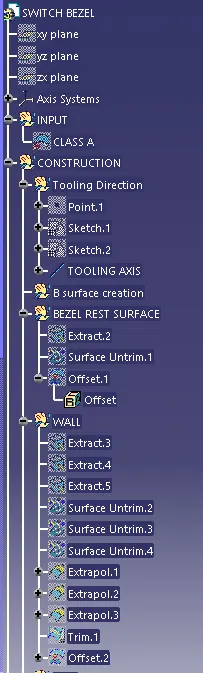

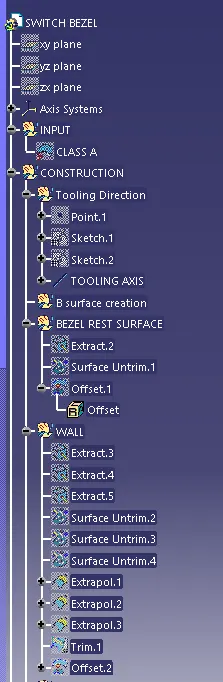

TREE STRACTURE
