Week 8 - Challenge 2 - Base Bracket Design

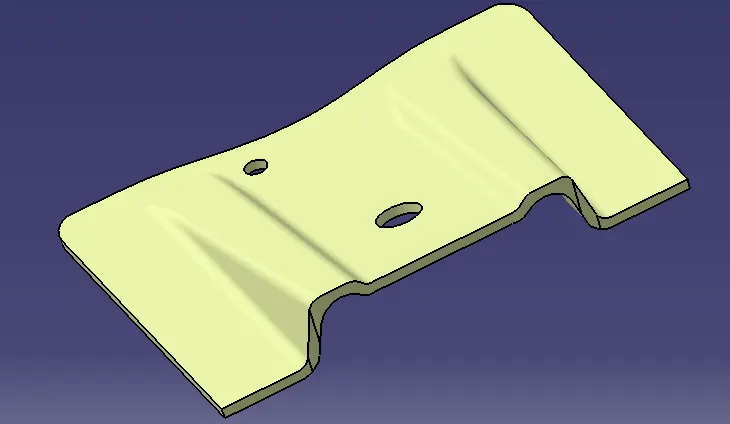

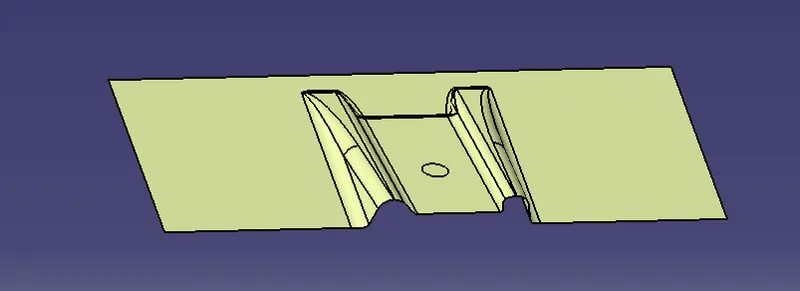

Take a given CLASS A SURAFCE

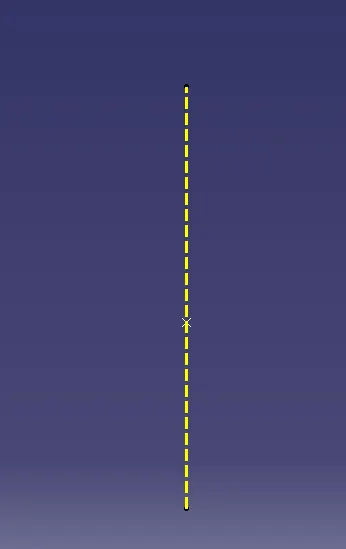

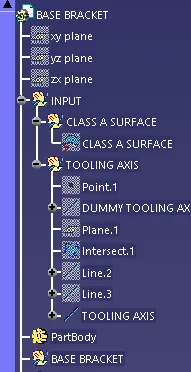

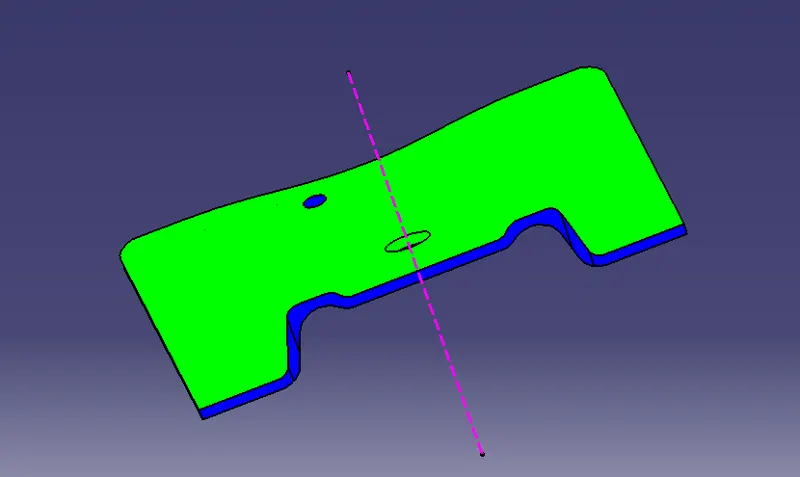

Then create a dummy tooling axis for a given class a surface

Then create an interset for given CLASS A SURAFCE

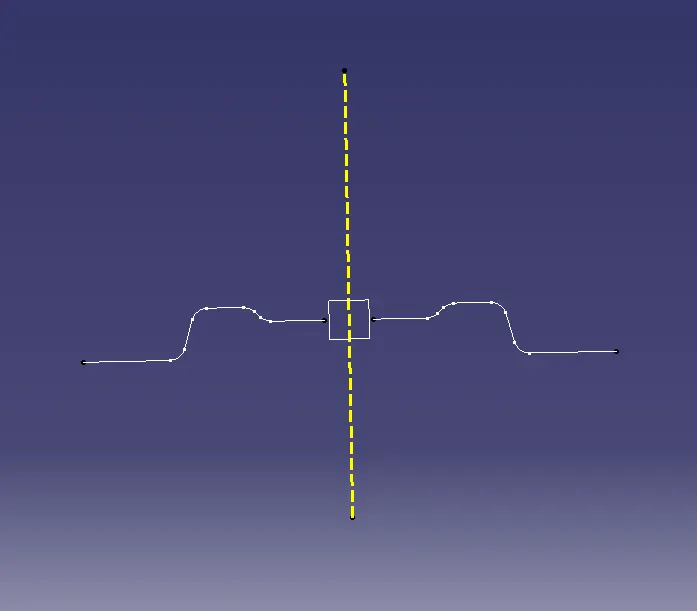

Then create two lines using point to point direction

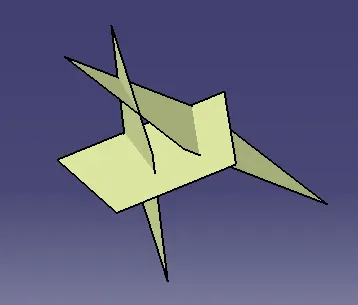

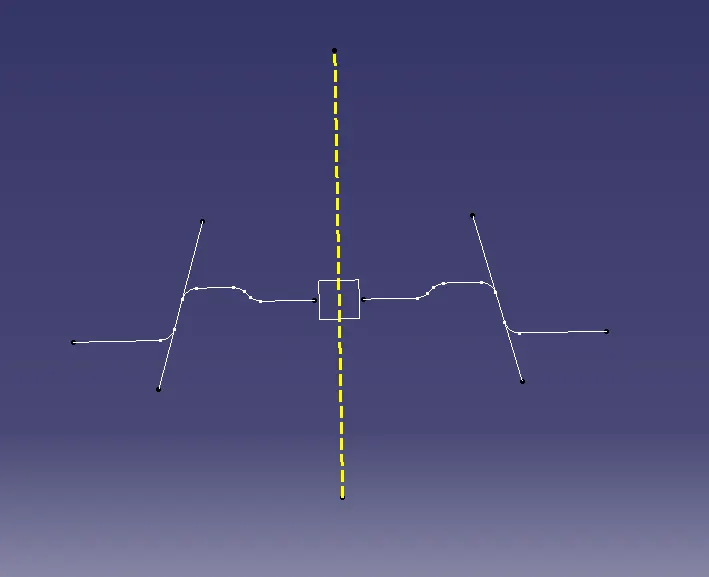

By using two lines create bisecting line

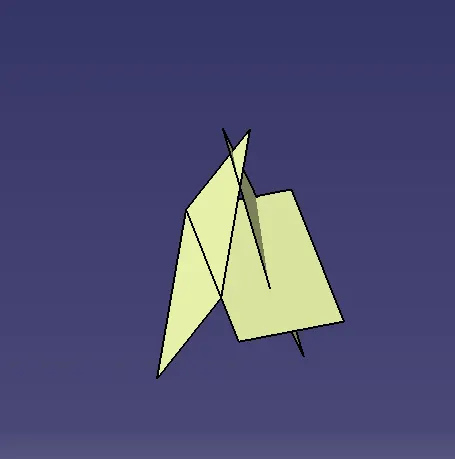

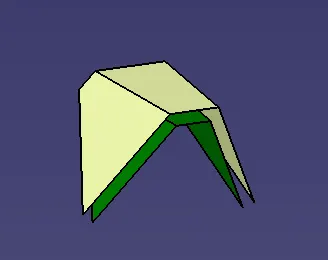

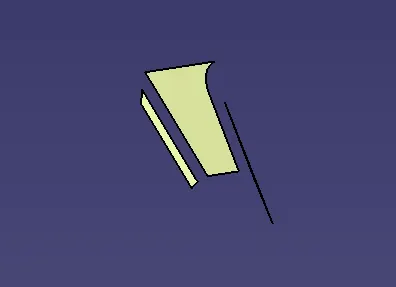

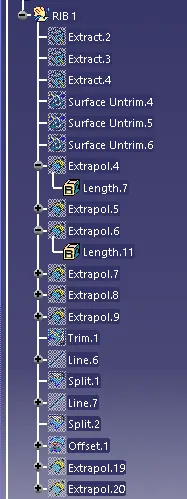

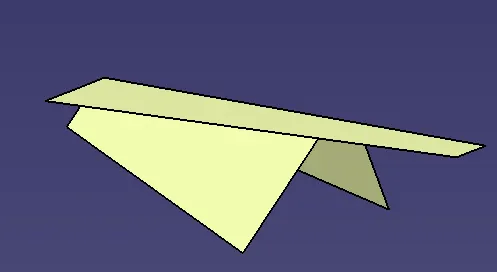

Extract three surfaces from CLASS A SURFACE to create  RIB 1

Untrim the extracts

then extrapol the untrim surfaces

Then trim the extrapols

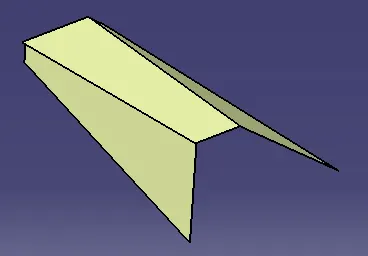

Then offset the trim

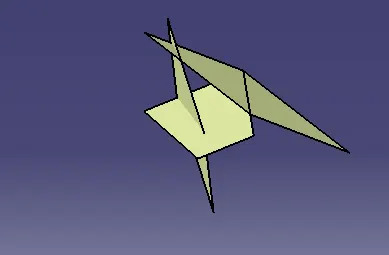

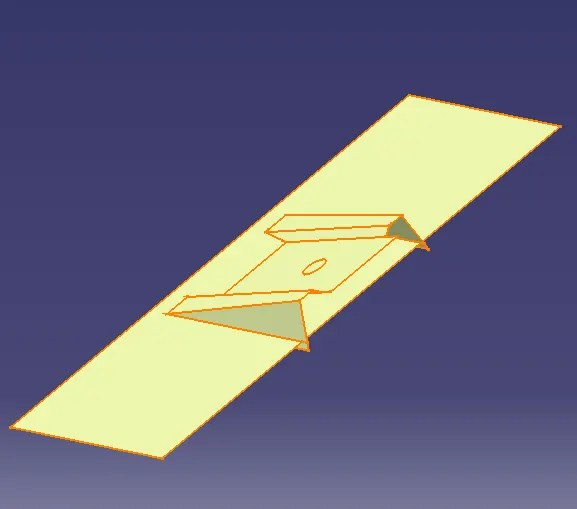

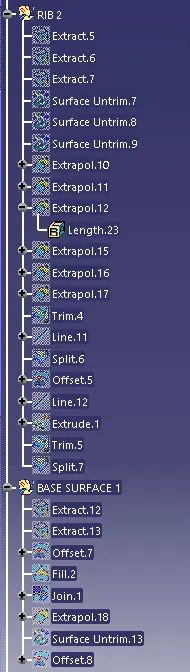

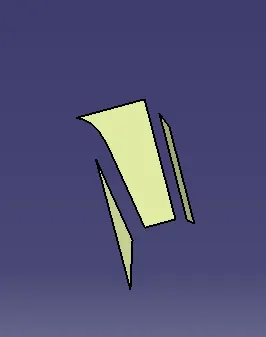

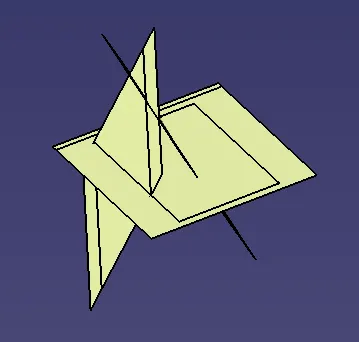

extract three surfaces from CLASS A SURFACE to create RIB 2

Untrim the extracts

then extrapol the untrim surfaces

Then trim the extrapols

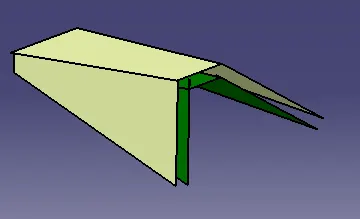

offset the trim

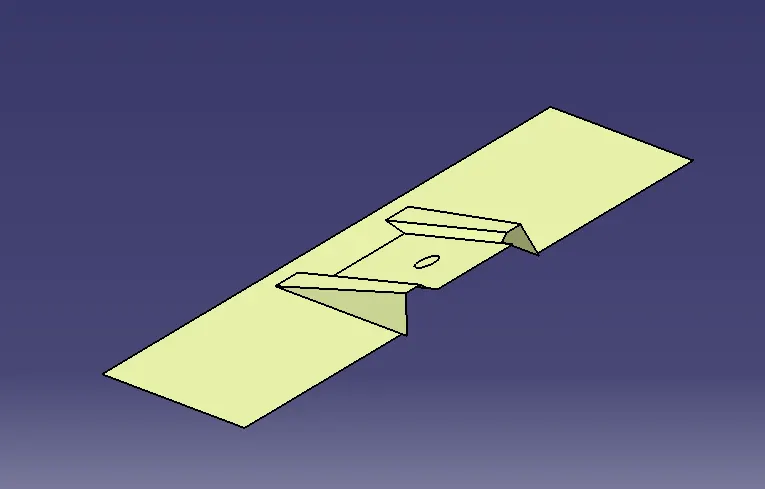

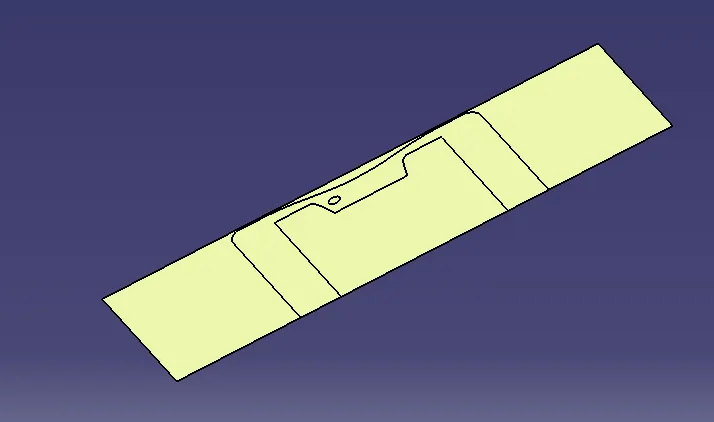

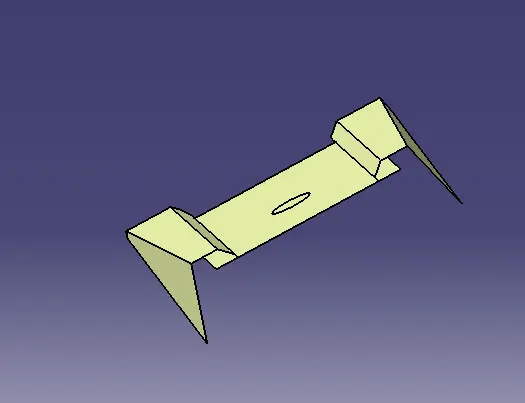

Extract the surfaces from CLASS A SURFACE to create the BASE SURFACE

untrin base surface

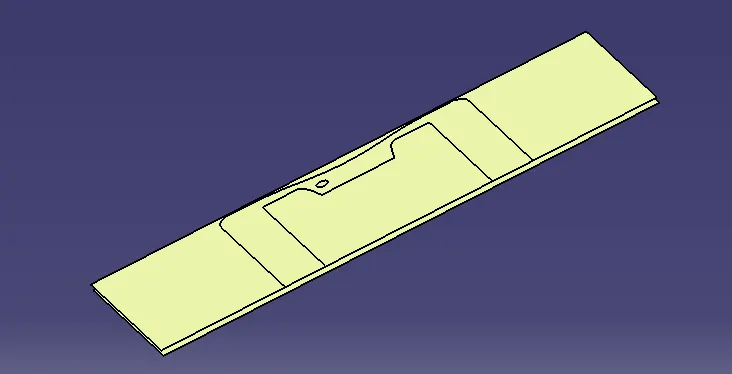

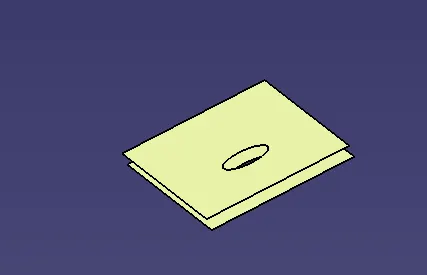

Offset the base surfaces

trim extrapols

then trim the extrapols

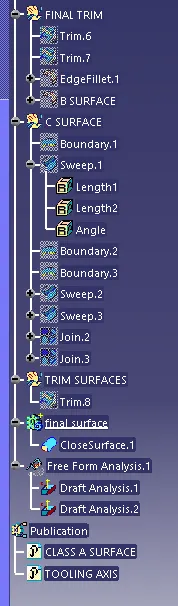

then fillet the surfaces

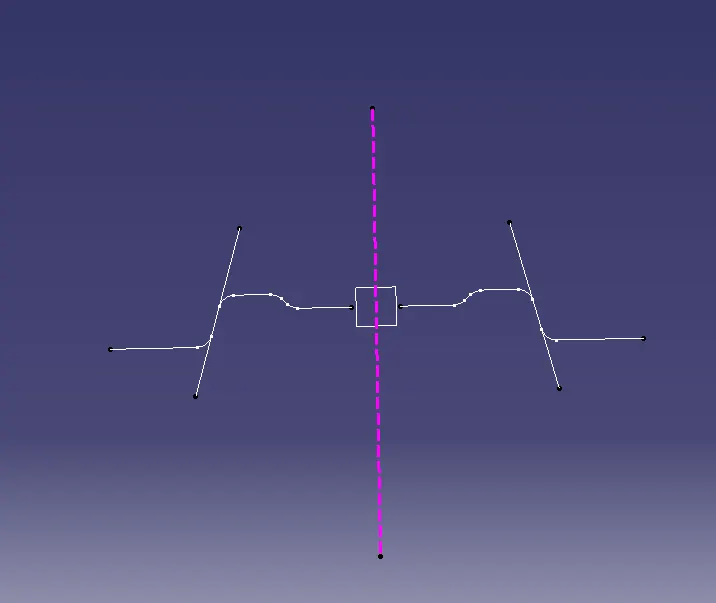

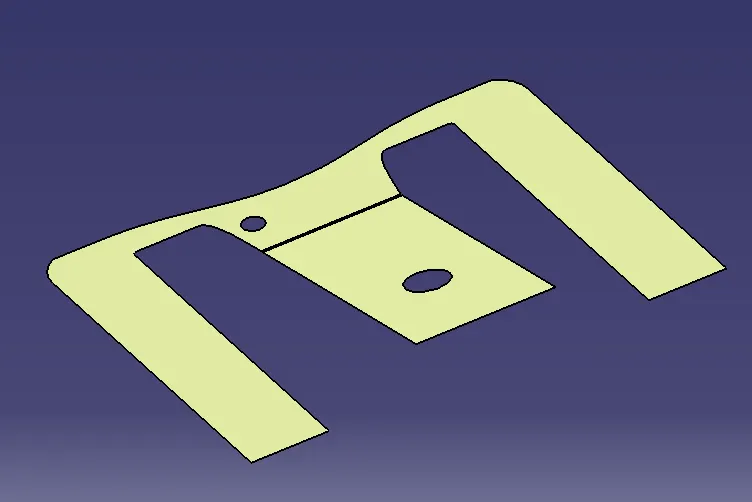

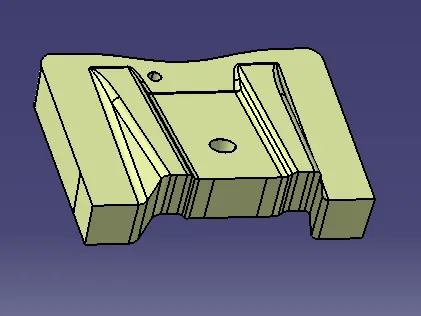

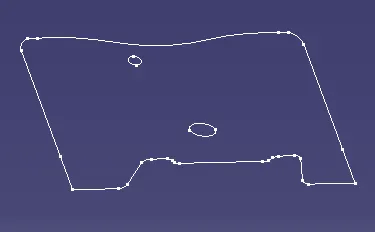

Create a boundary for given CLASS A SURFACE

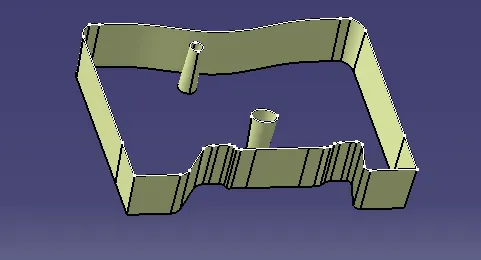

Sweep the boundaries

join the boundaries

Trim the CLASS B SURFACE

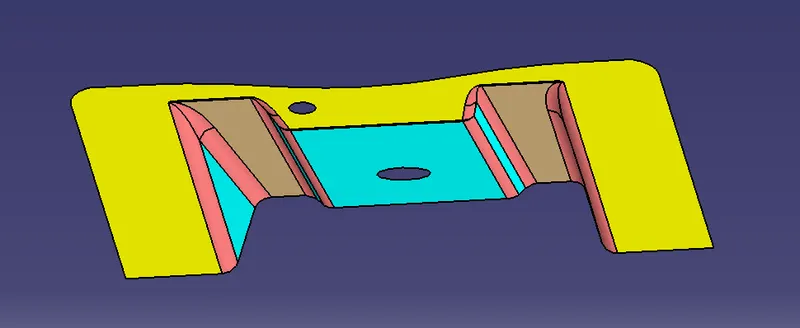

DRAFT ANALYSIS FOR CLASS B SURFACE
