Week 8 - Challenge 4 - Coin Holder Design

Report

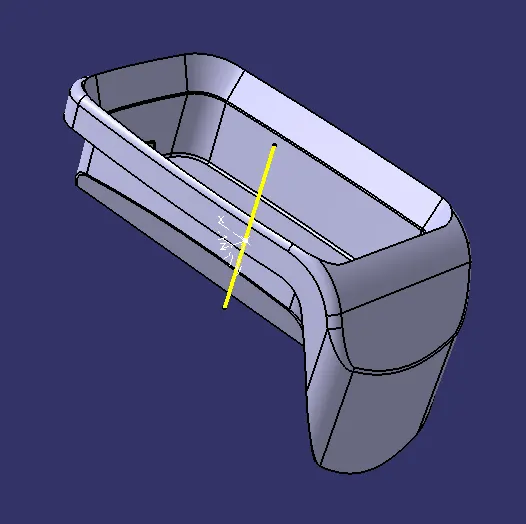

Aim:Create the Coin Holder Plastic component through the given Class-A surface.

Procedure:

import geometry

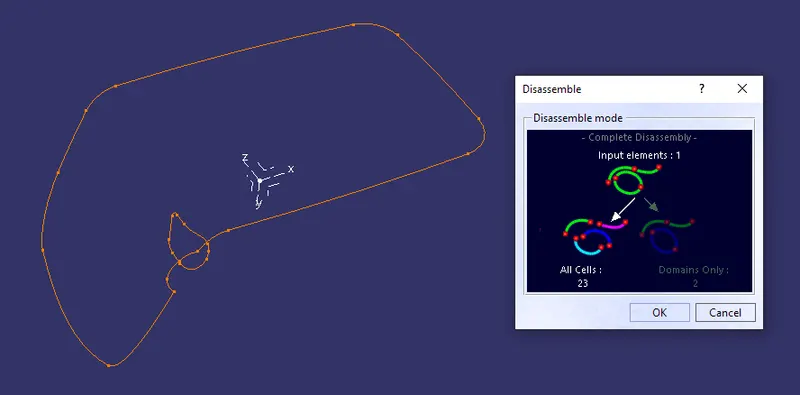

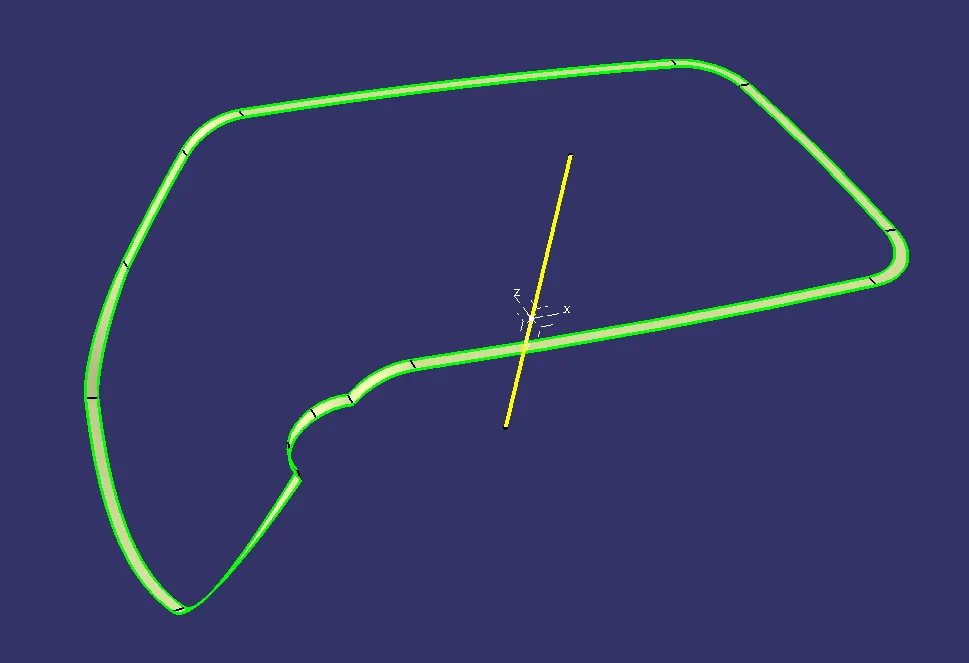

check boundary, there are 2 domians

create a tooling aixs:

create b surface

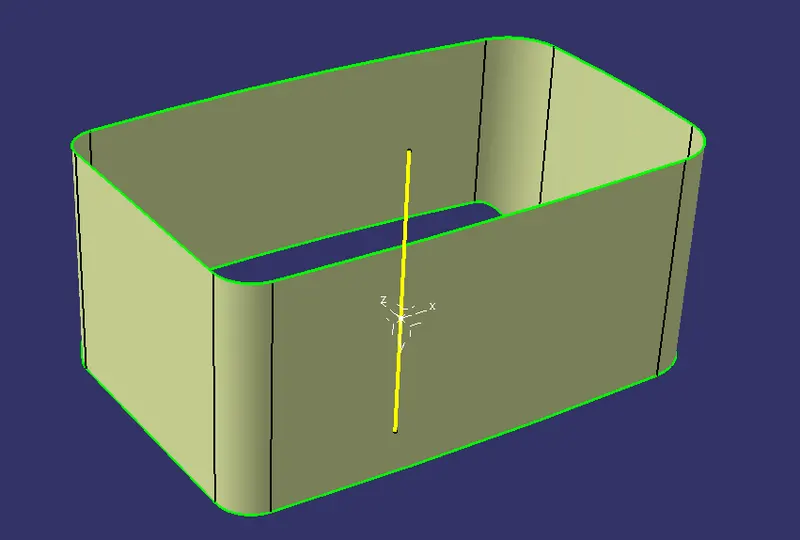

side wall

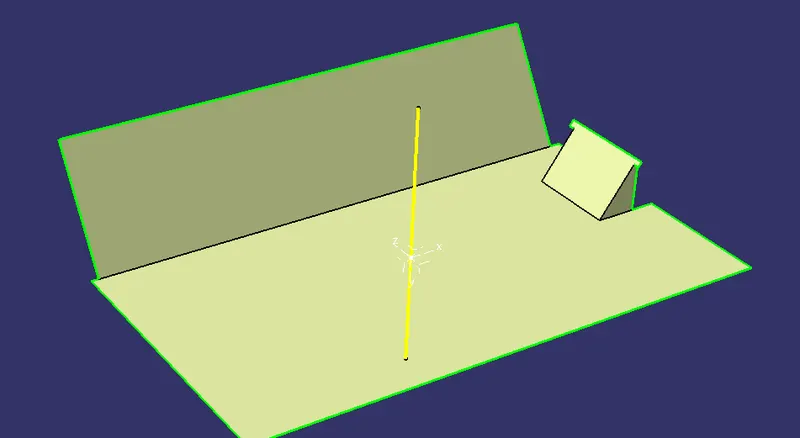

base

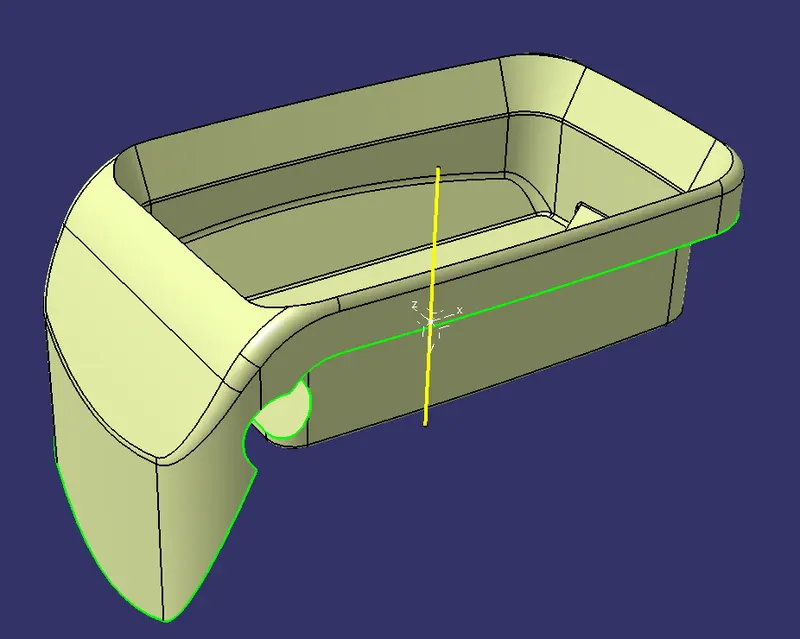

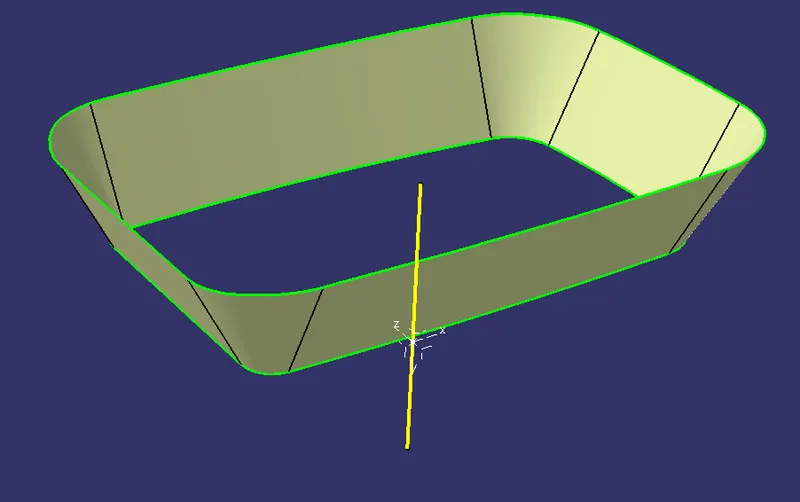

top wall

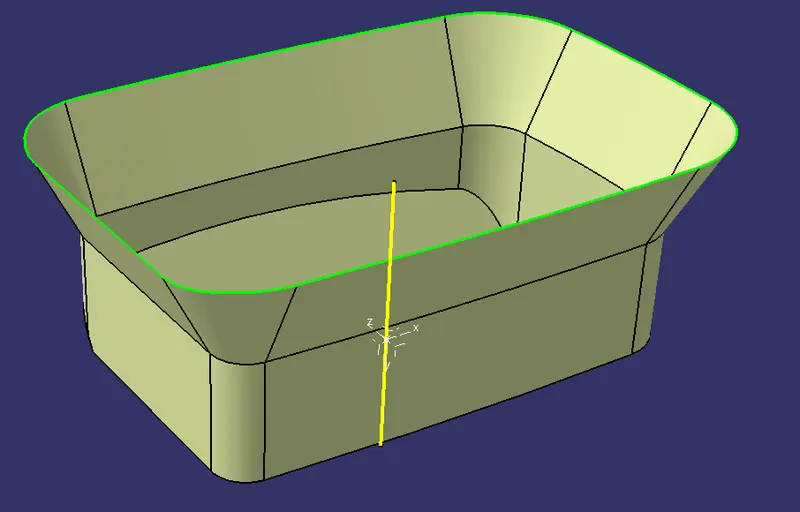

initial trim

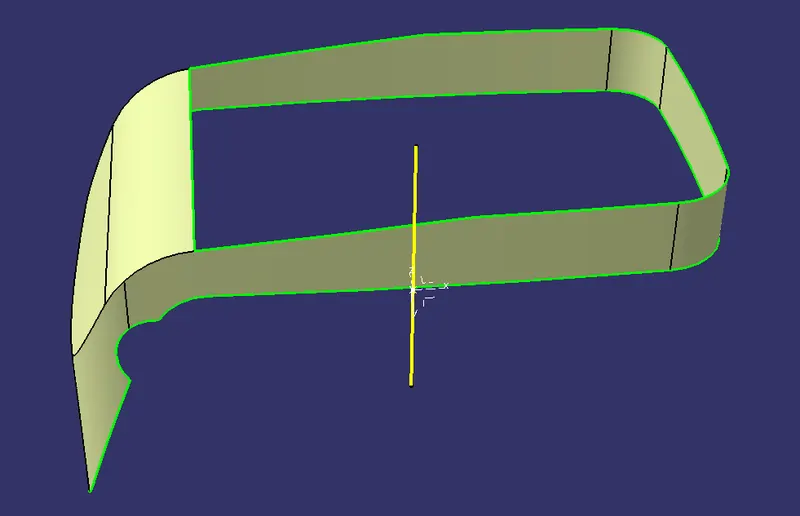

outer flange

c surface

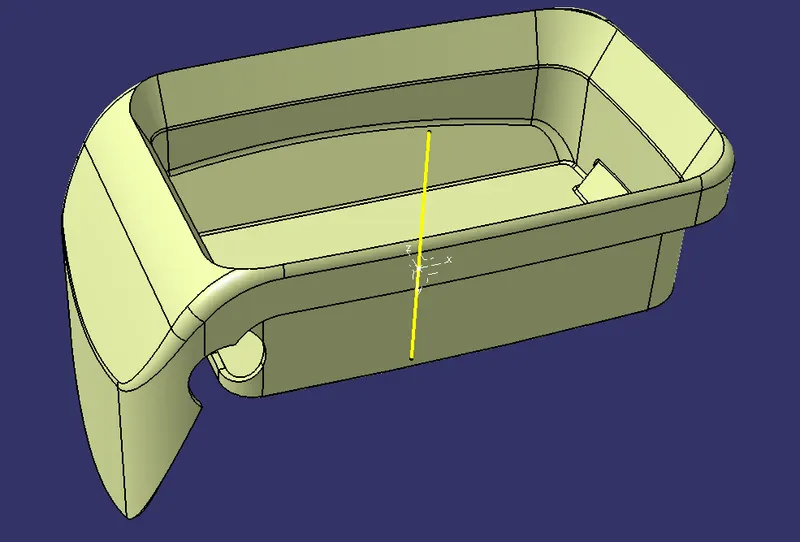

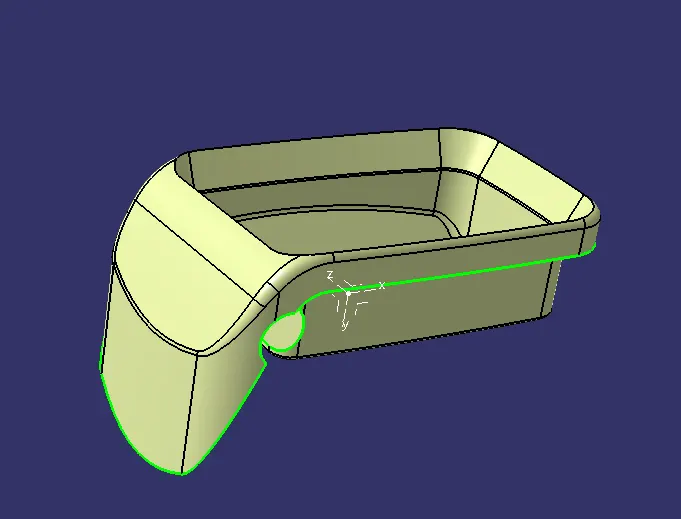

join a, b and c surface

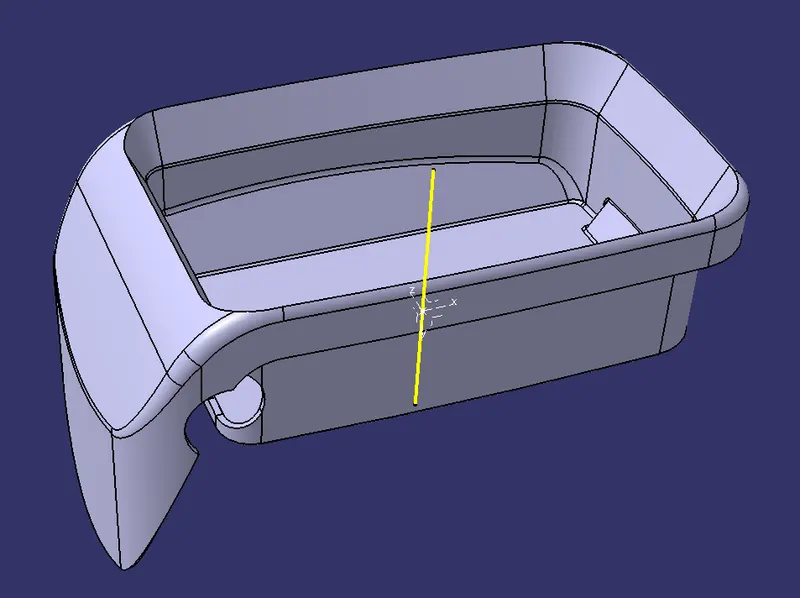

use closed body to create solid

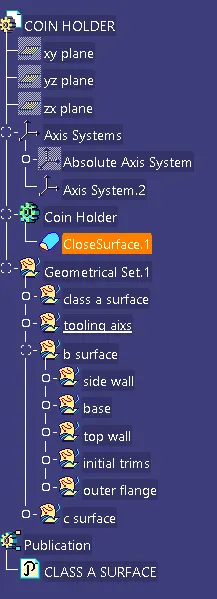

Tree Structure
