Week 8 - Challenge 4 - Coin Holder Design

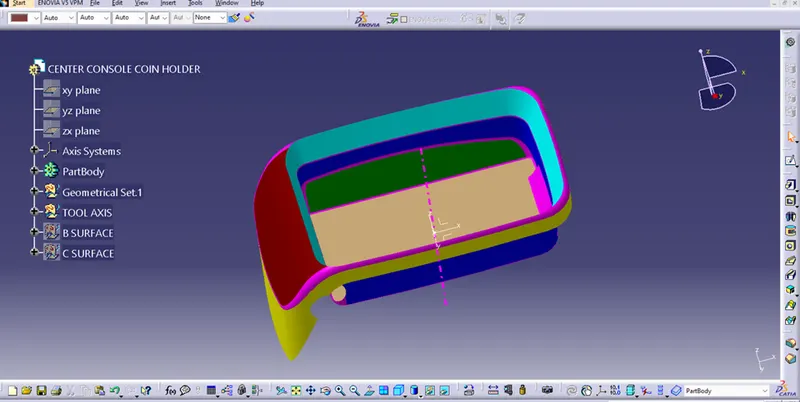

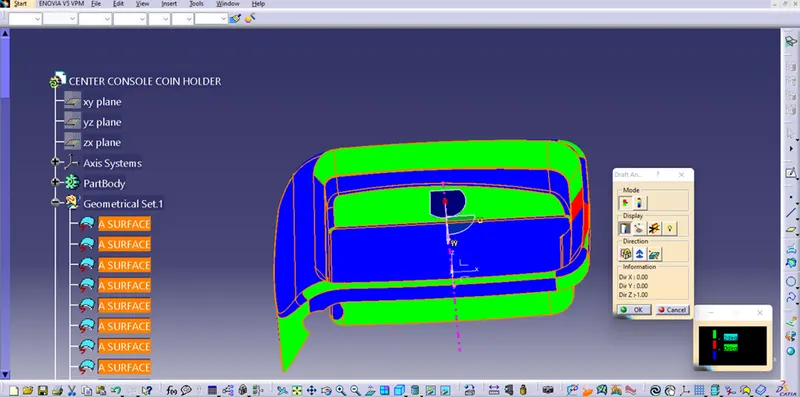

Tooling direction was created based of ZX and ZY plane and the color indicates the projected surface angle from the tool axis as shown In Figure

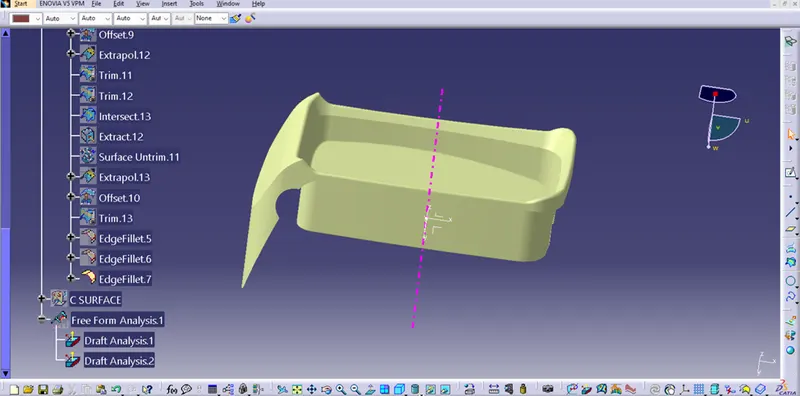

B- Surface are formed by untrimming, extrapolate, sweep, offset and trim command of various portion from A- surface and the B Surface are shown in Figure

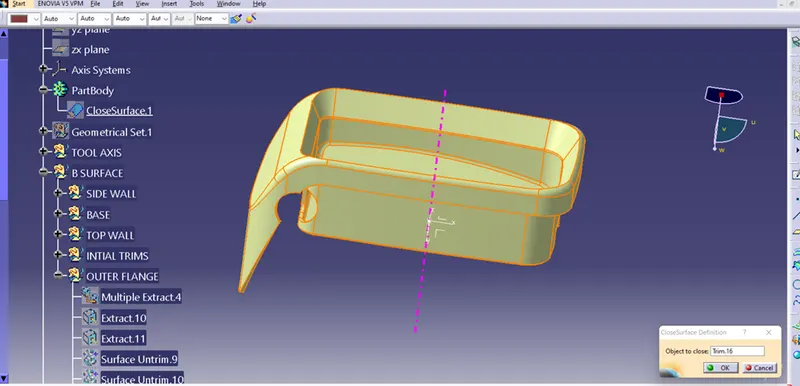

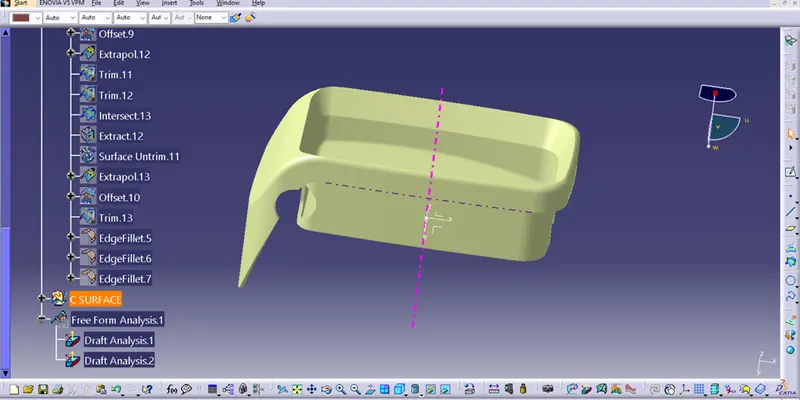

To make class C, a sweep command is used once the surface is trim from the sweep surface that is called as a class C. Check with closed body as shown in Figure

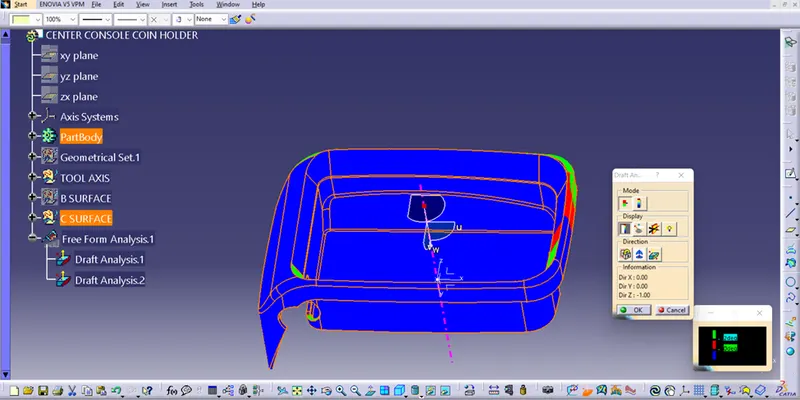

Draft analysis with Class C surface
