Week 8 - Challenge 4 - Coin Holder Design

REPORT:-

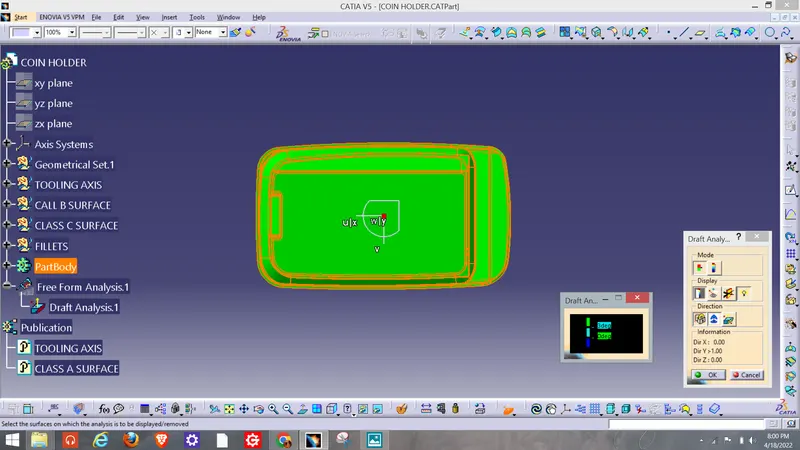

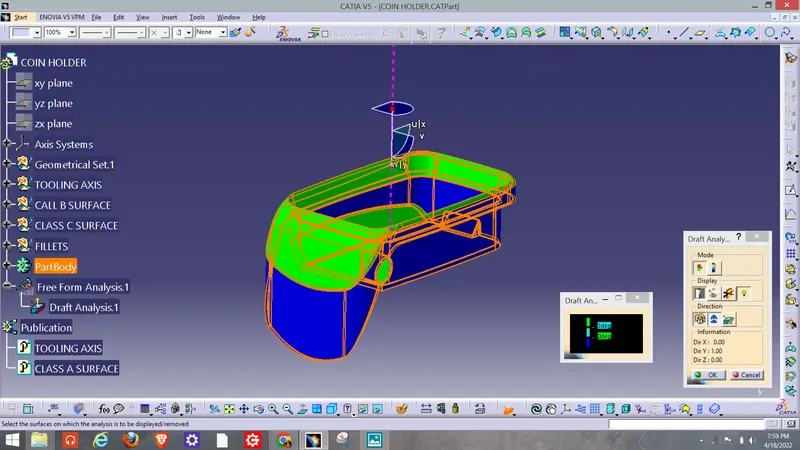

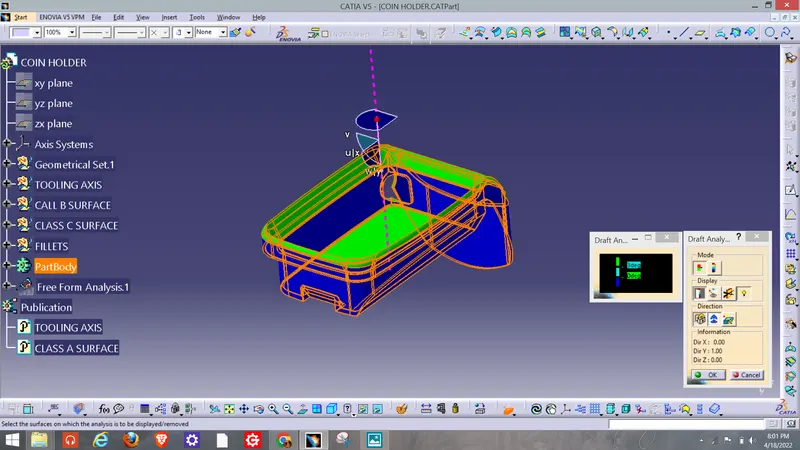

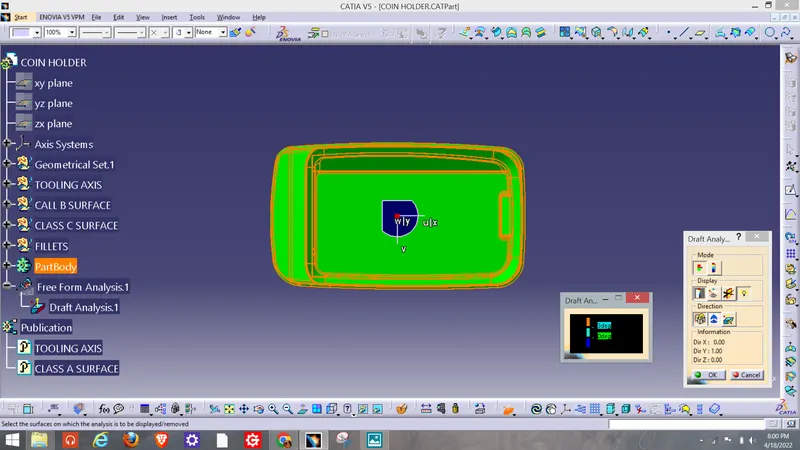

DRAFT ANALYSIS: Draft mainly used at the time removing component from the Mold, Which helps in minimizing friction when removing object from the mold. it reduces the chances of deforming the component when extracted from mold. Hence providing Draft to an component help in making better plastic material and For analysing draft whether it is correct or not used Draft Analysis.

Tooling Axis: Tooling axis is the key component for drafting and analysis. Creation of tooling axis contains several methods such as bisecting lines of an intersection of surface.
