Week 8 - Challenge 4 - Coin Holder Design

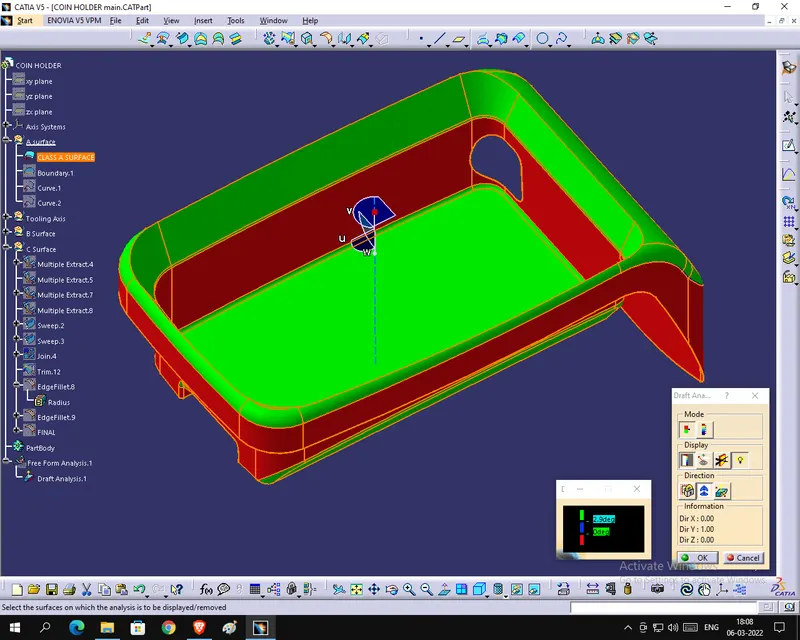

DRAFT ANALYSIS REPORT :-

Two Tooling axes had to made due to the hole on one side of the body.

A parting line is visible and the part will be divided at that parting line in half, where it will go into the core and athe cavity.

The first tooling axis is along the base surface

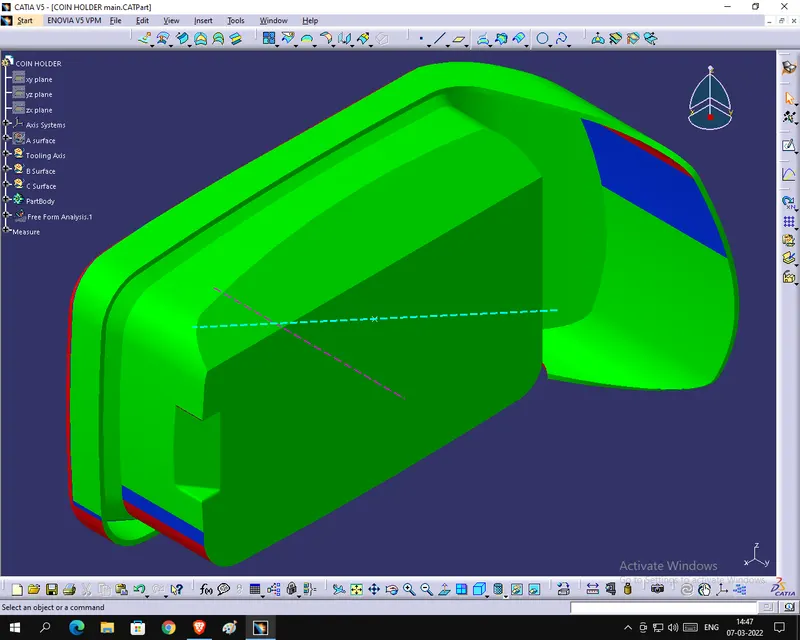

The second tooling axis is along the surface most protruding out of the body.
