Week 8 - Challenge 4 - Coin Holder Design

VIEWS:

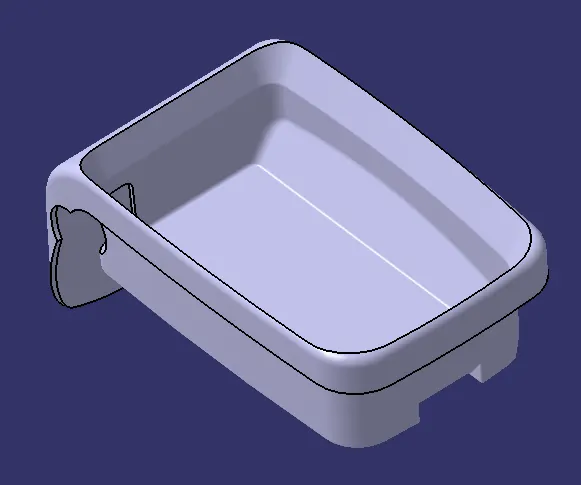

ISOMETRIC:

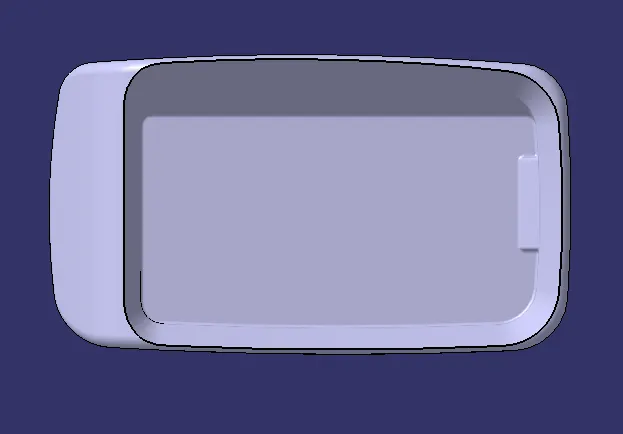

TOP:

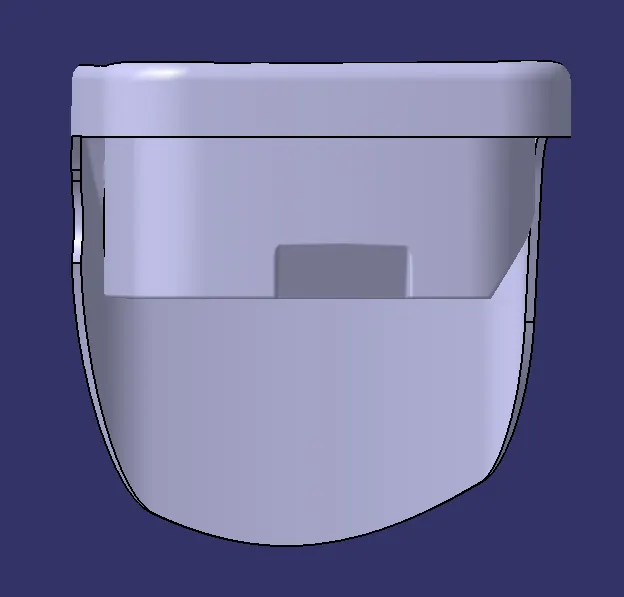

FRONT:

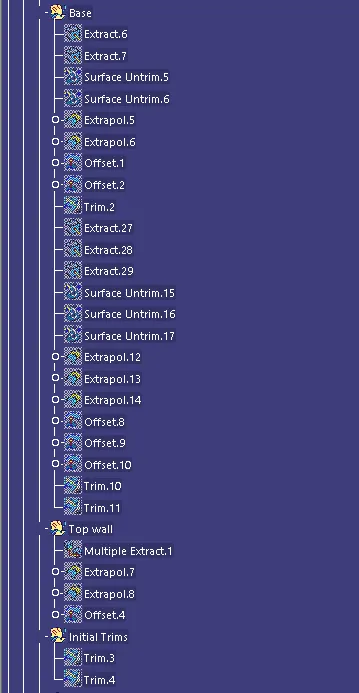

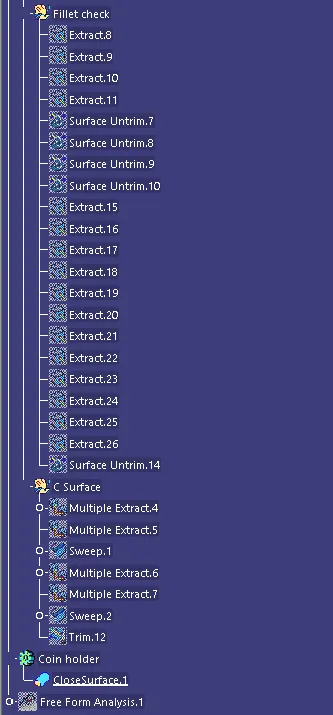

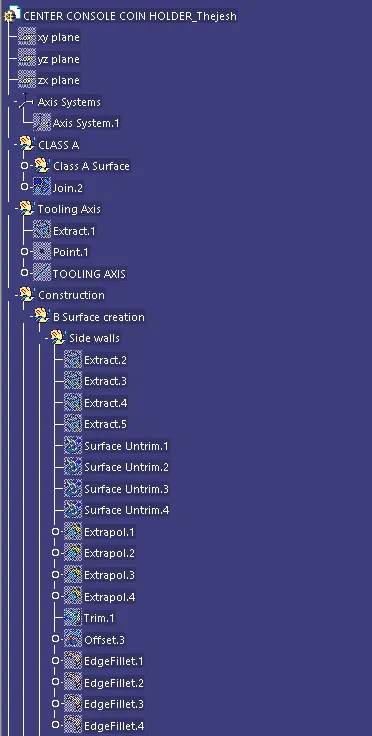

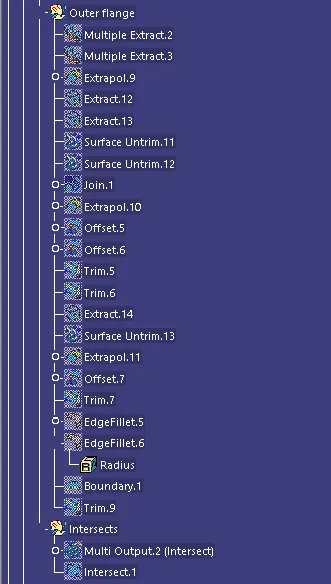

MODAL TREE:

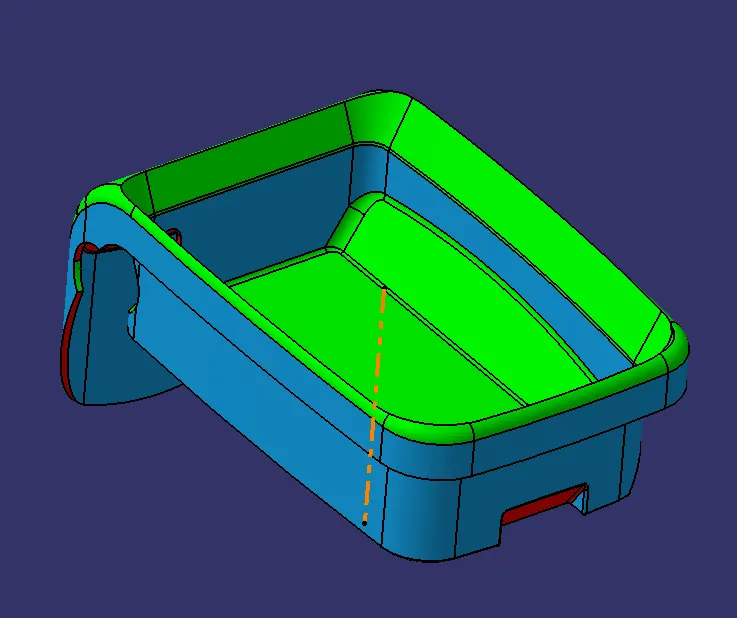

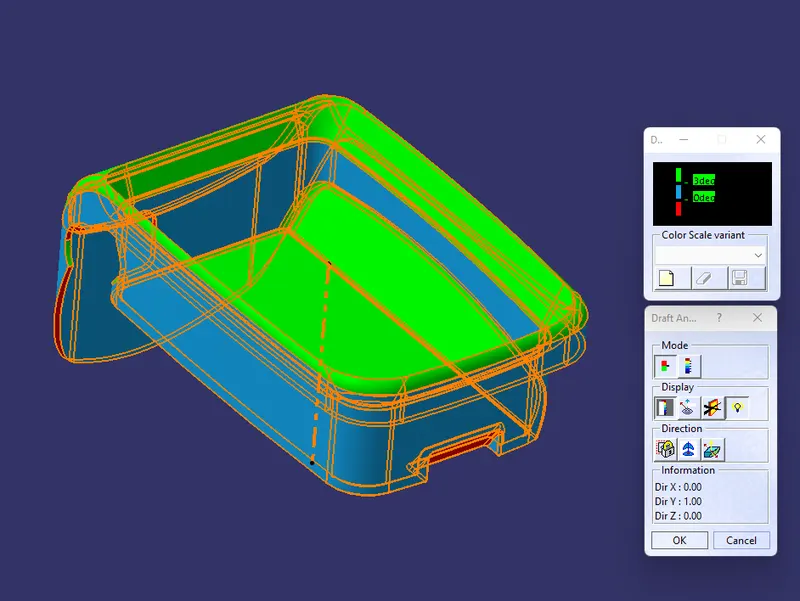

Draft analysis:

The tooling axis is created normal to the base surface.

The draft analysis is done with respect to the tooling axis but multiple colours indicate the need for additional tooling as these require some side cores. The draft analysis is run with a 3 mm draft and the plotted results are shown above. The green surfaces is built as per plastic standards and blue surfaces have no draft.
