Week 8 - Challenge 4 - Coin Holder Design

Objective :- to create tooling direction

Tolling direction creation

1- To create the tooling direction belwo steps taken.

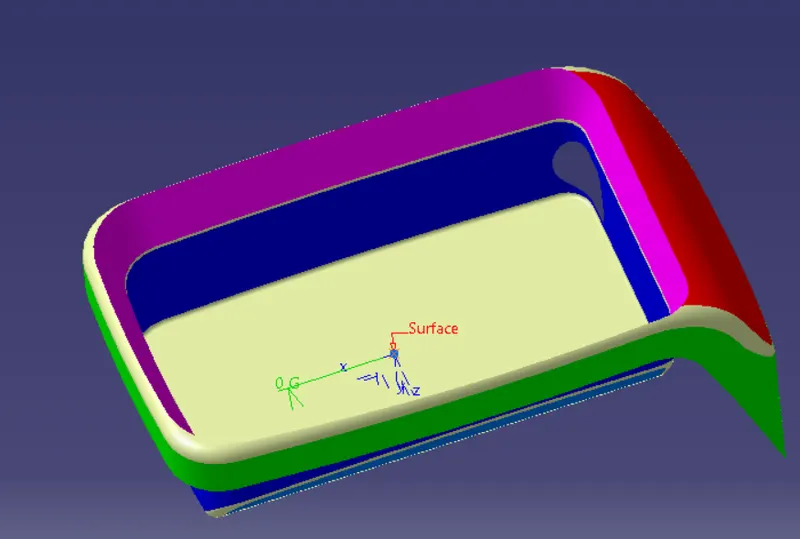

i- A local axis system creation on the bottom surface at min point of surafce.

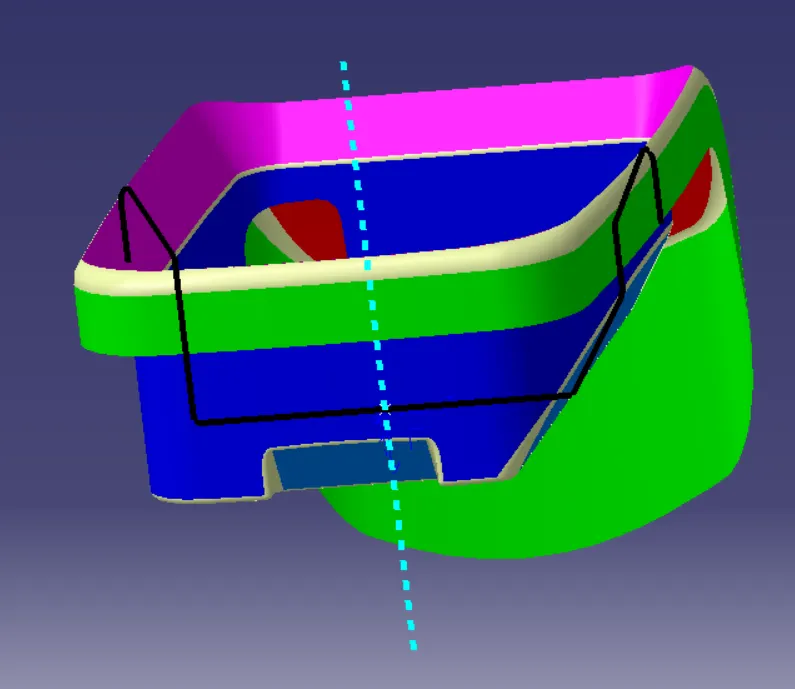

Step 2 - Along that axis, intection was created across the surfaces

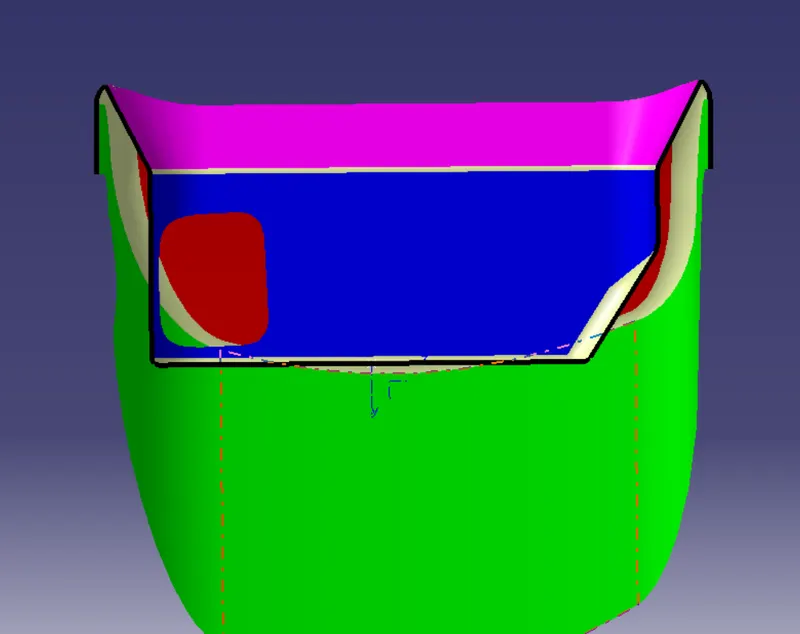

3- After creating intersection line as common , it has been check wether an common line is feasible with the intersection lines , if not ten a line perpendicular to base surface from the mid point was drawn.

this will be the tooling direction for the given class a surface.

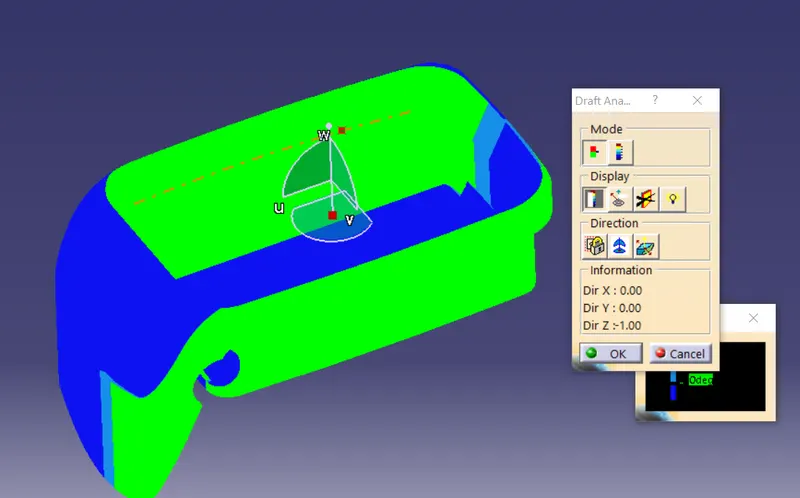

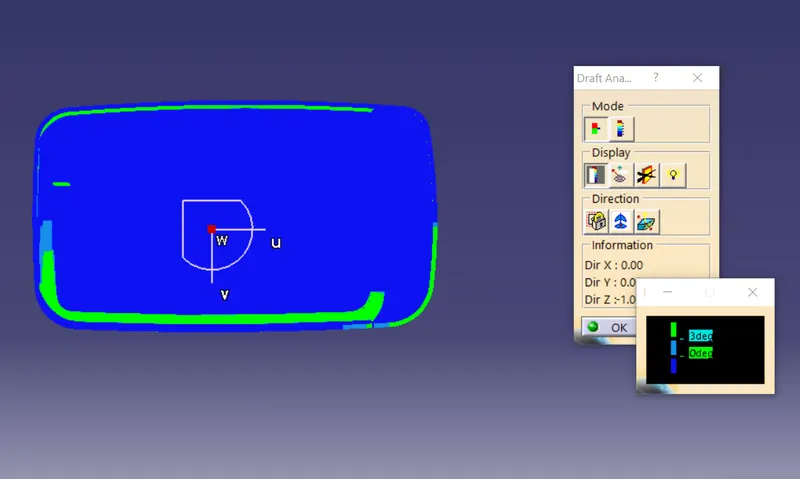

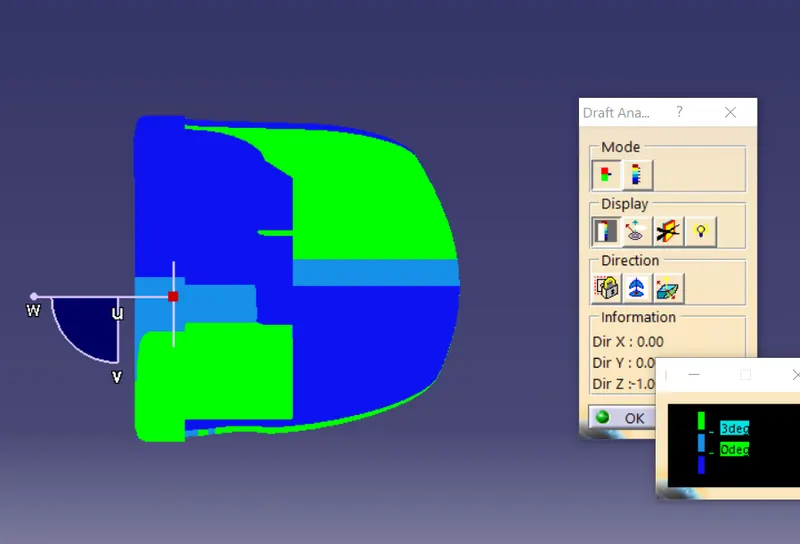

Class A surface draft analysis

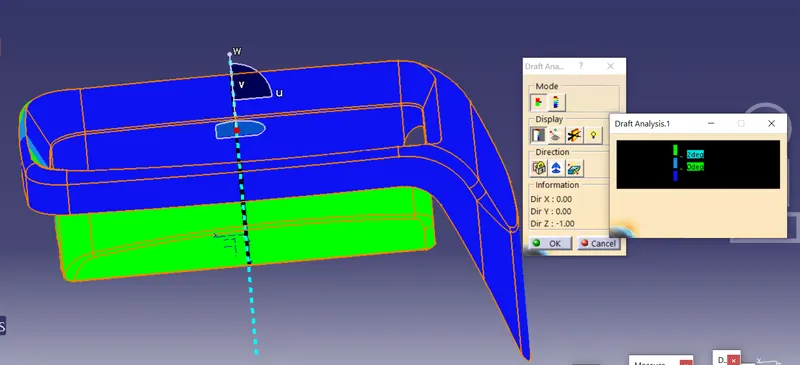

Draft analysis final cad part :-

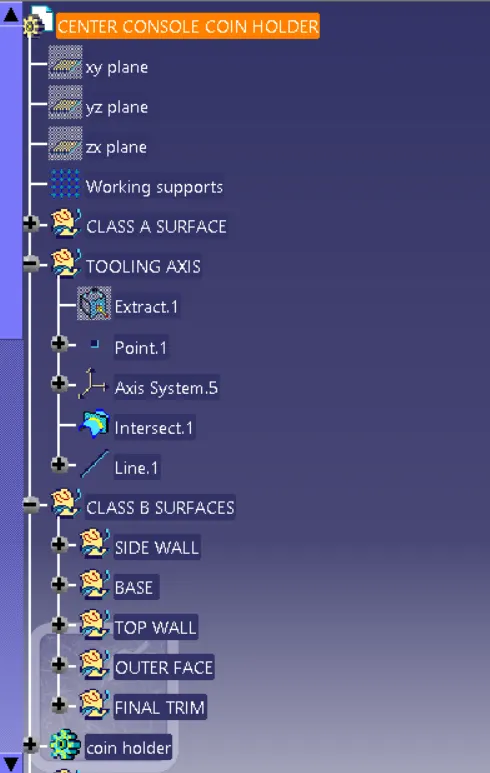

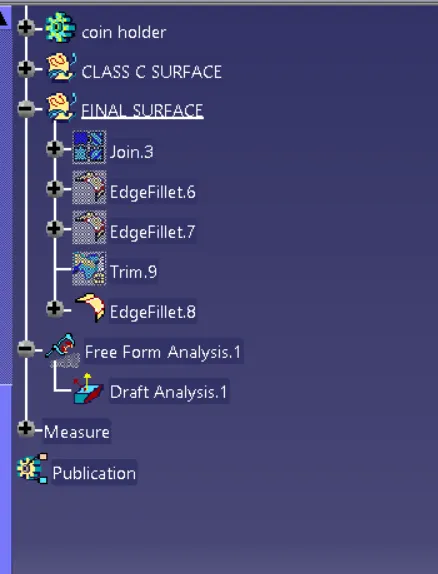

Tree strcuture:
