Week 8 - Challenge 4 - Coin Holder Design

AIM-

Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 2.5 mm

THEORY & PRACTICAL-

JOIN CLASS A SURFACES

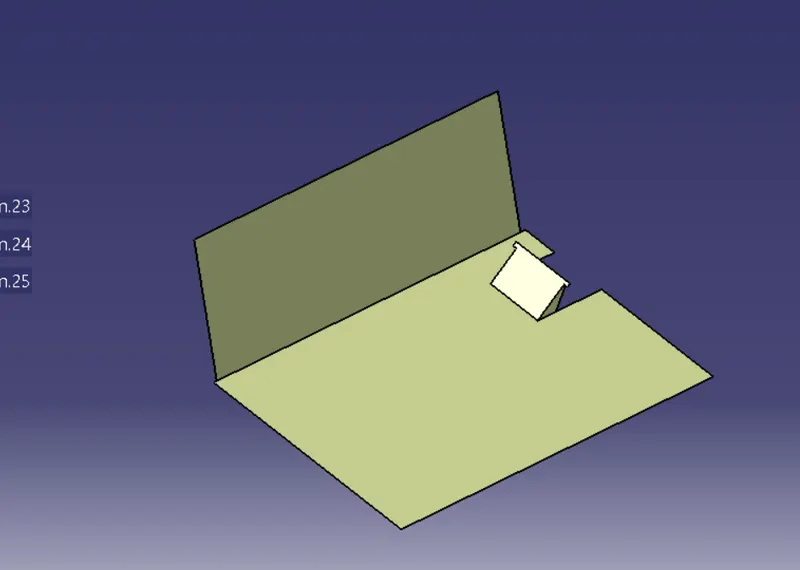

EXTRACT THE BASE SURFACE

CRATE A POINT ON ITS SURFACE

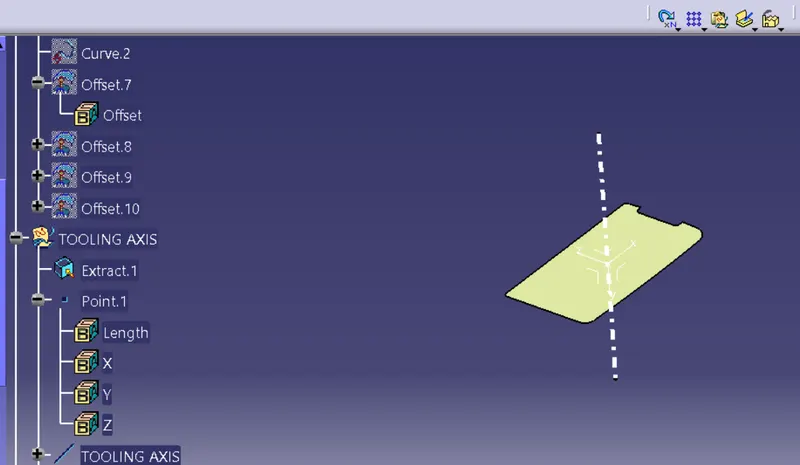

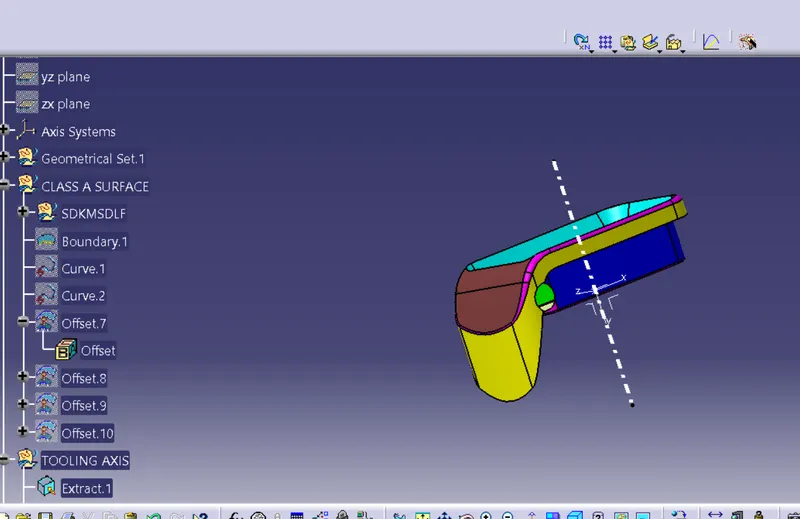

& insert axis

create B SURFACE

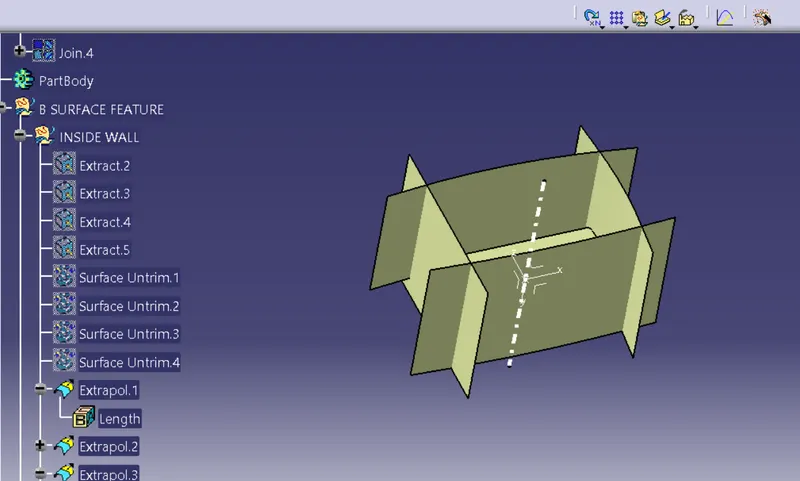

FRIST OF ALL CREATE INSIDE WALL USE FEATURES

EXTRCT- UNTRIM-EXTRAPOL-OFFSET(2.5MM)-TRIM IT

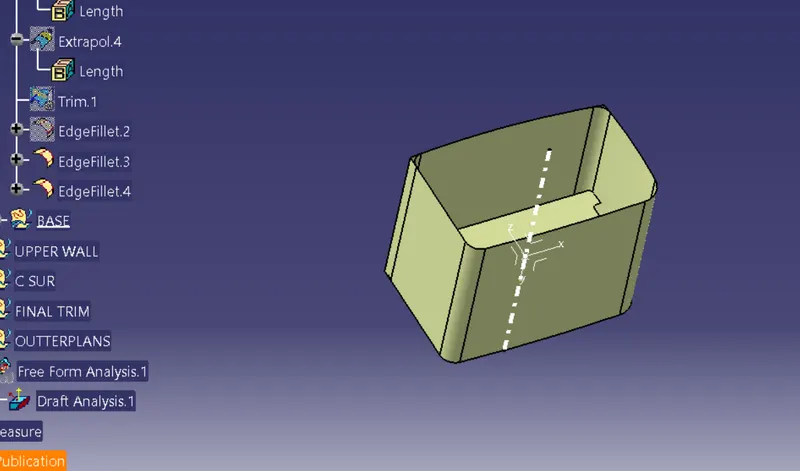

CREATE BASE

PROCEDURE-

EXTRCT CLASS A SURFACE

UNTRIM - EXTRAPOL- OFFSET(2.5MM)-TRIM

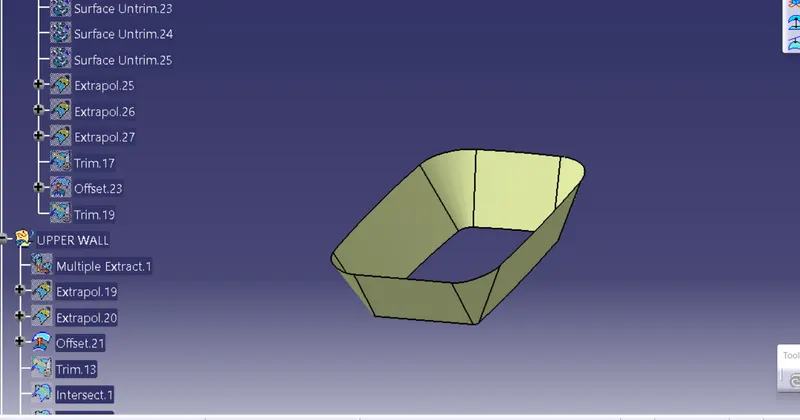

CREATE UPPER WALL

EXTRCT CLASS A SURFACE-EXTRAL POL- OFFSET(2.5MM) -TRIM

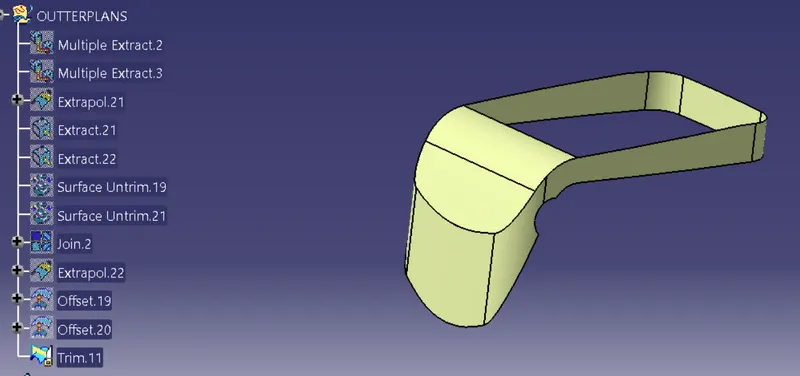

CREATE OUTTER WALLS

MULTIPLE EXTRACT- SURFACE UNTRIM-EXTRAPOL-JOIN BOTH SURFACES- OFFSET (2.5MM)-TRIM

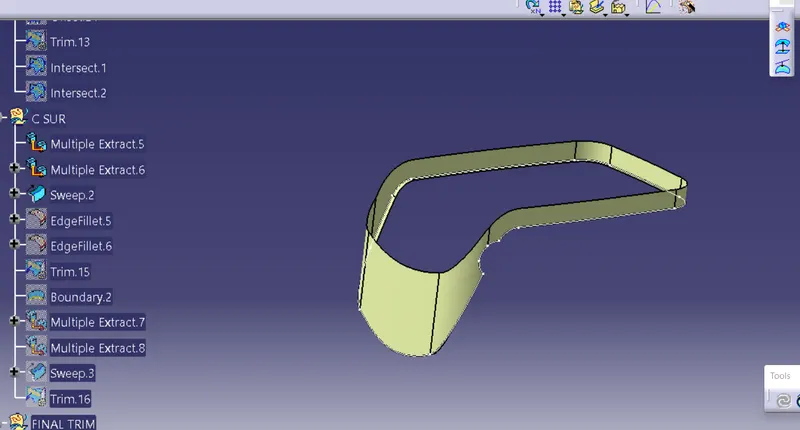

CREATE CLASS C SURFACE

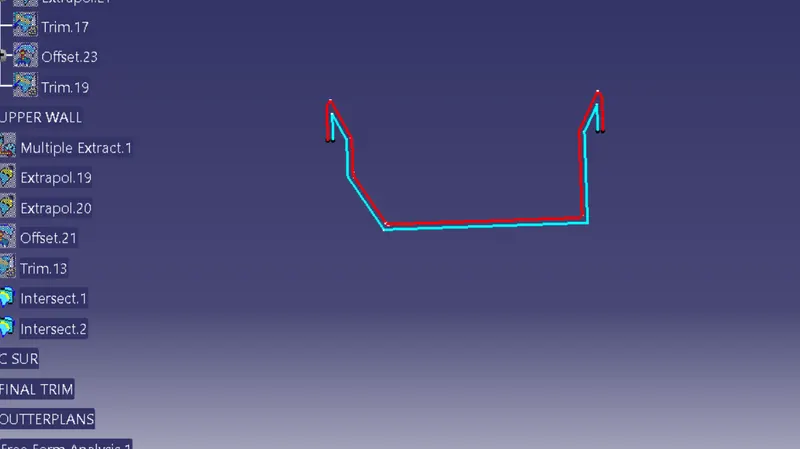

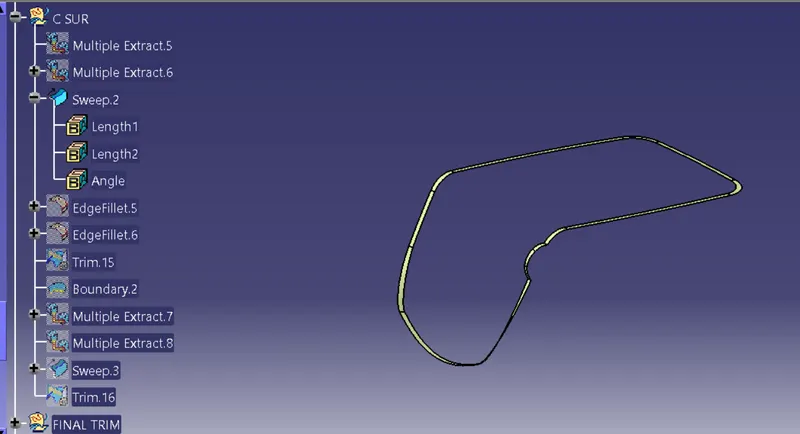

EXTRACT OUTERPLANS- EXTRACT EDGES- SWEEP 90 DEGREE WITH SURFACE OUTERPLANS

FINALLY SURFACES JOIN

SOLID BODY

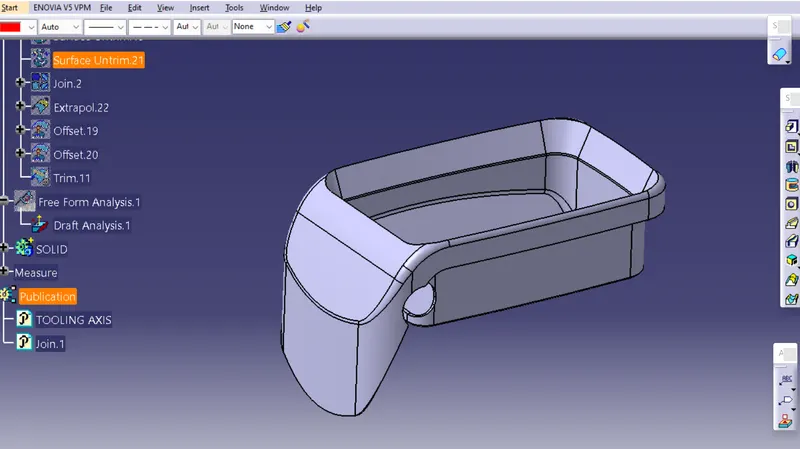

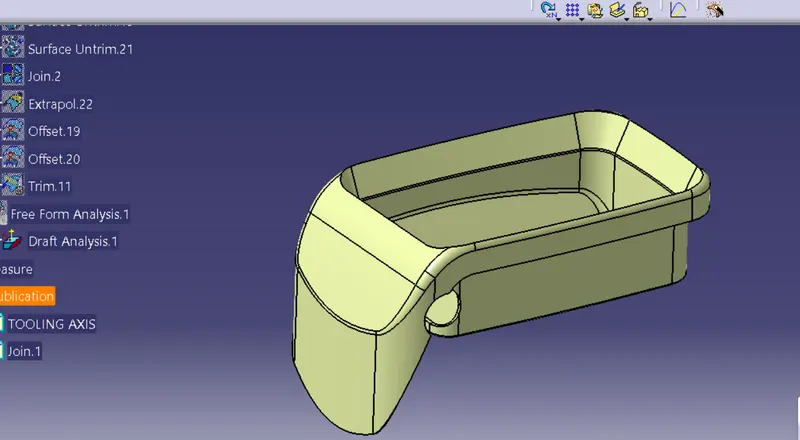

RESULT

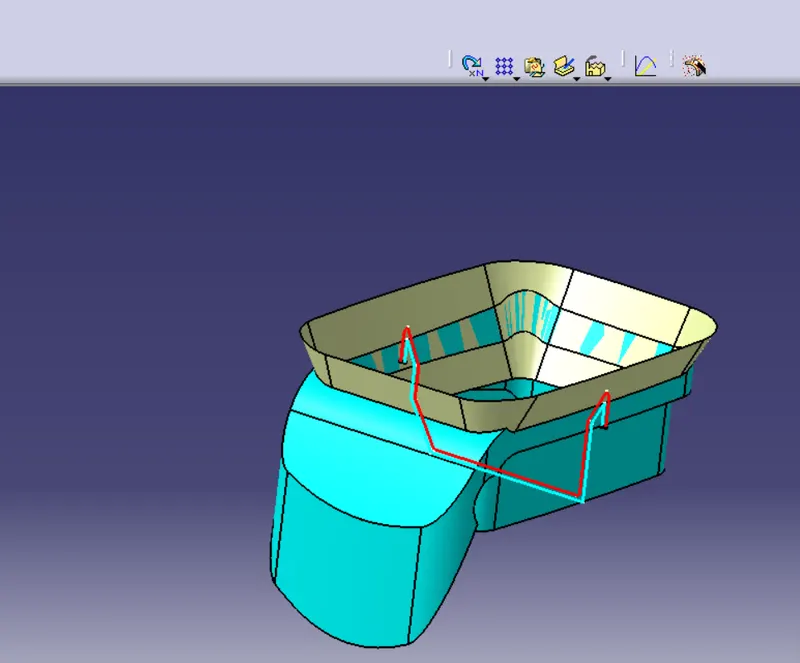

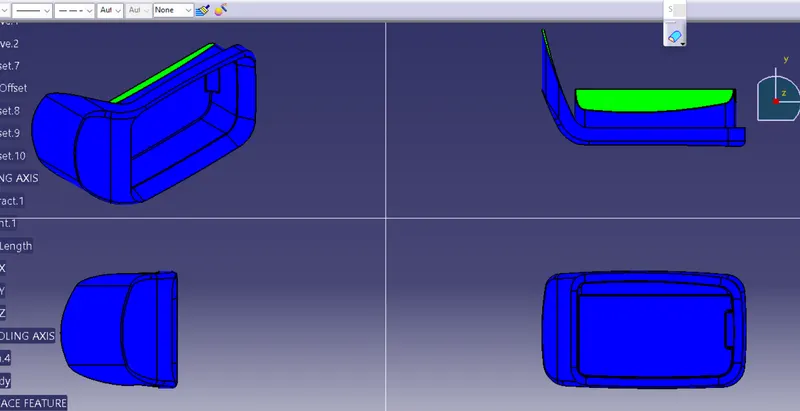

DRAFT ANALYSIS OF ALL VIEWS ANGLE OF 3 DEGREE
