Week 8 - Challenge 4 - Coin Holder Design

DRAFT ANALYSIS OF CENTER CONSOLE COIN HOLDER

AIM:

• To create the center console coin holder plastic component through the given class a surface and at the end performing the draft analysis on the model.

OBJECTIVE:

• To ensure proper tree structure is followed.
• Geometrical sets should have a proper name based on the sketches present inside of it.
• All the sketches should be created under the geometrical set.
• Use of the close surface feature to make a solid body from the surface.
• To publish the tooling axis, class A, B and C surface.

PROCEDURE:

• First import the class A surface of center console coin holder model in catia V5.

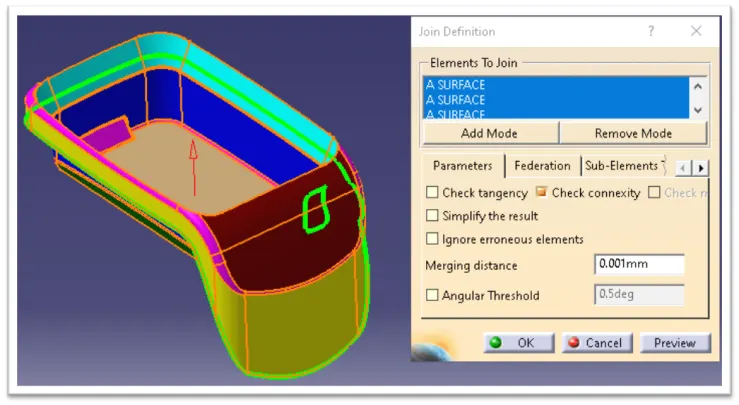

• Check the connectivity of class A surface using boundary option.Ensure thet there is no gap between the two surfaces.

TOOLING AXIS:

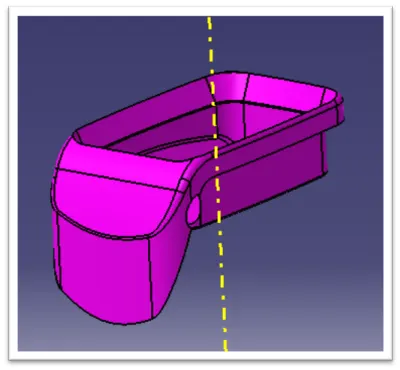

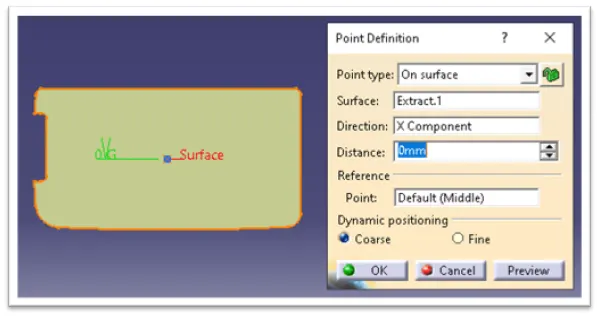

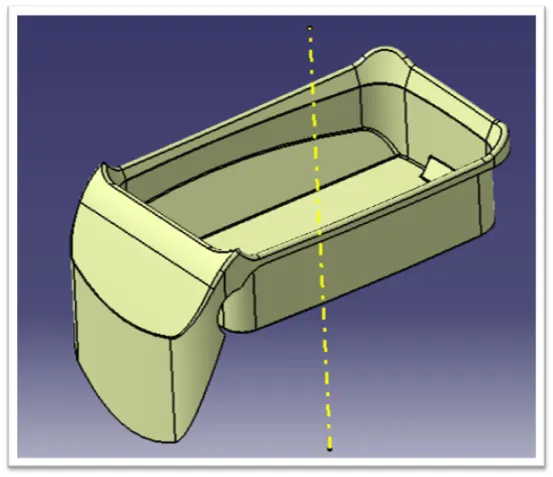

• Now we need to create the tooling axis for the center console coin holder model. Visually check which direction is better for creating tooling axis. Now in order to create the tooling axis in z direction, first create a reference point on any surface as shown in below figure.

• Now using the reference point, create a line normal to the surface. This line will give us the tooling axis.

CLASS B SURFACE:

• Consider the thickness of the component as 2.5mm. Now we need to create a B surface which will be similar to the A surface at an offset value of 2.5mm.
• In this operation we are creating A class B surface in 4 different geometrical sets.

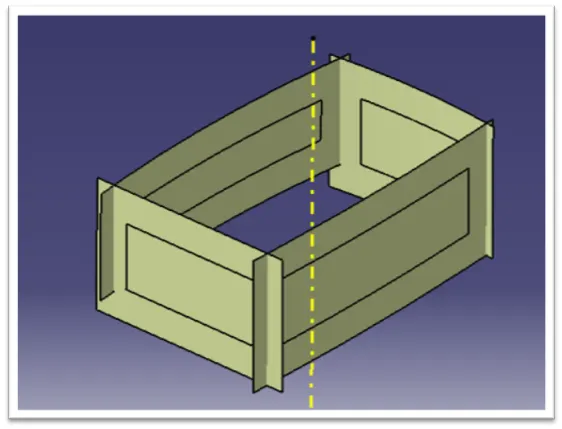

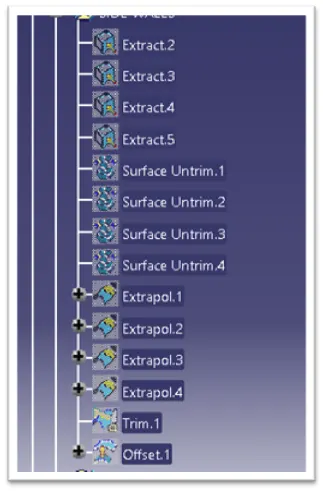

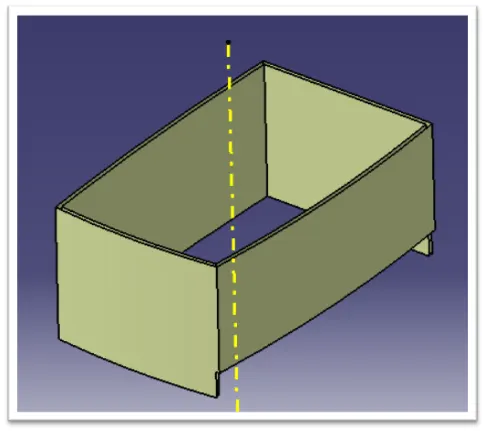

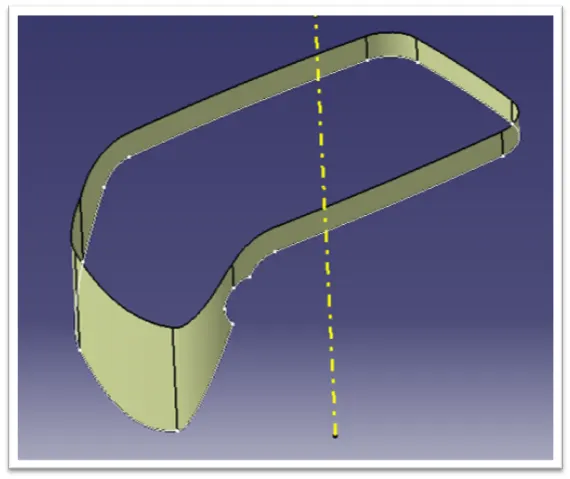

• First, we are creating a side wall. To create this surface, we need to extract the class A surface as shown in below in below figure.

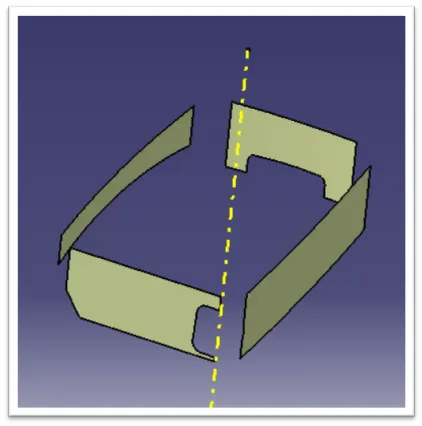

• Once the surface is extracted , untrim it and then extrapolate it by a required value on each side using point continuity. Trim them to form proper walls. Now offset it by 2.5mm.

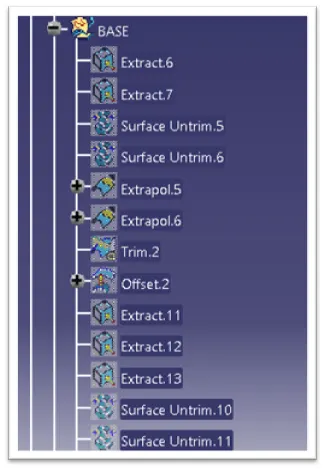

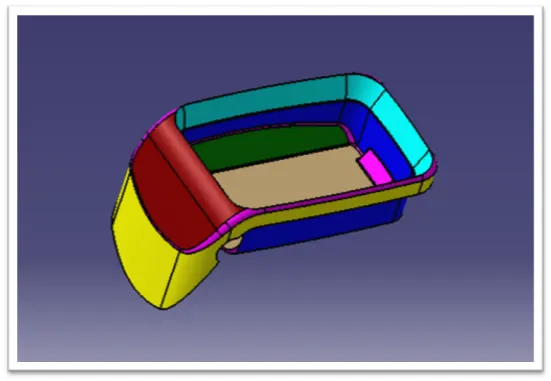

• Similarly, we need to extract the base, top wall and outer flange surface of the center console coin holder in different geometrical sets and perform similar operations on it as mentioned above.
• Once all the surface are created trim these surface to form a class B surface. Give the appropriate fillets to form class B surface.

CLASS C SURFACE:

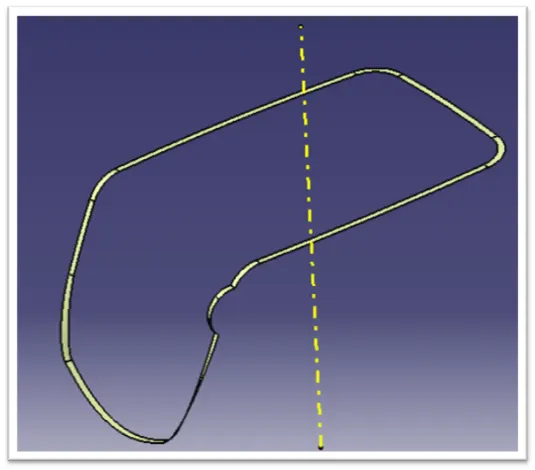

• To create a class C surface, first extract the boundaries of the class A surface and extract the adjacent surfaces to the boundary as shown in the figure below.

• Now using the sweep option create the surface. To perform this operation, Go to the toolbar > sweep > profile type > line > subtype > with reference surface > guide curve 1 – (select the extracted boundaries) > reference surface – (select the extracted surface) > angle and length as 90 deg and 4mm respectively and click ok.

TRIM SURFACE:

• After creation of class A, class B and class C surfaces, we need to trim class B and class C surface to form a new surface. Then join the trimmed surface with class A surface to form the final required surface.

• Now using the close surface option from part workbench form a solid body from surface body.

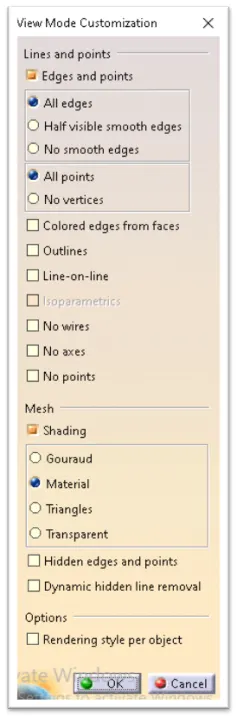

• DRAFT ANALYSIS – to perform draft analysis on the center console coin holder model, first set the view parameters to material mode.

• Then Go to Menu bar > Select insert > Analysis > Feature draft analysis.

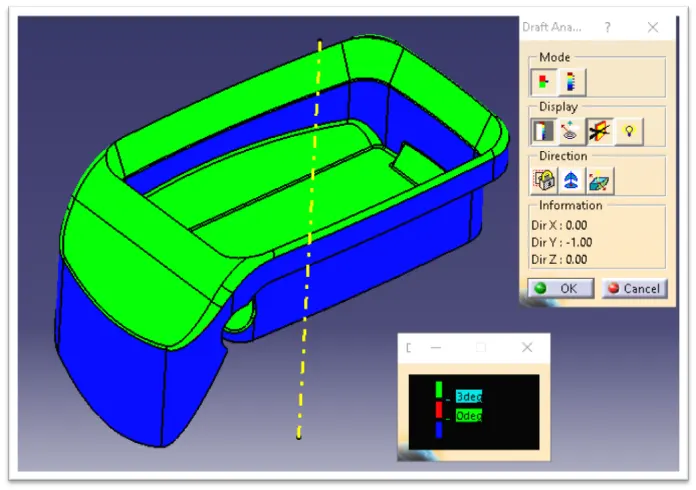

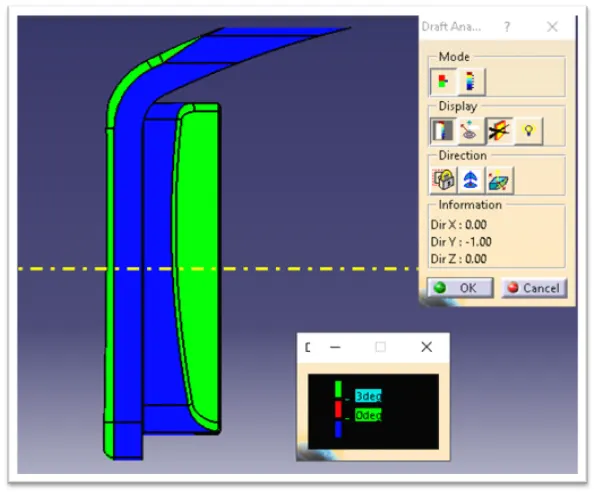

• To give the draft direction, use the compass and align Z – axis of it with the final tooling axis for the center console coin holder model. Once it is properly aligned, lock the draft direction. Select the center console coin holder and it will show us the current draft angle of the model. Set the draft value to 3 deg under the colour scale variant and press ok.

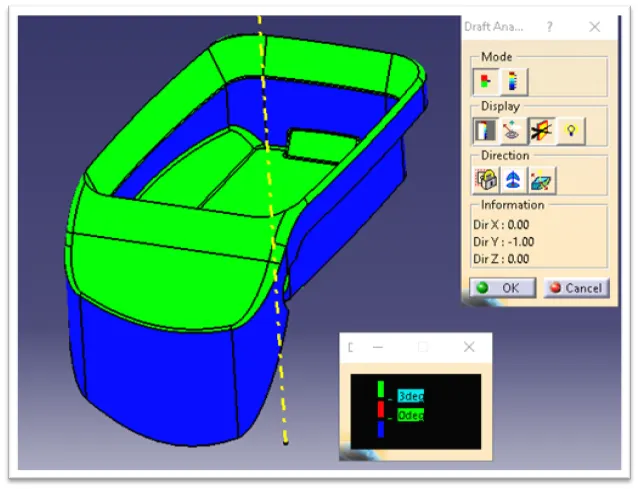

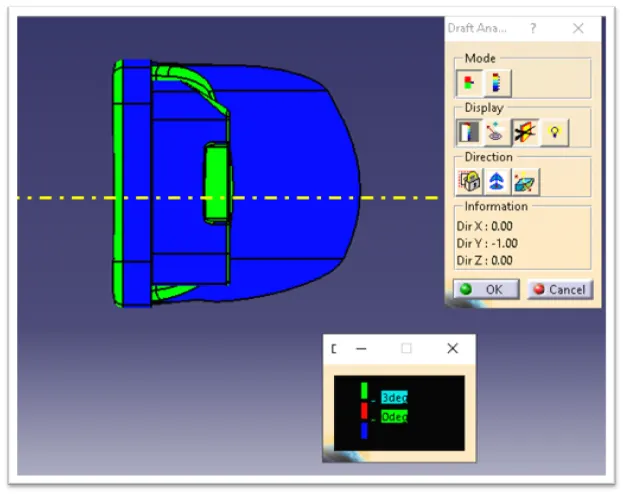

SOLID BODY DRAFT ANALYSIS

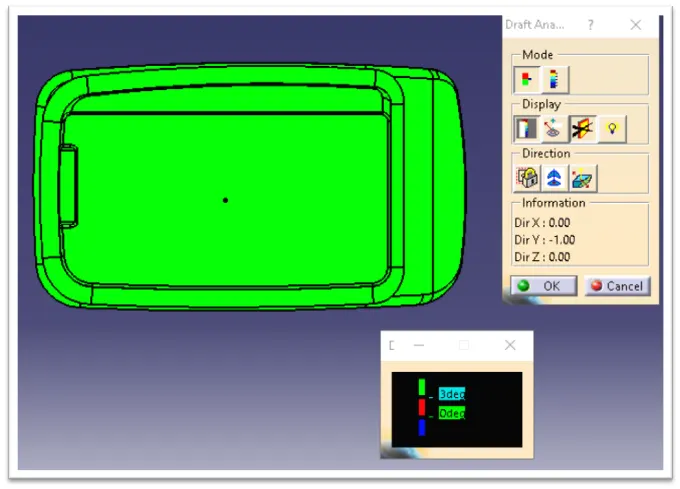

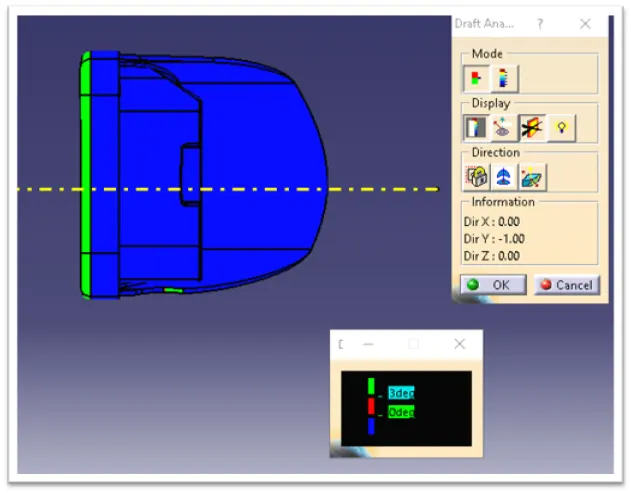

CLASS A SURFACE DRAFT ANALYSIS

• Using the analysis option, we can perform the draft analysis on class A surface and final body of center console coin holder.
• To publish the tooling axis and class A, class B, and class C surfaces first select them and then Go to Menu bar > Tools > Publication. This will publish the tooling axis and class A , class B and class C surfaces which will be available in the tree structure.

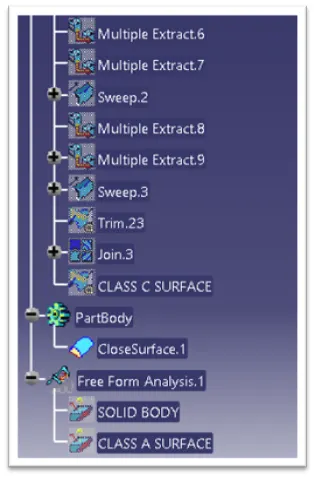

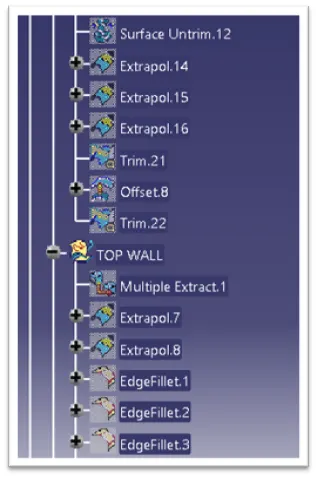

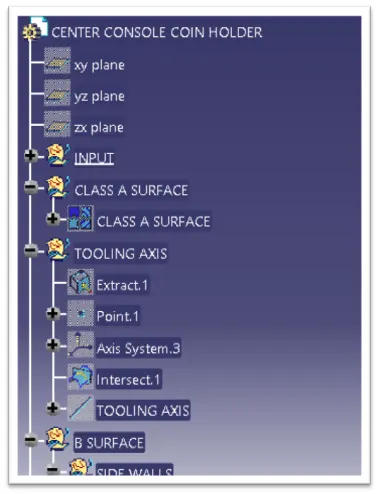

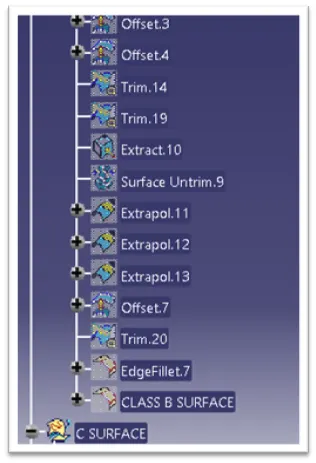

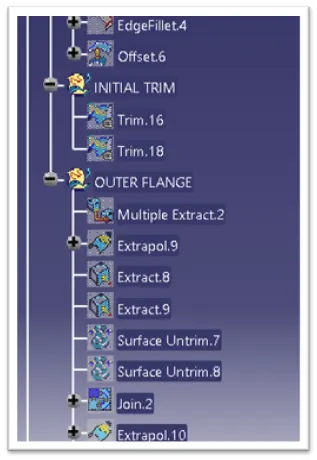

TREE STRUCTURE:

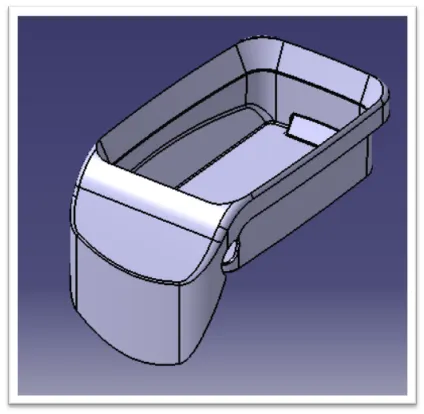

CENTER CONSOLE COIN HOLDER:

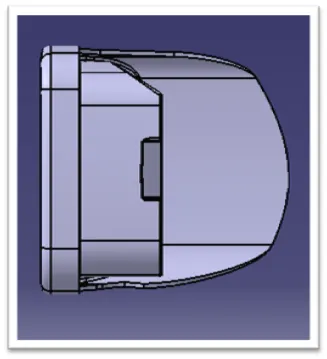

FRONT VIEW

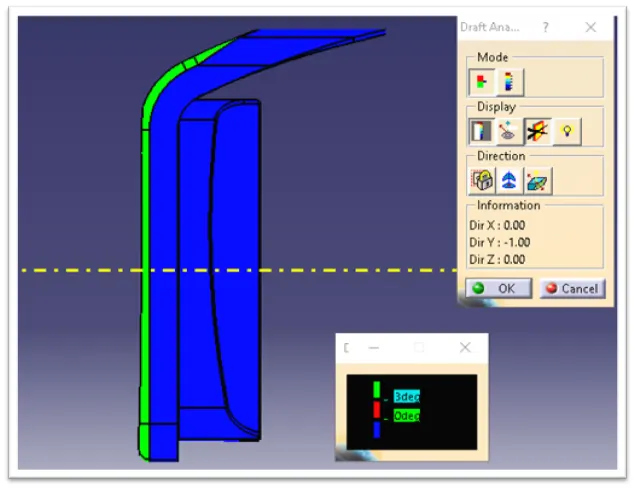

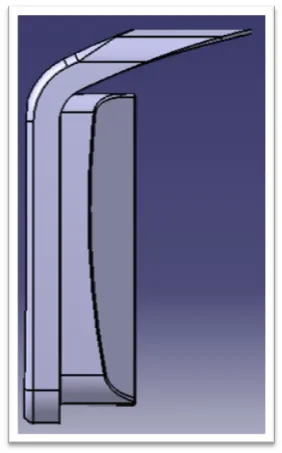

SIDE VIEW

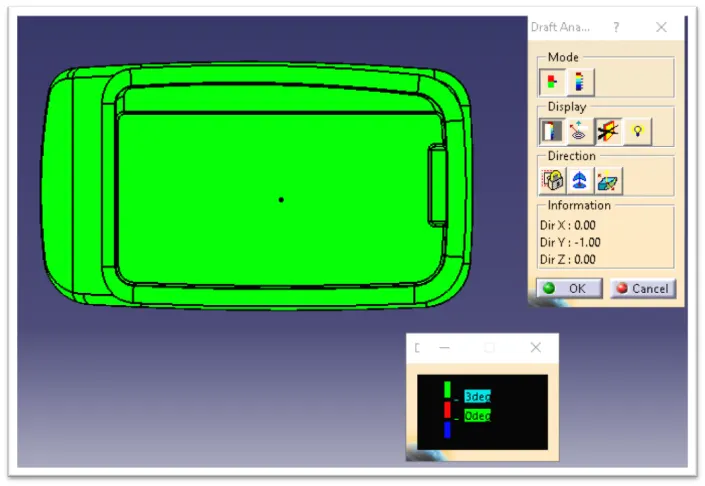

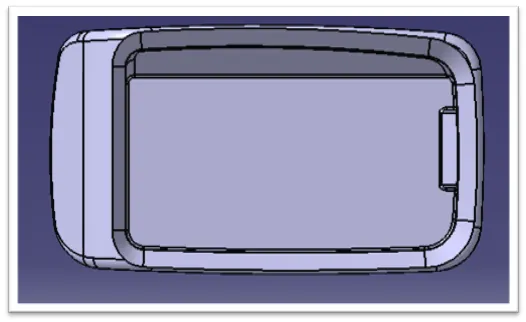

TOP VIEW

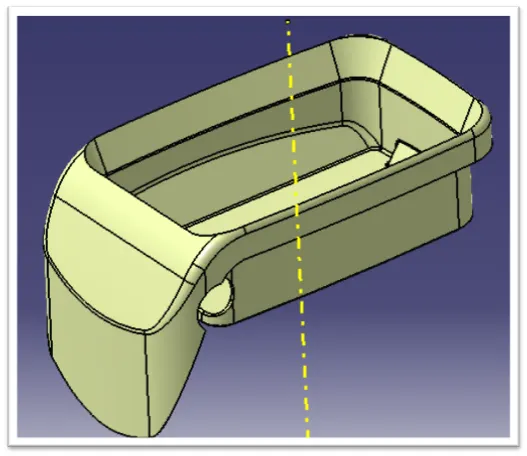

ISOMETRIC VIEW

CONCLUSION:

• Center console coin holder plastic component using class A surface have been successfully created and draft analysis have also been performed for the same.
