Week 8 - Challenge 4 - Bumper

REPORT

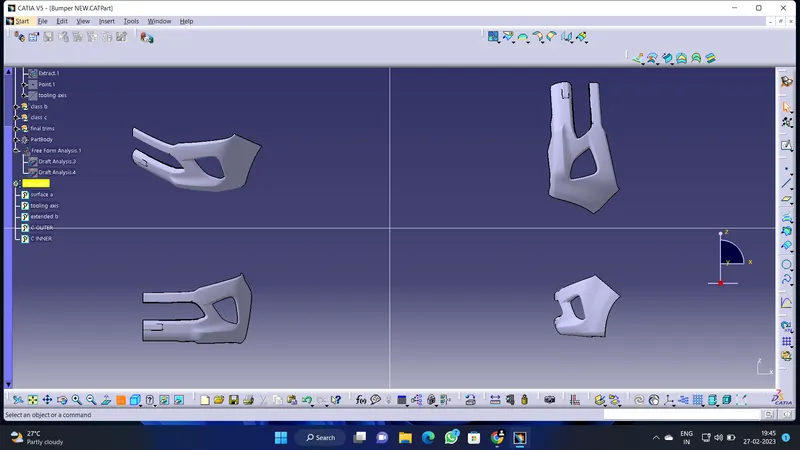

• The tooling axis is created by the simple point direction method.The steps involved in the tooling axis creation are detailed in the tree structure.After that surface b is created by the offseting method.The patches in the offset are cleared by the extrapolate,trim,join commands.After that created the surface C by the sweep command and joined it with the surface A.At final step trimmed out the B surface from joint A&C and closed the final trim output with close surface command
• Done the draft analysis of surface A with tooling axis and find out that surface A is clearing.

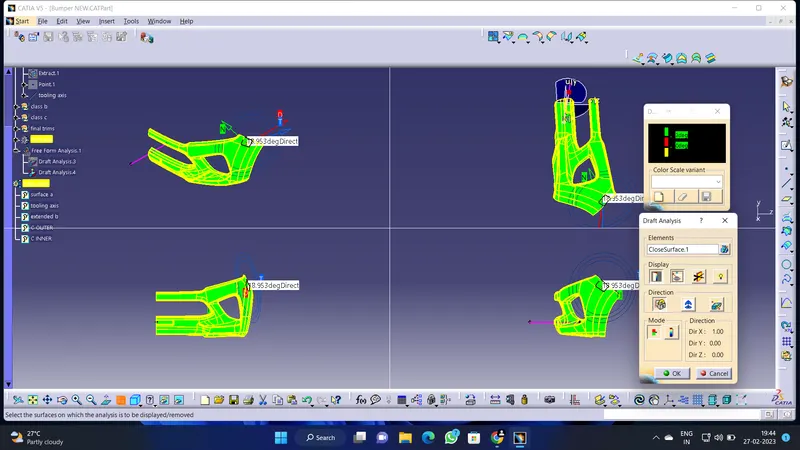

• Also done the draft analysis of final part with tooling axis and find out that final part is clearing.
• All the surfaces and tooling axis are published for the future reference.
• Everything find OK

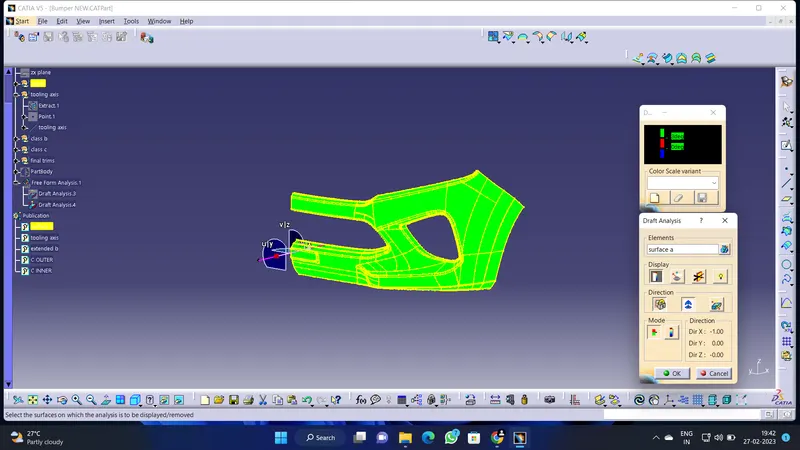

DRAFT ANALYSIS SURFACE A

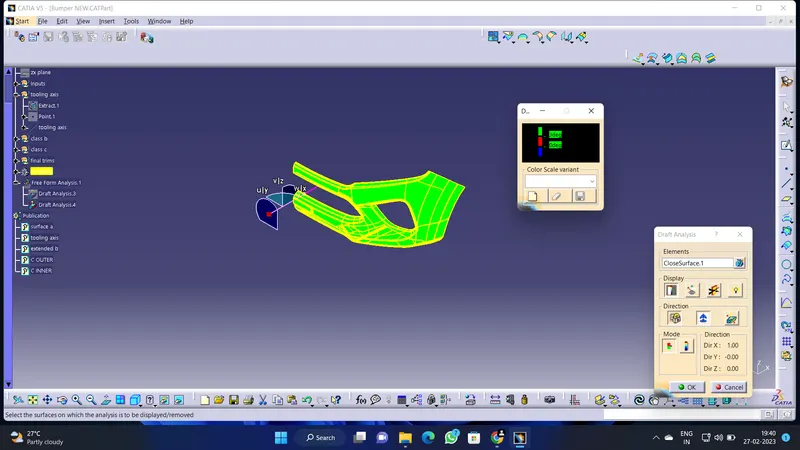

DRAFT ANALYSIS FINAL PART
