Week 8 - Challenge 1 - Base Bracket Design

REPORT

• The tooling axis is created by the bisecting line method.The intersection of planes are here used for the tooling axis creation.The steps involved in the tooling axis creation are detailed in the tree structure.
• Done the draft analysis of surface A with tooling axis and find out that surface A is clearing.

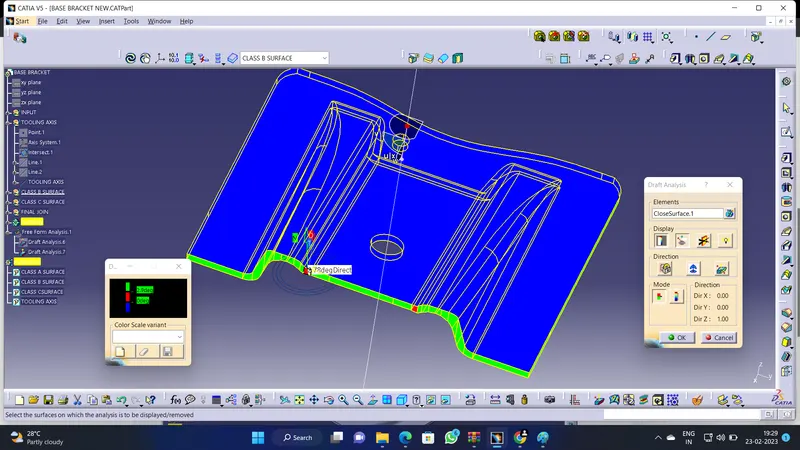

• Also done the draft analysis of final part with tooling axis and find out that final part is clearing but appears two portions as red color which is at an angle of 2.78 degrees (attached as last screenshot)
• All the surfaces and tooling axis are published for the future reference.

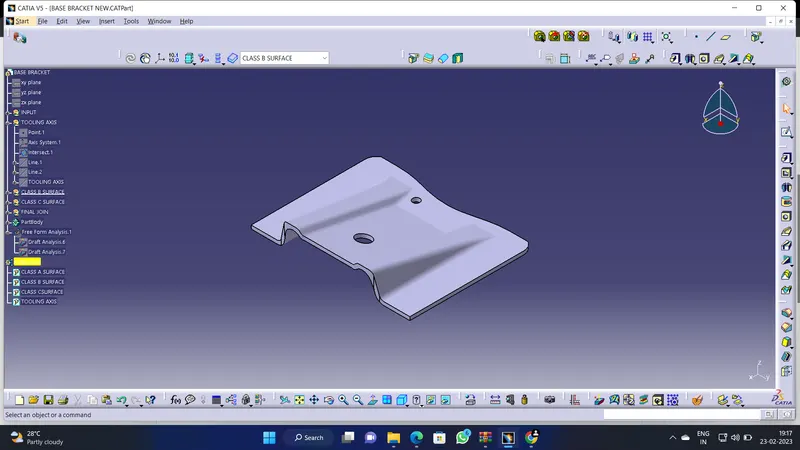

FINAL PART

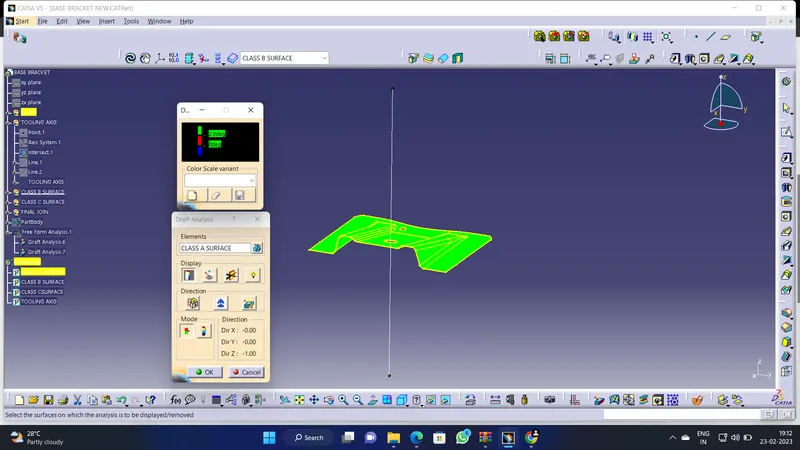

DRAFT ANALYSIS-SURFACE A

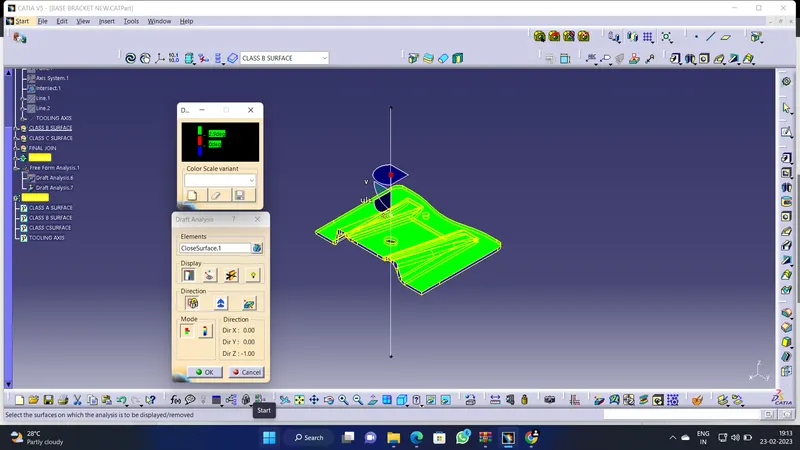

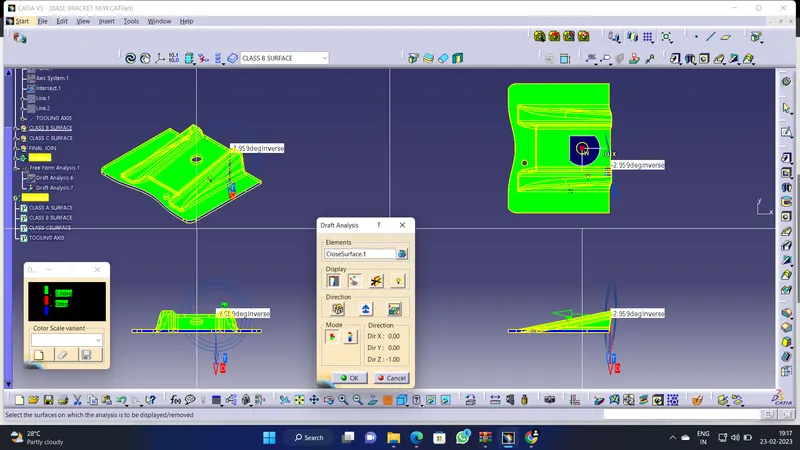

DRAFT ANALYSIS -FINAL PART
