Week 8 - Challenge 4 - Bumper

AIM : To create the Bumper Design Plastic component through the given Class-A surface.

Objective

• To create a tooling direction.

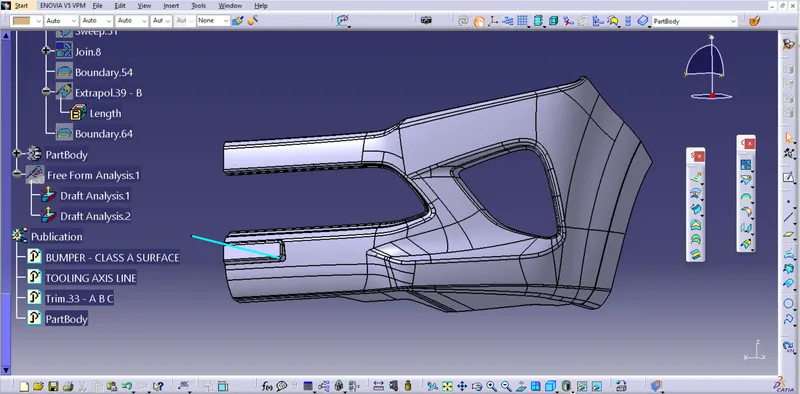

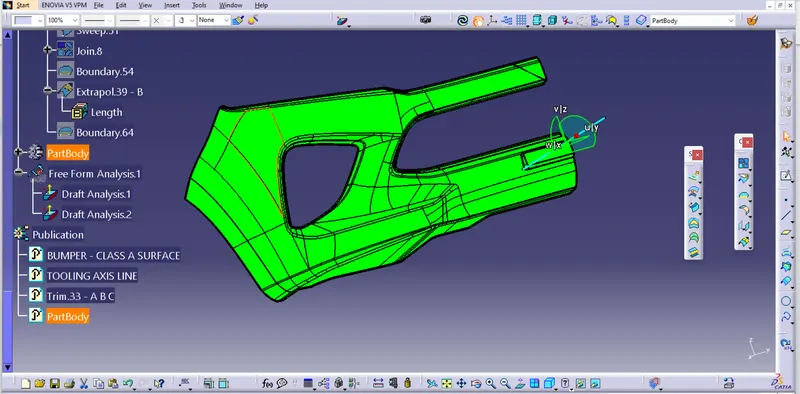

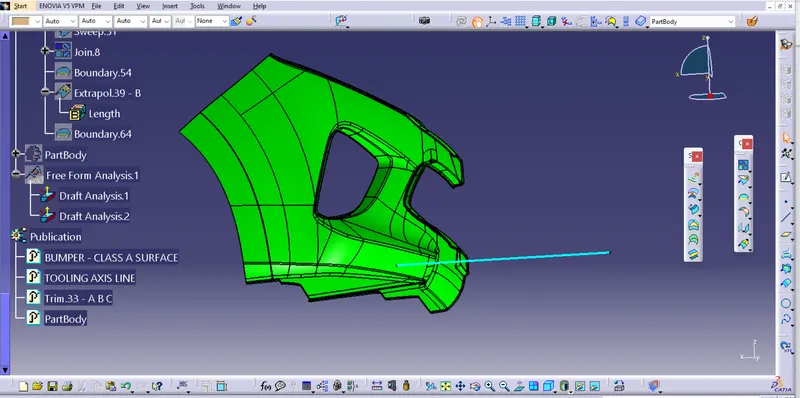

• To perform draft analysis for given A-Surface and prepare the final close body.
• To design the Bumper plastic component by creating the B-Surface and C-Surface using the given Class-A surface.
• Take the Thickness of the component to be 3 mm.

Introduction :

The input of the product designer is in the form of the A-class surface. The job of the product designer is to create the B and C surfaces keeping all the aspects for the mold.

Class A Surface

1. Visible surface and aesthetic look.
2. Surface with textures.
3. Surfaces provided by customer(OEM).
4. Don't have any features like(rib, snap, bosses, etc) on class A surface.
5. Class A surface is made from scanned data with different software like alias etc.
6. Surfaces which are having CURVATURE CONTINUITY IS CALLED class-A.

Class B surface

1. Invisible Surfaces.
2. Surface mostly don't have textures.
3. Surface needs to be created according to the class-A surface.
4. Having all features(Rib,boss,snap etc) in B-side surface only.
5. Surfaces which is having TANGENT CONTINUITY IS CALLED class-B.

Class A Surface :

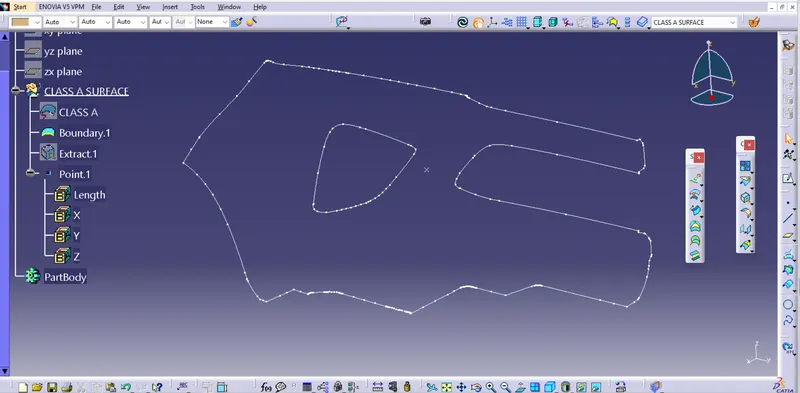

Check the connectivity of the Class A Surface Ensure that there is no gap between the component, using join command. We can visually check it or by clicking boundary command. It has a boundaries outer. Therefore first check completed.

Procedure :

Tooling Direction for Plastic Part : Tooling direction is main consideration for plastic part and mold parts because it defines movement of mold part and possibility of plastic part to come-out from mold part (Core and Cavity).

• In Molding machine arrangement is given to open the mold along a direction which is known as Tooling Direction.
• In other words. The mold is built from two separate halves (Core and Cavity) and tooling direction basically define the direction of mold pulls apart.
• Tooling direction is known as primary direction.

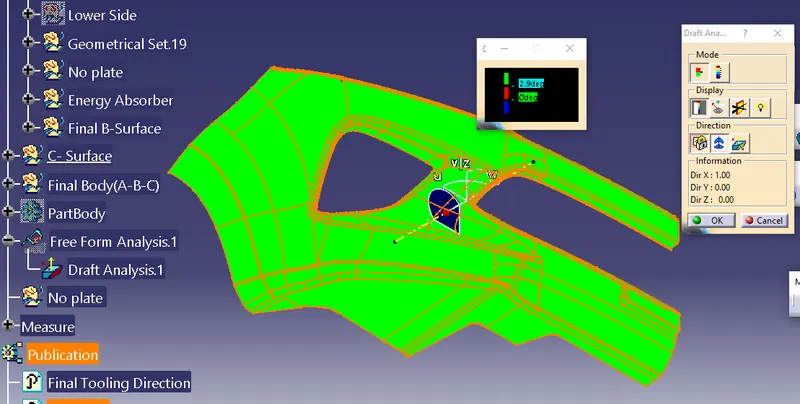

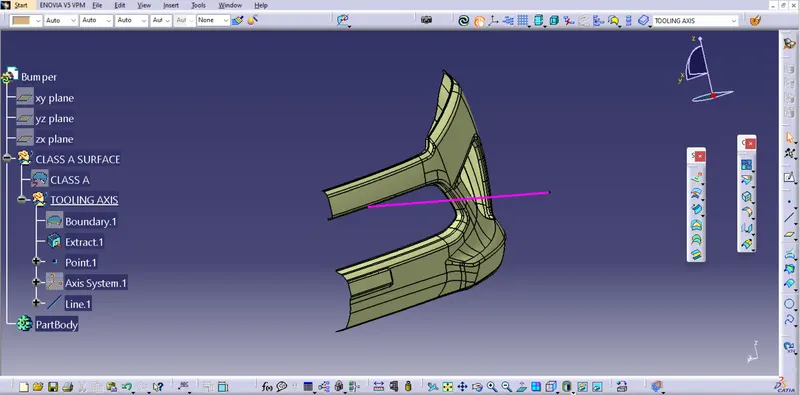

Tooling Direction

While creating the tooling direction in given class A surface. Chose the one suitable Base and Side wall and draw the line direction of axis.

Creation of B-Surface:

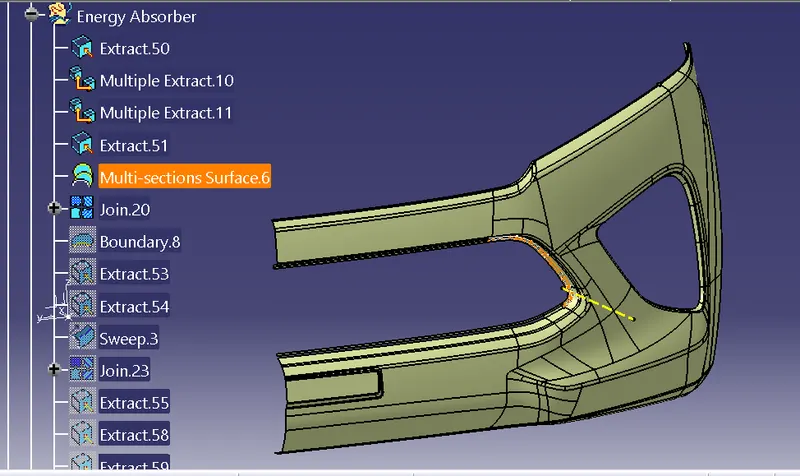

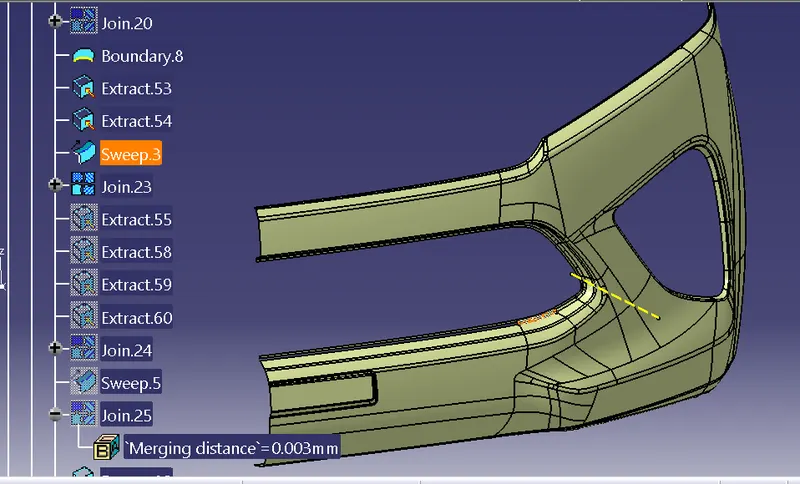

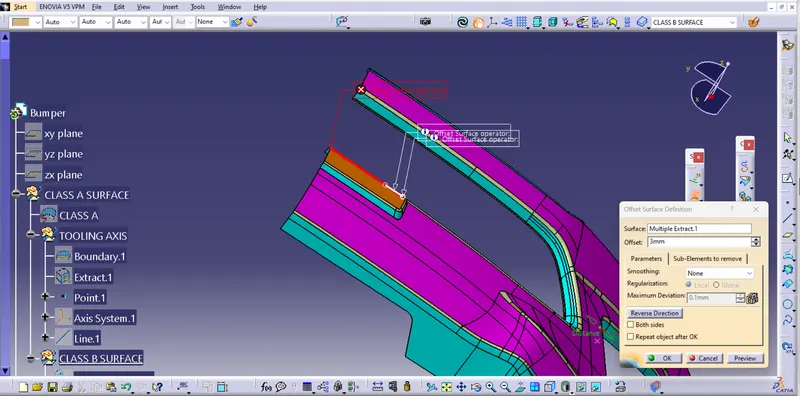

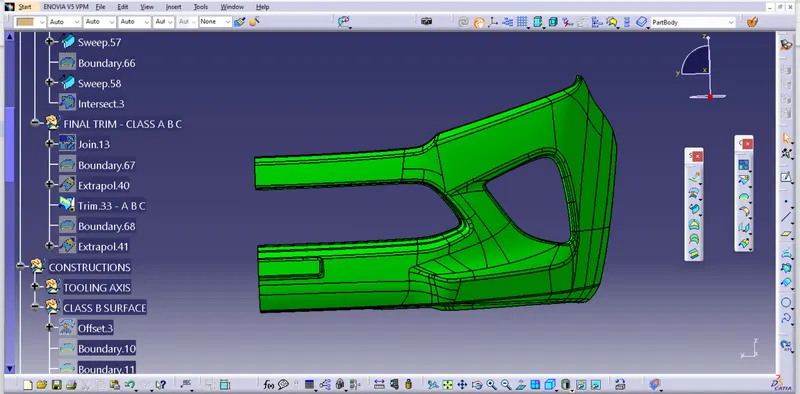

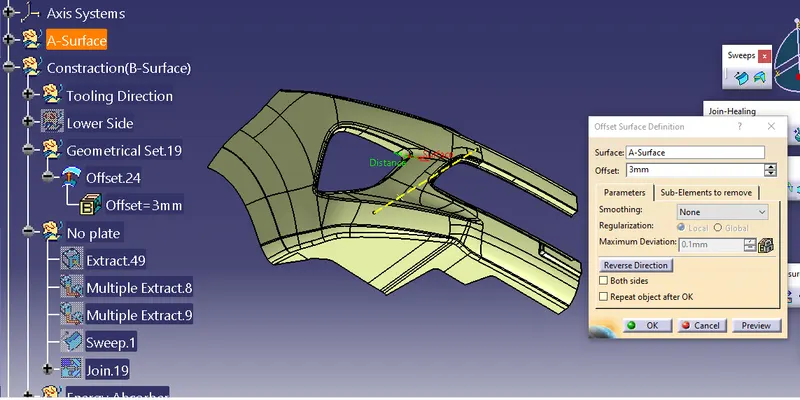

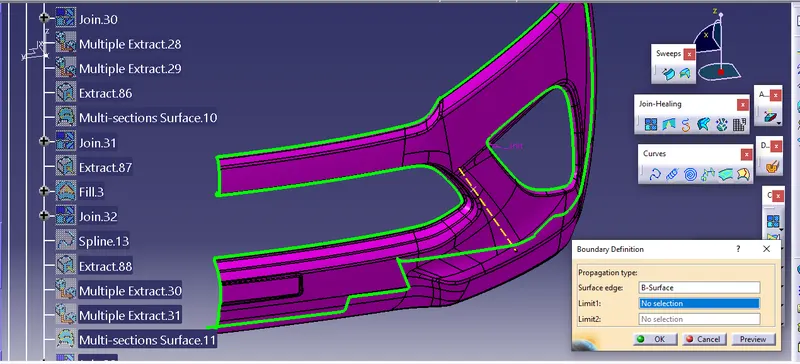

B surface is created with help of A-Surface by using the Off-set,Trim command,Multi Section,Sweep and Fill command.

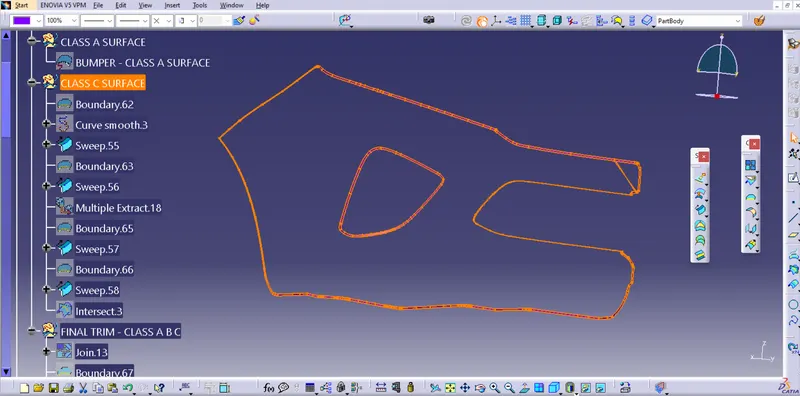

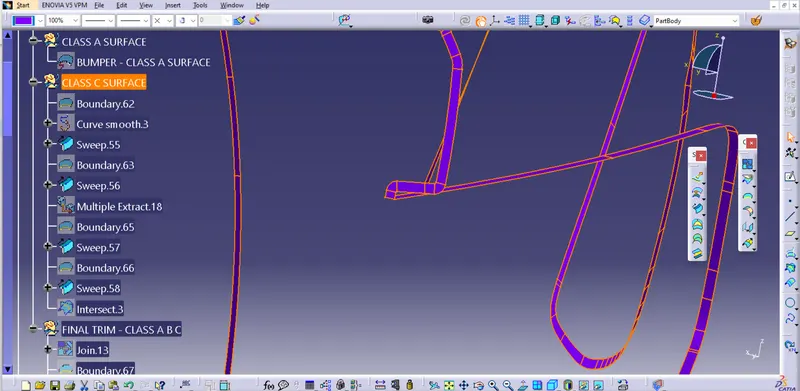

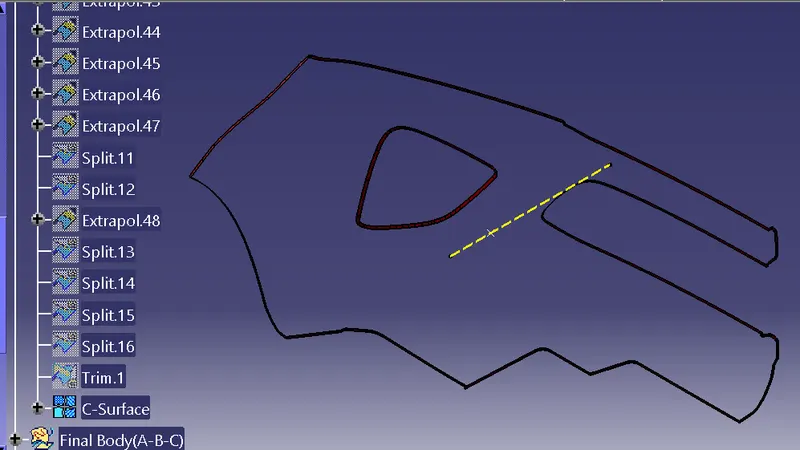

Creation of C-Surface: Is created with help of A-Surface by using the Sweep and Boundary command.
