Week 8 - Challenge 4 - Bumper
->

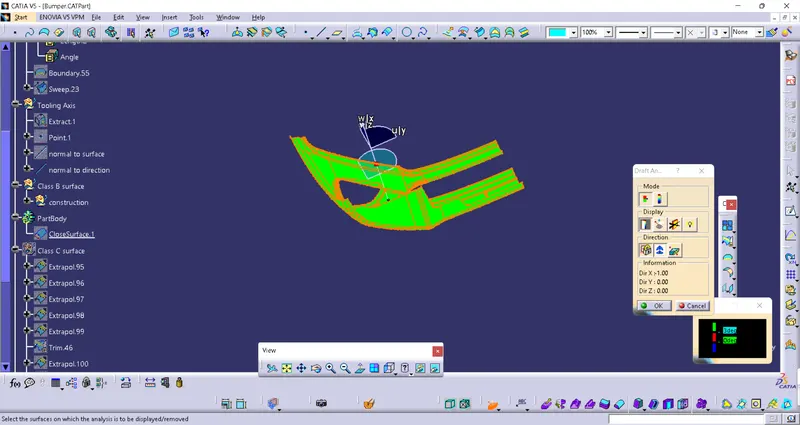

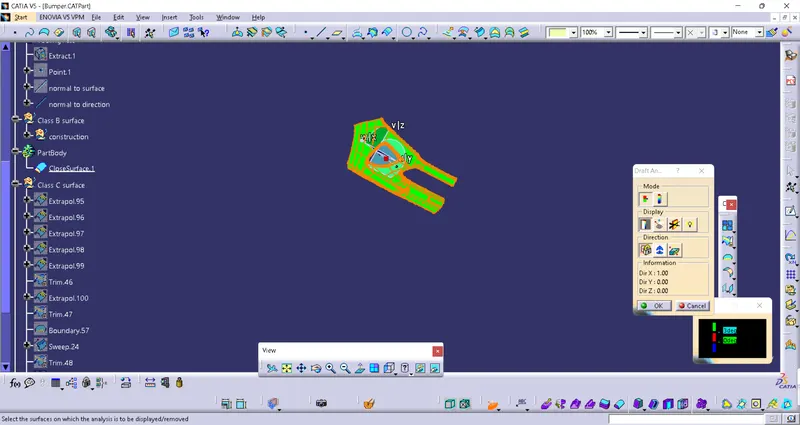

Draft Analysis:
CLASS A:
Plactic component:

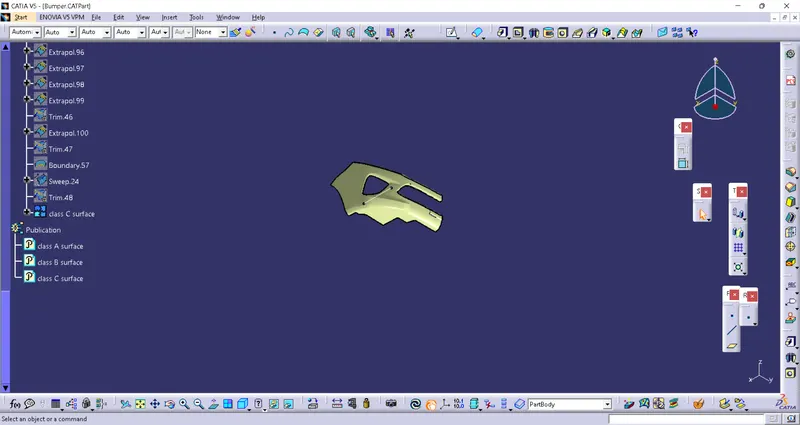

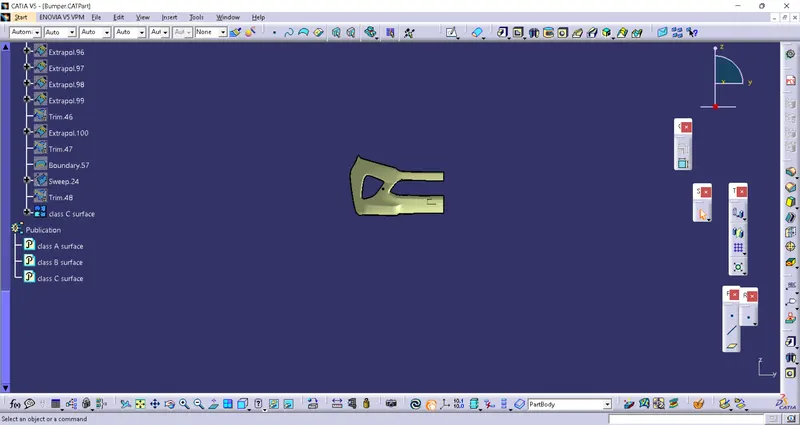

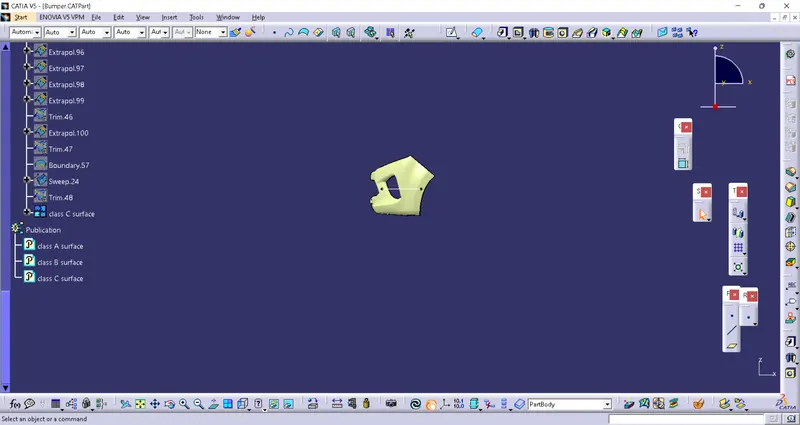

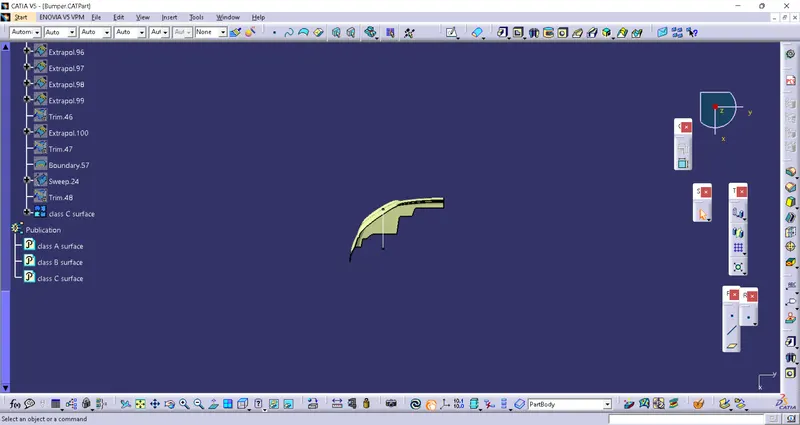

| FV | TV | SV |
 |
 |
 |
Creation of tooling axis:
-> three methods of creating tooling axis
- By direction
- normal to surface
- bisectiong method
-> In the first method a flat surface is selected and a point is created on the surface at 0 location i.e centre . After the creation of point a line is created using point and direction command. This is your tooling axis.
-> If the first method does not work , 2 nd method comes into picture. The basic idea remains the same, but when a line is created the command used is normal to surface comand .And therefore this brcomes your tooling axis.
-> Bisection method : IF both 1st and 2nd method does not work ,we use the 3 rd method .In this method using and intersection command the 2 opposite angular surfaces are selected and then a line is drawn using bisecting command. This procedure is repeated 2 times to get the desired tooling axis.
