Week 8 - Challenge 4 - Bumper

Draft analysis report for CLASS-A.

Draft analysis report for final plastic component

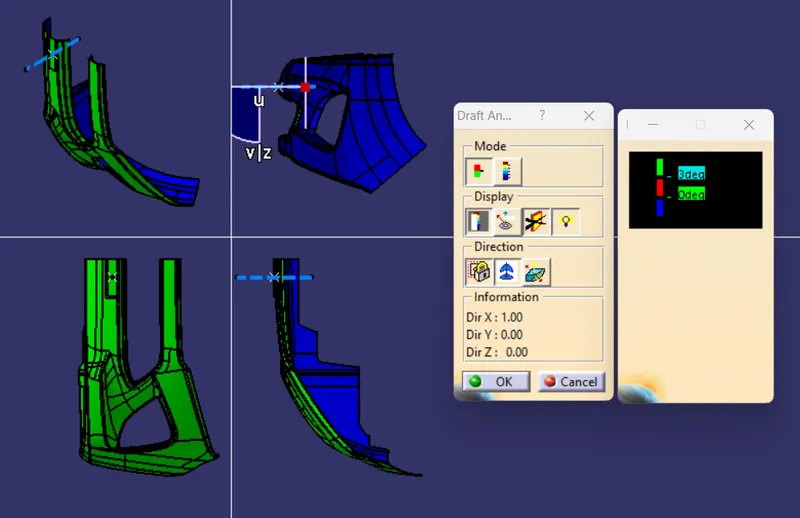

draft angle in various orientations

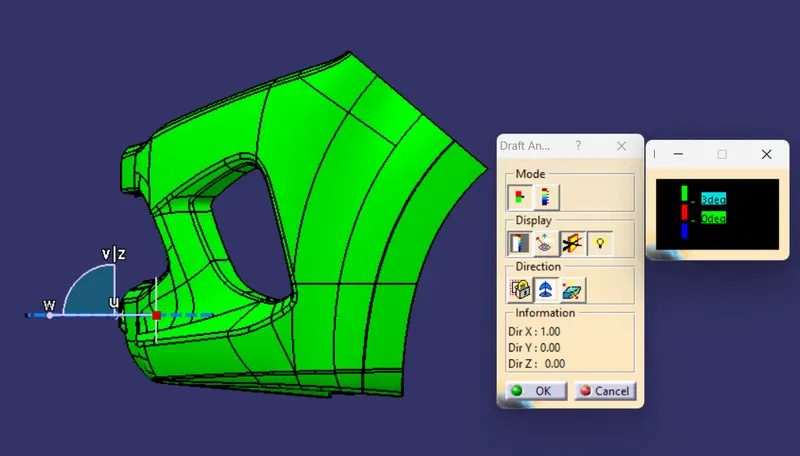

1.ISOMETRIC VIEW

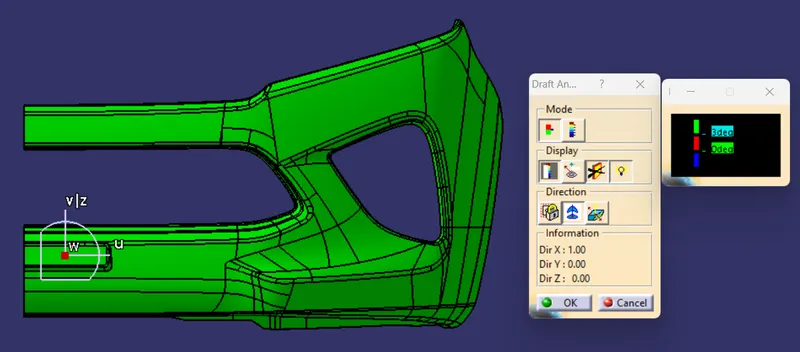

2.FRONT VIEW

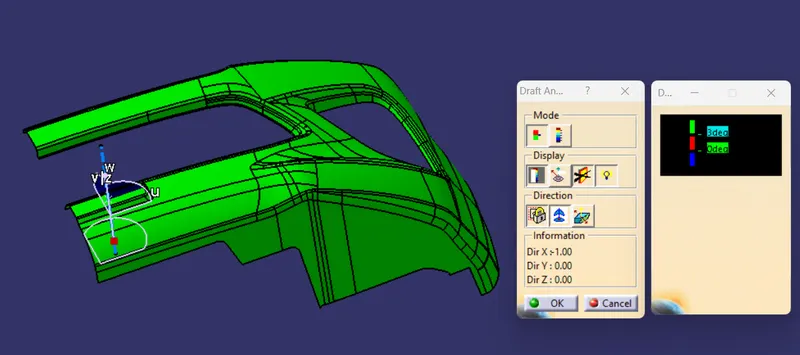

3.SIDE VIEW

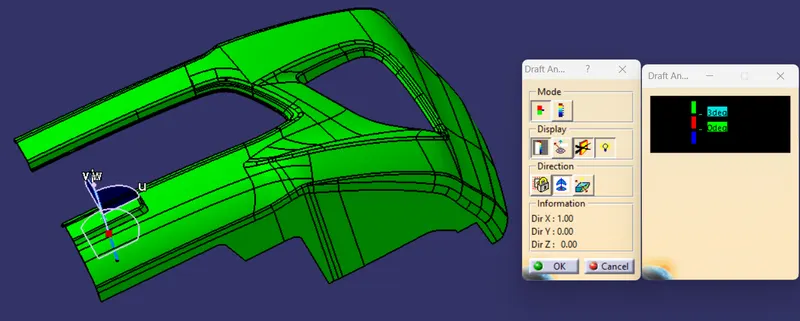

3.TOP VIEW

draft analysis at c-class

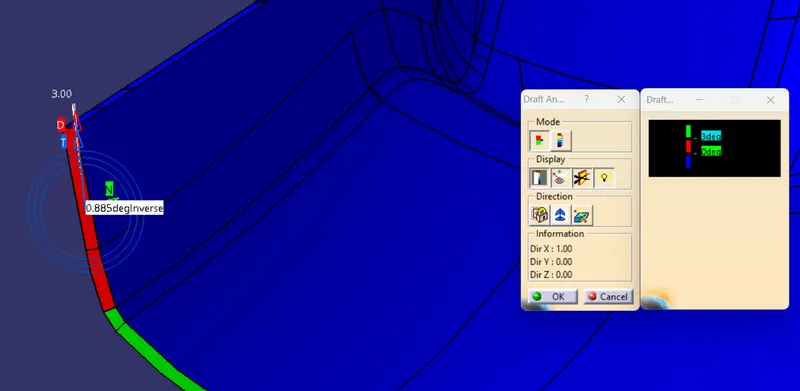

2.All areas are with minimum draft of 3 degrees except the areas shown in the image

analysis and the tooling axis creation report

draft analysis and the tooling axis creation report

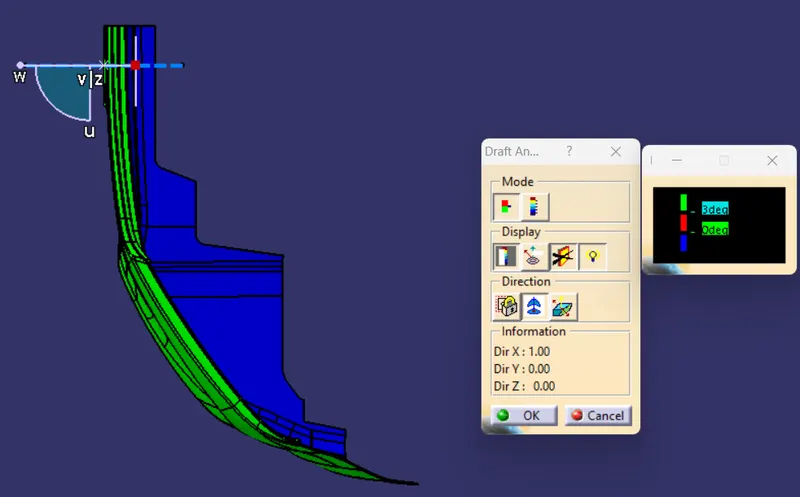

1.Draft Analysis

we can draft analysis with respect to tooling axis.

1.The nominal draft considered is 3 degree with respect to tooling axis

2.All areas are with minimum draft of 3 degrees except the areas shown in the next slide.

analysis and the tooling axis creation report

1.Tooling axis

Tooling axis can be created using two methods

1.Normal to flat surface and

2.Bisecting method

In bisecting method we can create tooling axis with the help of bisecting line with respect to surface intersection line.
