Fender Design - Wheel Arch Challenge

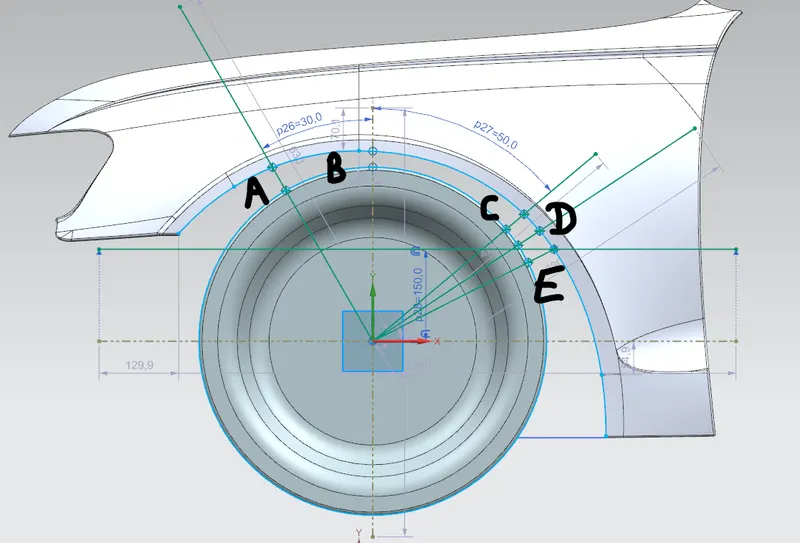

wheel-arch to fender (L-value) distance european regulation requirement L-value:-

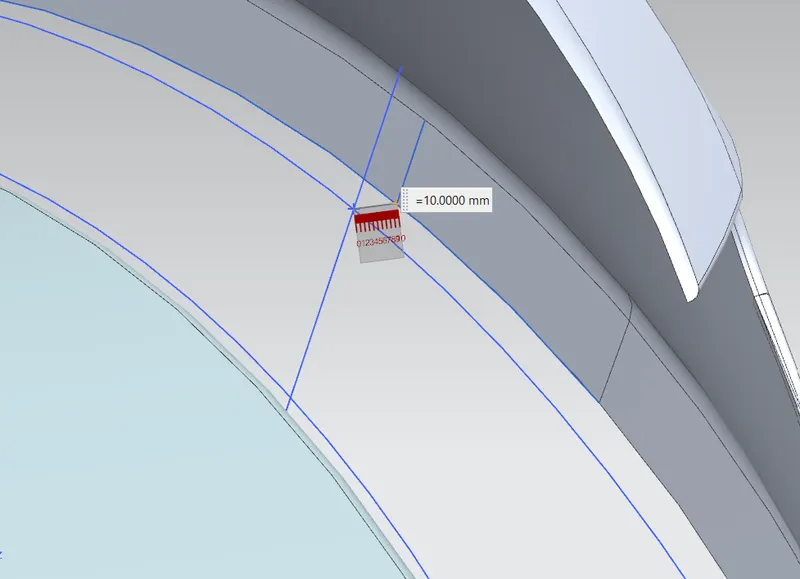

Section-A:-L value at section A is 10mm Which meets an europian standard.

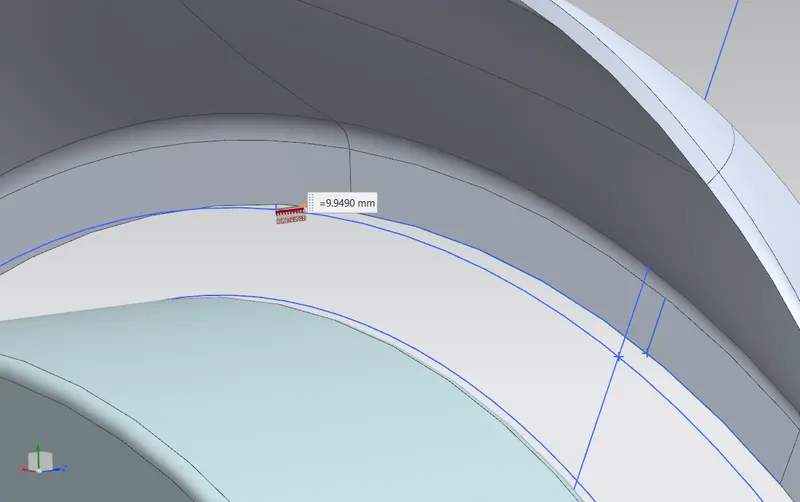

Section-B:-L value at section A is 9.9490mm Which Does not meet an europian standard.

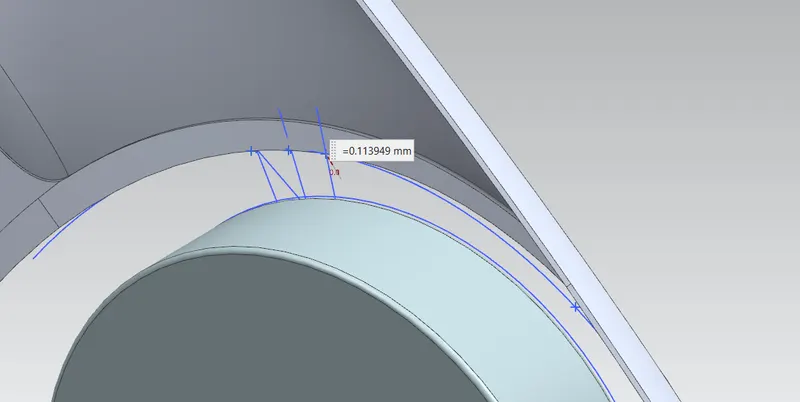

Section-C:-L value at section A is 0.113949mm Which Does not meet an europian standard.

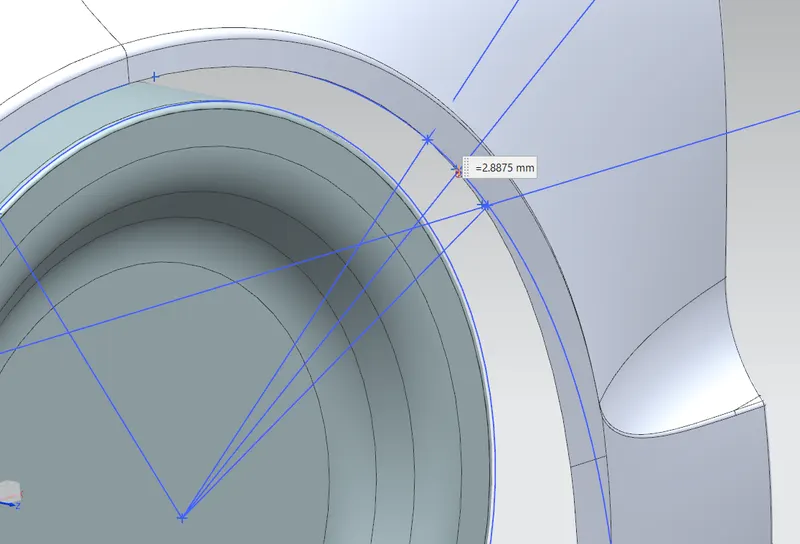

Section-D:-L value at section A is 2.8875mm Which Does not meet an europian standard.

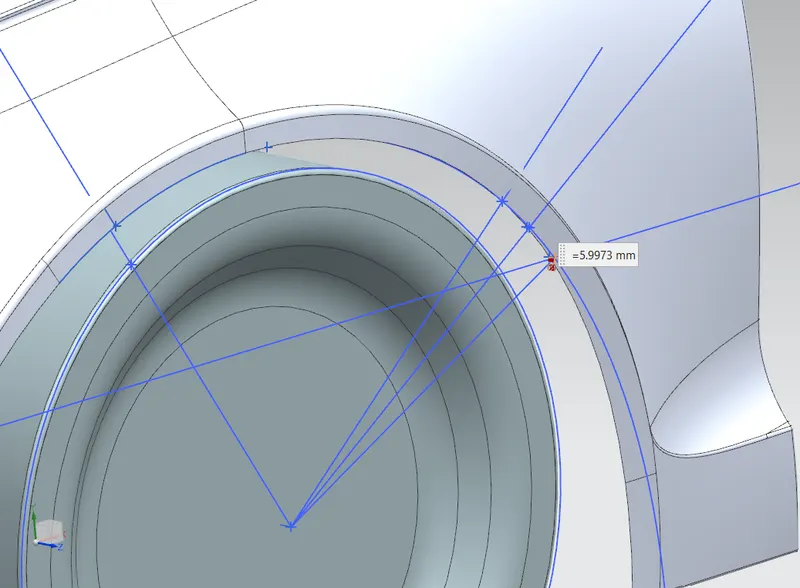

Section-E:-L value at section A is 5.9973mm Which Does not meet an europian standard.
wheel-Guard to fender (a-value) distance. Wheel guard european regulation requirement a-Value:-

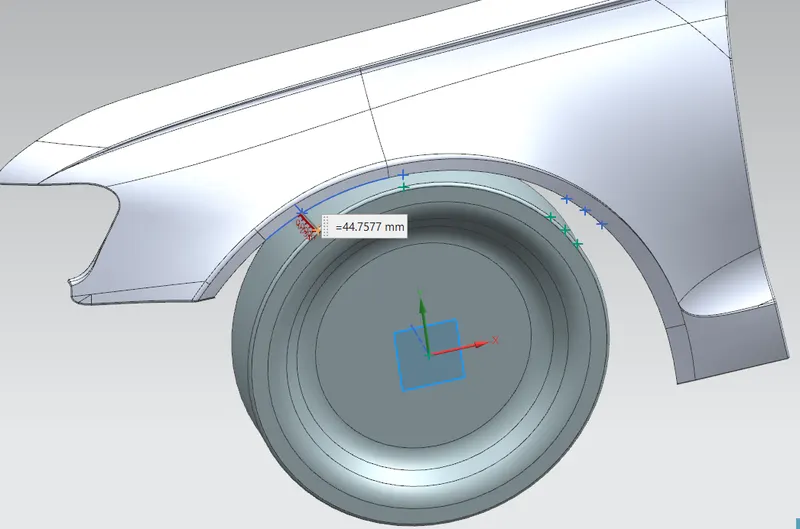

Section-A:-a-value at section A is 44.7577mm Which meets an europian standard. as this value is greater that 5mm.

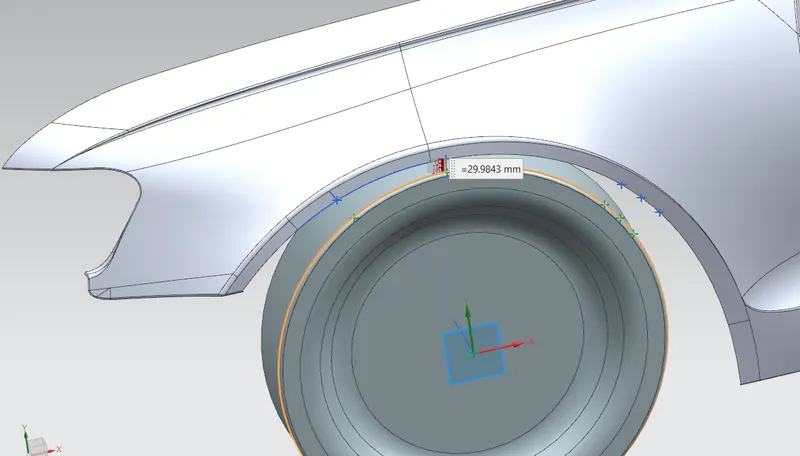

Section-B:-a-value at section A is 29.9843mm Which meets an europian standard. as this value is greater that 5mm.

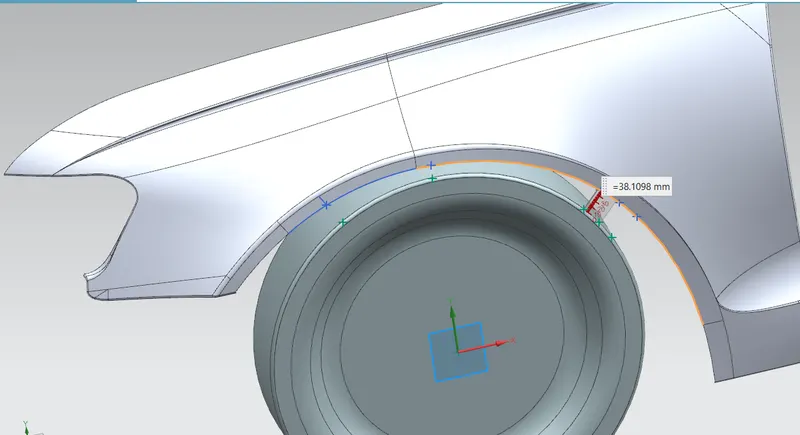

Section-C:-a-value at section A is 38.1098mm Which meets an europian standard. as this value is greater that 5mm.

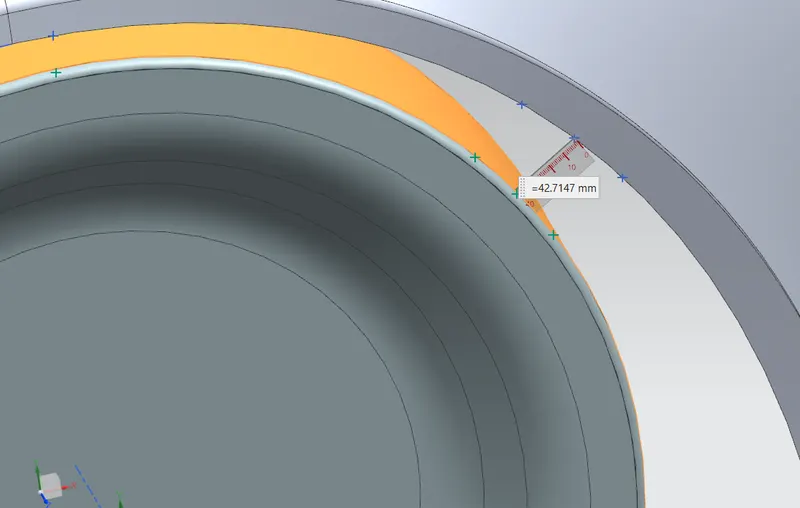

Section-D:-a-value at section A is 42.7147mm Which meets an europian standard. as this value is greater that 5mm.

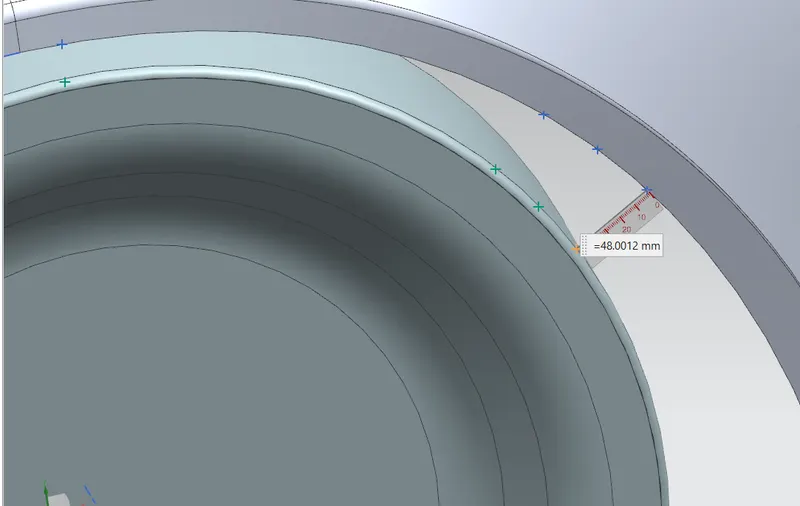

Section-E:-a-value at section A is 48.0012mm Which meets an europian standard.as this value is greater that 5mm.
| Section-A |
|
Section-C | Section-D | Section-E | ||
| L-value | 10mm | 9.949mm | 0.113mm | 2.8887mm | 5.9973mm | |
| a-value | 44.7477mm | 29.9843mm | 38.1098mm | 42.7147mm | 48.0012mm |
CONCLUSION:-
1-As per europian safety regulation standerd.from above table we can conclude that section value (L-value) at B,C,D & E does not meet an europian safety regulation as its values are less that 10mm.for wheel arch requirement.
2-As per europian safety regulation standerd.from above table we can conclude that section value (a-value) at A,B,C,D & E meets an europian safety regulation as its values are greater than is 5mm.for wheel guard requirement.
JAPAN WHEEL ARCH REGULATION REQUIREMENT:-
The L & a-Value at 30*forward and 50*rearward and 0* from the central vertical axis to axis of wheel from side view to be 5mm.
EUROPIAN WHEEL ARCH REGULATION REQUIREMENT:-
The L-Value at 30*forward and 50*rearward & At 150mm Bisecting distance from centre to wheel arch with rearward 3-points from the central vertical axis to axis of wheel from side view to be 10mm. And the value of a to be more than 5mm at a line of 30*forward & 50* rearward from the central vertical axis of the wheel
USA WHEEL ARCH REGULATION REQUIREMENT:-
The L-Value at -10*from centre to wheel arch with rearward from the central vertical axis to axis of wheel from side view At every 10* increament to be wheel.
if fender is made for a vehicle which will going to run on JAPAN,EUROP, & USA roads then L and a Values kept to satisfty requirement need of safety wheel requirement for above countries.
