Week 8 - Challenge 4 - Bumper

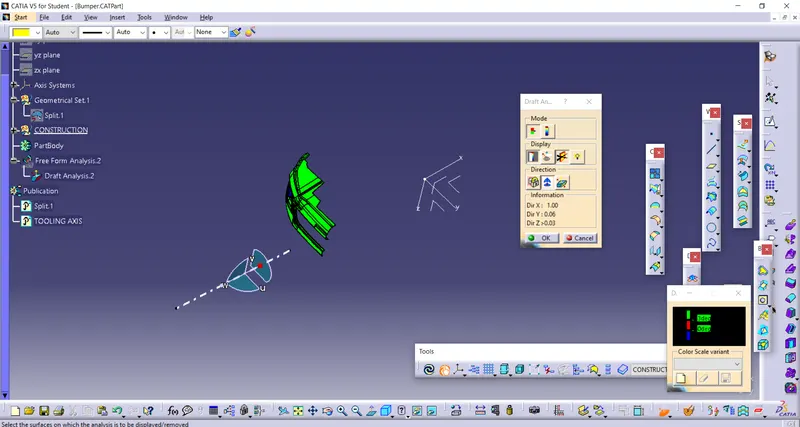

Screenshots of the Draft analysis report for both the given Class-A surface:

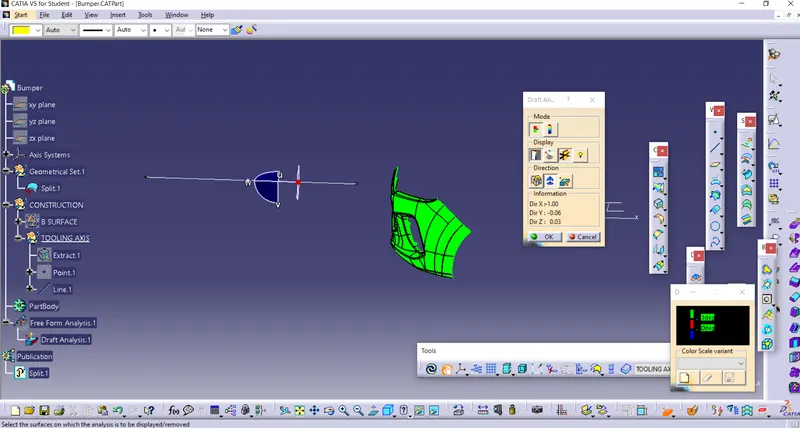

Tooling Axis taken here using the surface extracted from one of the face and a point created with zero coordinate on that surface.

now a line created normal to surface through point and it is the tooling axis.

using this tooling axis I did the draft analysis and class A surface is coming in green color.

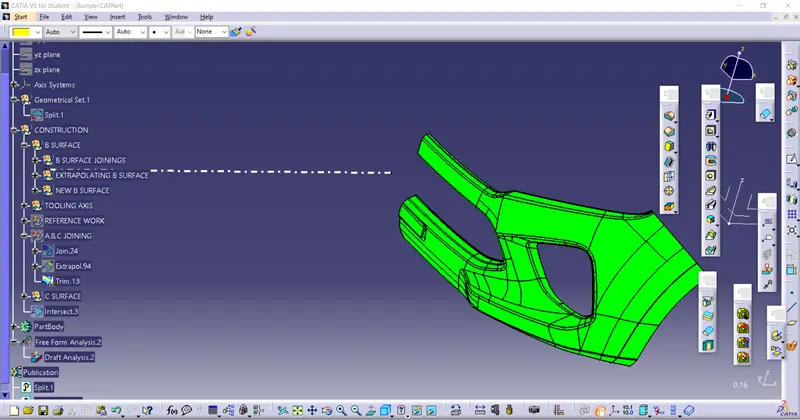

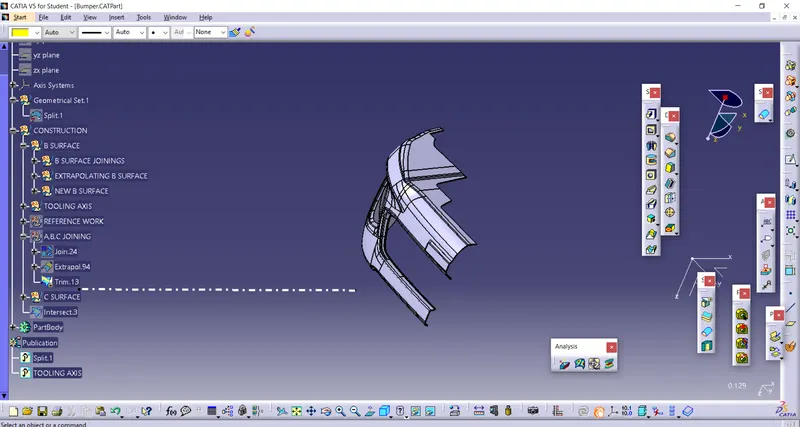

The final output of the DOOR TRIM of the A,B,C surfaces after Joining.

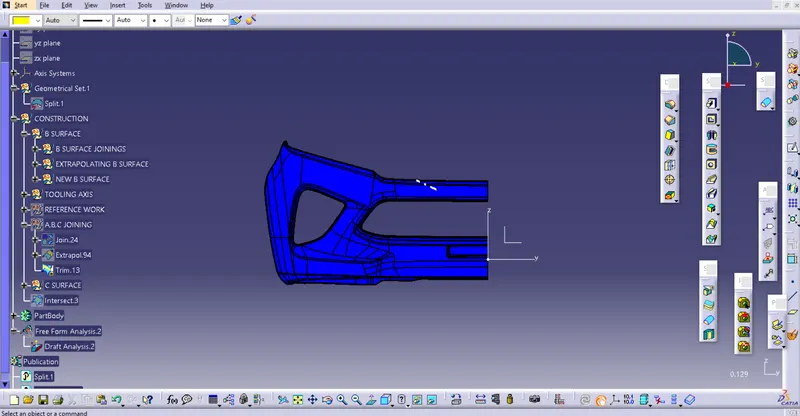

Final Bumper part body:

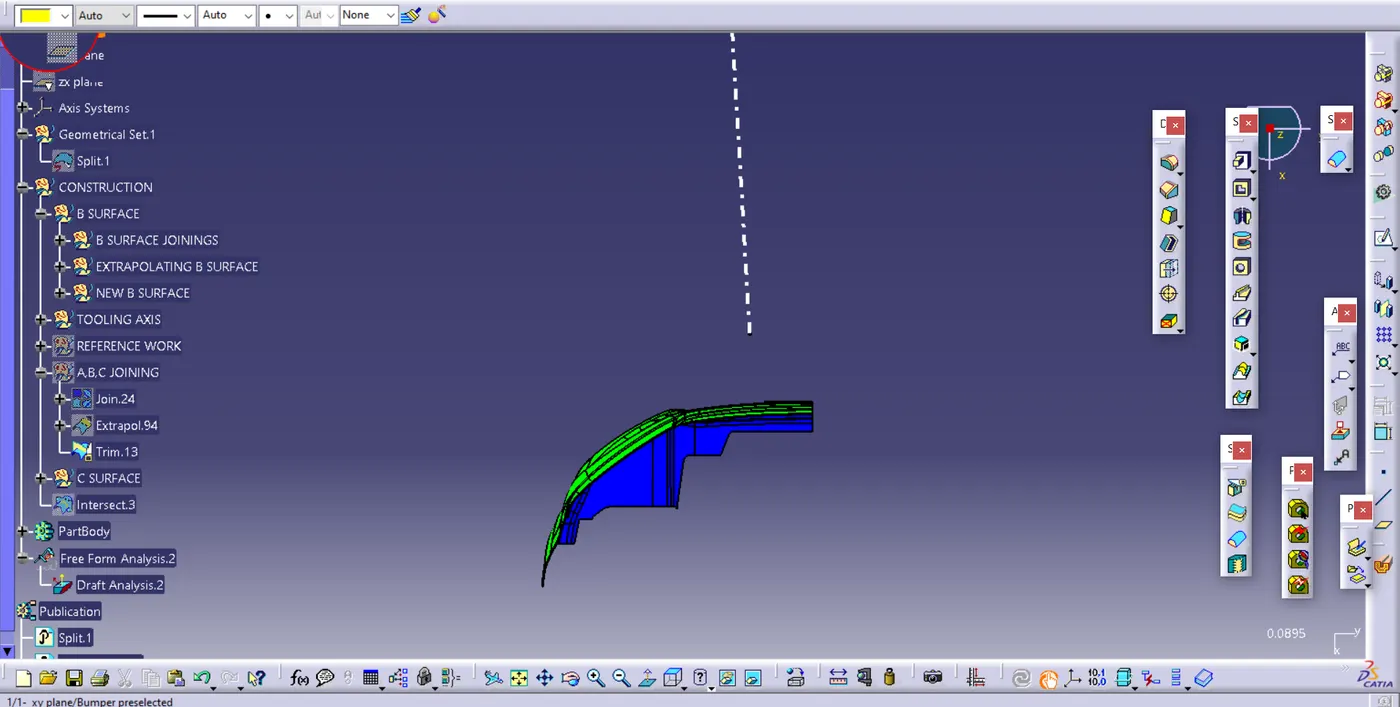

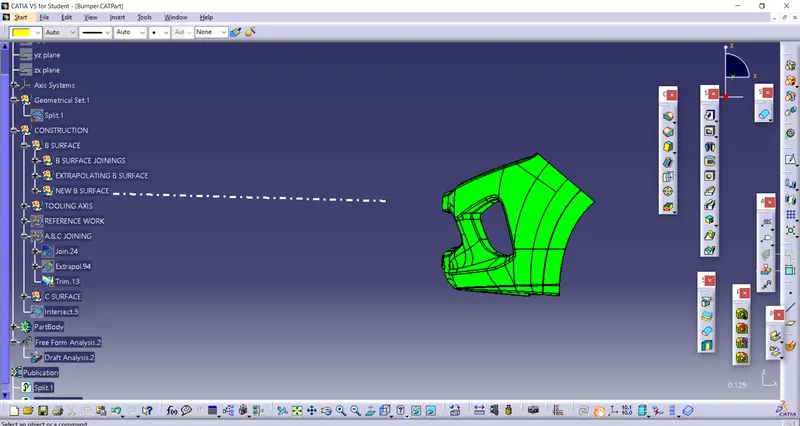

The Final part body Draft analysis using Tool axis given below.

• Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
