Week 8 - Challenge 4 - Bumper

The Draft analysis report for the given Class-A

The Draft analysis report for final plastic component

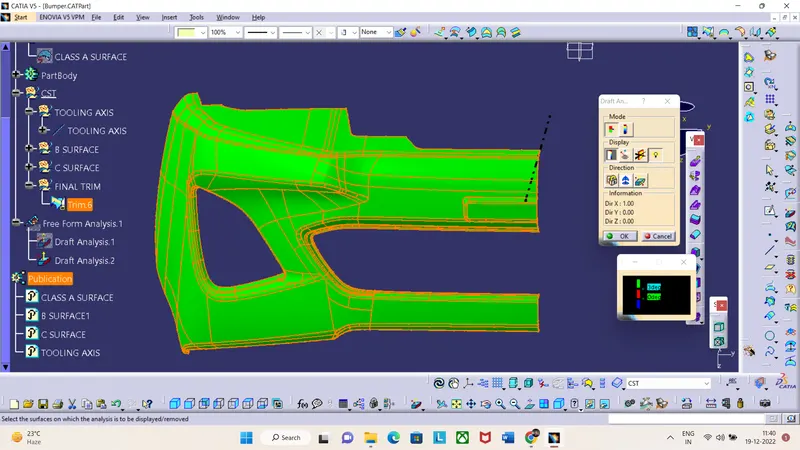

The solid model with the proper color code of the draft angle

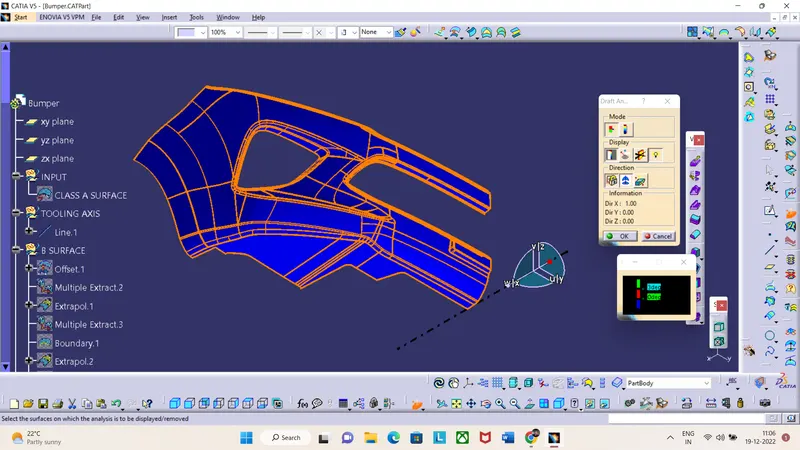

ISOMETRIC VIEW

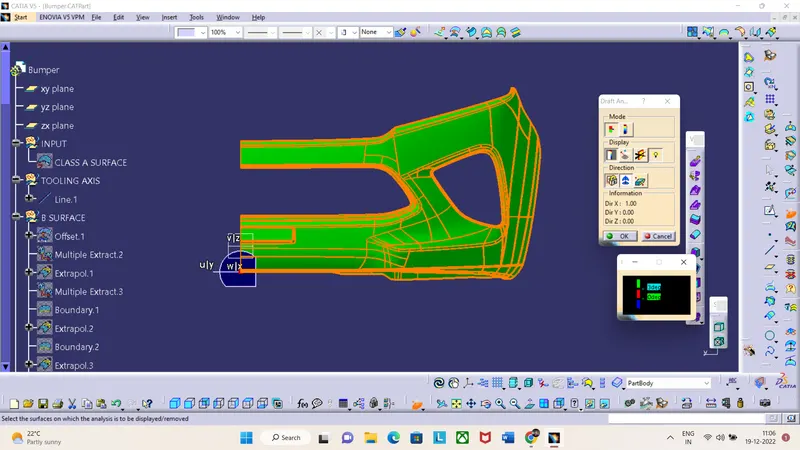

FRONT VIEW

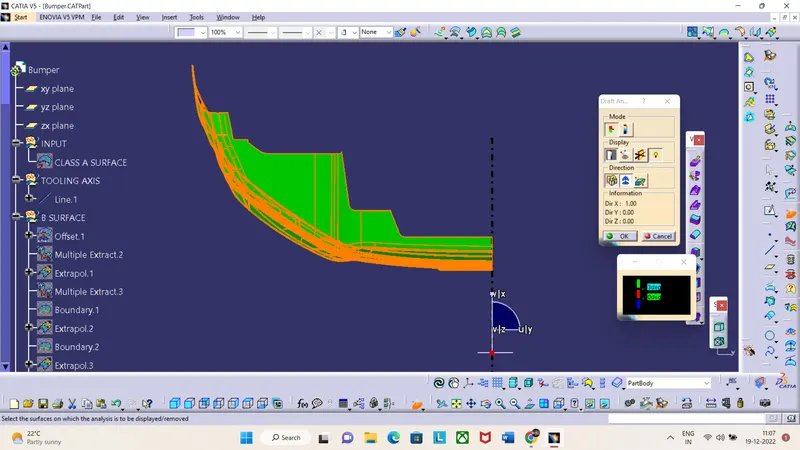

SIDE VIEW

TOP VIEW

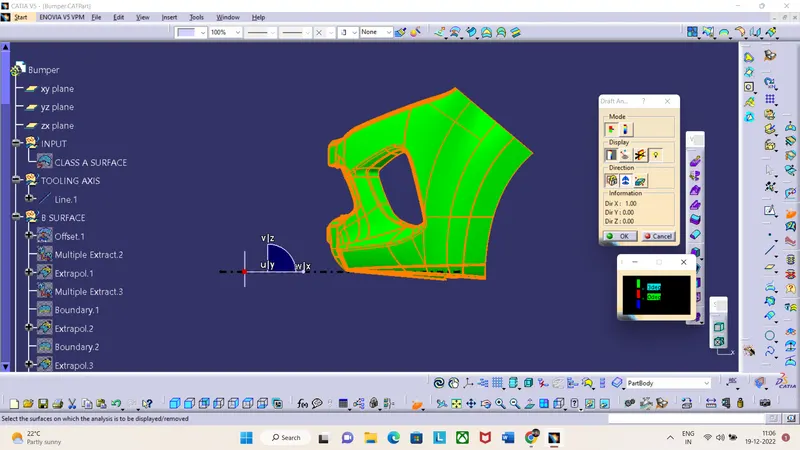

The draft analysis

The steps to follow for draft analysis are:

Select the draft analysis.

Select the quick analysis mode.

Select the compass to the tooling axis.

After that click anywhere on the Class A surface.

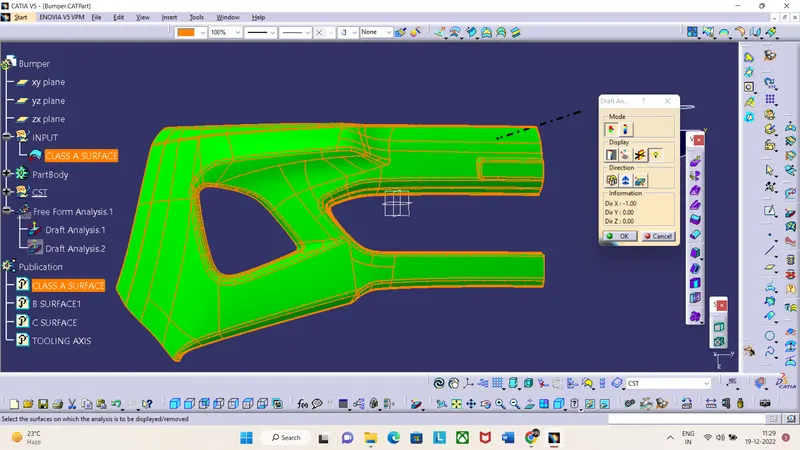

A window popup and we can observe there 3 different color variations which means that we have given a draft angle of 3 degree

The green color represents the draft is more than three degrees.

The blue color represents the draft is between 0 and 3 degrees.

The red color represents whether the draft is negative or less than three.

Tooling axis creation-

Creating the tooling axis.

The steps to follow for creating a tooling axis:

Open the file which contains the Class A surface, after creating a geometrical set "Tooling Axis" then select the most appropriate position which can clear the part in one short for manufacturing.For the given component i have created line

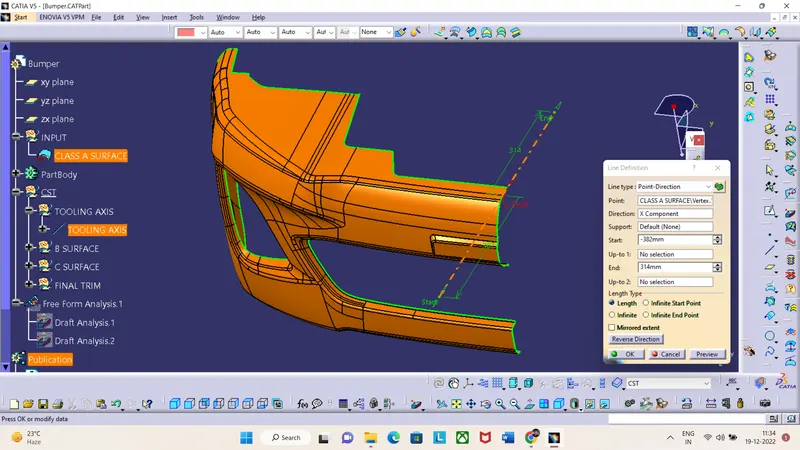

using point direction and extend the line very well.As shown in the screen shot.
