Week 8 - Challenge 4 - Bumper

BUMPER

CLASS A

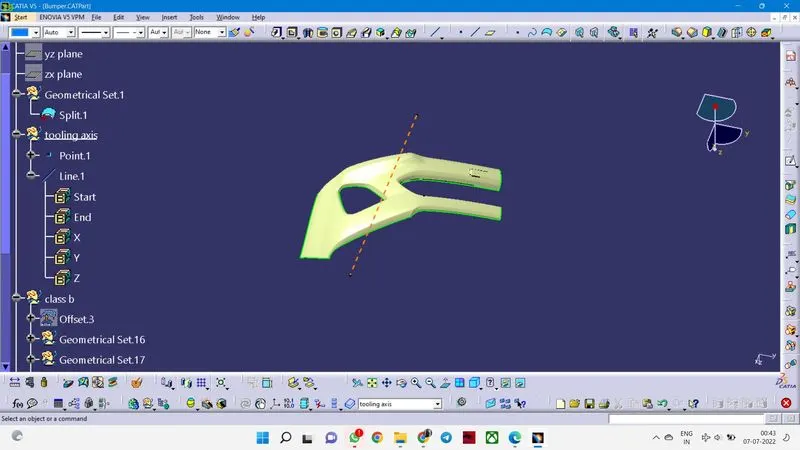

set the tooling axis and check it with Draft Analysis

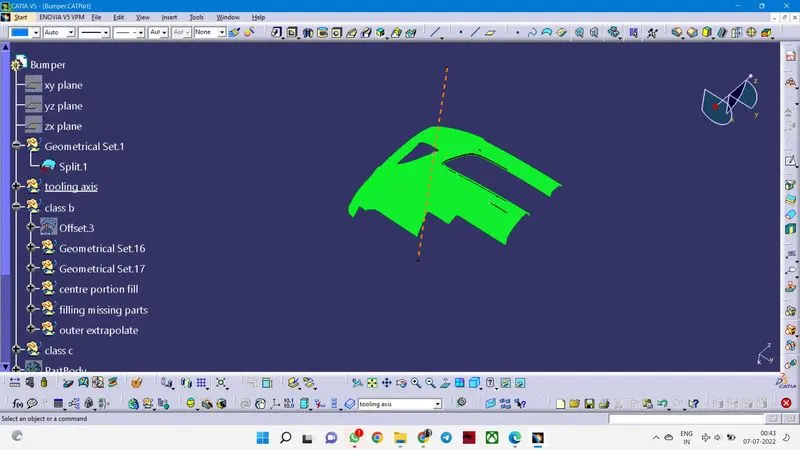

we used offset to get CLASS B from CLASS A

There were many missing elements

by using different sweep and multi-section methods, I solved it.

join and multisection tools are used mostly in these stages.

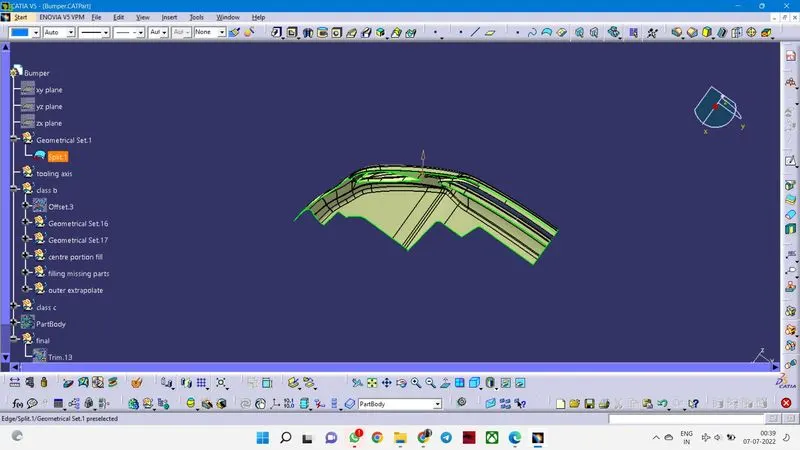

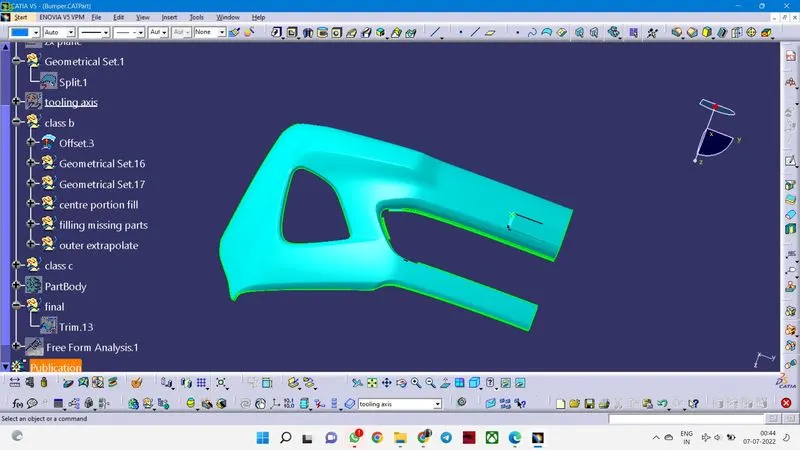

Finished CLASS B

START TO CREATE CLASS C

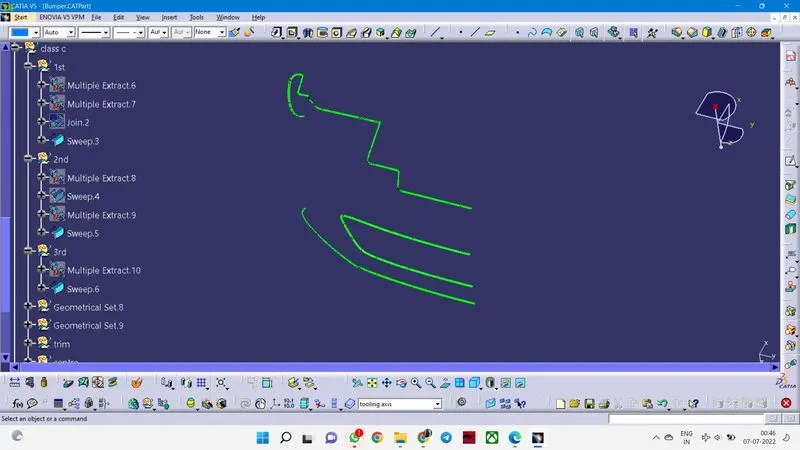

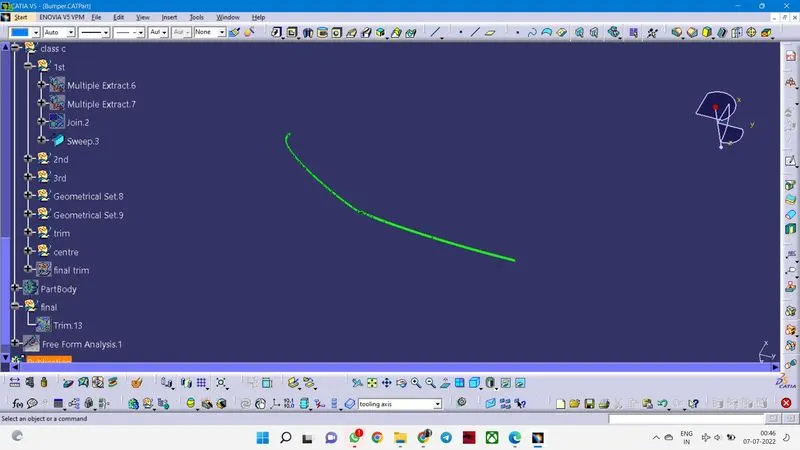

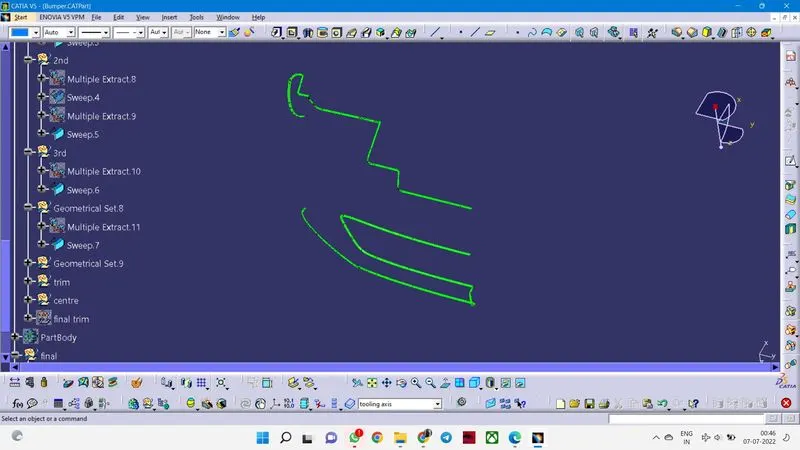

BY USING MULTIPLE EXTRACT , SWEEP, JOIN, AND TRIM     ,  I CREATED THE OUTER REGION OF CLASS C

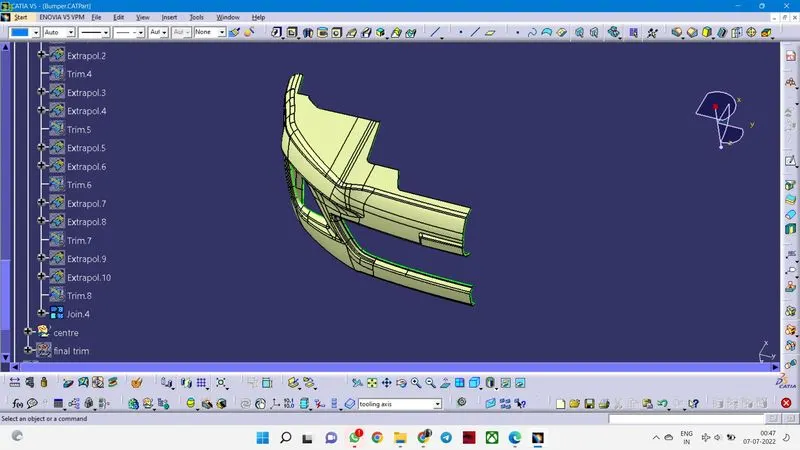

JOINED THESE WITH CLASS A AND CREATED CLASS C

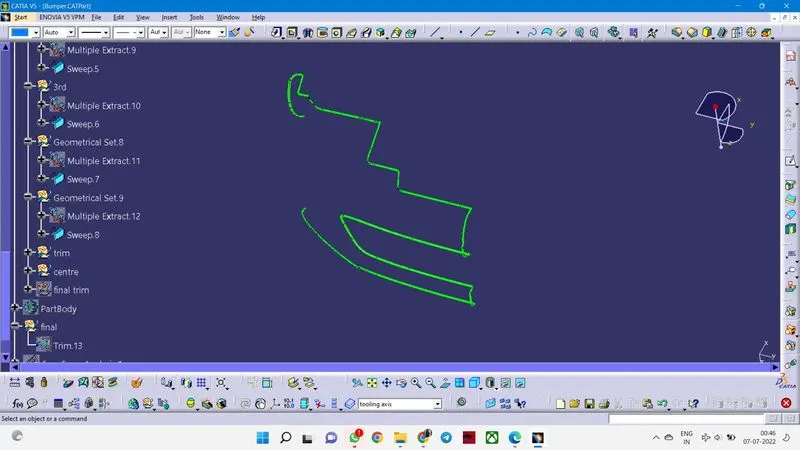

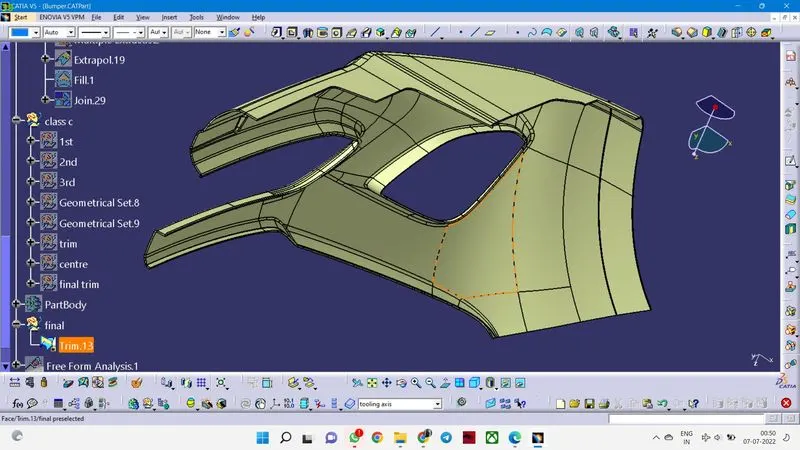

TRY TO TRIM CLASS C WITH CLASS B

BUT FACED SOME ISSUES

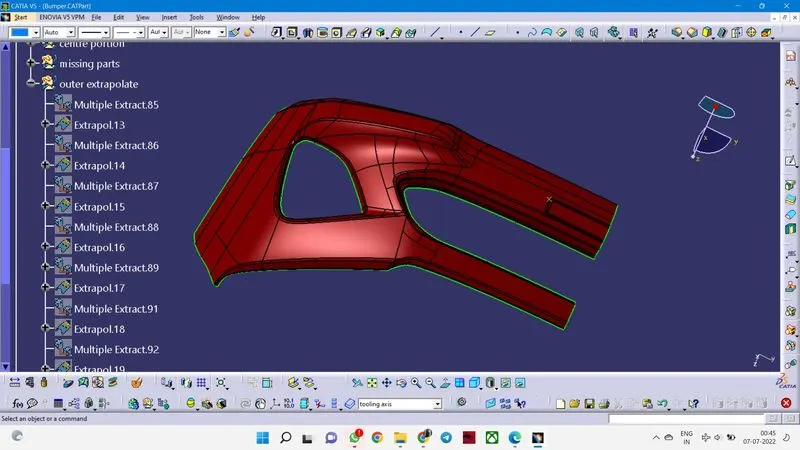

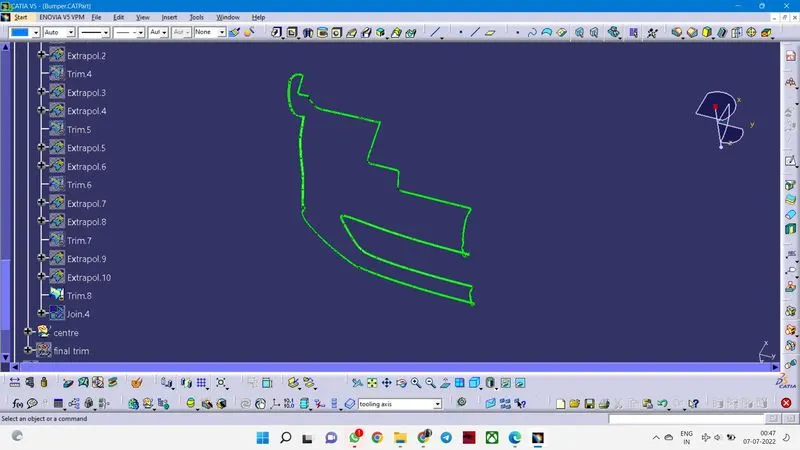

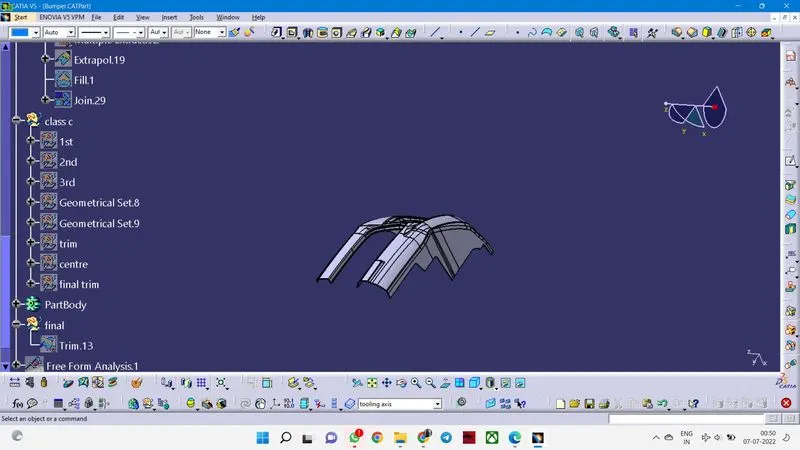

THEN, EXTRAPOLATE THE CLASS B

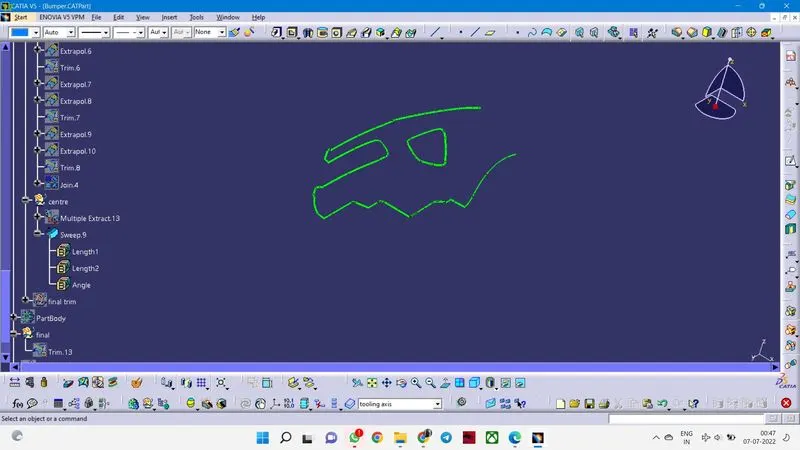

THEN TRIM IT WITYH CLASS C

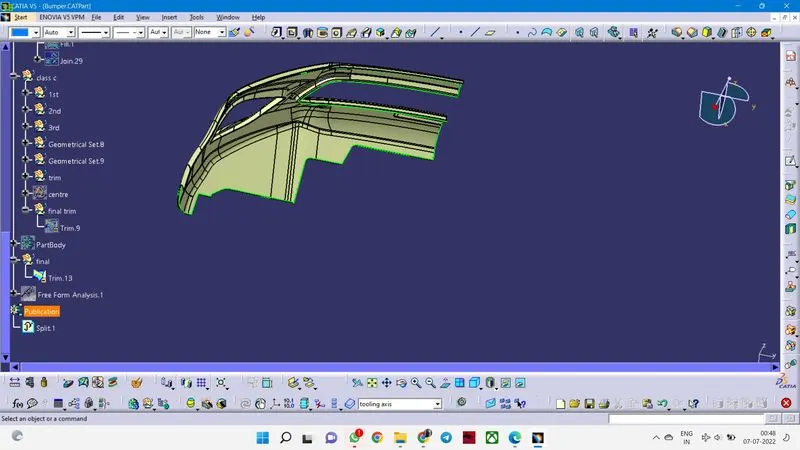

CLOSE SURFACE

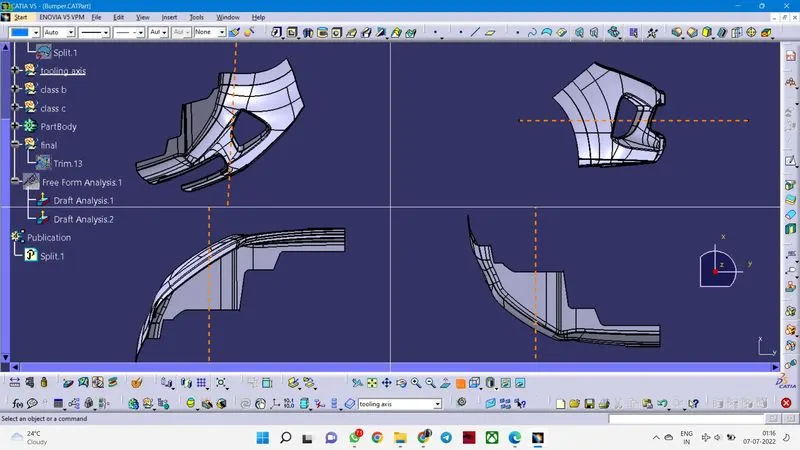

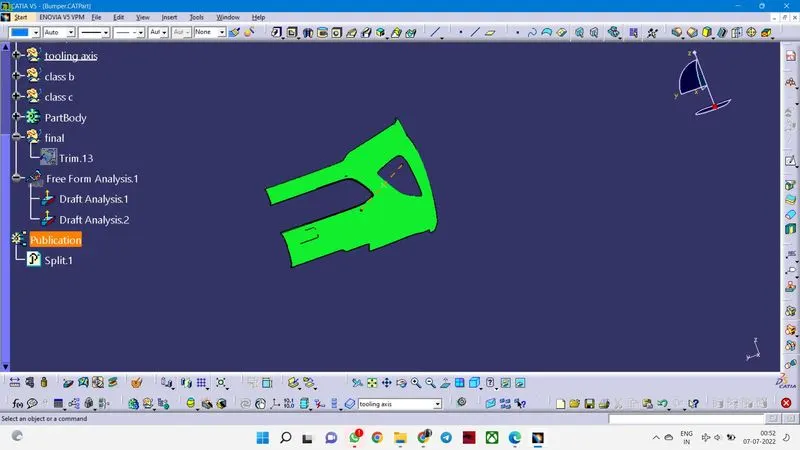

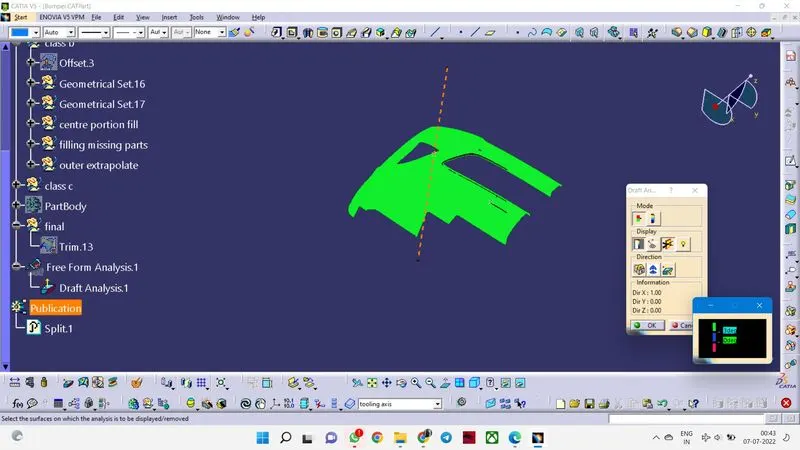

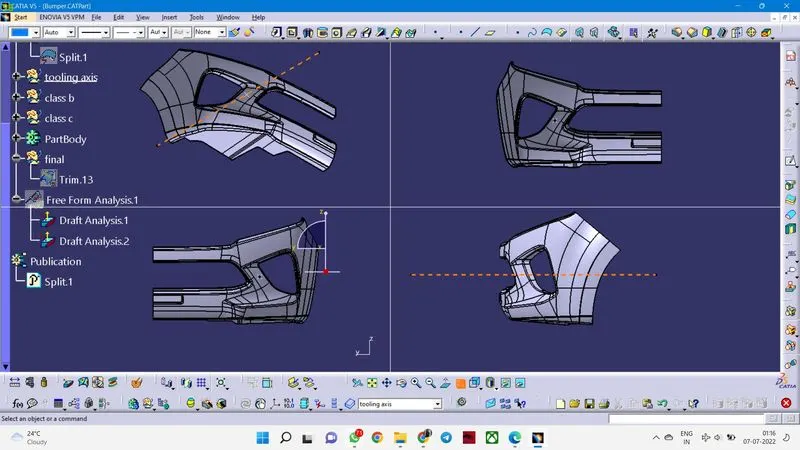

DRAFT ANALYSIS OF CLOSE SURFACE
